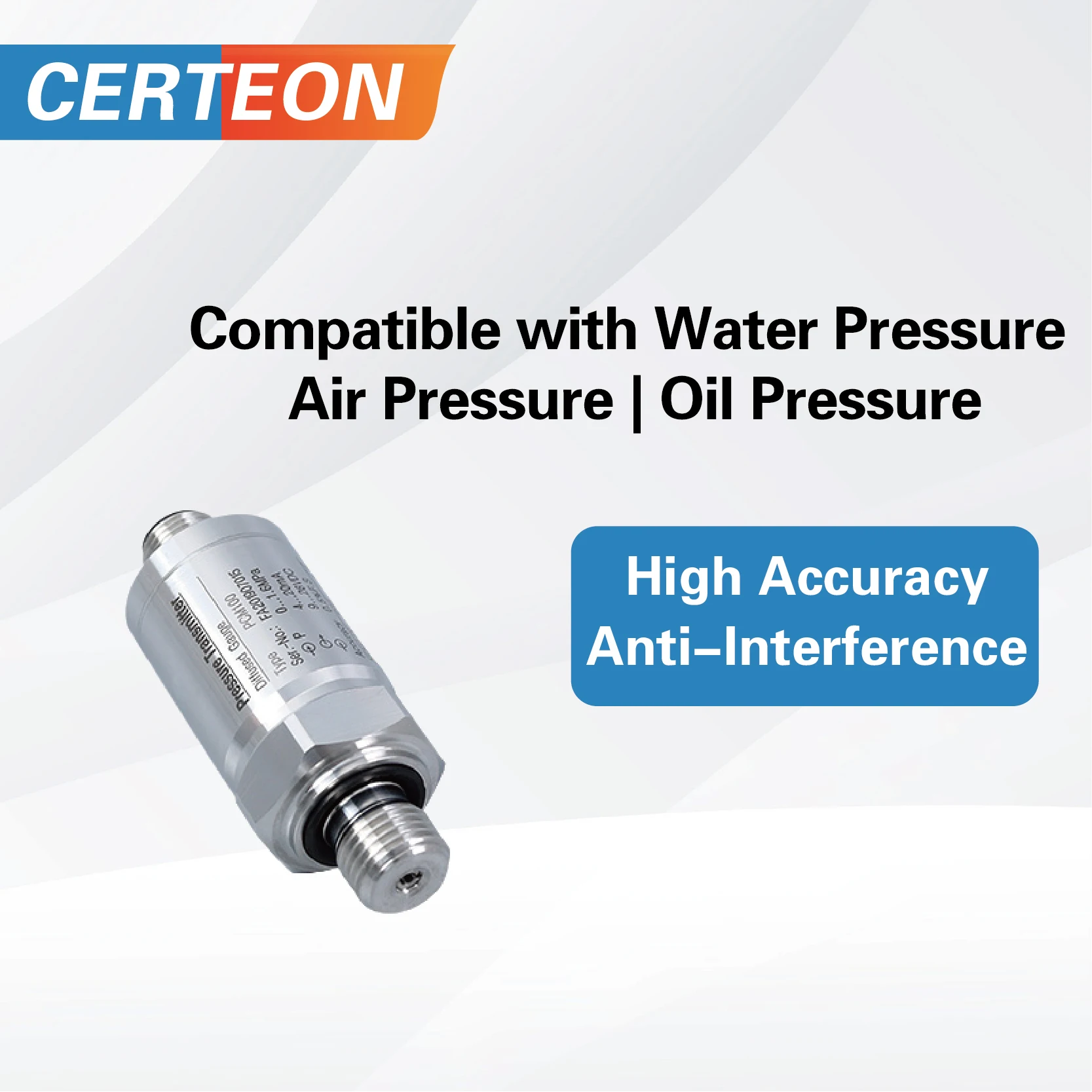

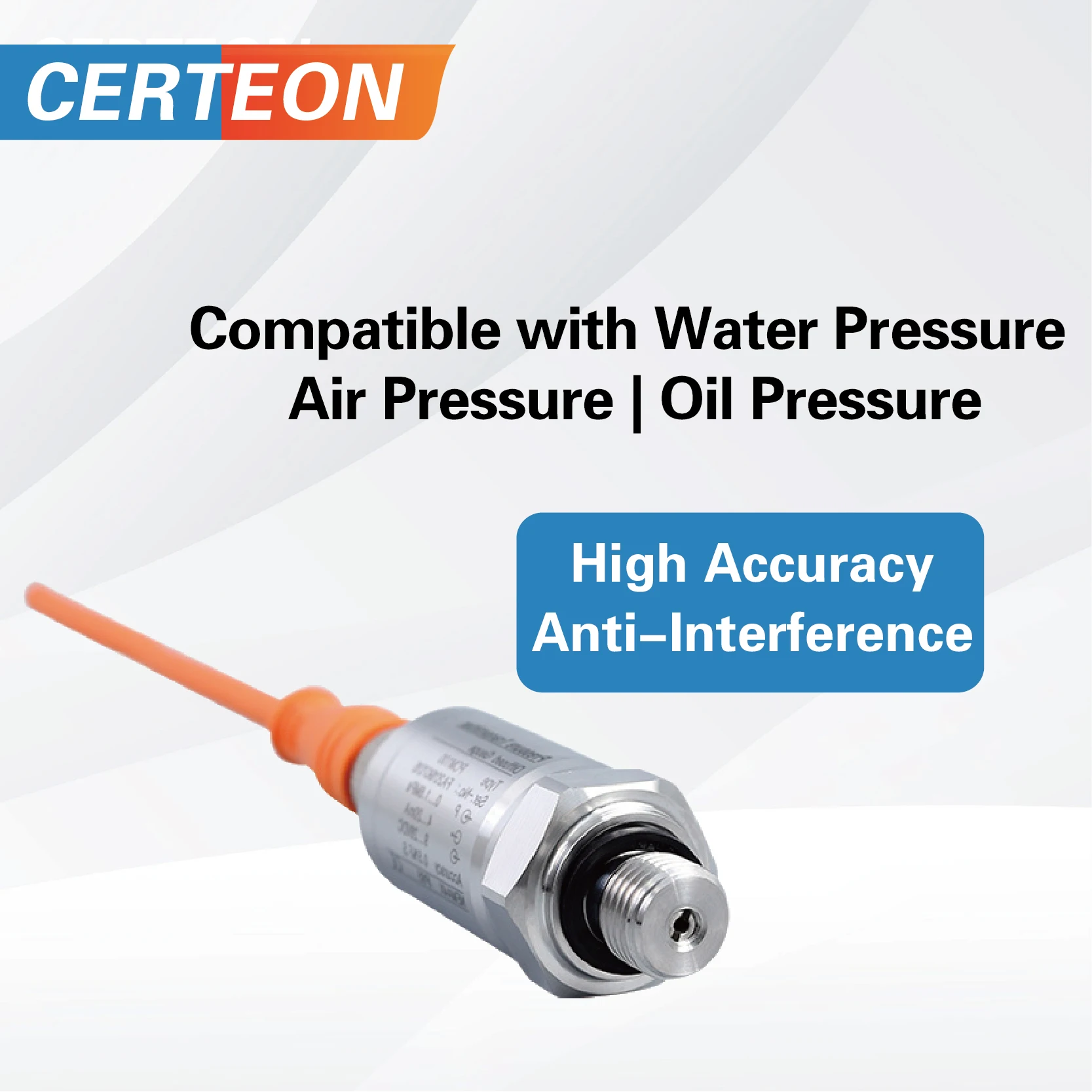

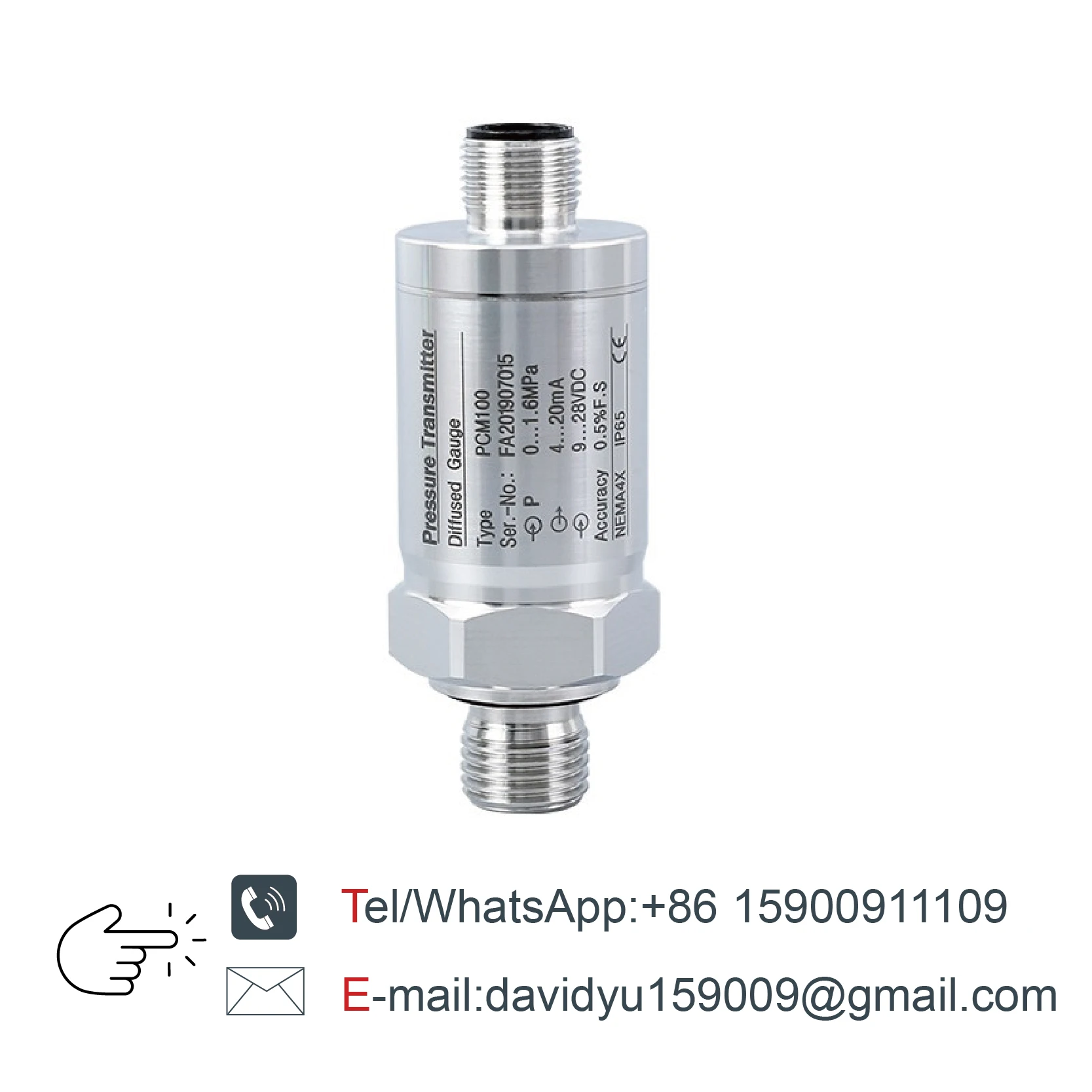

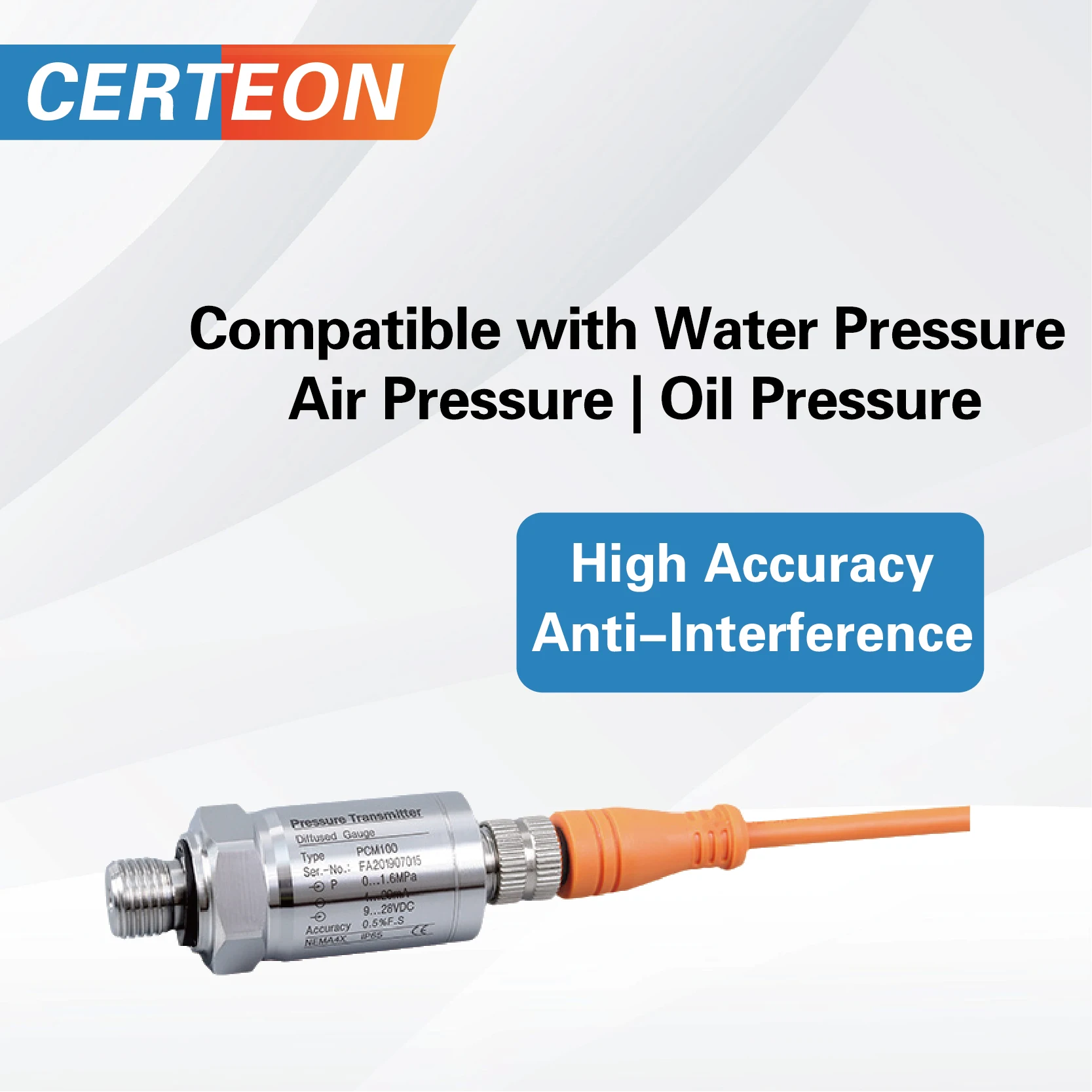

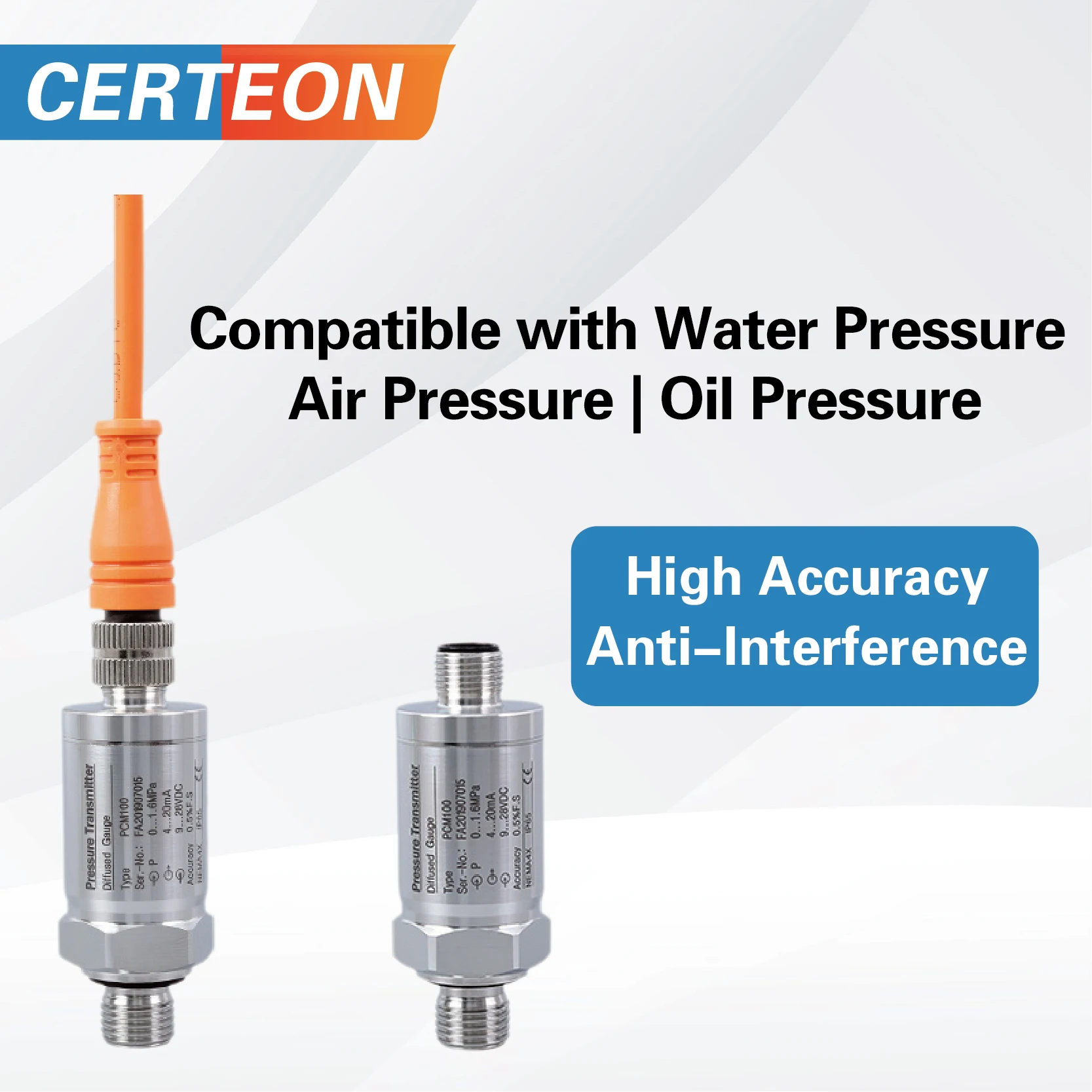

Pressure Transmitter 4-20mA Industrial Sensor M12 Connector IP67 Hydraulic Oil Air Monitoring

Product Features

This pressure transmitter with a 4-20mA output is an industrial sensor from Mainland China. It has an M12 connector and IP67 protection for hydraulic oil and air monitoring.
With a pressure range of-100~700kPa to 70MPa (optional), it can meet various industrial needs. The gauge pressure type is the default option.
The output signal options include 4-20mA (default), 0-5V, 0.5-4.5V, 0-10V, and RS485. It has a power supply of 9~24VDC.
With an accuracy of 0.5%FS (typical) and 0.2%FS, it provides reliable data. The compensated temperature range is-10°C ~ 70°C.
This pressure transmitter is suitable for industrial applications. It has various thread options and an electrical interface of Hirschmann or M12 industrial plug.

Specifications

Hign-concerned Chemical

None

Model

PCM100

Pressure Range

-100~700kPa to 70MPa (optional)

Pressure Type

Gauge (default), Absolute, Sealed

Output Signal

Output Signal 4-20mA (default), 0-5V, 0.5-4.5V,0-10V,RS485

Power Supply

9~24VDC

Accuracy

0.5%FS (typical), 0.2%FS

Compensated Temp

-10°C ~ 70°C

Operating Temp.

-20°C ~ 80°C

Thread Options

G1/4, NP1/4, M14X1.5

Electrical Interface

Hirschmann, M12 industrial plug

Description
