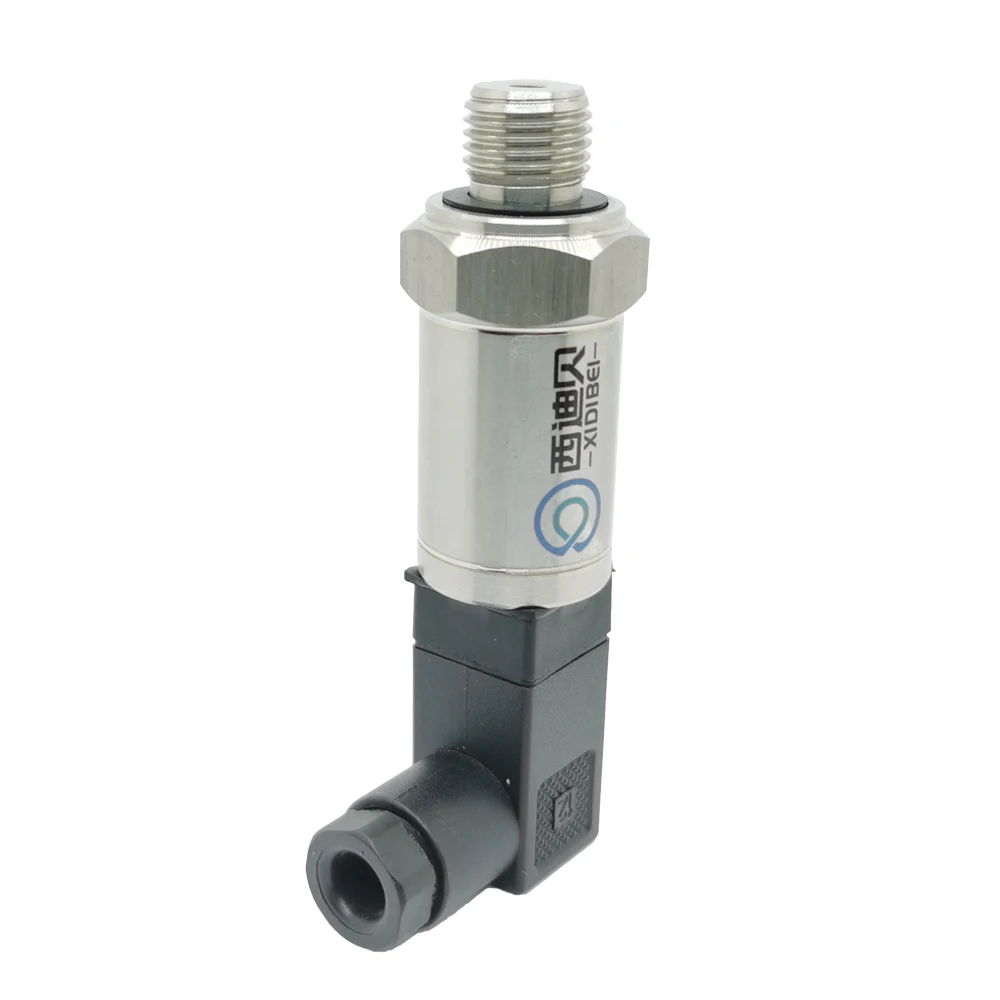

water oil fuel gas air pressure transmitter G1/4 12-36V 4-20mA 0-600bar optional stainless steel pressure transducer sensor pressure sensor

★ ★ ★ ★ ★
Reviews | Questions & Answers
AU $148.25 ~ 162.27
Price includes 10% AU GST

Color :
Measuring Range :
Quantity
In Stock. Ships in 24 hours
Shipping: AU $0.00
Estimated Delivery on -
Secure Payment
Multiple payment options
Customer Service Guarantee
DOA Guarantee Missing/Wrong Items Guarantee Quality Guarantee No Reason Returns
Product Features
  • High precision with an accuracy of 1.0%FS, ensuring accurate pressure measurement. It can work in a wide temperature range of -40-105.
  • The supply voltage is 12-36VDC, providing stable power. The output signal is 4-20mA, which is easy to interface with other devices.
  • The measuring range is 0-600bar gauge pressure, suitable for various pressure applications. It also has a max measuring range of 400 Bar & Above.
  • The housing is made of 304 Stainless Steel, which is durable and corrosion-resistant. With a protection class of IP65, it is suitable for harsh environments.
  • It comes with a 1m paired cable and has explosion-proof and electromagnetism compatibility features. Certified with CE, it meets international standards.
Specifications
Brand Name
XIDIBEI
Battery Included
No
Hign-concerned Chemical
None
Max Measuring Range
400 Bar & Above
Model Number
XDB305
Measuring range
0-600bar gauge pressure
Supply voltage
12-36VDC
Output signal
4-20mA
Accuracy
≤±1.0%FS
Operating temperature
-40-105℃
Housing material
304 Stainless Steel
Pressure connection
G1/4 or other
Electrical connection
Hirschman DIN43650C
Protection class
IP65
Explosion-proof class
Exia2CT6
Electromagnetism Compatibility
EN50051-1
Paired cable
1m
semi_Choice
yes
