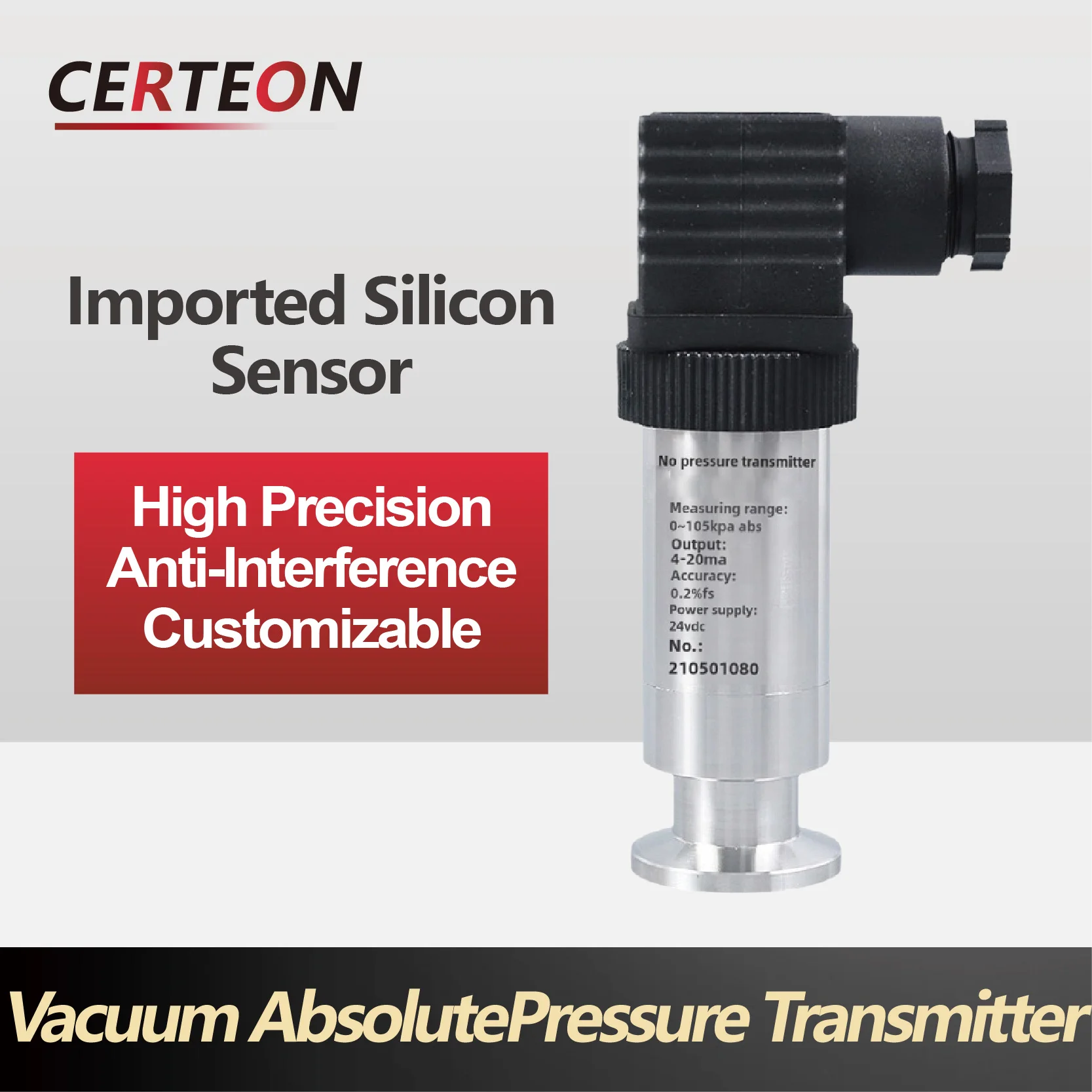

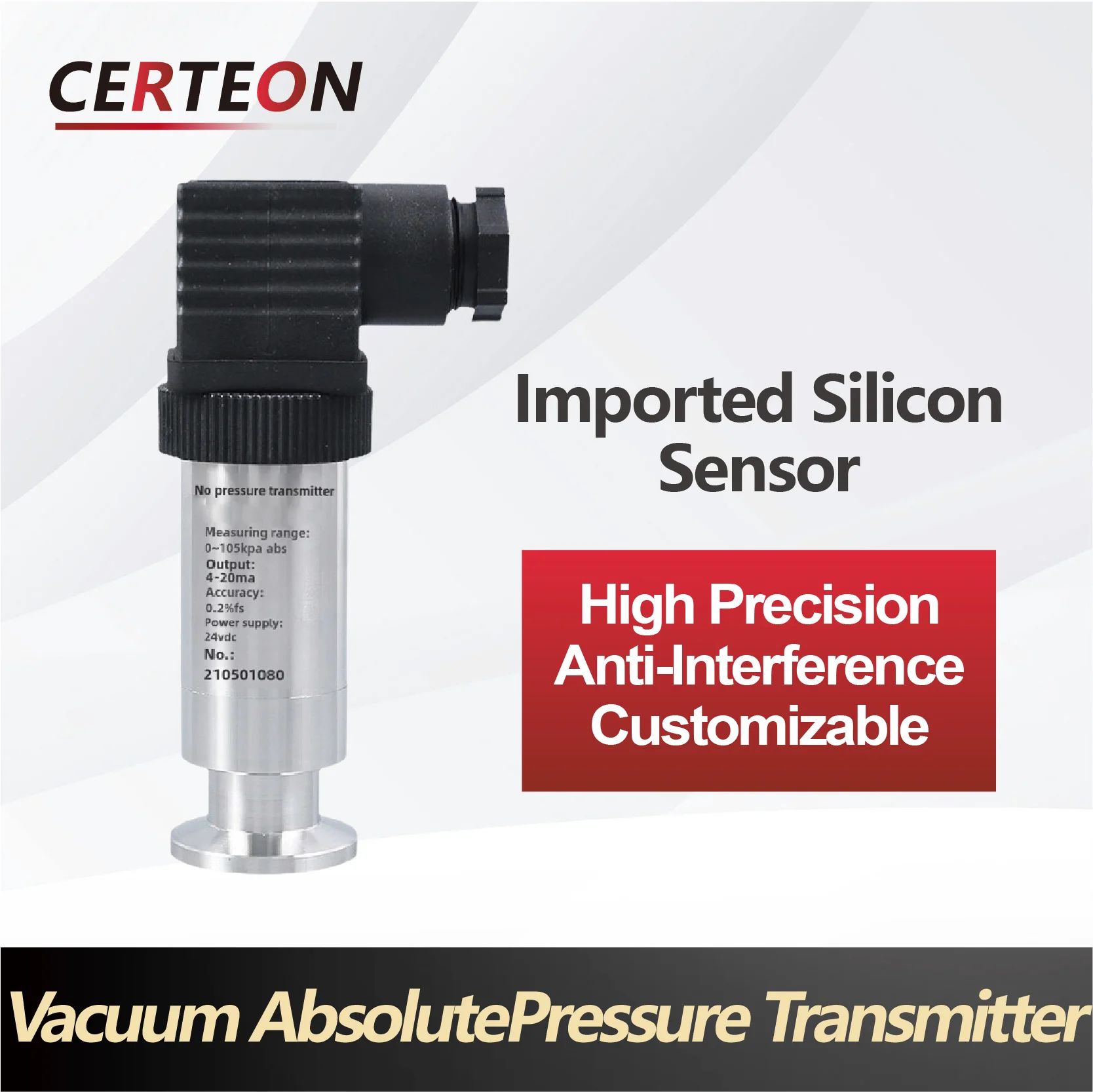

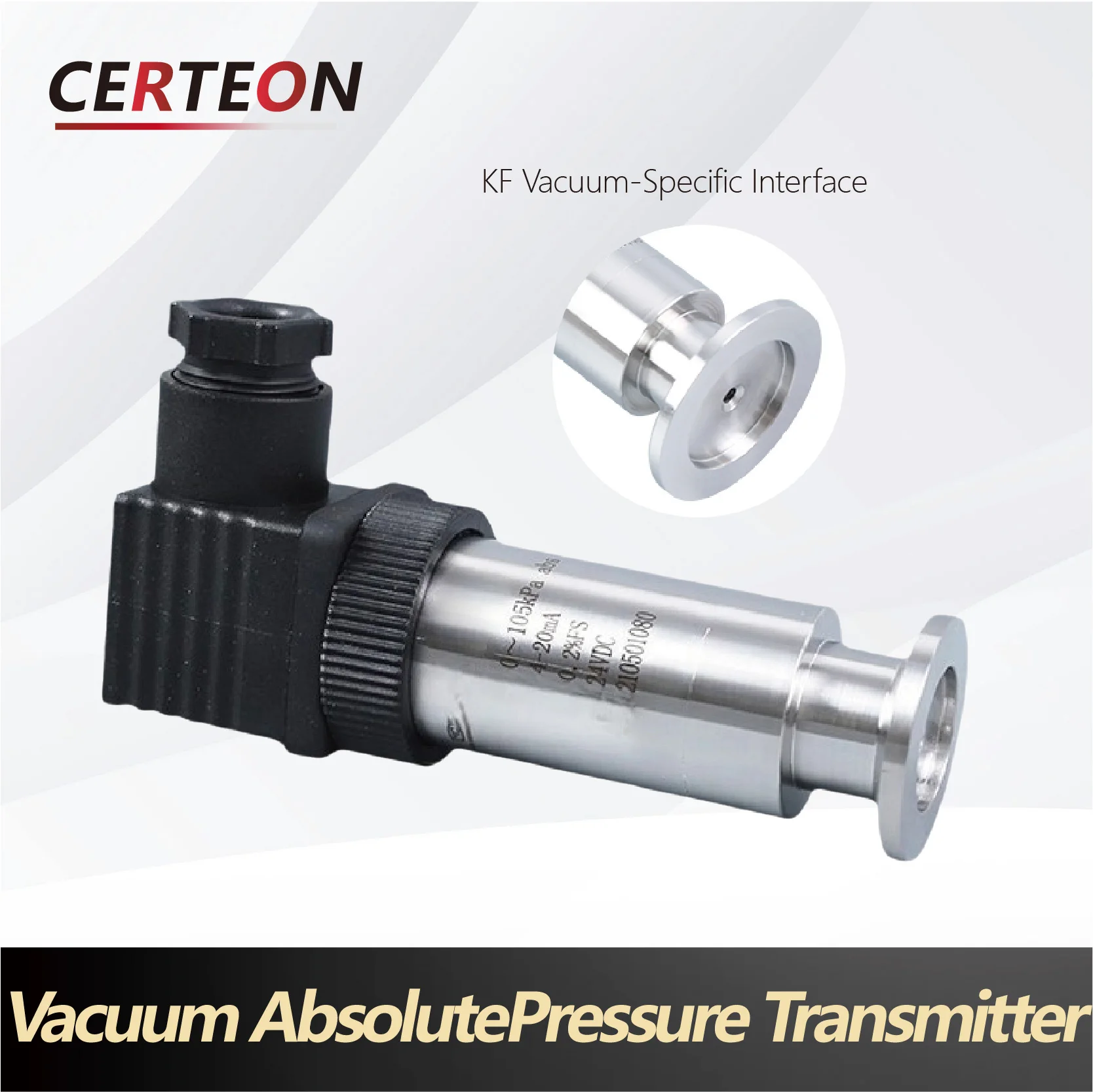

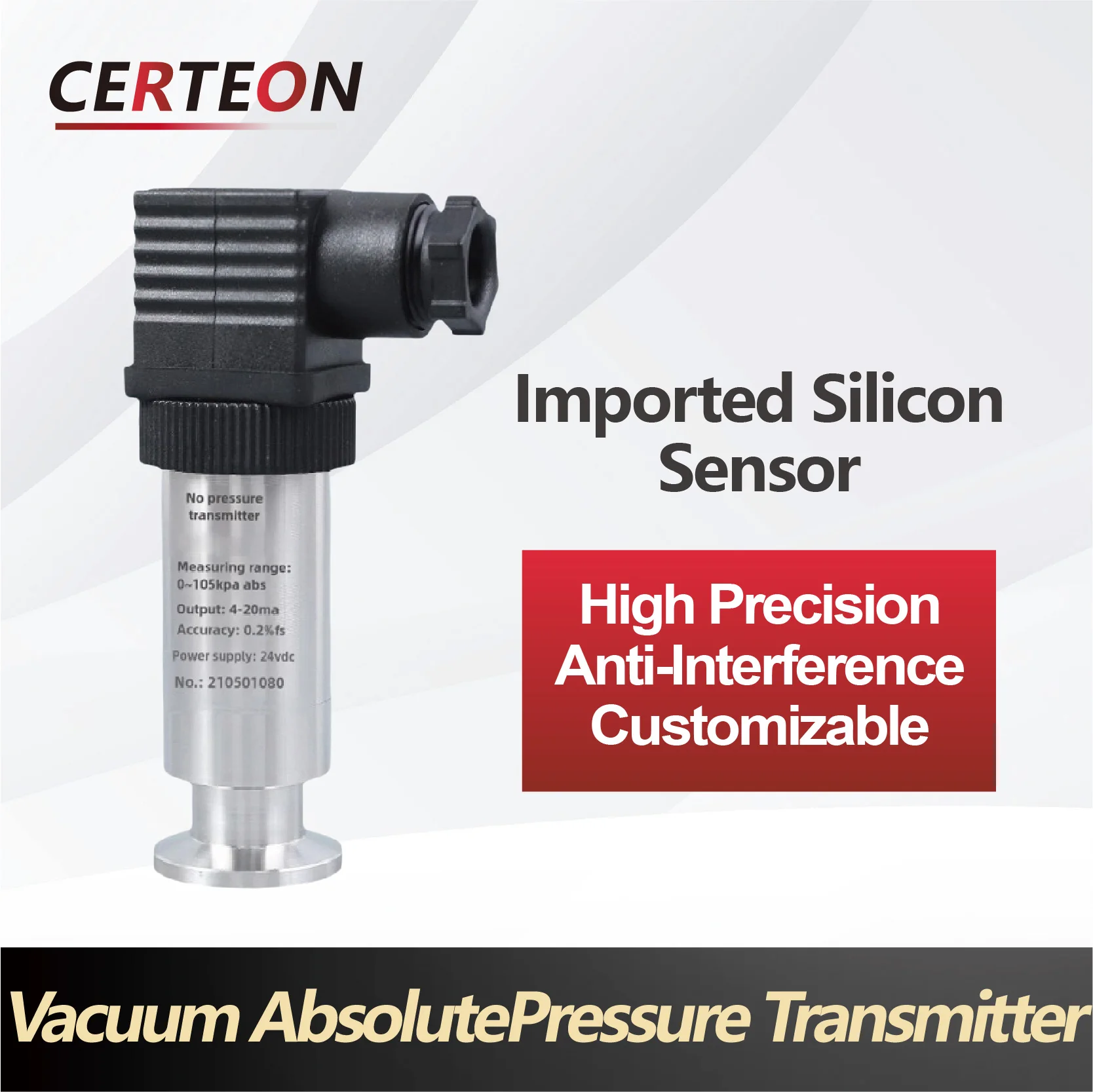

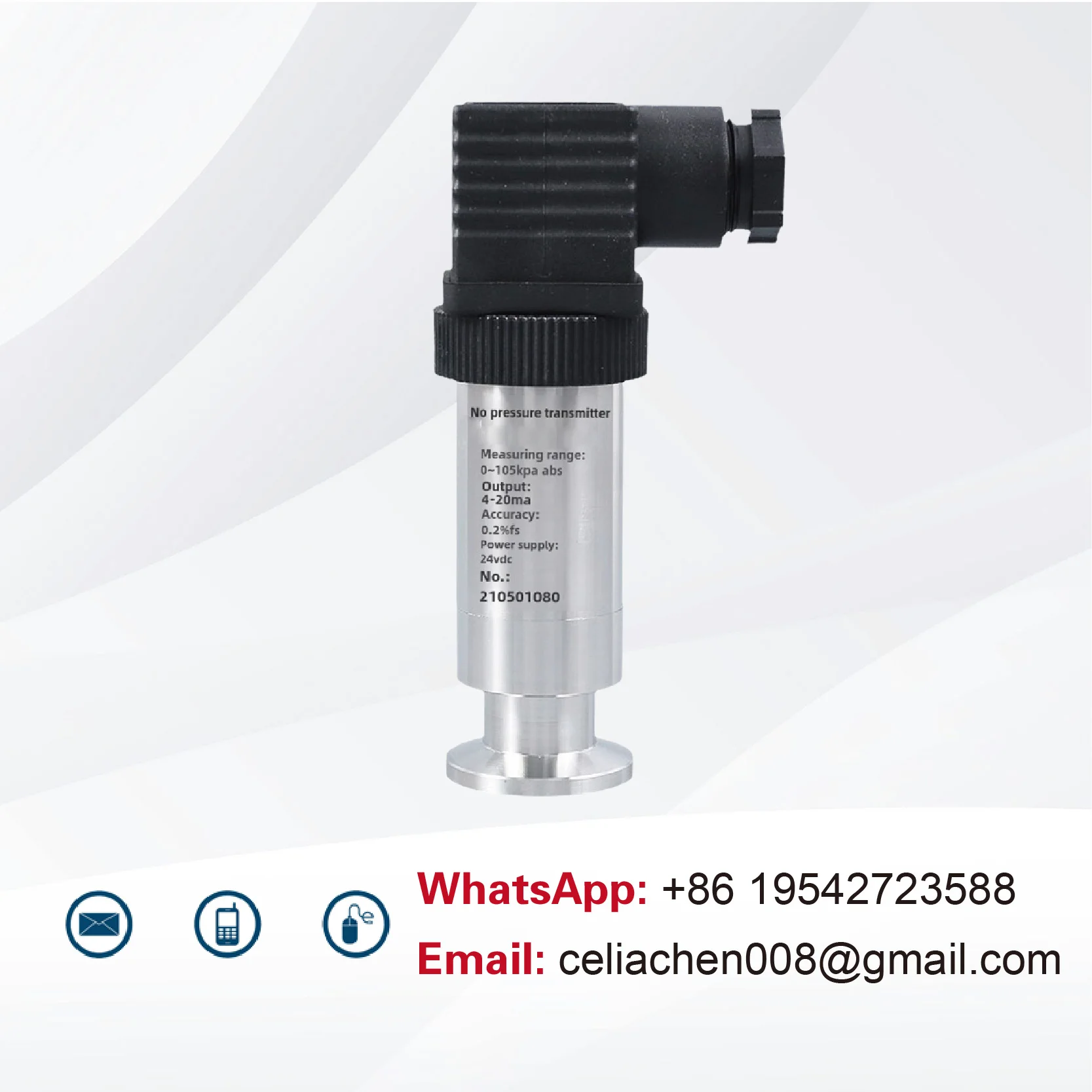

Pressure Sensor Vacuum Pressure Transmitter KF16 4-20mA 0-10V RS485 Absolute Pressure Sensor High Precision Industrial Vacuum Gauge

Product Features

This pressure sensor vacuum pressure transmitter, with KF16 interface, offers high-precision measurement of absolute pressure, suitable for industrial applications.
It has a wide pressure range from-100kPa to 7MPa and supports multiple pressure types, including gauge and absolute pressure.
The output signals include 4-20mA, 0-5V, 0-10V, and 0.5-4.5V, providing flexibility for different systems.
With a high accuracy of up to 0.1%FS and a long-term stability of ≤0.2%FS/year, it ensures reliable and consistent performance.
It has a protection grade of IP65, making it suitable for use in harsh environments and ensuring its durability and reliability.

Specifications

Hign-concerned Chemical

None

Pressure Range

-100kPa...0~4kPa...7MPa

Pressure Type

Gauge, Absolute Pressure

Output Signal

4-20mA, 0-5V, 0-10V, 0.5-4.5V

Power Supply

9~24VDC (Typical), 5V

Accuracy

0.5%FS, 0.2%FS, 0.1%FS

Compensation

-10~70℃

Operating Temp

-20~80℃

Zero Temp Drift

0.5%FS (MAX)

Sensitivity Drift

0.5%FS (MAX)

Pressure Overload

≤1.5x

Mechanical Vibration

20G (20-5000Hz)

Sampling Frequency

200 times/second

Long-term Stability

≤0.2%FS/year

Protection Grade

IP65

Description

Pressure Sensor Vacuum Pressure Transmitter KF16 4-20mA 0-10V RS485 Absolute Pressure Sensor High Precision Industrial Vacuum Gauge
