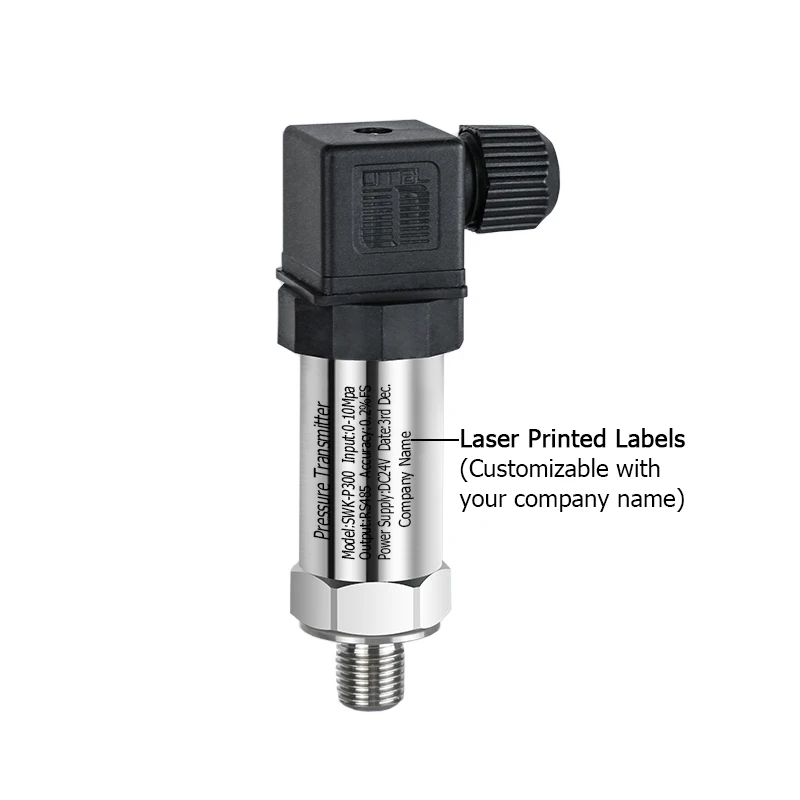

Pressure Transducer 4 20mA Water Gas Oil Liquid Pressure Sensor-1-0-1000bar 24VDC Positive Negative Vacuum Transmitter

Product Features

This pressure transducer is capable of measuring water, gas, and oil liquid pressure from -100Kpa to 0 to 100Mpa, with a maximum measuring range of 400 Bar & Above.
It offers multiple output options, including 4-20mA, 0-5V/10V, and RS485, and is powered by 12V-36VDC (default 24VDC).
With an accuracy of 0.2%F. S. and 0.5%F. S. (default) and a protection class of IP65, it ensures reliable and stable performance in various environments.
The transducer has a fast response time of ≤10ms and long-term stability of ≤0.2%FS/℃, making it suitable for precise pressure measurement.

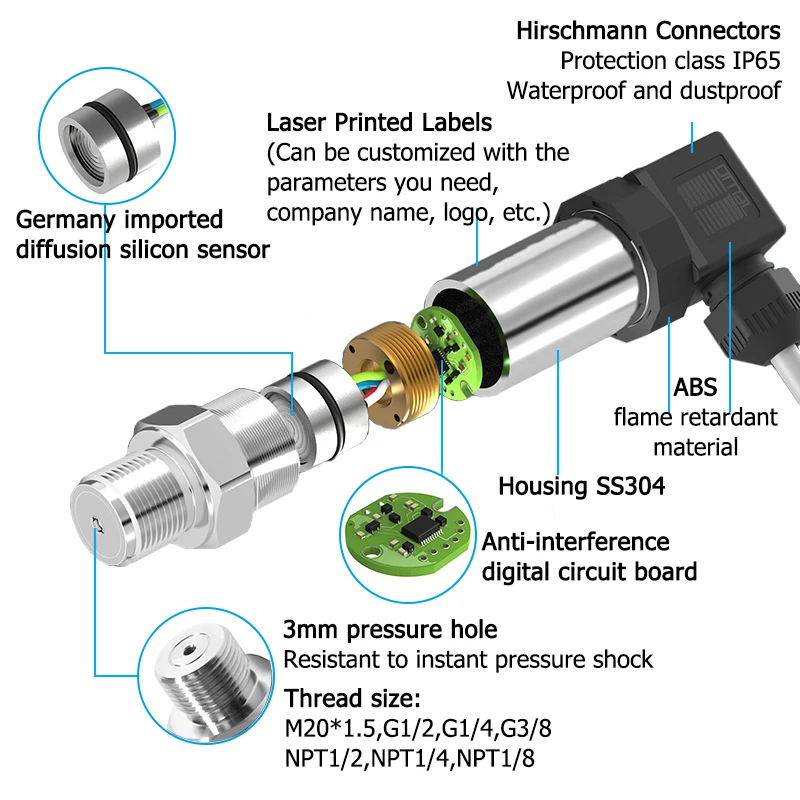

It comes with various thread sizes, such as M20*1.5, G1/2, G1/4, NPT1/2, and NPT1/4, and is certified with RoHS, ensuring quality and safety.

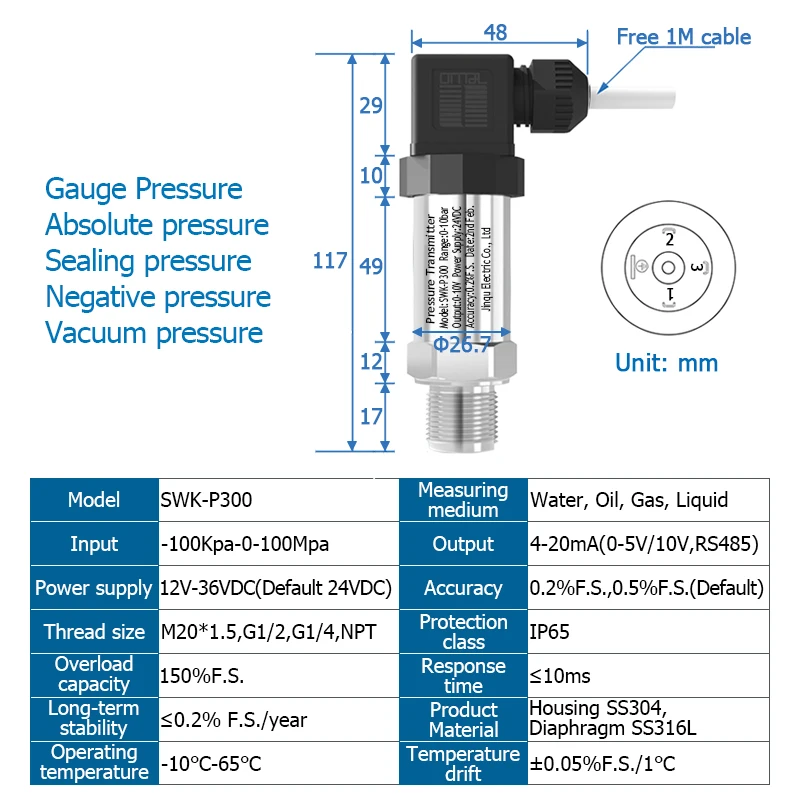

Specifications

Brand Name

SOWAKAM

Hign-concerned Chemical

None

Max Measuring Range

400 Bar & Above

Model Number

SW-P300

Measuring range

-100Kpa-0-100Mpa

Output

4-20mA,0-5V/10V,RS485

Power supply

12V-36VDC(Default 24VDC)

Thread size

M20*1.5,G1/2,G1/4,NPT1/2,NPT1/4

Accuracy

0.2%F.S.,0.5%F.S.(default)

Protection class

IP65

Response time

≤10ms

Long-term stability

≤0.2%FS/℃

Operating temperature

-10℃-65℃
