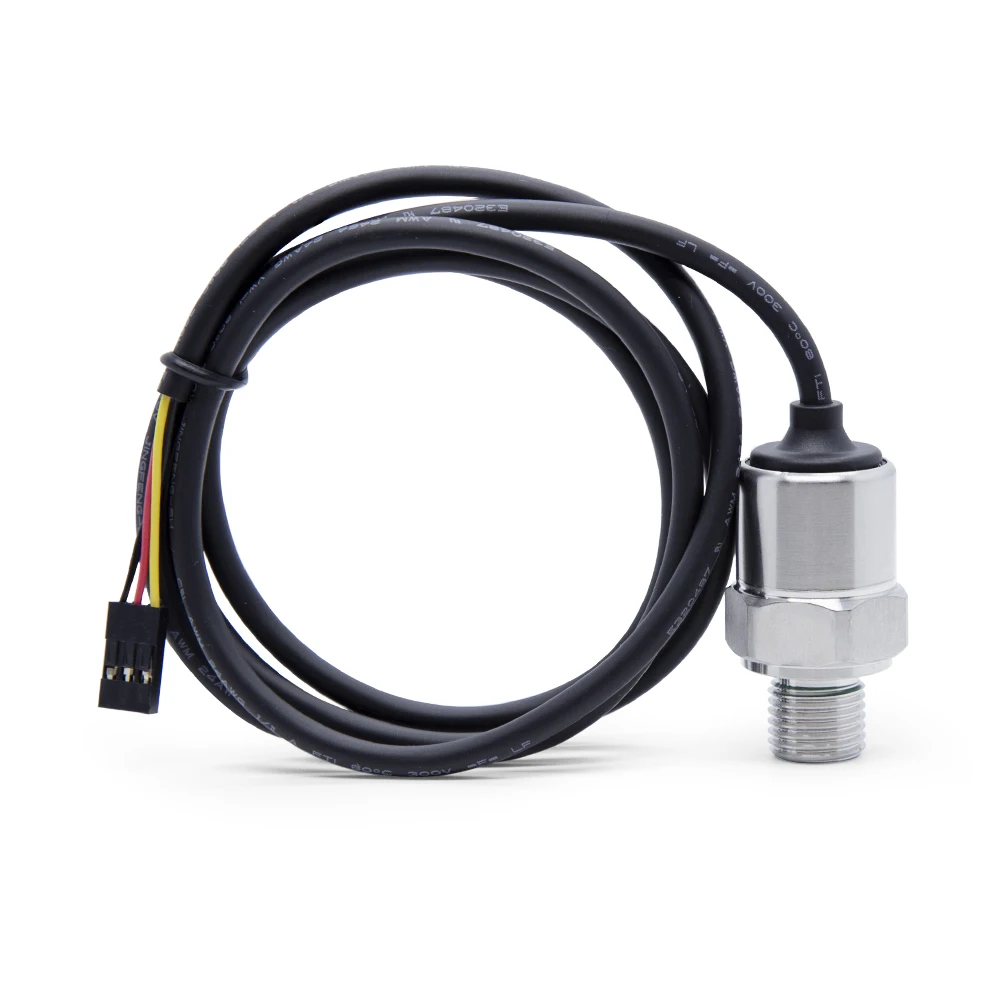

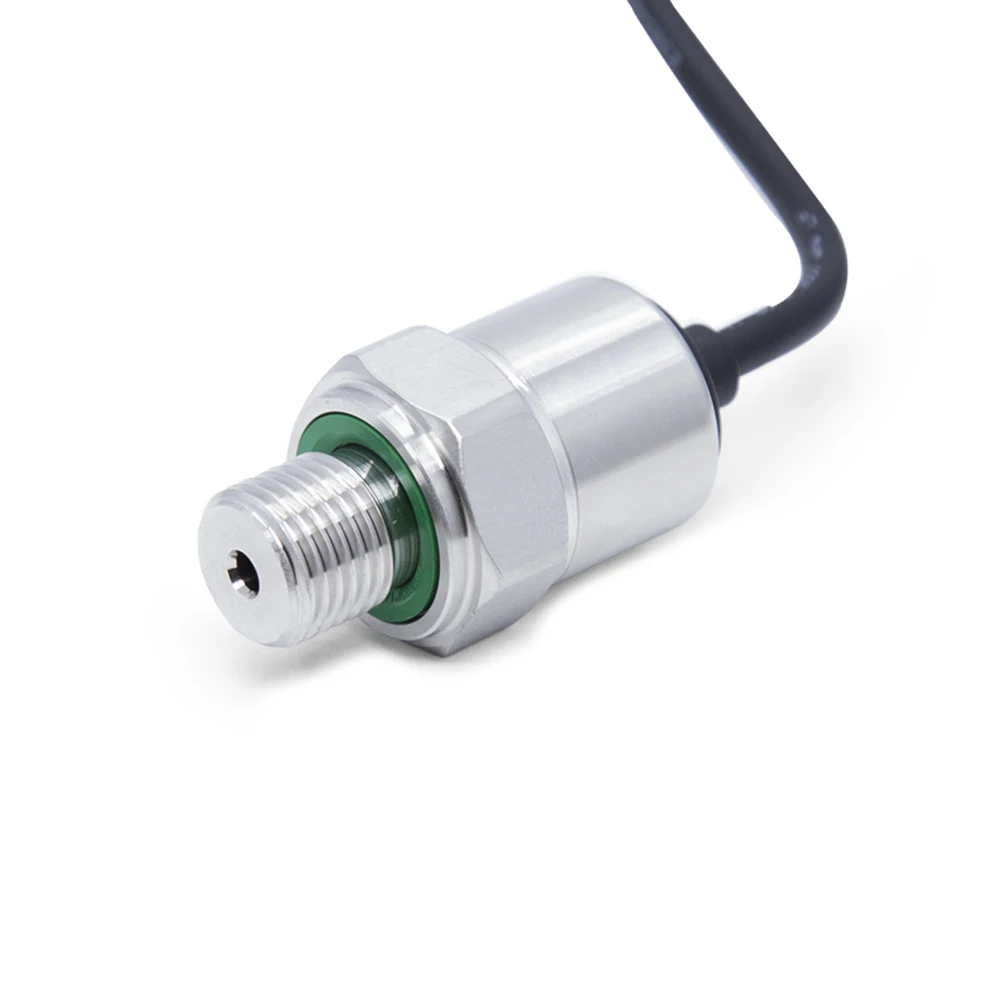

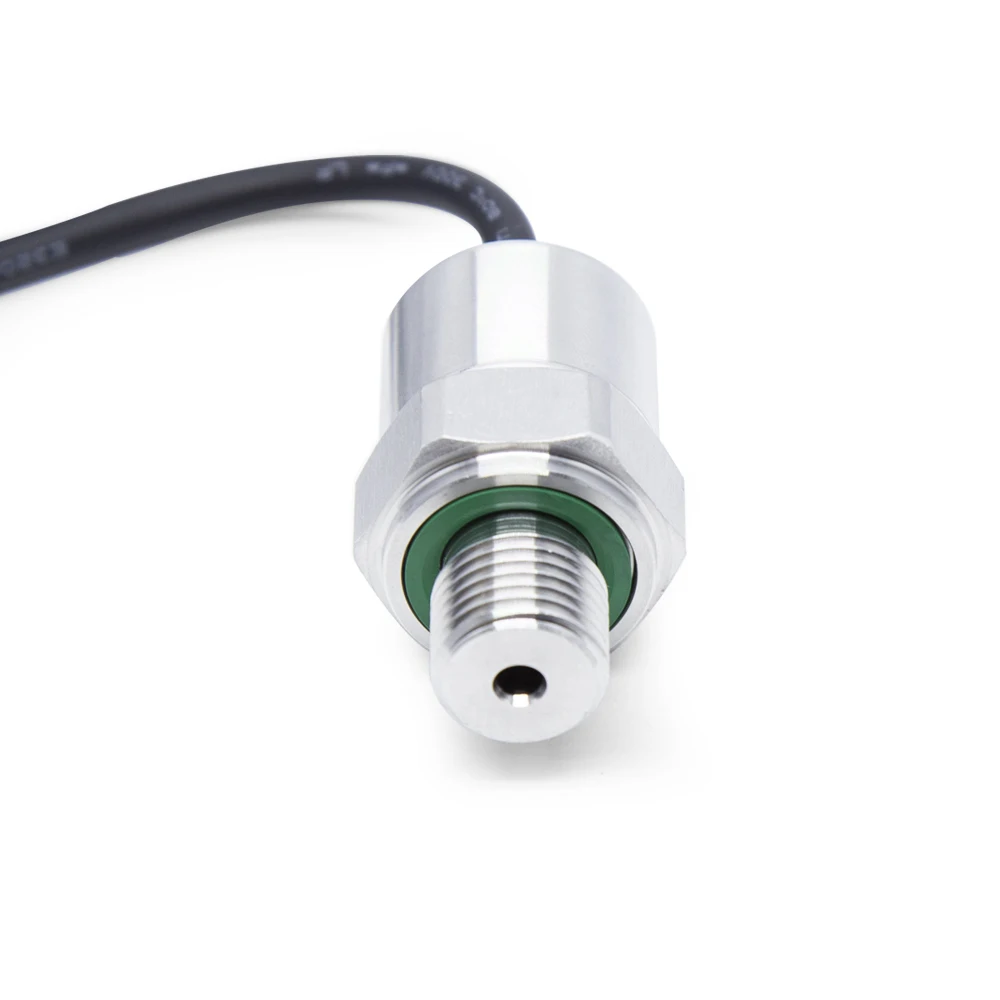

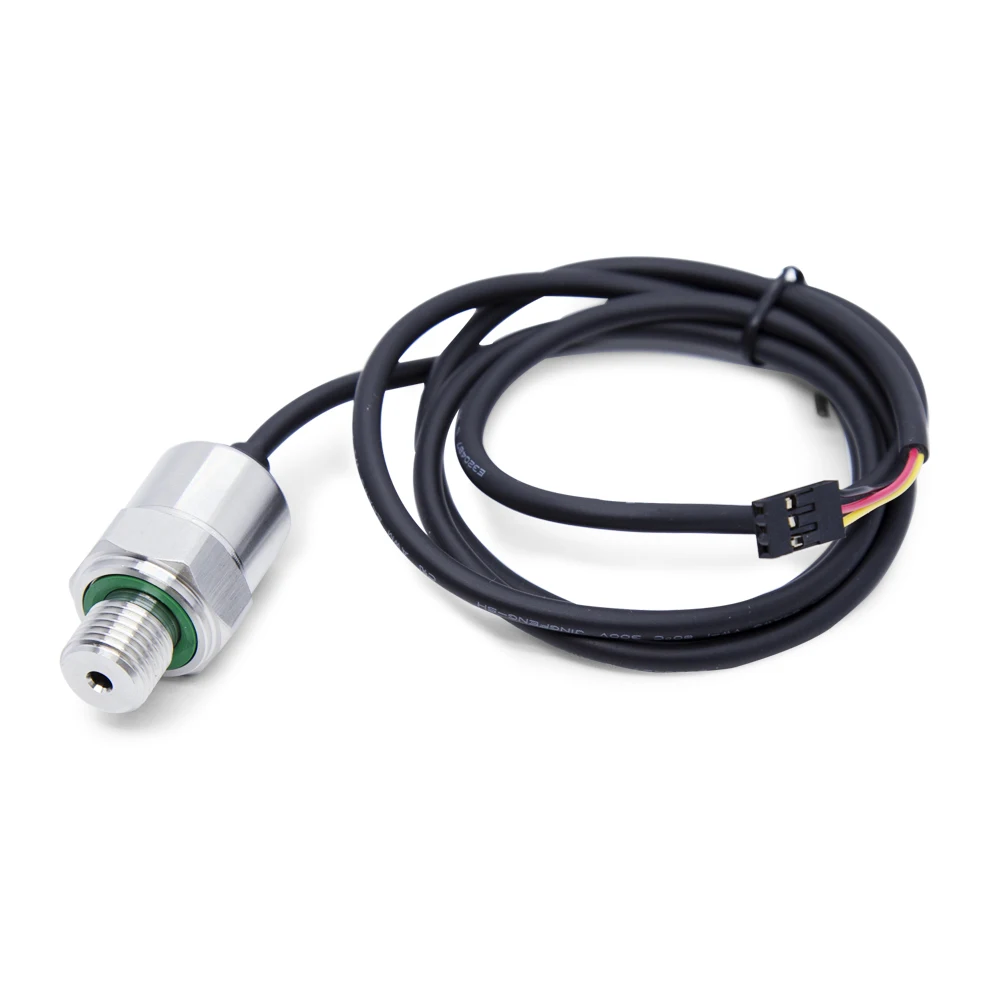

Pressure Transmitter for Water Oil Gas 5-12V 0.5-4.5V SS316L G1/4 I2C Transducer Sensor for PLC Arduino STM32 Terminal Connector pressure sensor

Product Features

This pressure transmitter is suitable for water, oil, and gas. It has a measuring range of-1~0~40bar, a supply voltage of 5-12VDC, and an output signal of 0.5-4.5V by default.
Made of SS316L, it is resistant to corrosion and can work with any media suitable for this material. The G1/4 pressure connection ensures a secure fit.
With an accuracy of ±1%FS and a long-term stability of ≤±0.2%FS/year, it provides reliable and precise pressure measurements. It is certified with RoHS.
The response time of ≤3ms and a cycle life of 500,000 times make it a high-performance pressure sensor. It can be used with PLC, Arduino, and STM32.
This pressure transducer is a great choice for industrial applications. It offers a wide operating temperature range and excellent protection against overload and burst pressures.

Specifications

Brand Name

XIDIBEI

Hign-concerned Chemical

None

Max Measuring Range

59 Bar & Under

Model Number

XDB401-G1-W7-A

Measuring range

-1~0~40bar

Supply voltage

5-12VDC

Output signal

0.5-4.5V by default

Accuracy

±1%FS

Operating temperature

-40-105℃

Compensation temperature

-20-80℃

Operating current

≤3mA

Temperature drift (zero & sensitivity)

≤±0.03%FS/℃

Long-term stability

≤±0.2%FS/year

Response time

≤3ms

Overload pressure

150%FS

Burst pressure

300%FS

Cycle life

500,000 times

Pressure medium

Any media suitable for SS316L

Pressure connection

G1/4

Electrical connection

Direct cable

Housing material

SS316L thread & hex bolts for corrosive media

Protection class

IP65

Explosion-proof class

ExiaIICT6

Weight

0.1kg

Paired cable

1m default

Description

Pressure Transmitter for Water Oil Gas 5-12V 0.5-4.5V SS316L G1/4 I2C Transducer Sensor for PLC Arduino STM32 Terminal Connector pressure sensor
