Pressure Sensor Pressure Switch pressure transmitter G1/4 12-36V 0-10V 0-600bar optional stainless steel water oil fuel gas air pressure transducer sensor

Reviews | Questions & Answers
AU $62.62 ~ 88.52
Price includes 10% AU GST

Measuring Range :
Quantity
In Stock. Ships in 24 hours
Shipping: AU $0.00
Estimated Delivery on -
Secure Payment
Multiple payment options
Customer Service Guarantee
DOA Guarantee Missing/Wrong Items Guarantee Quality Guarantee No Reason Returns
Product Features

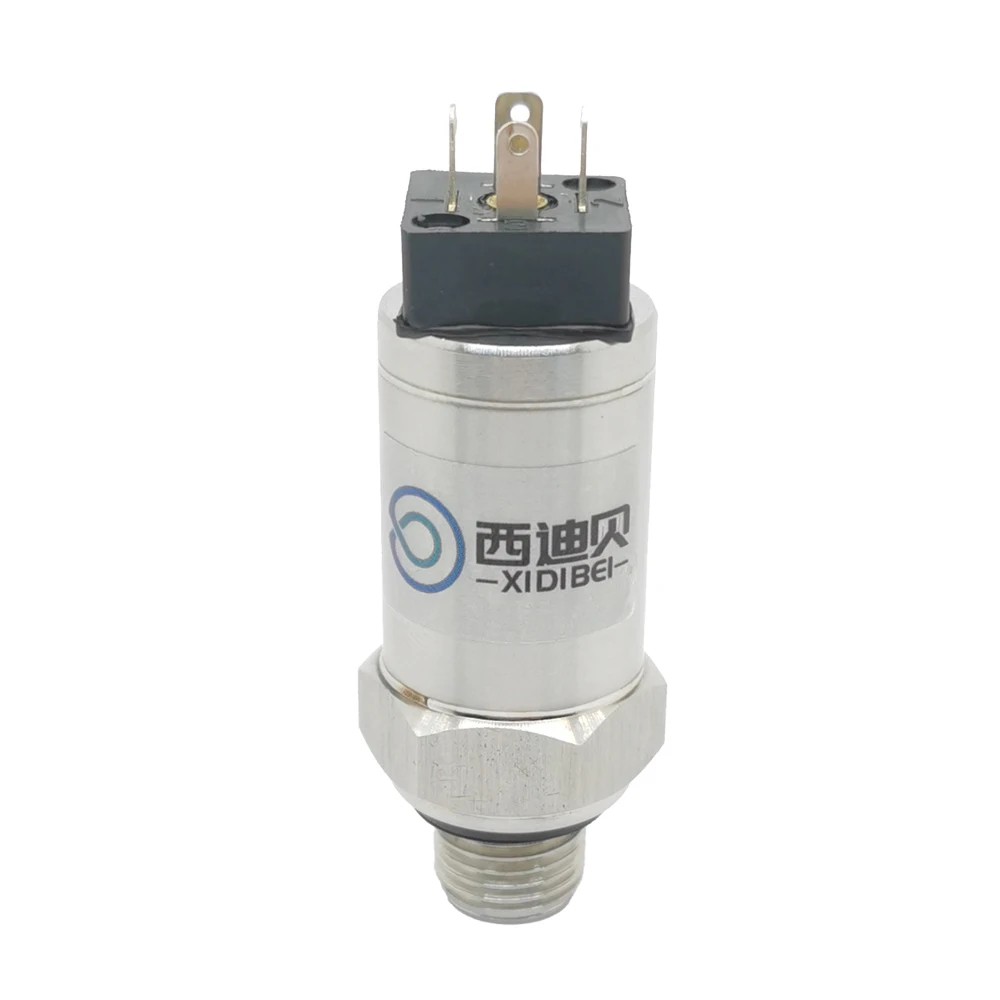

  • This XIDIBEI pressure sensor is a high-precision device with a measuring range of 0-600bar gauge pressure, suitable for measuring the pressure of water, oil, fuel, gas, and air.
  • It has a supply voltage of 12-36VDC and an output signal of 0-10V, providing accurate and reliable pressure data for various industrial applications.
  • Made of 304 stainless steel housing material, it offers excellent corrosion resistance and durability, able to withstand harsh working environments.
  • With a protection class of IP65 and an explosion-proof class of Exia2CT6, this pressure sensor is safe to use in hazardous areas, ensuring operational safety.
  • It is customizable, allowing you to choose different pressure connections and electrical connections according to your specific needs, making it a versatile solution for pressure measurement.
Specifications
Brand Name
XIDIBEI
Hign-concerned Chemical
None
Max Measuring Range
400 Bar & Above
Model Number
XDB305
Measuring range
0-600bar gauge pressure
Supply voltage
12-36VDC
Output signal
0-10V
Accuracy
≤±1.0%FS
Operating temperature
-40-105℃
Housing material
304 Stainless Steel
Pressure connection
G1/4 or other

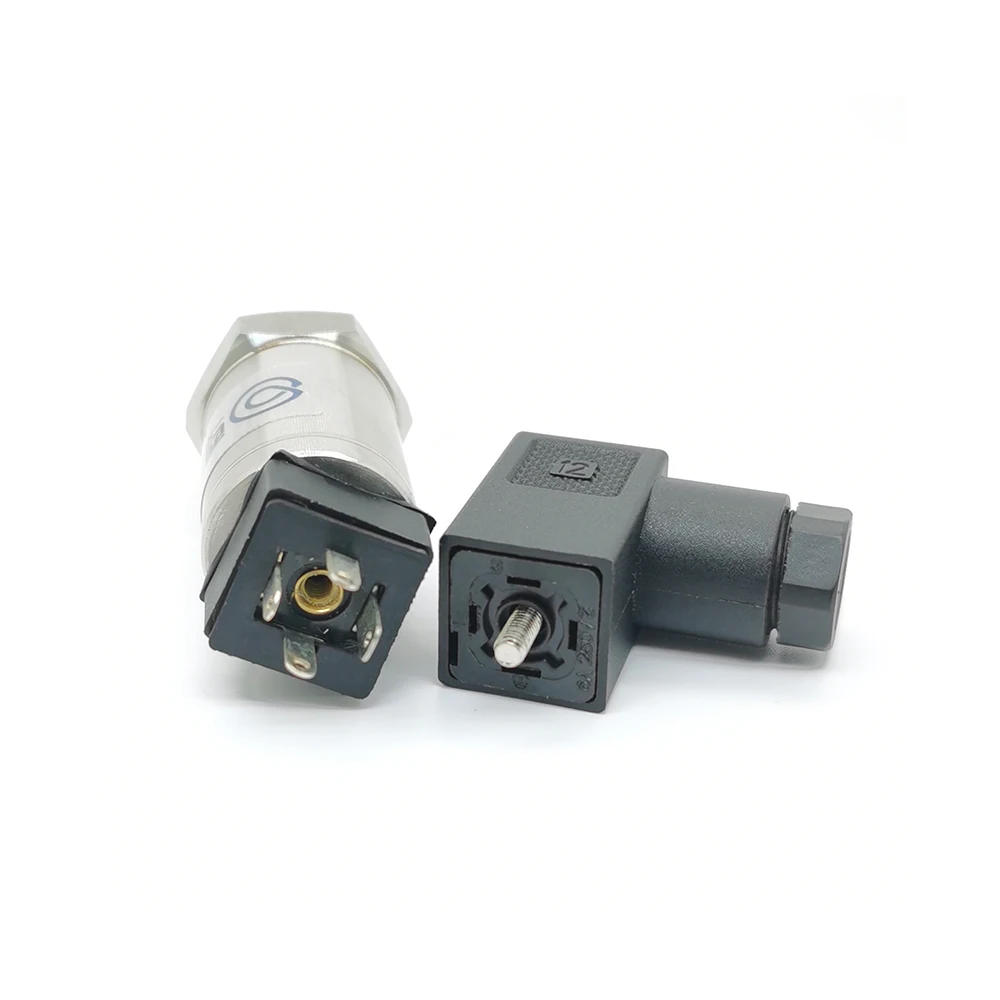

Electrical connection
Hirschman DIN43650C
Protection class
IP65
Explosion-proof class
Exia2CT6
Electromagnetism Compatibility
EN50051-1
Paired cable
1m
semi_Choice
yes
