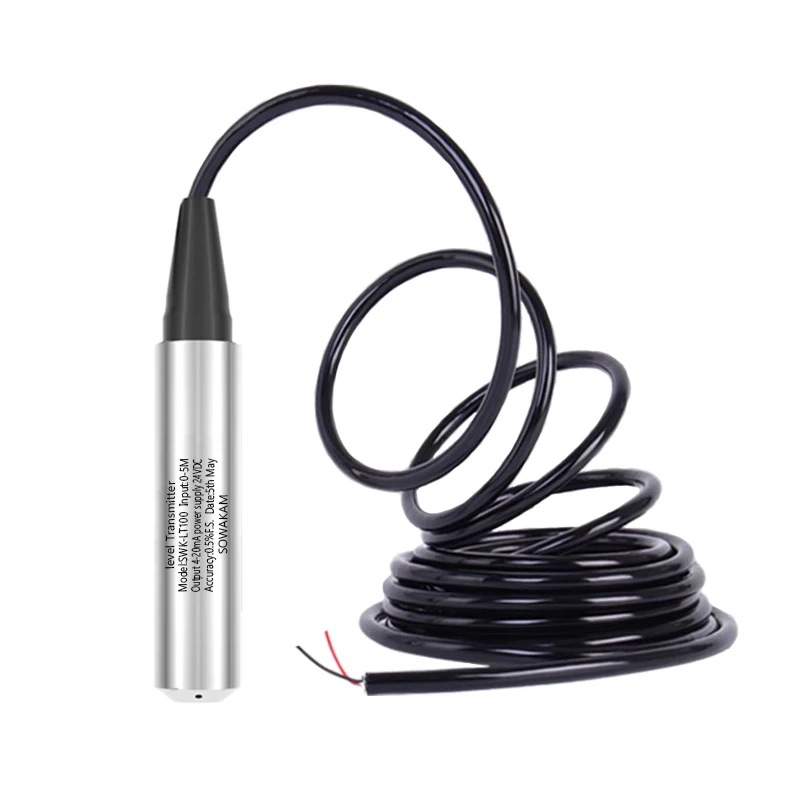

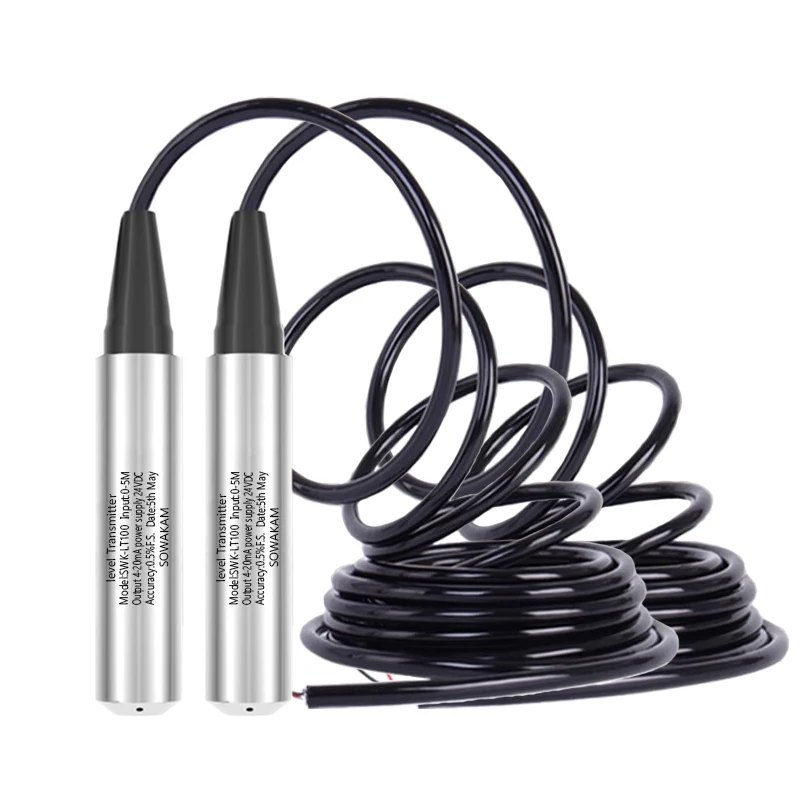

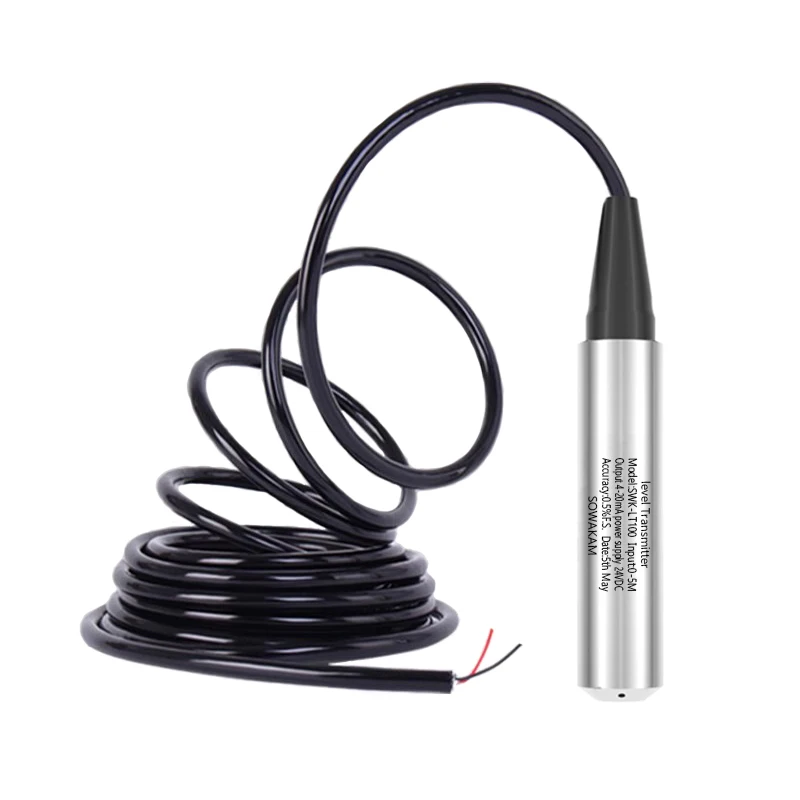

Water Level Transmitter Sensor 0-0.5M-500M

Product Features

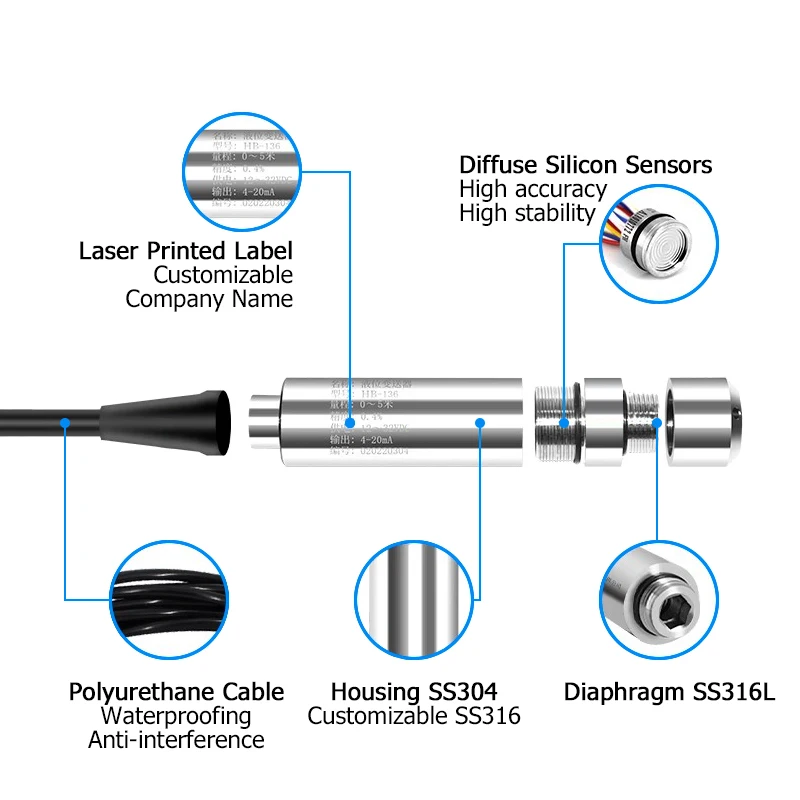

This water level transmitter sensor, with a measurement range from 0-0.5M-500M, offers high accuracy and long-term stability, made of SS304 housing.
It has multiple output options including 4-20mA, 0-5V, 0-10V, and RS485, and is powered by 12V-36VDC (default 24VDC).
With a response time of ≤10ms and a protection class of IP68, it can work in various environments, and has an overload capacity of 150%.
Certified with FCC, it operates in a temperature range from -10℃ to 65℃, and has a temperature drift of ±0.05%F. S.
It is suitable for applications where accurate water level measurement is required, providing reliable data for monitoring and control purposes.

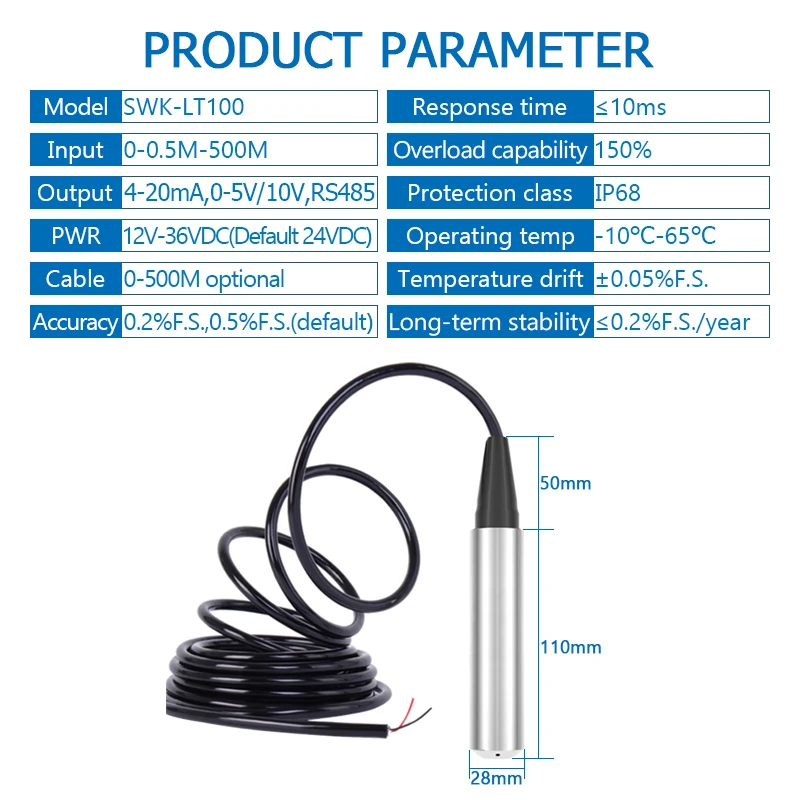

Specifications

Brand Name

SOWAKAM

Hign-concerned Chemical

None

Max Measuring Range

400 Bar & Above

Model Number

SW-LT100

Measurement Range

0-0.5M-500M

Output

4-20mA,0-5V,0-10V,RS485

Power supply

12V-36VDC(default 24VDC)

Accuracy

0.2%F.S.,0.5%F.S.(default)

Cable

0-500M

Response time

≤10ms

Protection class

IP68

Overload capacity

150%

Operating temperature

-10℃-65℃

Long-term stability

±0.02%/year

Temperature drift

±0.05%F.S.

Housing

SS304

Description

Water Level Transmitter Sensor 0-0.5M-500M
