Pressure Transducer Water Gas Fuel Pressure Sensor 4-20mA 0-5V 10V RS485 Output Vacuum Negative Transmitter pressure sensor

Product Features

This pressure transducer water gas fuel pressure sensor with 4-20mA, 0-5V, 10V, RS485 output and a max measuring range of 400 Bar & Above is suitable for various pressure-monitoring applications.
Made in Mainland China, it offers high-accuracy measurement with an accuracy of 0.2%F. S. or 0.5%F. S., ensuring reliable performance.

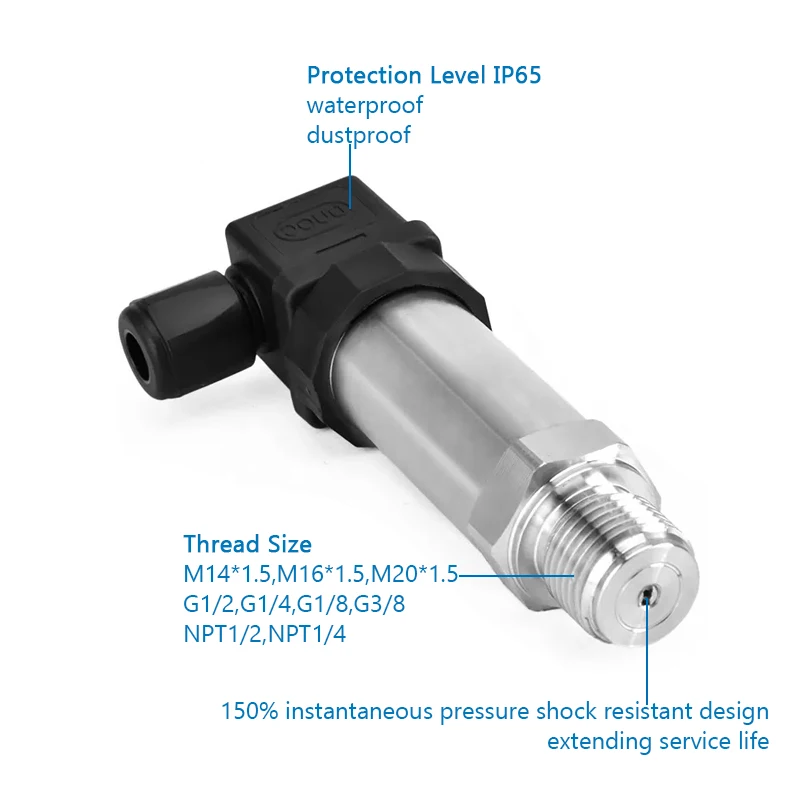

With a thread size of M20*1.5, G1/2, G1/4, NPT1/2, NPT1/4, it can be easily installed in different systems.
The protection grade of IP65 makes it suitable for use in harsh environments, and the fast response time of ≤10ms provides real-time pressure monitoring.
Whether for industrial processes or home applications, this pressure sensor is a practical and efficient solution for pressure measurement and control.

Specifications

Brand Name

SOWAKAM

Hign-concerned Chemical

None

Max Measuring Range

400 Bar & Above

Model Number

SW-P300

Input

-1bar-0-1000bar

Output

4-20mA,0-5V,0-10V,RS485

Thread size

M20*1.5,G1/2,G1/4,NPT1/2,NPT1/4

Accuracy

0.2%F.S.,0.5%F.S.

Power supply

12V-36VDC(Default 24VDC)

Protection grade

IP65

Response time

≤10ms

Overload capacity

150%F.S.

Temperature drift

≤0.03%F.S./1℃

Operation temperature

-10℃-65℃

Description

Pressure Transducer Water Gas Fuel Pressure Sensor 4-20mA 0-5V 10V RS485 Output Vacuum Negative Transmitter pressure sensor
