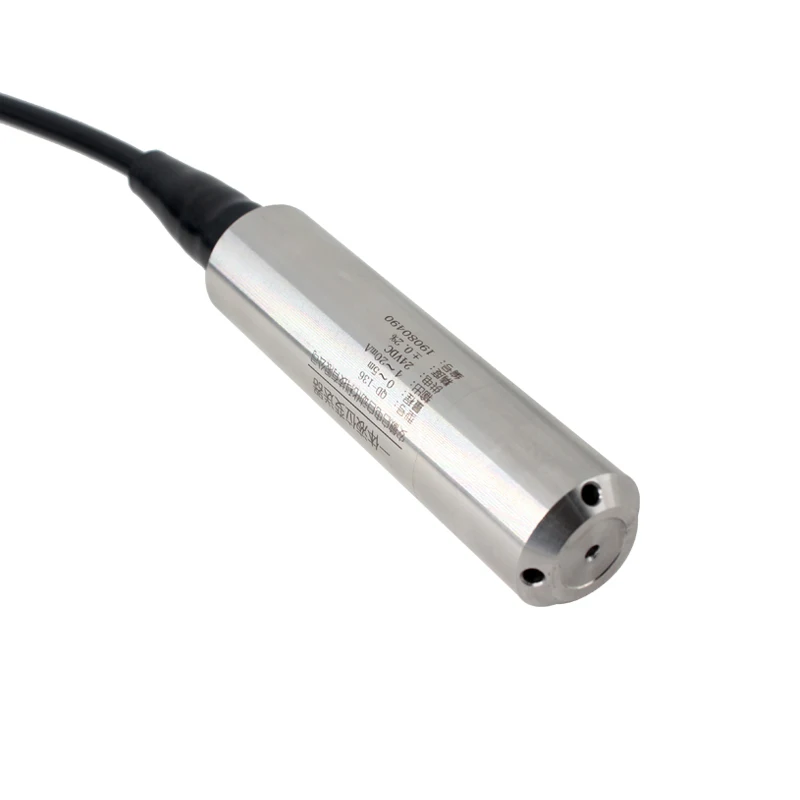

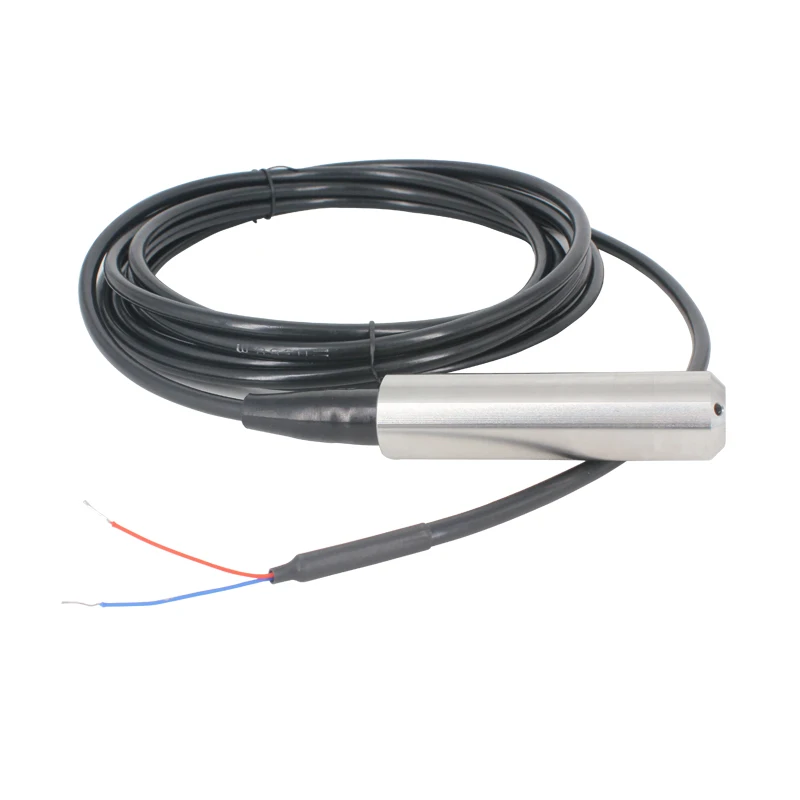

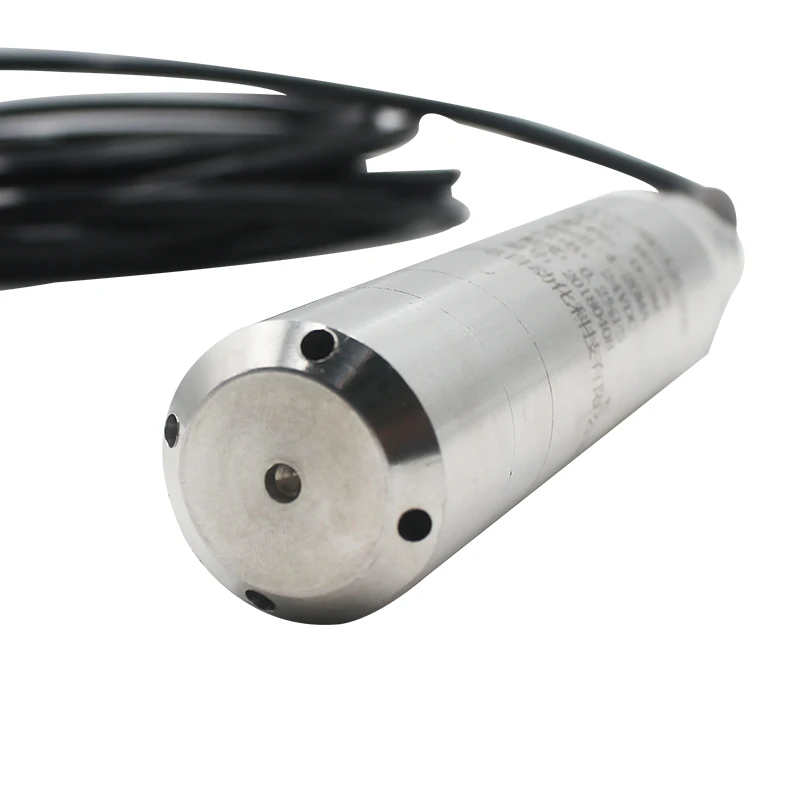

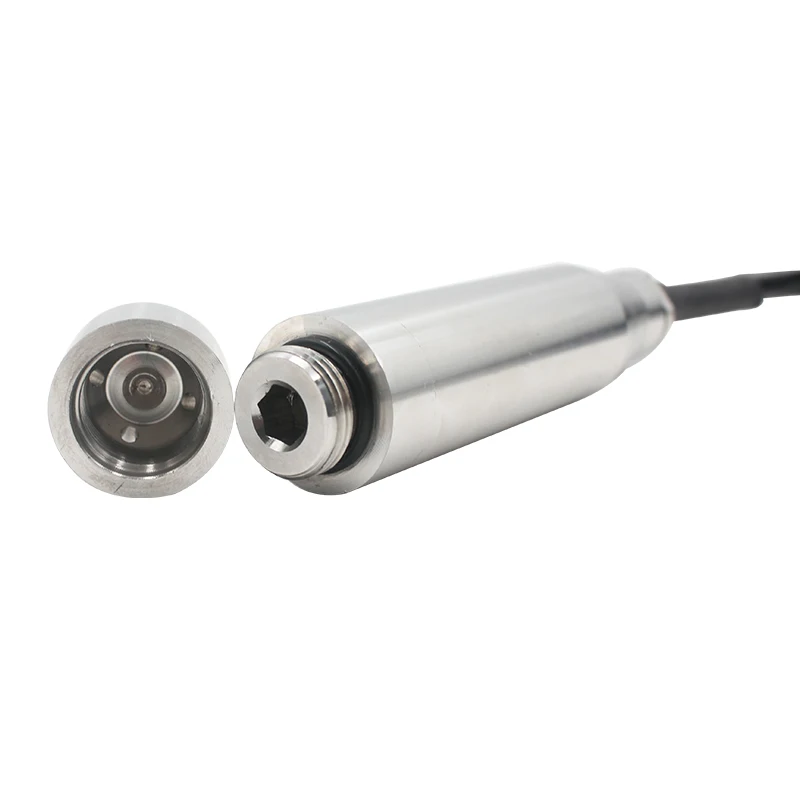

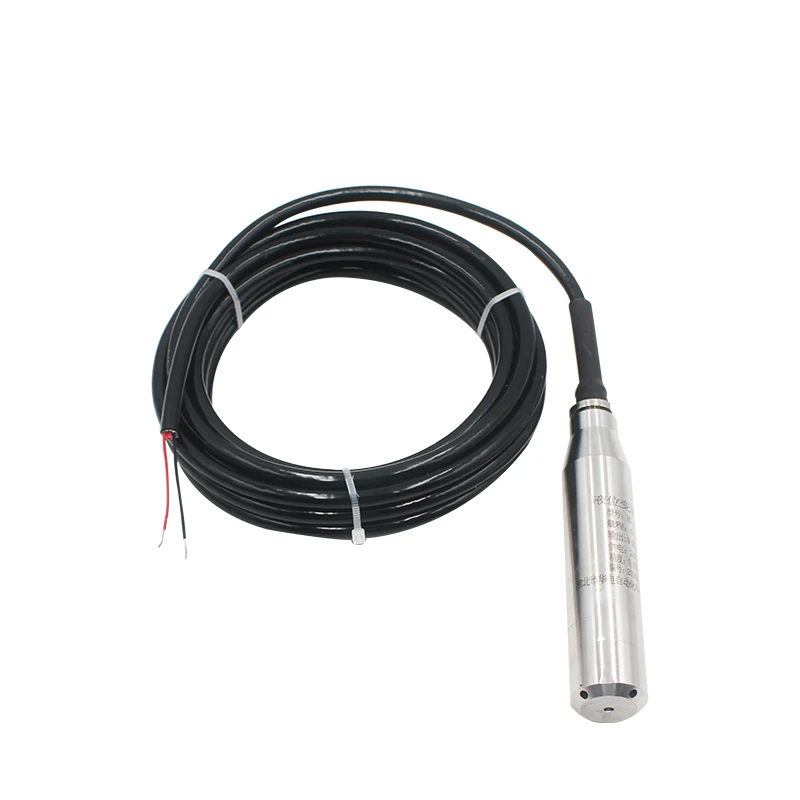

Level Sensor QDY30A Liquid Level Transmitter Water Sensor Detector 12-36VDC 4-20mA Signal Output Liquid liquid level sensor

Product Features

The QDY30A level sensor is a liquid level transmitter with a 12-36VDC power supply and 4-20mA signal output, suitable for various liquid level detection applications.
It has a wide range of 0-500m H2O, high accuracy of 0.2%FS or 0.5%FS, and a fast response time of ≤1ms (up to 90%FS).
The sensor is made of 304/316 stainless steel and has an IP68 protection level, ensuring durability and reliability in harsh environments.
It offers multiple output options such as 4-20mA, 0-5V, 0-10V, and RS485, and different cable lengths to meet various requirements.
With RoHS certification, it meets international environmental standards and is a trustworthy choice for liquid level detection.

Specifications

Hign-concerned Chemical

None

Model Number

QDY30A

Range

0-500m H2O

output

4-20mA,0-5V,0-10V,RS485

Power supply

DC24V,12-36VDC

Working temperature

-20-55℃

Accuracy

0.2%FS ,0.5%FS

Cable lenth

1m/2m/3m/5m/10m/15m/20m/30m

Material

304/316 Stainless Steel

Protection

IP68

Response Time

≤1ms (up to 90%FS)

semi_Choice

yes

Description
