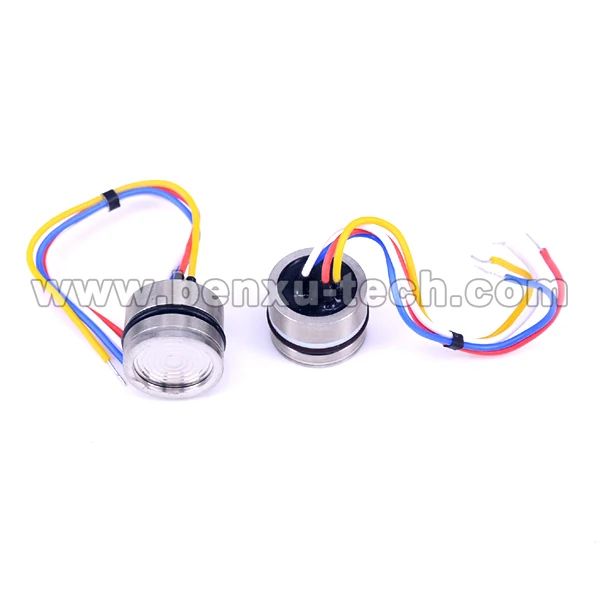

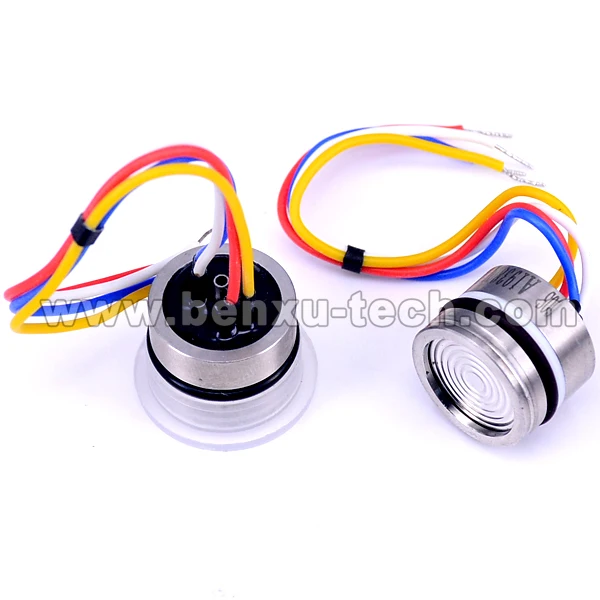

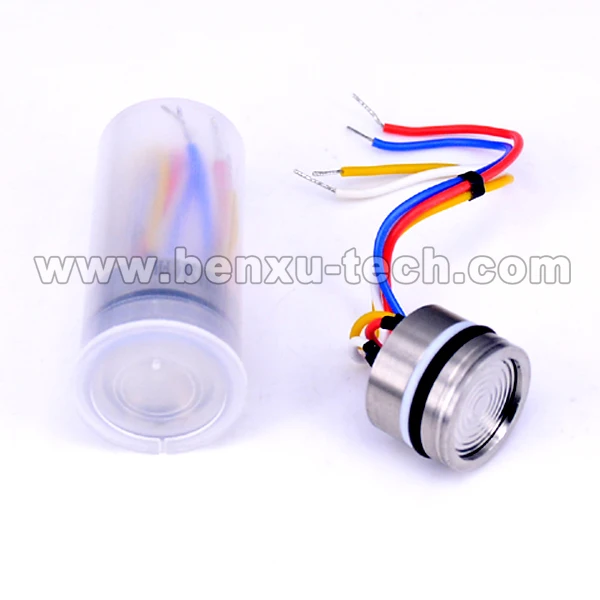

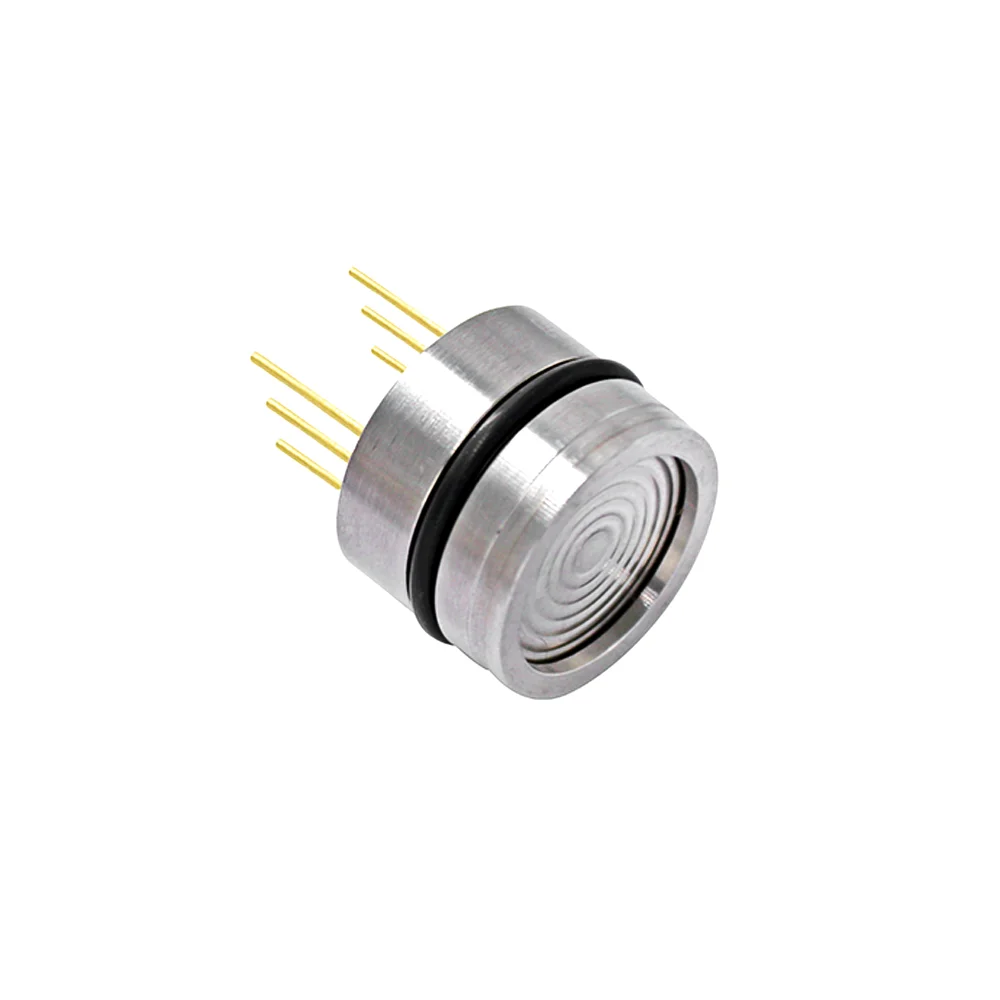

15.8 or 19mm in Diameter 10kPa to 100MPa Piezoresistive Diffused Silicon Pressure Sensor

Reviews | Questions & Answers
AU $38.87 ~ 41.47
Price includes 10% AU GST

Color :
Measuring Range :
Quantity
In Stock. Ships in 24 hours
Shipping: AU $0.00
Estimated Delivery on -
Secure Payment
Multiple payment options
Customer Service Guarantee
DOA Guarantee Missing/Wrong Items Guarantee Quality Guarantee No Reason Returns
Specifications
Brand Name
BENXU
Hign-concerned Chemical
none
Max Measuring Range
400 Bar & Above
Model Number
BX-PSC19
Pressure Type
Gauge pressure,sealed gauge pressure
Input impedance
Constant current:2-5kohms Constant voltage:3-18kohms
Electrical connection
silicon soft wire or pins
Operating temperature
-40 to 125C
Storage temperature
-40 to 125C
Insulation resistance
more than 200Mohms/250VAC
Response time
less than 1ms(up to 90%FS)
Measured medium
All the liquids and gases compatible with 316L
Mechanical vibration
20g(20-5000Hz)
Shock
100g(10ms)
Diaphragm material
316L
Housing material
316L
Oil filling
Silicon oil
Sealing ring
NBR or fluorine rubber
Cable connection
4 wires or pins
