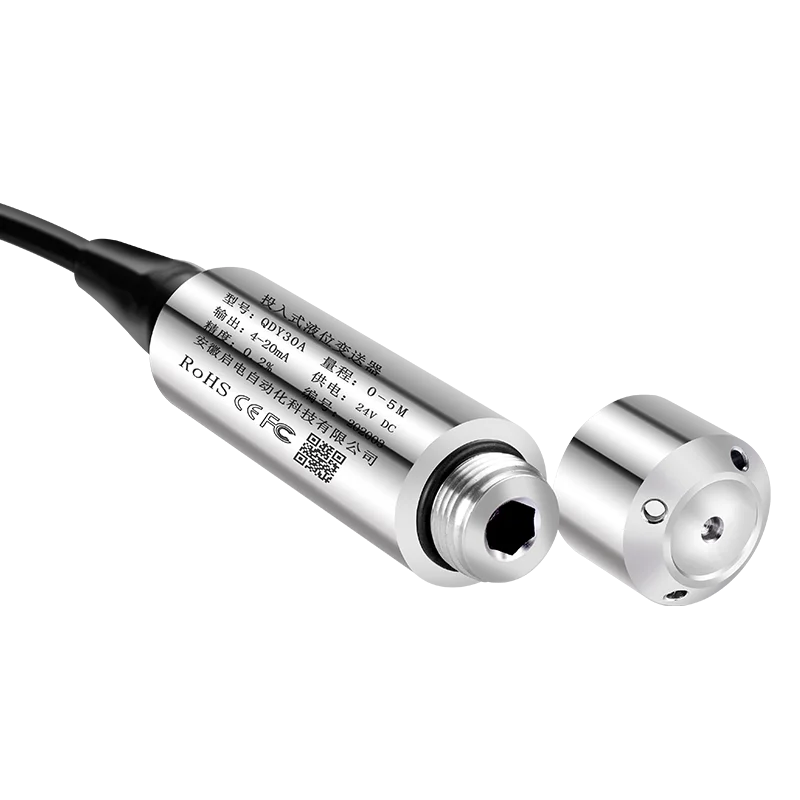

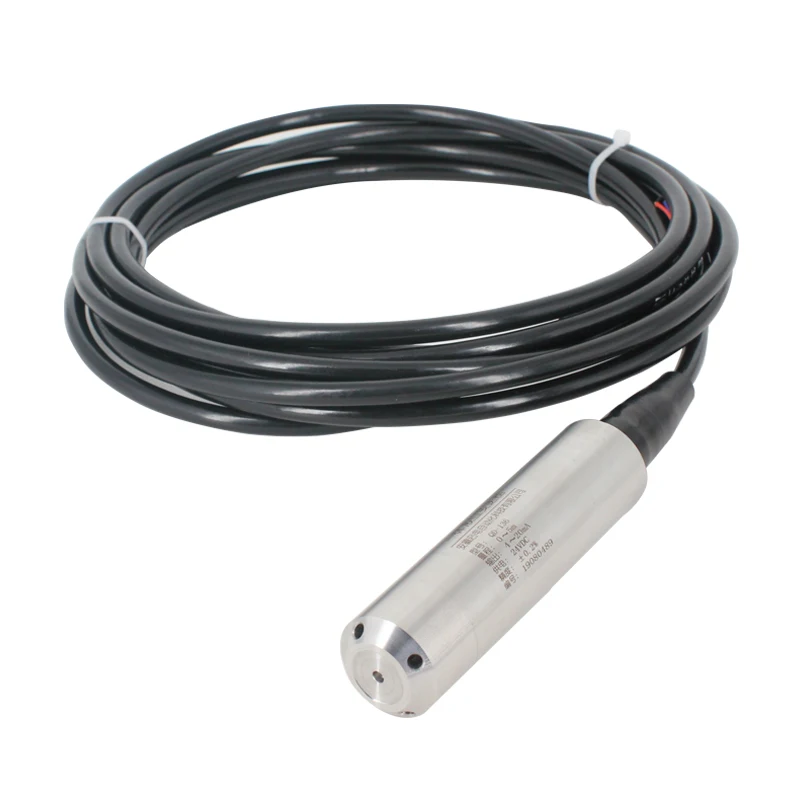

Hydrostatic water Pressure Level Sensor probe 4-20ma 0-3.3v signal output liquid level transmitter pressure sensor,liquid level sensor

Product Features

This hydrostatic water pressure level sensor probe has a measuring range of 1-500M and can output 4-20ma or 0-3.3v signals. It is made in Mainland China.
Certified with FCC, this sensor has an IP68 shell protection, making it suitable for use in non-corrosion liquids. It has an accuracy of 0.2%/0.5%.
The sensor can work in a temperature range of-20℃-+60℃ and has a long-term stability of ±0.2%fF. S/y. It is a reliable device for liquid level measurement.
With its arbitrary measuring range and various output options, this sensor can meet different application needs. It is easy to install and use.
Whether for industrial or other applications, this hydrostatic water pressure level sensor probe is a high-quality and practical choice.

Specifications

Hign-concerned Chemical

none

Model Number

QDY30A

Model

Submersible level transmitter

Measuring Range

Arbitrary range within 1-500M

OutPut

4-20ma/0-10ma/0-20ma 0-10v/0-5v/1-5v

Power Supply

DC24V

Shell Protection

IP68

Accuracy

0.2%/0.5%

Lienarity

0.1%

Overload Pressure

300% F.S/10S

Long-term Stability

±0.2%fF.S/y

Working Temperature

-20℃ - +60℃

Measuring Medium

Non-corrosion Liquid

Measuring Method

Sank into probe the bottom of the liquid

semi_Choice

yes

Description

Hydrostatic water Pressure Level Sensor probe 4-20ma 0-3.3v signal output liquid level transmitter pressure sensor,liquid level sensor
