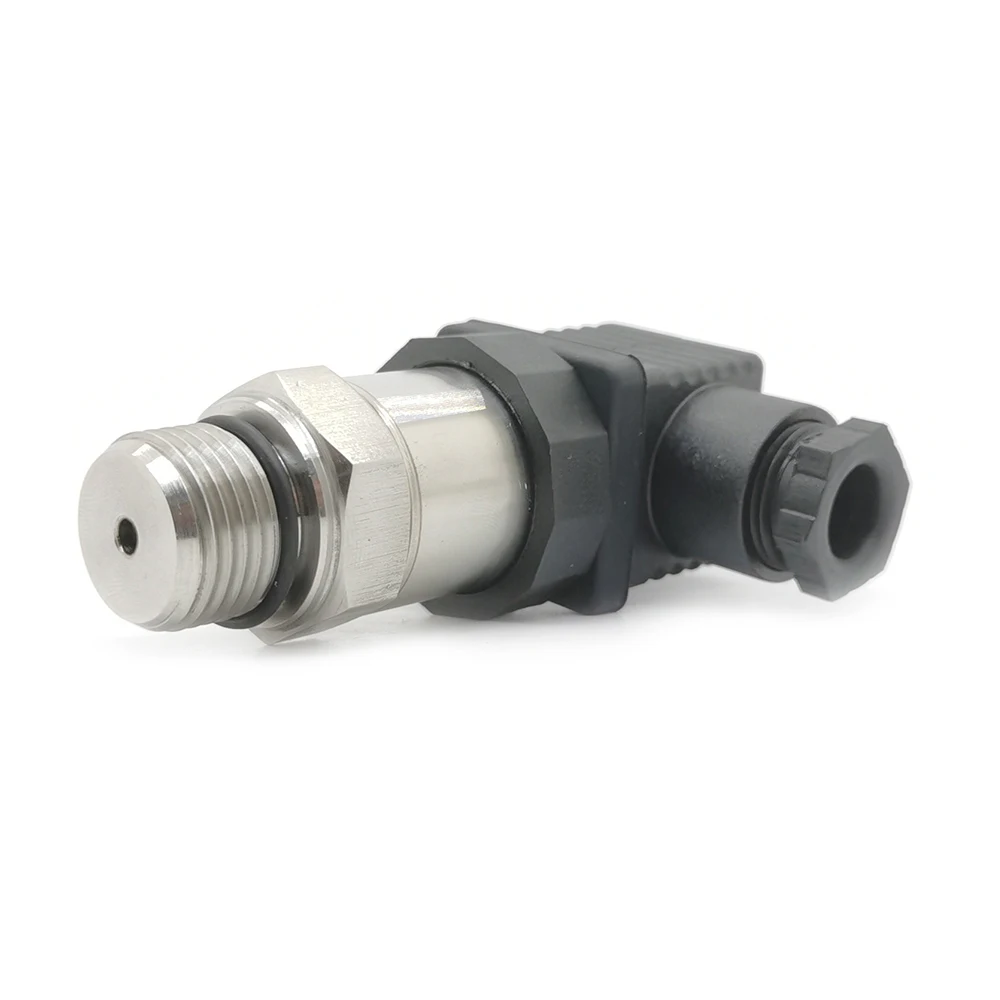

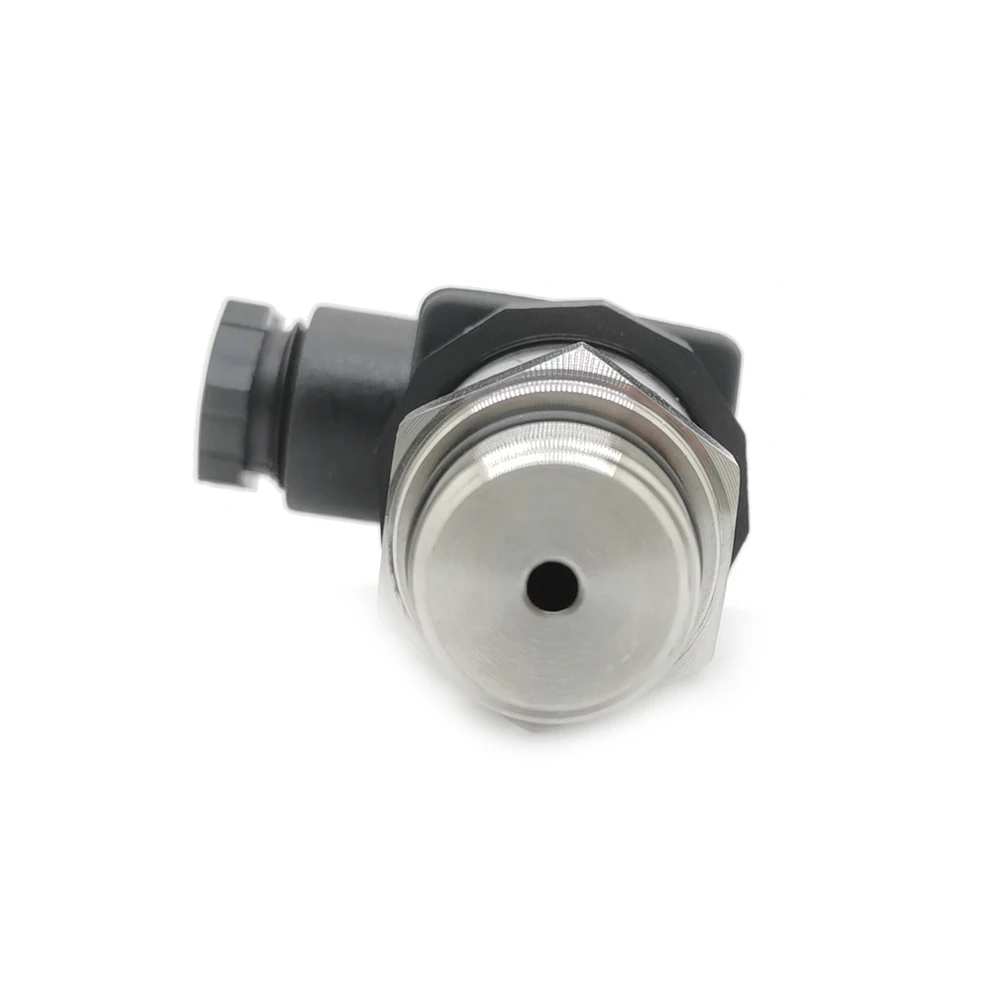

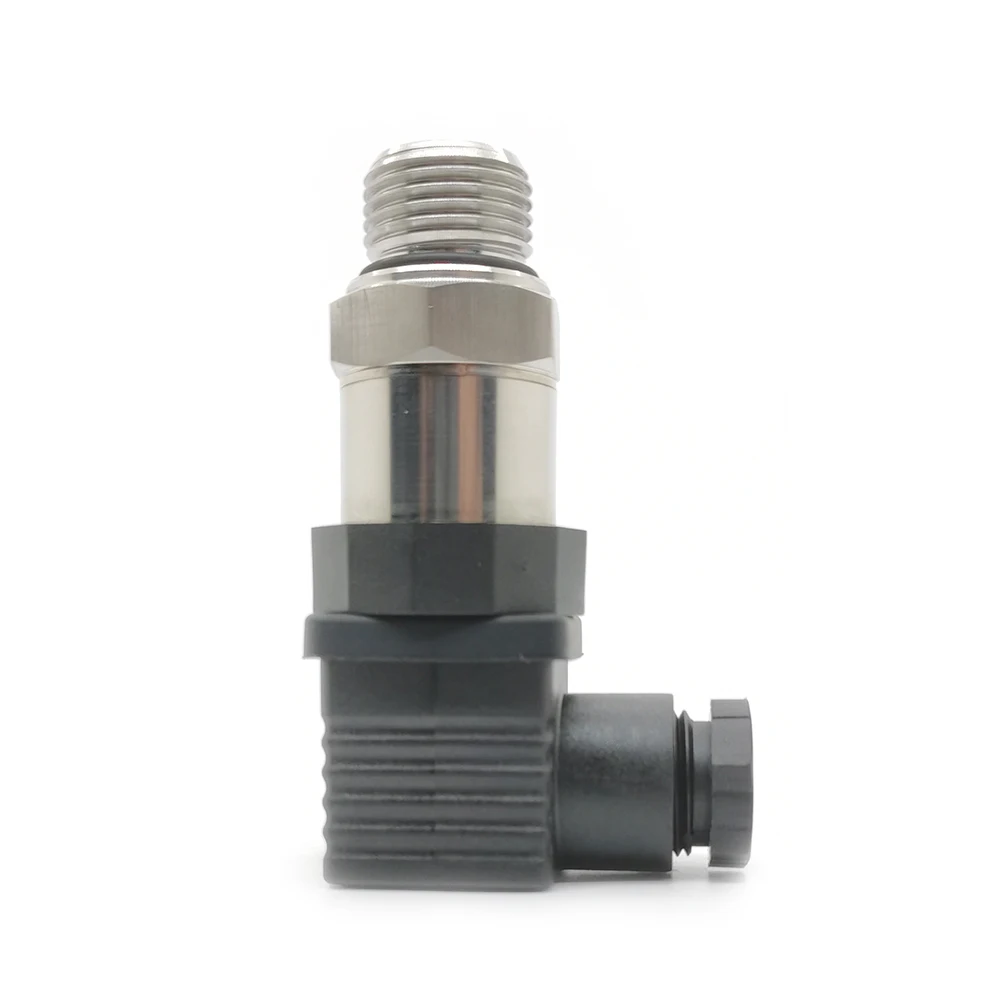

Water Oil Fuel Gas Air Pressure Transmitter G1/2 12-36V 4-20mA 0-10V 0-600bar Optional Stainless Steel Transducer Sensor

Reviews | Questions & Answers
AU $156.20 ~ 175.42
Price includes 10% AU GST

Color :
Measuring Range :
Quantity
In Stock. Ships in 24 hours
Shipping: AU $0.00
Estimated Delivery on -
Secure Payment
Multiple payment options
Customer Service Guarantee
DOA Guarantee Missing/Wrong Items Guarantee Quality Guarantee No Reason Returns
Product Features
  • This Water Oil Fuel Gas Air Pressure Transmitter has a wide measuring range of 0-600bar gauge pressure, suitable for various industrial applications. It offers multiple output signals, including 4-20mA and 0-10V, for flexible integration.
  • With a supply voltage range of 9-36VDC, this transducer sensor can be used in different electrical systems. The high accuracy of ≤±1.0%FS ensures reliable pressure measurement.
  • The 304 Stainless Steel housing material provides excellent corrosion resistance, making it suitable for harsh environments. The G1/2 pressure connection and Hirschman DIN43650A electrical connection ensure easy installation.
  • The IP65 protection class and Exia2CT6 explosion-proof class make this pressure transmitter safe to use in hazardous areas. The operating temperature range of -40-105℃ allows for use in extreme conditions.
  • This pressure transmitter comes with a 1m paired cable and is certified with CE, ensuring its quality and compliance with international standards. It is a reliable choice for industrial pressure measurement.
Specifications
Measuring range
0-600bar gauge pressure
Supply voltage
9-36VDC
Output signal
4-20mA or 0-10V
Accuracy
≤±1.0%FS
Operating temperature
-40-105℃
Housing material
304 Stainless Steel

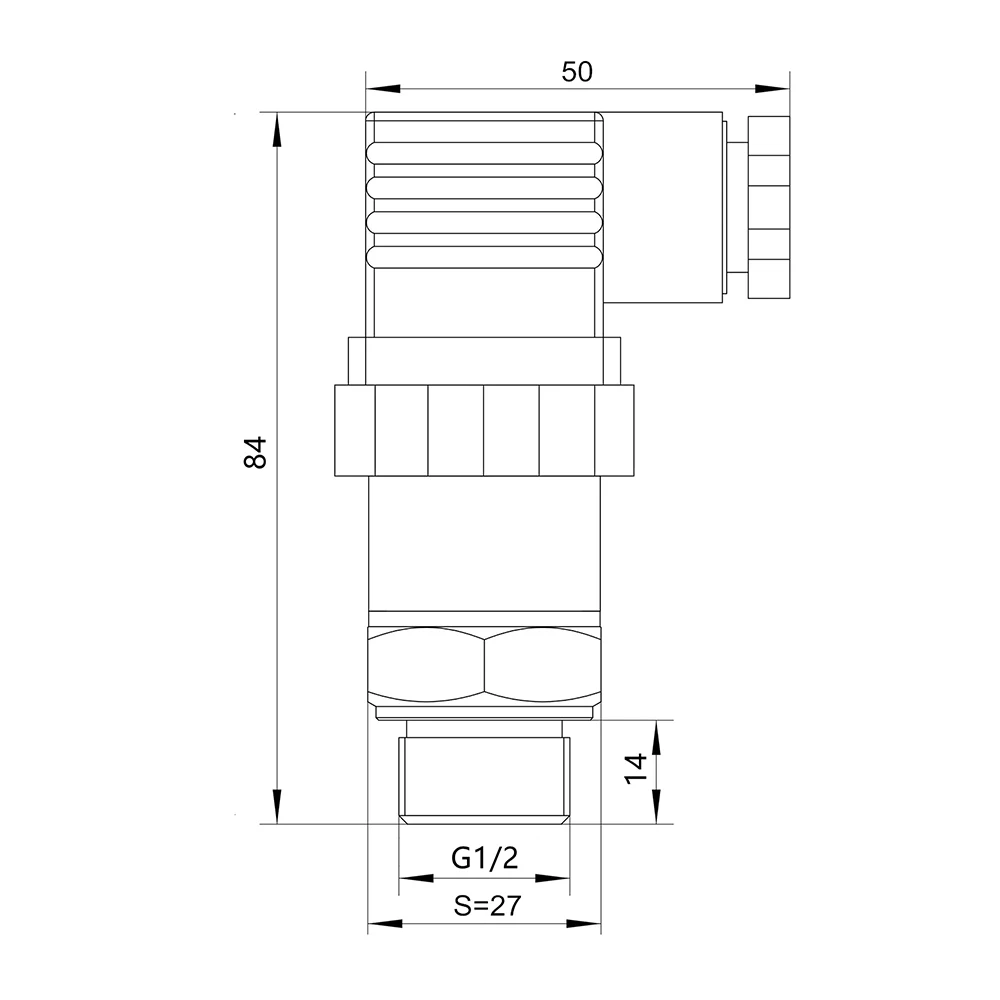

Pressure connection
G1/2

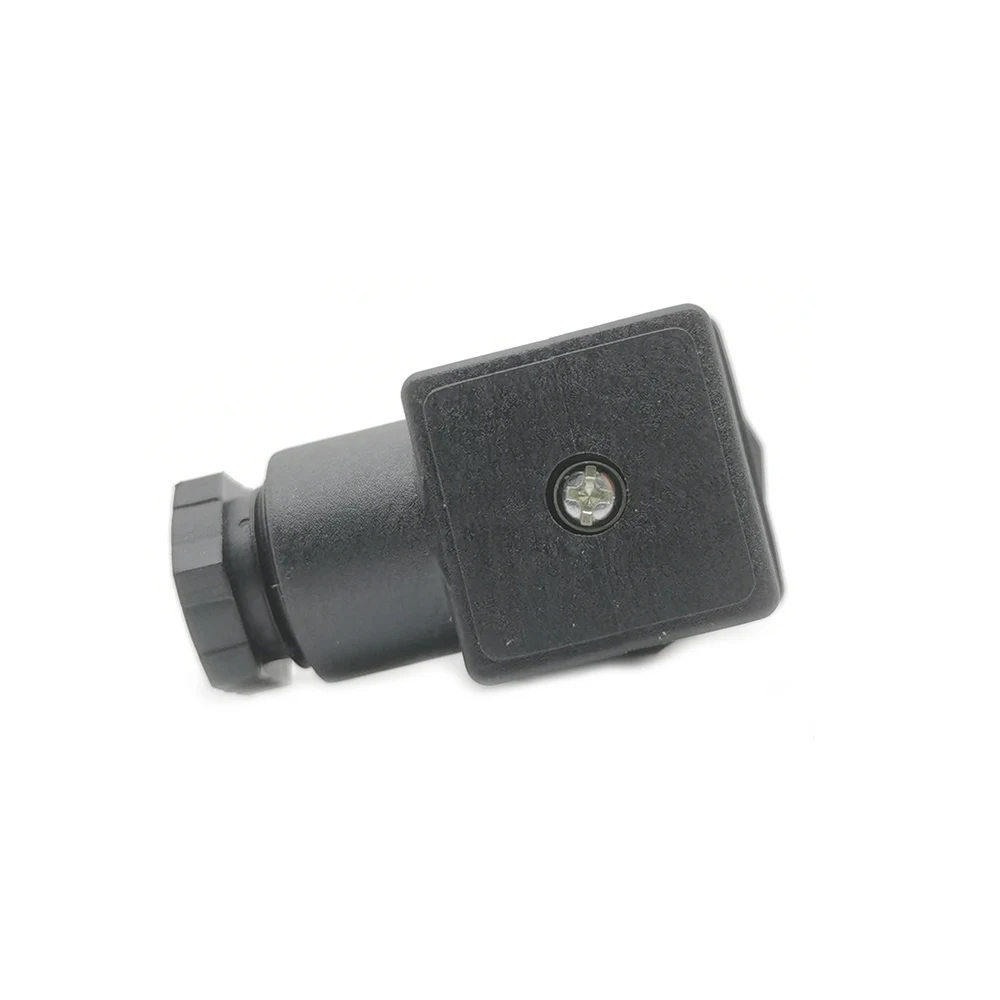

Electrical connection
Hirschman DIN43650A
Protection class
IP65
Explosion-proof class
Exia2CT6
Electromagnetism Compatibility
EN50051-1
Paired cable
1m
Brand Name
XIDIBEI
Model Number
XDB306
Hign-concerned Chemical
None
Max Measuring Range
400 Bar & Above
