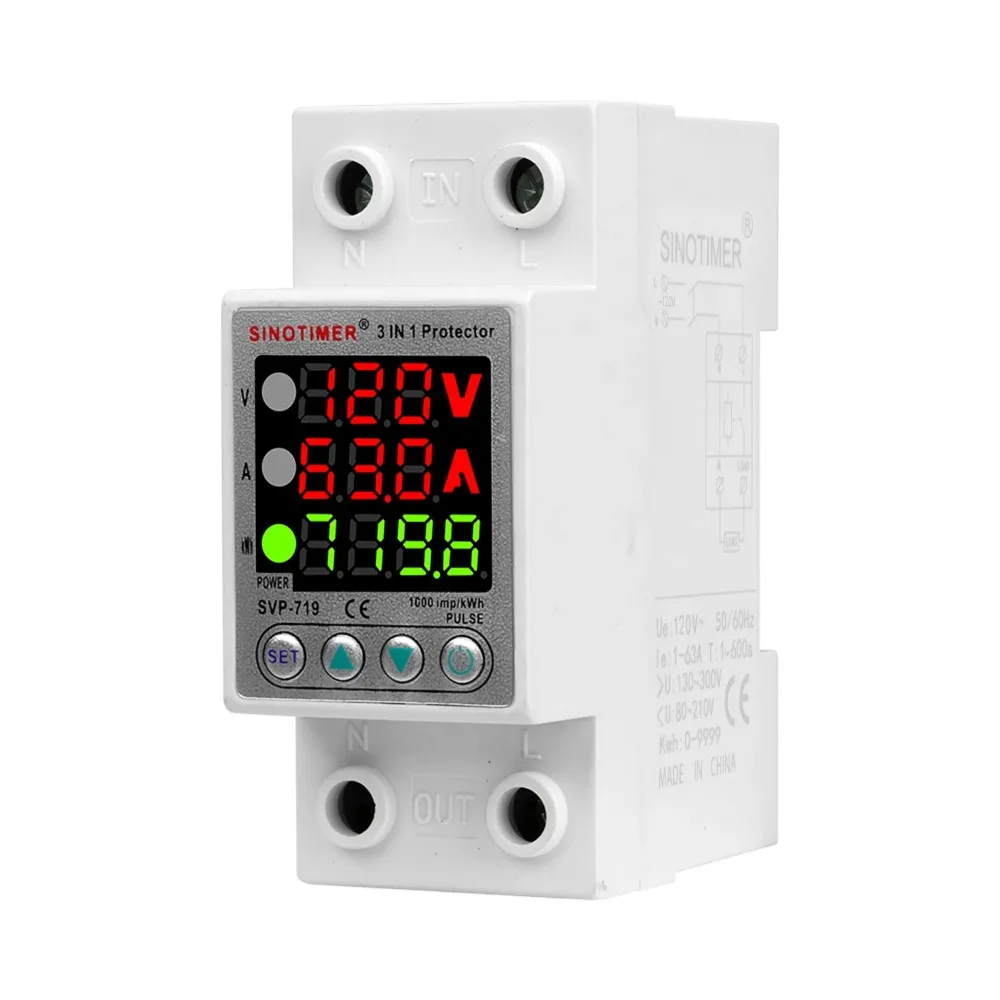

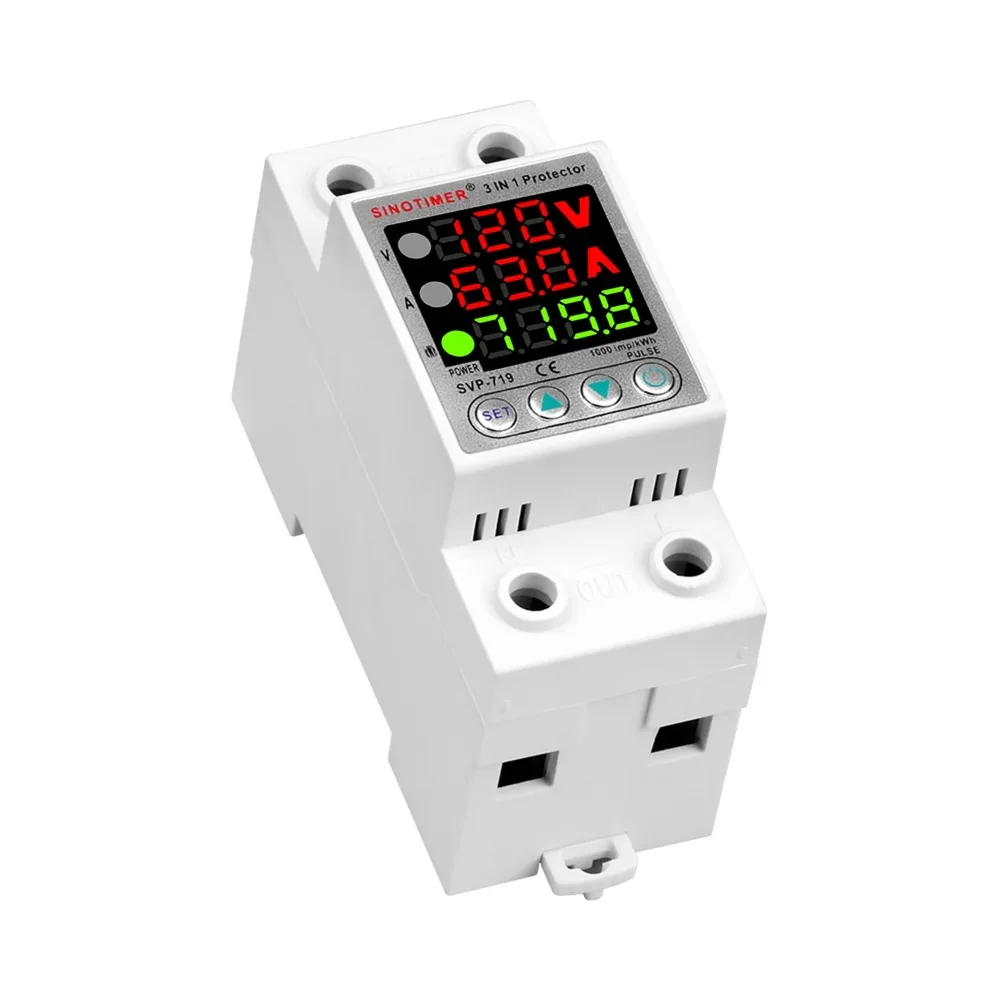

Din Rail Adjust Over Under Current and Voltage Protective Device Protector Relay 40A 63A Power Consumption kWH Meter 110V 120VAC

Reviews | Questions & Answers
AU $31.01 ~ 33.42
Price includes 10% AU GST

Rated Current :
Quantity
In Stock. Ships in 24 hours
Shipping: AU $0.00
Estimated Delivery on -
Secure Payment
Multiple payment options
Customer Service Guarantee
DOA Guarantee Missing/Wrong Items Guarantee Quality Guarantee No Reason Returns
Product Features
  • This din rail adjust over-under current and voltage protective device can provide adjustable under/over-voltage protection for 110V/120VAC power systems.

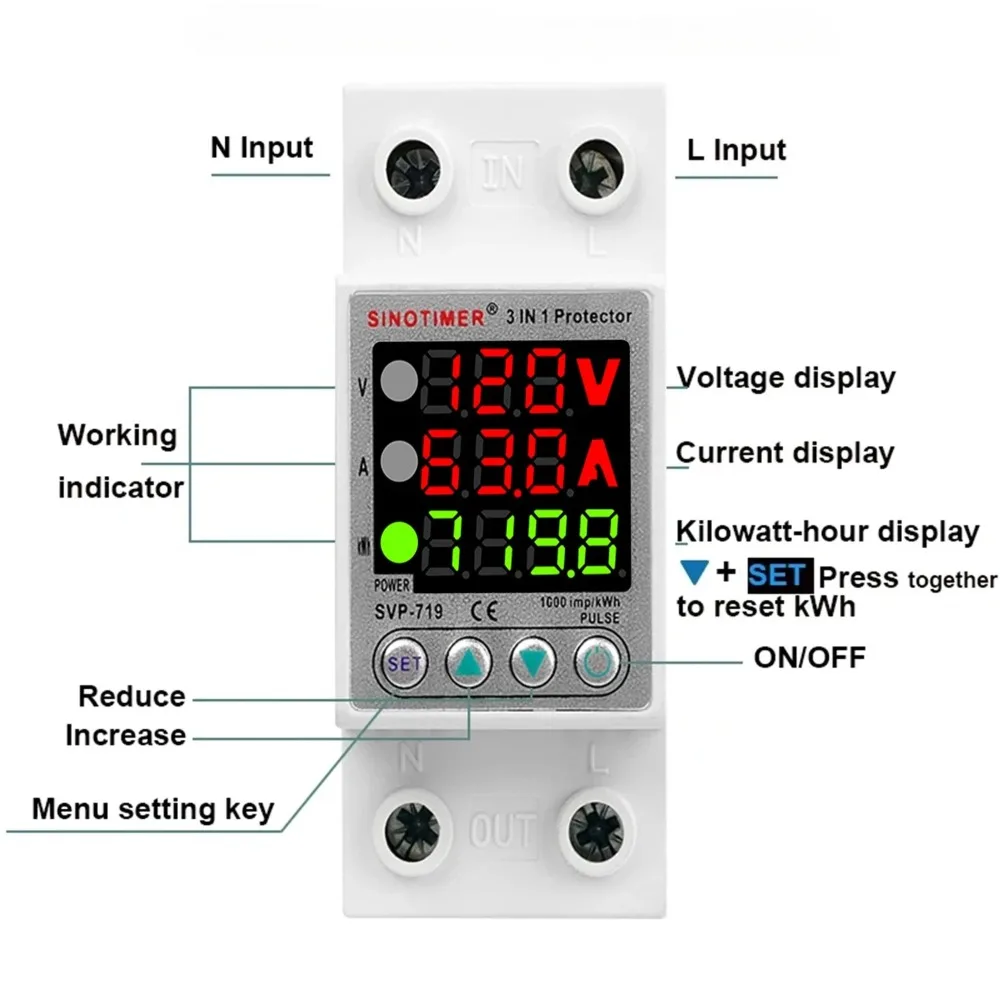

  • It has a limit current protection of 40A/63A by default and three LED displays for easy monitoring.
  • With functions like kWH measurement and adjustable protection values, it is a comprehensive power protection device.

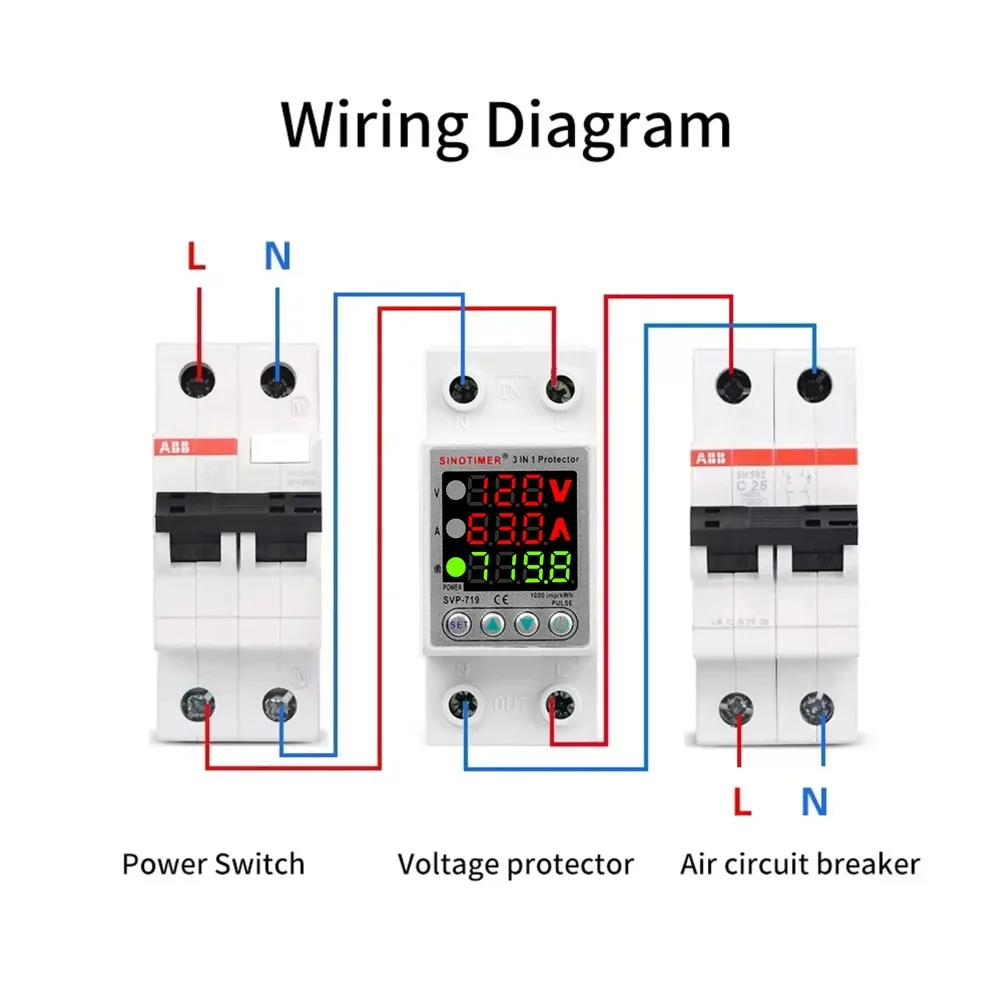

  • Installed on a din rail, it is easy to integrate into your electrical system.
  • Originating from Mainland China and certified with CE, this device meets high-quality standards for power protection.
Specifications
Brand Name
SINOTIMER
High-concerned chemical
None
Type
Voltage relay
Model Number
SVP719-1
Is Smart Device
No
Power Supply
120V 50/60Hz
Functions
under/over-voltage protection
Protection Value
Adjustable
Limit Current Protection
Yes, 40A/63A default
Display
Three LED Displays
Voltmeter
Yes, Upper LED
Ampmeter
Yes, Below LED
Kwh
Yes
Pulse
1000 Imp
Max Load
40A,63A
Poles
2 Poles
Dimensions
36*65*85mm
Installation
Din RAIL
semi_Choice
yes
1106 Sold
