FNIRSI LC1020E High Precision Digital Bridge LCR ESR Tester Resistance Capacitance Inductance Electronic Component Measurement

Product Features

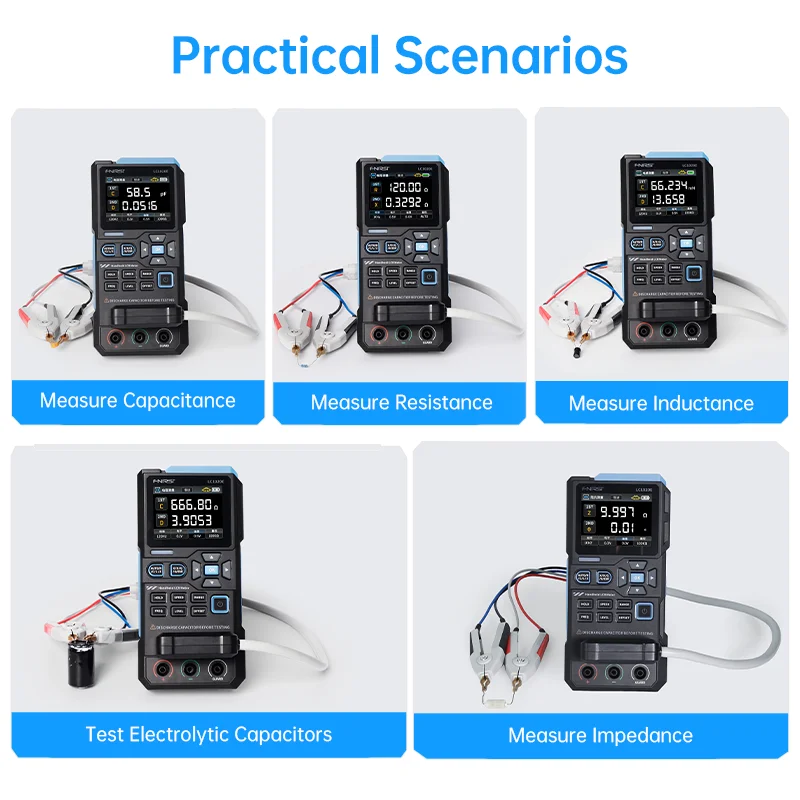

This high precision digital bridge LCR ESR tester offers accurate measurement of resistance, capacitance, and inductance with a basic accuracy of 0.3%, ensuring reliable results.
Equipped with a 2.8-inch TFT LCD display and 4.5-digit main and secondary parameter displays, it provides clear and detailed readings.
With test frequencies of 100Hz, 120Hz, 1KHz, 10KHz, 100KHz and test levels of 0.1V, 0.3V, 0.6V, it can meet various testing needs.
It supports open-circuit and short-circuit calibration, and has three-terminal and five-terminal configurations for flexible testing.

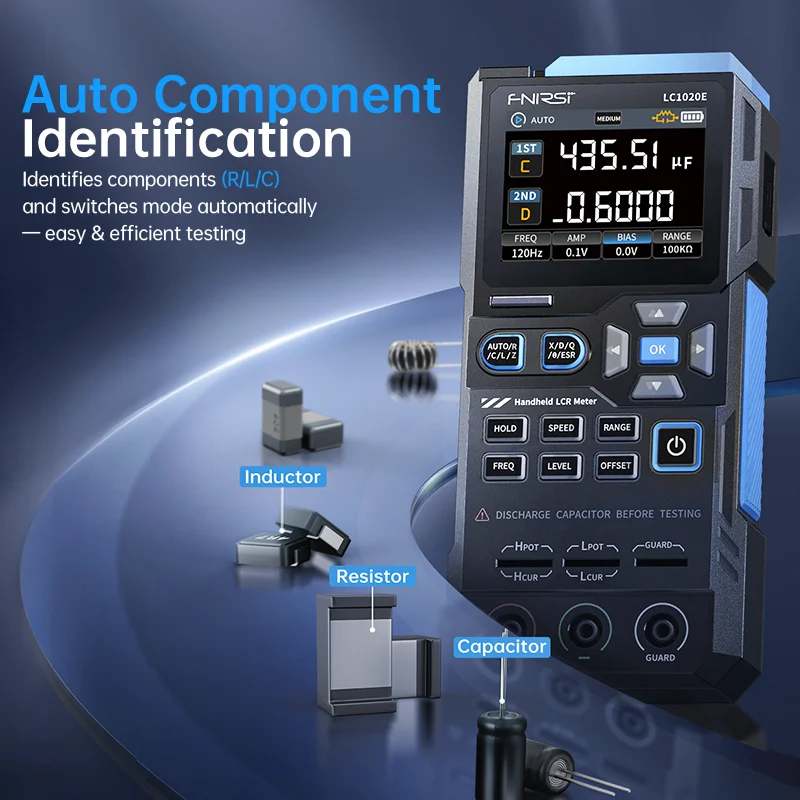

The tester supports component sorting, data logging, and auto power-off, enhancing its usability and convenience.

Specifications

Brand Name

FNIRSI

Fnirsi Model

LC020E

High-concerned chemical

None

Battery Included

Yes

Model Number

LC1020E

Model

LC1020E

Display

2.8-inch TFT LCD Display

Basic Accuracy

0.3%

Display Digits

Main Parameter: 4.5 digits; Secondary Parameter: 4.5 digits

Test Frequency

100Hz, 120Hz, 1KHz, 10KHz, 100KHz

Test Levels

0.1V, 0.3V, 0.6V

Internal DC Bias

0.0V, 0.5V

Main Parameters

AUTO, R (Resistance), C (Capacitance), L (Inductance), Z (Impedance)

Secondary Parameters

X (Reactance), D (Dissipation), Q (Quality Factor), Phase Angle, ESR

Measurement Range

L: 0 - 100H C: 0 - 100mF R: 0 - 10MΩ

Measurement Speed

Fast (4 times/s), Medium (2 times/s), Slow (1 time/s)

Test Terminals

Three-terminal and Five-terminal configuration

Calibration

Open-circuit and Short-circuit calibration support

Power Supply

3.7V, 3000mAh

Interface

USB-Type C

Component sorting

Supported

Data logging

Supported

Auto power-off

Supported

Description

FNIRSI LC1020E High Precision Digital Bridge LCR ESR Tester Resistance Capacitance Inductance Electronic Component Measurement
