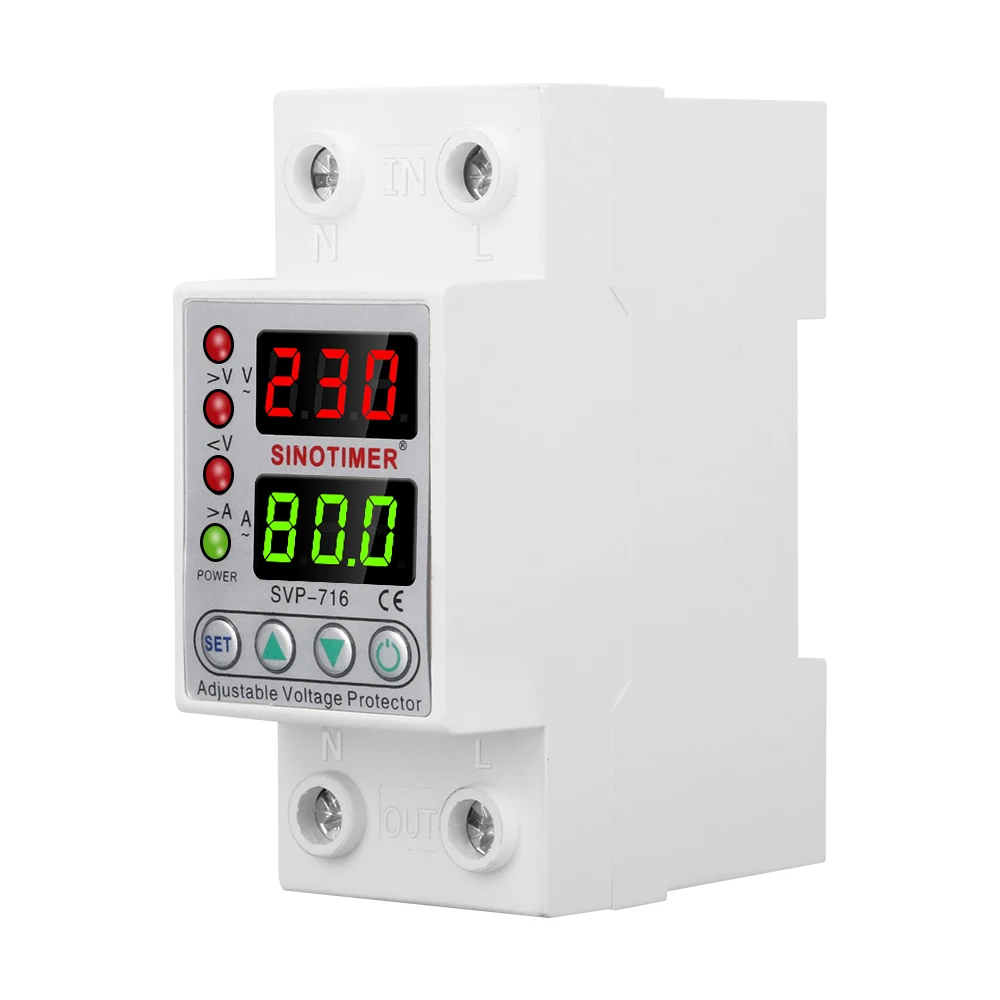

220V 230V Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector Relay 40A 63A 80A

Product Features

This 220V/230V Din rail dual-display adjustable over-voltage, current, and under-voltage protective device protector relay, with 40A/63A/80A options, meets CE certification.
From Mainland China, this circuit breaker has dual LED displays, showing voltage and current, and offers adjustable protection values.
The under/over-voltage protection function of this device ensures the safety of your electrical circuits, preventing damage from voltage fluctuations.

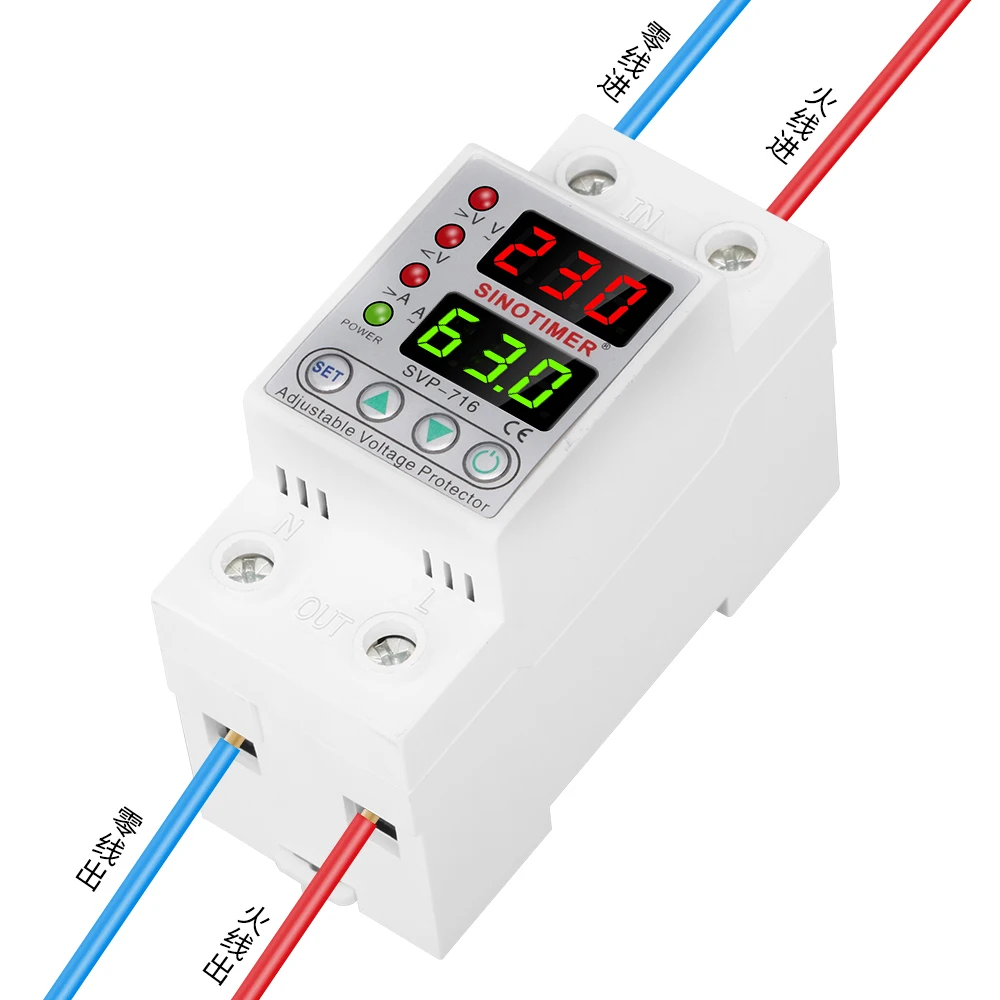

With a 2-pole design and DIN installation, this protective device is easy to install and use in your electrical system.
This device is free of high-concerned chemicals, providing a safe and reliable solution for your electrical protection needs.

Specifications

Brand Name

SINOTIMER

High-concerned chemical

None

Type

Circuit breaker

Rated Voltage

220V

Model Number

SVP716

Is Smart Device

Power Supply

230V 50/60Hz

Functions

under/over-voltage protection

Protection Value

Adjustable

Limit Current Protection

Yes, 40A/63A/80A default

Display

Dual LED Displays

Voltmeter

Yes, Upper LED

Ampmeter

Yes, Below LED

Max Load

40A, 63A, 80A

Poles

2 Poles

Dimensions

36*65*85mm

Installation

DIN

semi_Choice

yes

Description

220V 230V Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector Relay 40A 63A 80A
