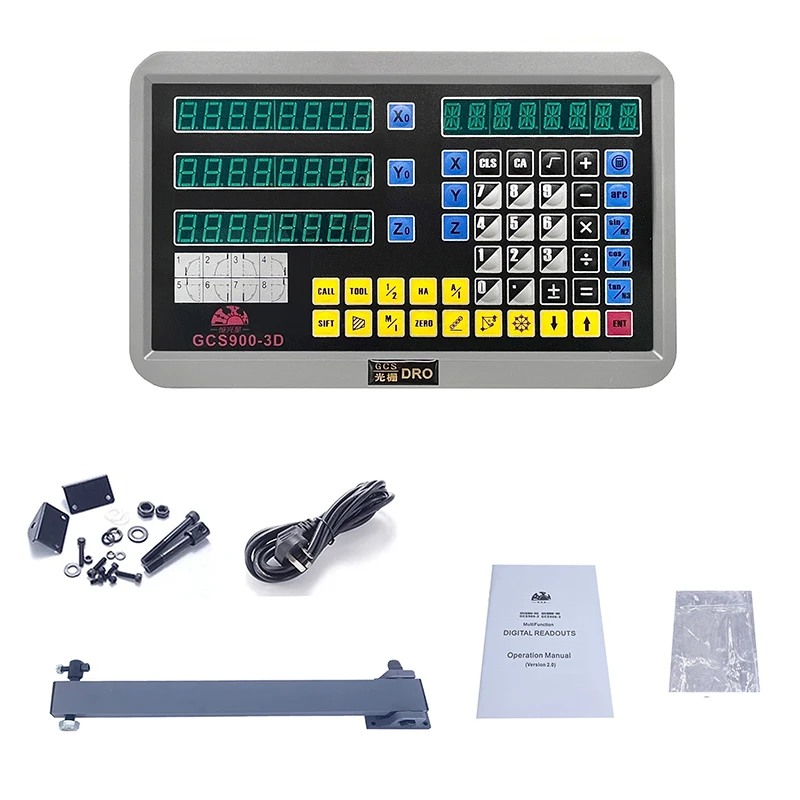

3 Axis Dro Kit GCS900 Digital Readout Lathe Dro Set with 3 Pieces 0-1000mm Linear Scale Encoder Sensor For Milling Lathe Turning

Product Features

This 3-axis DRO kit GCS900 is suitable for milling, lathe, and turning applications, providing accurate digital readouts for your machine.
It comes with 3 pieces of 0-1000mm linear scale encoders, offering high-precision measurement for your work.
The DRO reading resolution can be set to 0.5um, 1um, 2um, 5um, or 10um, allowing you to choose the appropriate accuracy for your project.
With an input voltage of AC110V/220V 50/60Hz, this kit is compatible with different power sources.
The scale resolution is 0.005mm (customizable), and the scale travel length is 0-1000mm available (customizable), providing flexibility for your machining needs.

Specifications

Brand Name

HXX

HXX Model

GCS900-3D

Battery Included

High-concerned chemical

None

Model Number

GCS900-3D

Digital Readout(DRO)

Milling Lathe 3 Axis DRO Kit

Input voltage

AC110V/220V 50/60Hz

DRO reading resolution

0.5um, 1um, 2um, 5um, 10um

Siginal

DC5V TTL(EIA-422 option)

Scale Resolution

0.005mm (customizable)

Scale Travel length

0-1000mm available(customizable)

Scale Total length

Travel length+138mm

Scale cable length

3 meters

Application

lathe, milling, drill, CNC machine

Description

3 Axis Dro Kit GCS900 Digital Readout Lathe Dro Set with 3 Pieces 0-1000mm Linear Scale Encoder Sensor For Milling Lathe Turning
