2200W CNC Spindle Motor 220v ER20 2.2kw Round Water Cooling Spindle 24000RPM +2.2kw VFD 50/60hz +Water Pump +80mm Bracket

Product Features

This 2200W CNC spindle motor with water cooling is a powerful tool for milling applications. It has a 24000RPM operating speed, ensuring efficient performance.

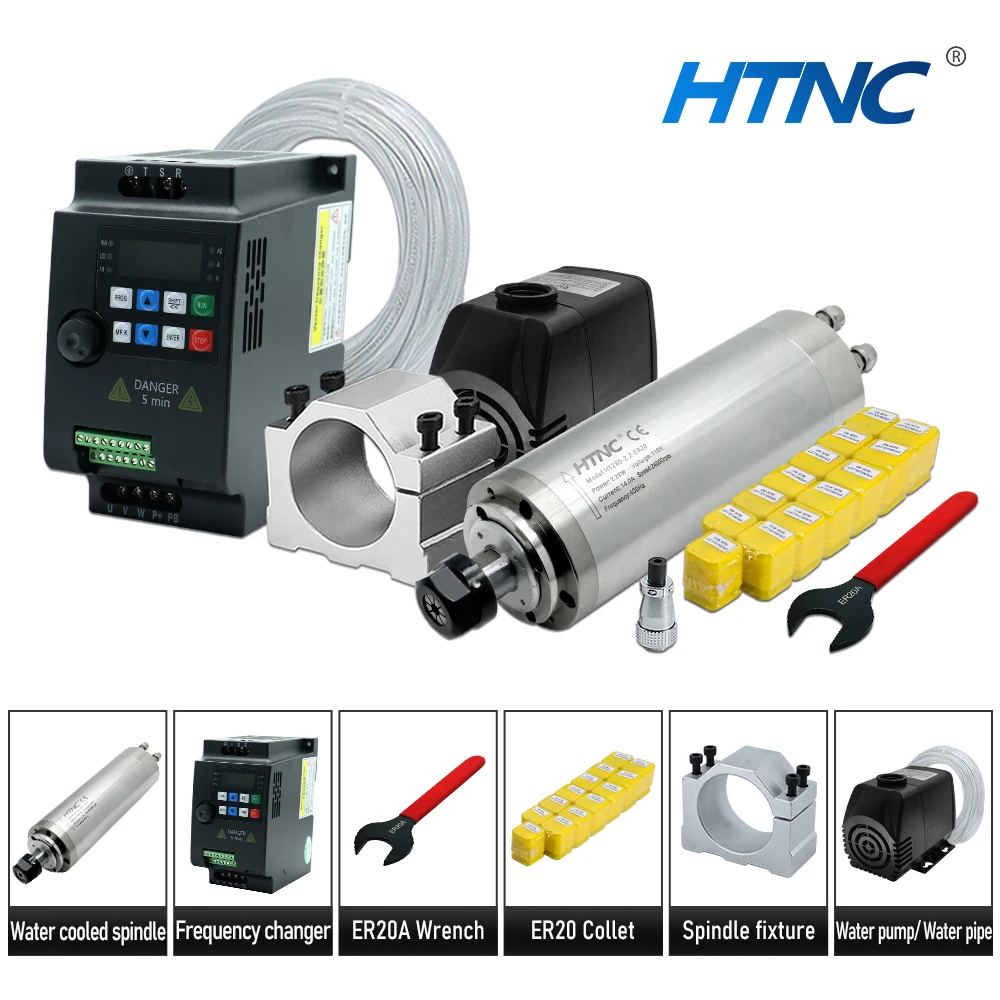

The motor comes with a 2.2kw VFD, 50/60hz input frequency, and a 75w water pump, providing stable power and cooling.
With an ER20 collet and 80mm spindle diameter, it is suitable for working on wood, soft metal, aluminum, and acrylic boards.
Certified with RoHS, this spindle motor meets international safety standards. It has a maximum torque of 0.9Nm, offering strong cutting force.
Made in Mainland China, this water-cooled spindle motor is a reliable choice for various machining projects, with a net weight of 4.69kg and a 5-meter water pipe included.

Specifications

Hign-concerned Chemical

None

Operating Speed

24000

Application

Milling

Drive

MOTOR

Model Number

HTZ80-2.2

Maximum Torque

0.9Nm

product name

water cooling Spindle motor 2.2kw

collet

ER20

input frequency

50/60hz

spindle Net weight

4.69kg

application

wood soft metal aluminum acrylic board

bearing

4 pcs 7002

pole

9pcs ER11 Collet

1-13mm

VFD

single phase 220v

spindle diameter

80mm

Cooling

Water cooling

water pump

75w

water pipe

5Meters

Description

2200W CNC Spindle Motor 220v ER20 2.2kw Round Water Cooling Spindle 24000RPM +2.2kw VFD 50/60hz +Water Pump +80mm Bracket
