MESTEK DM100C NCV Resistance Capacitance Voltage Meter 10000 Counts Current Voltage Multi Meter Temperature Measure Multimeters

Product Features

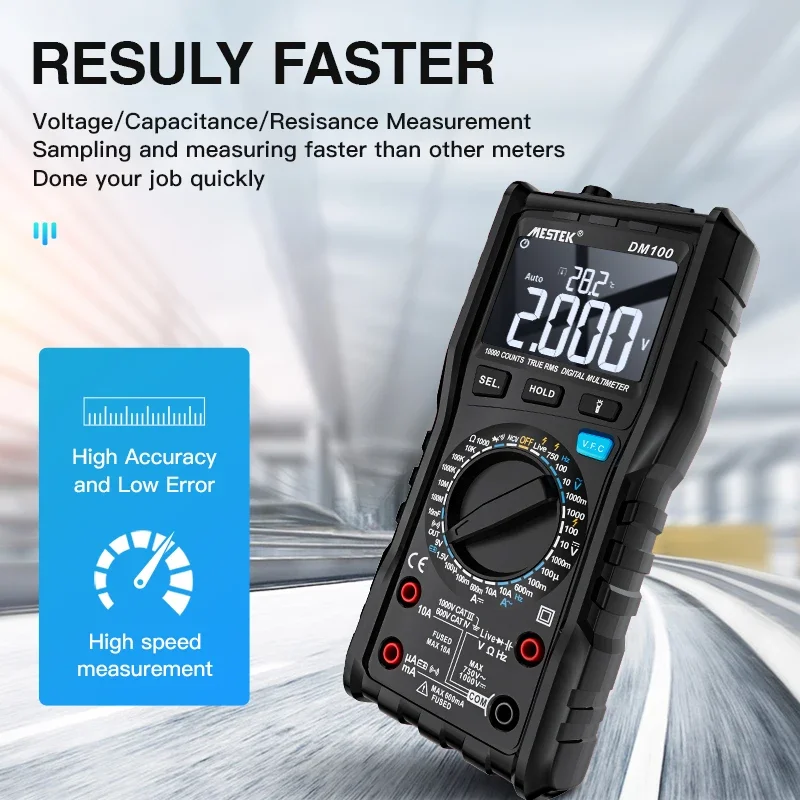

This MESTEK DM100C NCV resistance capacitance voltage meter offers a wide range of measurement functions, including AC/DC voltage, current, resistance, and capacitance.
With a 10000-count digital display and auto-range operating mode, it provides accurate and easy-to-read measurements.
Certified with CE, it meets safety standards, and features like data retention, flashlight, and automatic shut-down enhance its usability.
It can measure temperature, detect non-contact AC voltage, and identify fire lines, making it a versatile tool for electrical work.
This multi-meter is suitable for various electrical applications, offering high-speed sampling and reliable performance.

Specifications

Brand Name

feimiaomilei

Hign-concerned Chemical

None

DIY Supplies

ELECTRICAL

AC Voltage

0~999.9mV/9.999V/99.99V/750V

Display Type

Digital display

DC Voltage

0~999.9mV/9.999V/99.99V/999.9V

AC Current

0~99.99mA/600mA/10.00A

Measuring Resistance Range

0~999.9ohm/9.999Kohm/99.99Kohm/999.9Kohm/9.999Mohm/99.99Mohm

DC Current

0~99.99uA/999.9mA/600mA/10.00A

Measuring Capacitance Range

0~9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF

Operating Mode

auto range

Model Number

DM100

Is Smart Device

YES

Measuring Inductance Range

multimeter

Dimensions

185*85*40

Operating Temperature

0 - 40 ℃

display count

10000 count

screen display

reverse display AV screen

ambient temperature

0~60C

environment humidity

20~95%

battery measurement

0~1.5V/0~9V

buzzer detection

2kHz/2.7kHz/3V

True RMS

1kHz

high speed sampling

sampling rate 10 times/second

fuse alarm

600mA/10A

wrong insertion alarm

wrong plug display LUSE and buzzer alarm

data retention

Yes

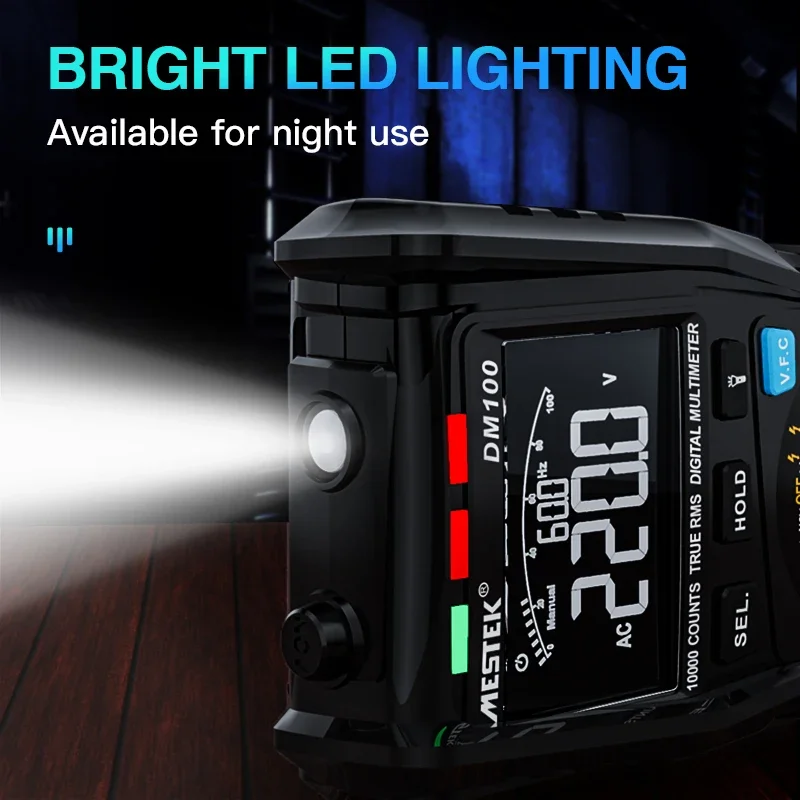

flashlight

Yes

Automatic shut-down

15 minutes without operation

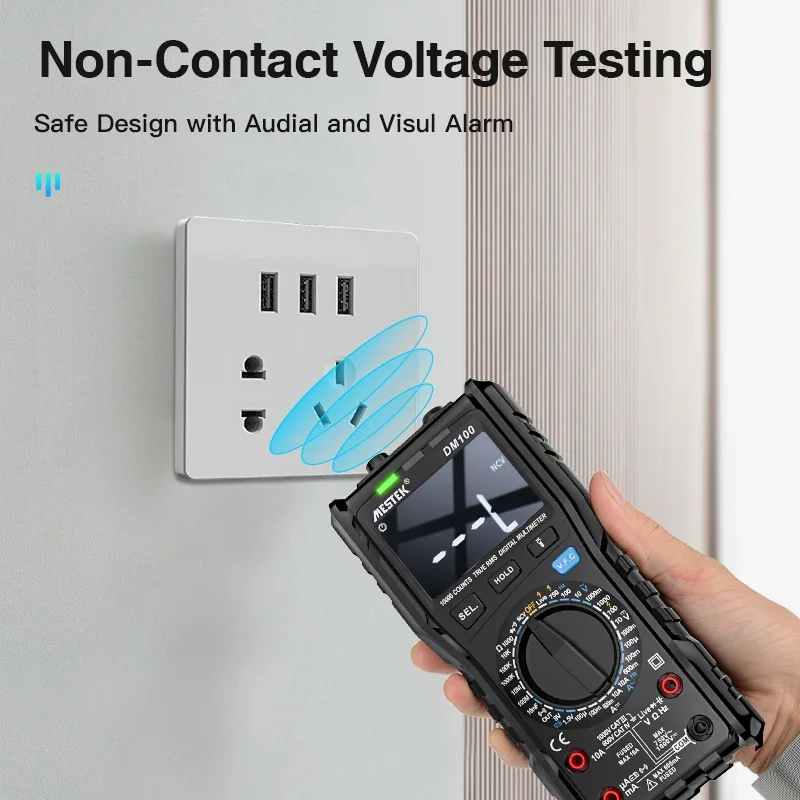

NCV

non-contact AC voltage detection

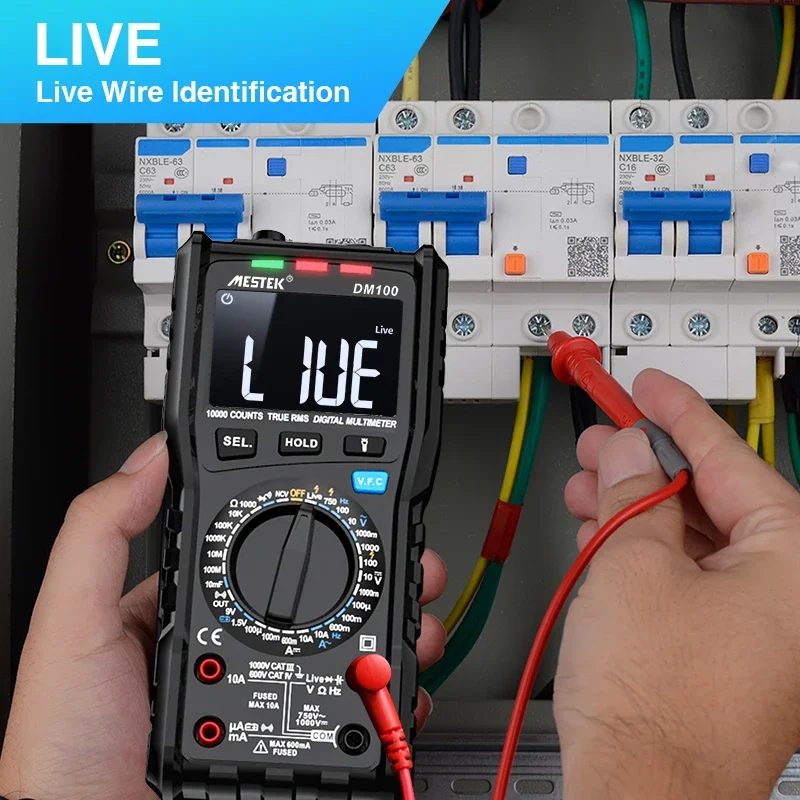

LIVE

fire line identification

input resistance

10Mohm

overload protection

less than 250v

under voltage prompt

less than 2.4V

Diode

0.15V~3V

on-off beep

0~100Ohm resistance less than 15Ohm

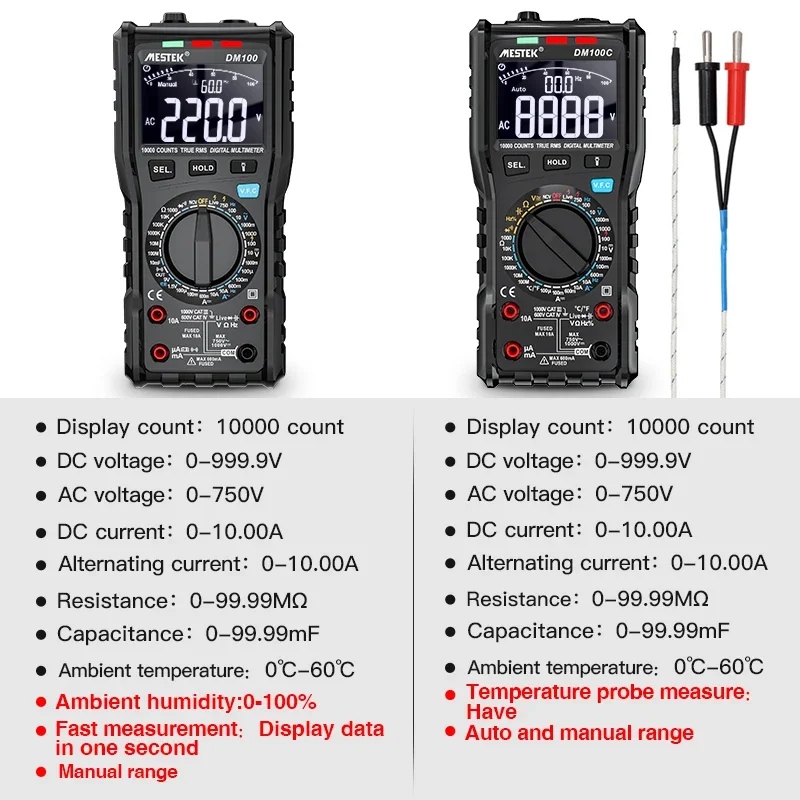

DM100C

Manual/Auto range,Temperature probe measure,Ambient temperature

DM100

Manual range,High speed measure,Ambient temperature and humidity

Description

MESTEK DM100C NCV Resistance Capacitance Voltage Meter 10000 Counts Current Voltage Multi Meter Temperature Measure Multimeters
