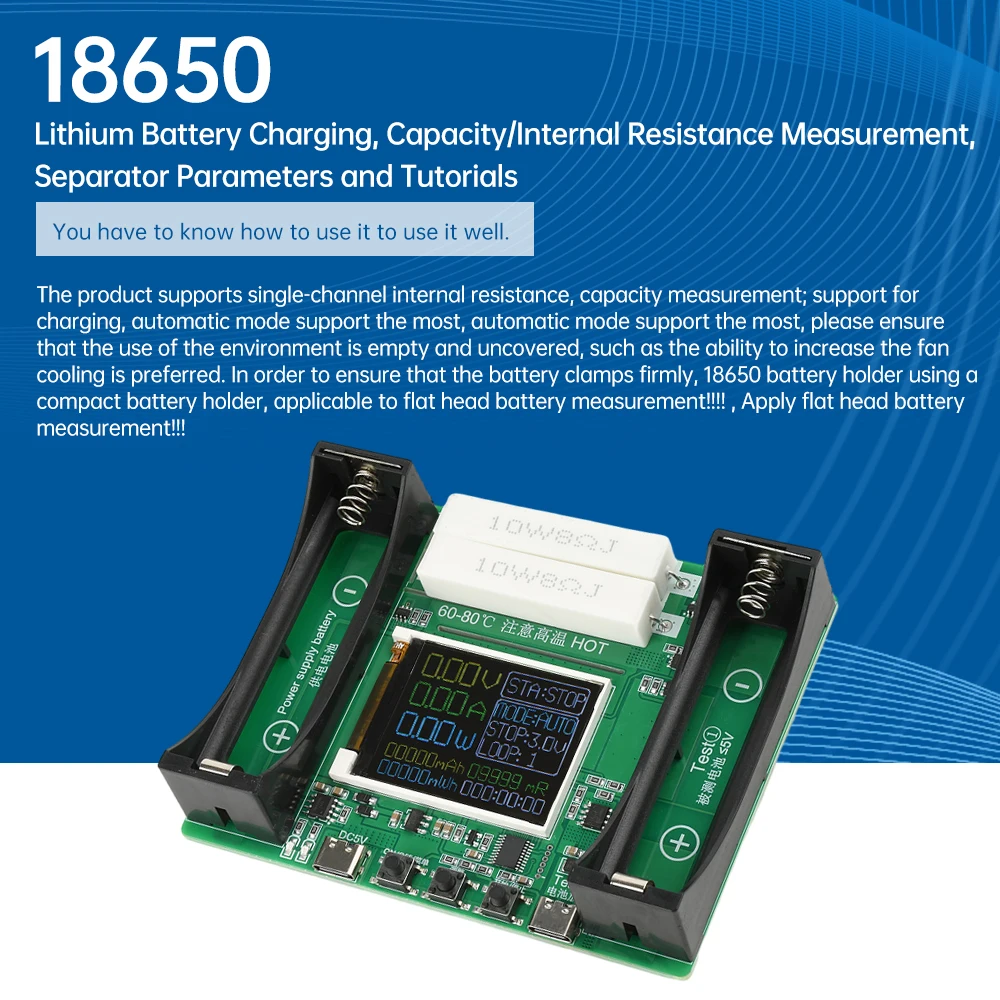

18650/21700 Lithium Battery Capacity Tester Module Type-C LCD Digital Display Measurement Power Test Detector 11-step Adjustable

Specifications

Brand Name

Gaqqee

Hign-concerned Chemical

None

DIY Supplies

ELECTRICAL

Type

Household Battery Tester

Model Number

18650/21700 Lithium Battery Capacity Tester Module Type-C LCD Display

Working power

DC5V power supply or 18650 battery/21700 battery

Applicable battery

Stop discharge voltage 2.5 ~ 3.5V, 2.8V start ~ 4.2V full battery

Power supply interface

Type-C interface, power supply line self-provided

System language

Chinese (default), English

Number of tests

1-channel charging and discharging measurement

Internal resistance measurement

Support, using the DC two-wire method to test the internal resistance

Charging function

Support, full automatic cut off charging

Discharge function

Support,automatic mode ends when the battery is fully charged

Automatic charging and discharging

Support, automatic mode ends when the battery is fully charged

Cycle charging and discharging

Support, 1~9 cycles adjustable

Status prompt

Support

Stop discharge voltage

2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V

Discharge current

Maximum of about 1A current, not adjustable

Charging voltage

Maximum of about 1A charging, full charge voltage 4.2V

Power failure save

Only save the setting parameters, not save the measurement data

semi_Choice

yes

Description

18650/21700 Lithium Battery Capacity Tester Module Type-C LCD Digital Display Measurement Power Test Detector 11-step Adjustable
