Paint Coating Meter Paint Thickness Gauge Thickness Gauge Wet Film Thickness Gauge FNIRSI CTG-20 Coating Thickness Gauge 0-1400um Car Paint Film Thickness Tester Fe nFe Fe+Zn Electroplate Metal Putty Powder

Product Features

This paint coating meter, the FNIRSI CTG-20, has a measuring range of 0-1400μm with an accuracy of ±3% +2μm and a resolution ratio of 0.1μm, ensuring precise measurements.

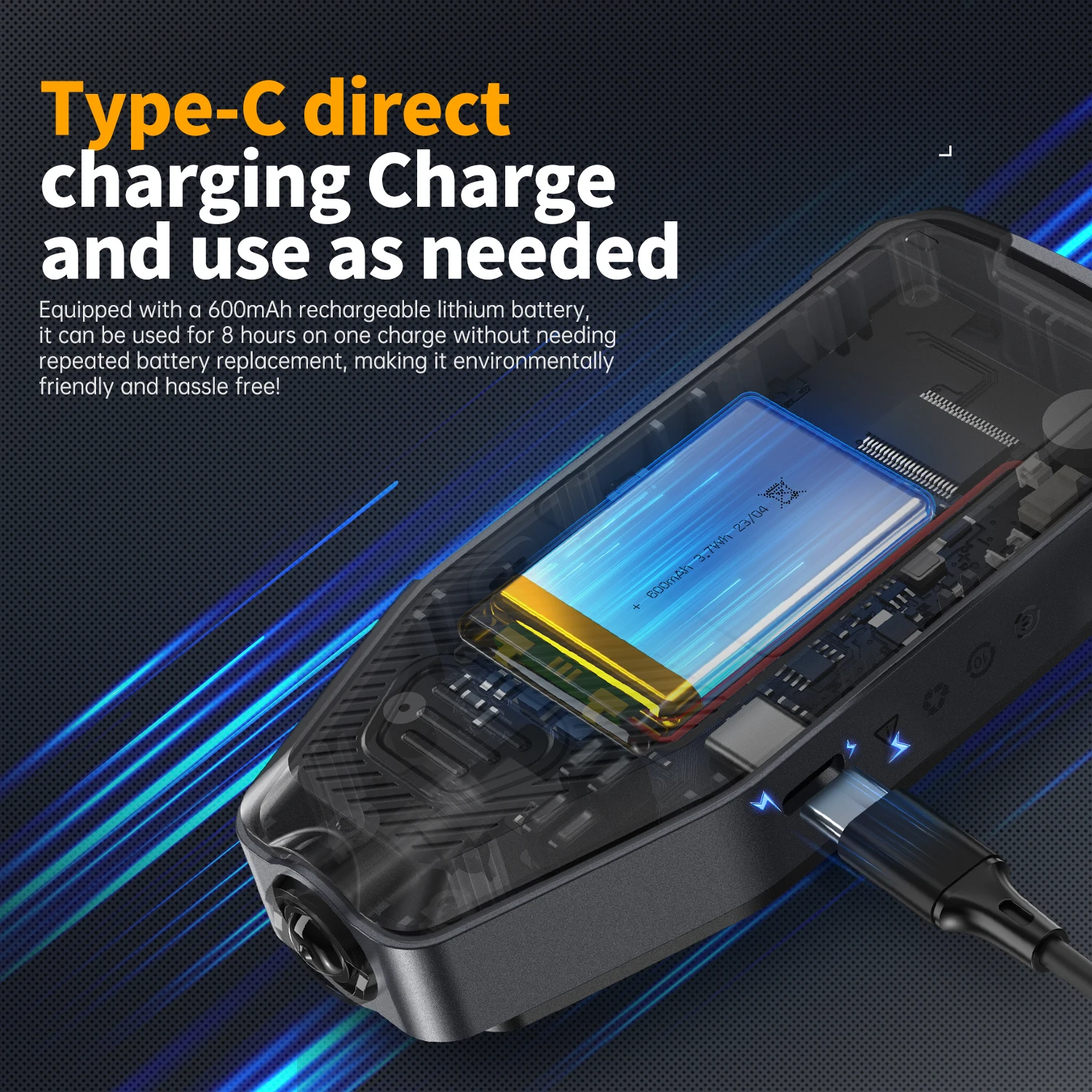

Equipped with a 600mAh lithium battery and a backlight, it is convenient for use in various environments, and supports both zero-point and multi-point calibration.
With CE certification, this paint thickness gauge is suitable for measuring car paint film, electroplate metal, and putty powder, with a mini convex curvature radius of 5mm.
The FNIRSI CTG-20 can measure different types of surfaces, and its unit can be switched between μm and mil, making it a versatile tool for various coating thickness measurements.
Featuring a minimum concave curvature radius of 25mm and a minimum measurement area diameter of 20mm, this paint gauge is reliable and accurate for a wide range of coating thickness testing applications.

Specifications

Brand Name

FNIRSI

Fnirsi Model

CTG-20

Hign-concerned Chemical

None

With Backlight Or Not

YES

Model Number

CTG-20

Measuring Range

0-1400μm

Accuracy

±3% +2μm

Resolution Ratio

0.1μm

Calibration 1

Zero poin calibration

Calibration 2

Multi-point calibration

Unit

μm / mil

Mini Convex Curvature Radius

5mm

Mini Concave Curvature Radius

25mm

Mini Measurement Area Diameter

20mm

Battery

600mAh Lithium battery

Description

Paint Coating Meter Paint Thickness Gauge Thickness Gauge Wet Film Thickness Gauge FNIRSI CTG-20 Coating Thickness Gauge 0-1400um Car Paint Film Thickness Tester Fe nFe Fe+Zn Electroplate Metal Putty Powder
