FNIRSI CTG-20 Car Paint Thickness Gauge Electroplate Metal Putty Powder Coating Thickness Gauge for Car 0-1400um Fe nFe Fe+Zn

Product Features

This car paint thickness gauge offers a wide measuring range from 0-1400μm, enabling precise detection of electroplate, metal, putty powder, and coating thickness on cars.
It comes with a high accuracy of ±3% +2μm and a resolution ratio of 0.1μm, ensuring reliable and detailed measurement results.
Equipped with both zero point calibration and multi-point calibration, it can be easily adjusted to meet different measurement requirements.

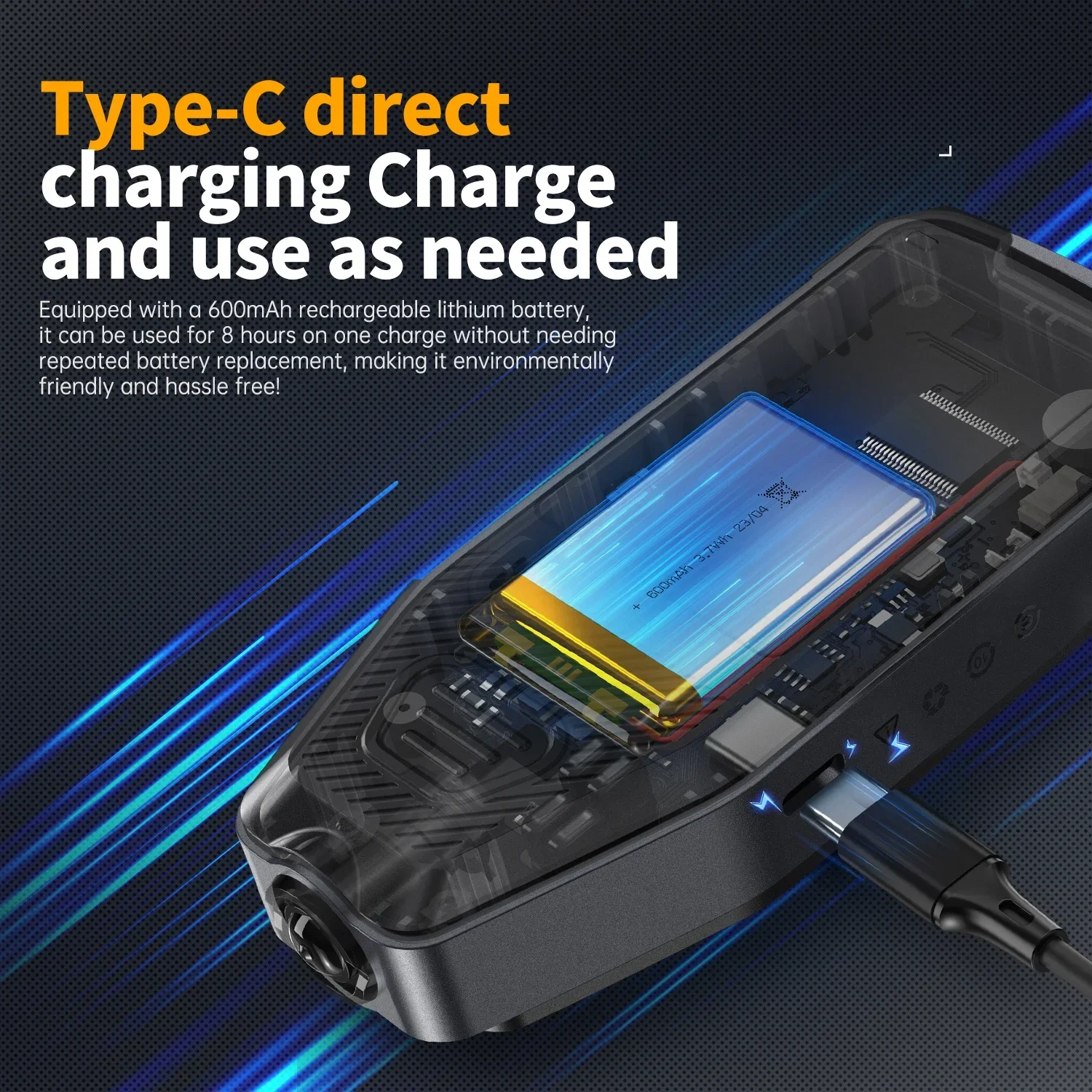

The gauge features a 600mAh lithium battery, allowing for long-term use, and has a compact size of 115 x 48 x 18mm, making it portable.
With a backlight and CE certification, it provides clear readings in various environments and meets international quality standards.

Specifications

Brand Name

FNIRSI

Hign-concerned Chemical

None

With Backlight Or Not

YES

Model Number

CTG-20 coating thicknes gauge

Fnirsi Model

CTG-20

Measuring Range

0-1400μm

Accuracy

±3% +2μm

Resolution Ratio

0.1μm

Calibration 1

Zero poin calibration

Calibration 2

Multi-point calibration

Unit

μm / mil

Mini Convex Curvature Radius

5mm

Mini Concave Curvature Radius

25mm

Mini Measurement Area Diameter

20mm

Work Environment

No strong magnetic field

Work Temperature

-10℃ ~ +50℃

Battery

600mAh Lithium battery

Size

115 x 48 x 18mm

Weight

About 83g

Description

FNIRSI CTG-20 Car Paint Thickness Gauge Electroplate Metal Putty Powder Coating Thickness Gauge for Car 0-1400um Fe nFe Fe+Zn
