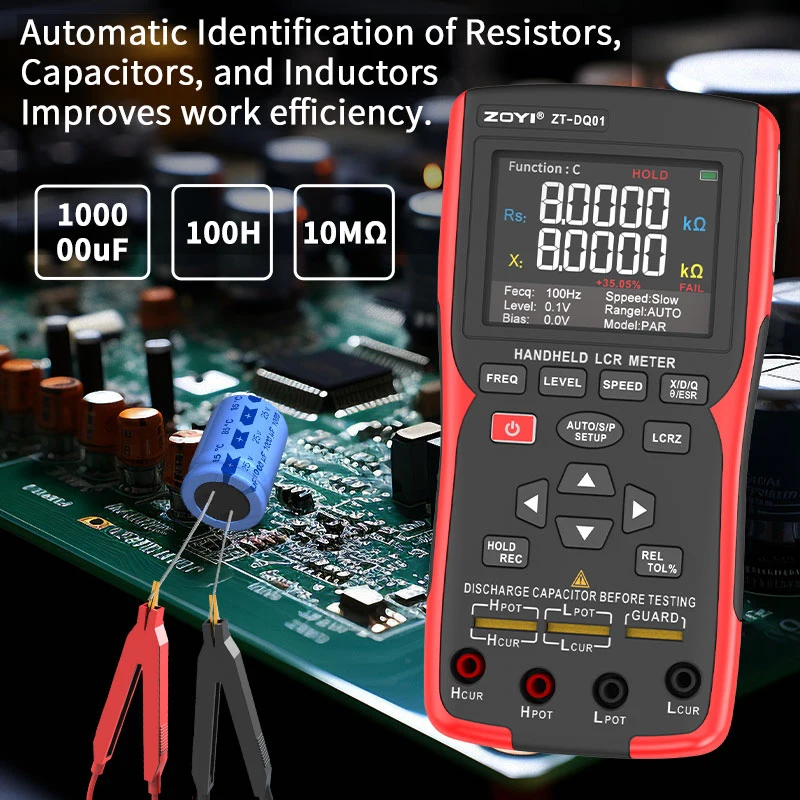

ZOYI High Precision Digital Bridge LCR Tester 99999 Counts Resistance Capacitance Inductance Electronic Component Measurement digital bridge tester

Product Features

This high precision digital bridge LCR tester offers counts up to 99999, capable of measuring resistance, capacitance, and inductance with great accuracy.
It features a wide range of test frequencies (100Hz, 120Hz, 1KHz, 10KHz, 100KHz) and test levels (0.1V, 0.3V, 0.6V), providing versatile testing options.
With an inductors range of 0-100H, capacitance range of 0-100000uF, and resistance range of 0-10MΩ, it can handle various electronic components.
The tester comes with a built-in battery and has an output impedance of 100Ω, ensuring stable performance during use.
For the ZT-DQ02 model, it offers battery internal resistance measurement, adding extra functionality to the device.

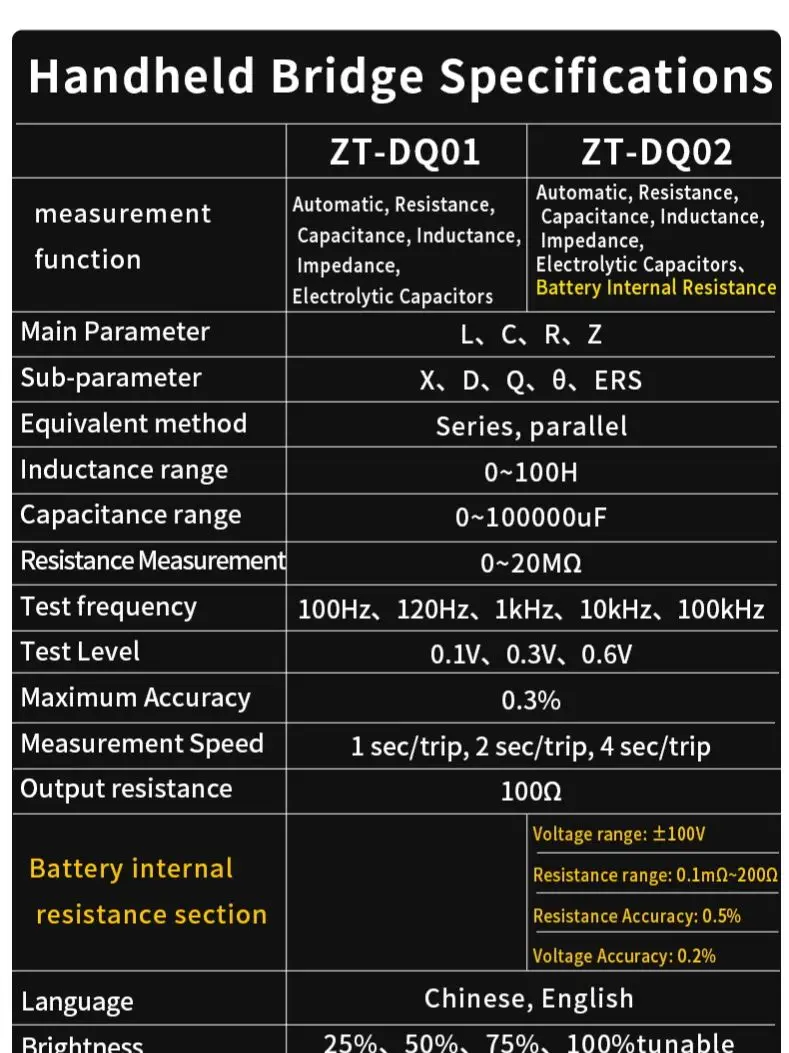

Specifications

Brand Name

cretrust

Hign-concerned Chemical

None

Battery Included

Yes

Model Number

ZT-DQ01/ZT-DQ02

inductors range

0-100H

Capacitance range

0-100000uF

Resistance range

0-10MΩ

Test frequency

100Hz, 120Hz, 1KHz, 10KHz, 100KHz

Test level

0.1V, 0.3V, 0.6V

Output impedance

100Ω

Battery Internal Resistance Measurement

Only ZT-DQ02

Description
