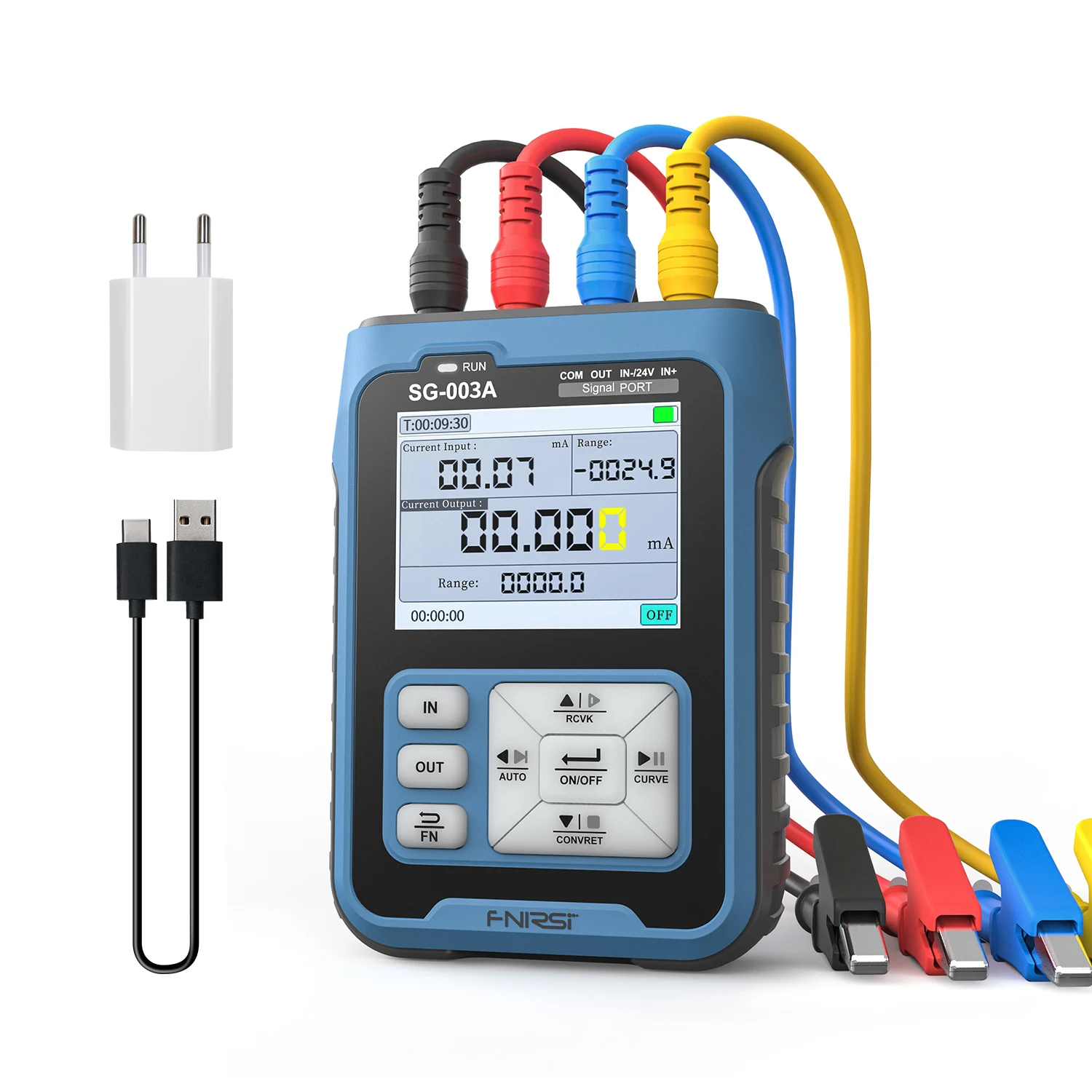

FNIRSI SG-003A SG-004A Signal Generator PWM Pulse Output TFT LCD Display 0-10V 4-20mA Adjustable Current-Voltage Simulator signal generator kit signal generator current voltage simulator

Product Features

This signal generator kit offers a wide active current output range of 0-24 mA with a max load of 750Ω, ensuring stable performance in various applications.

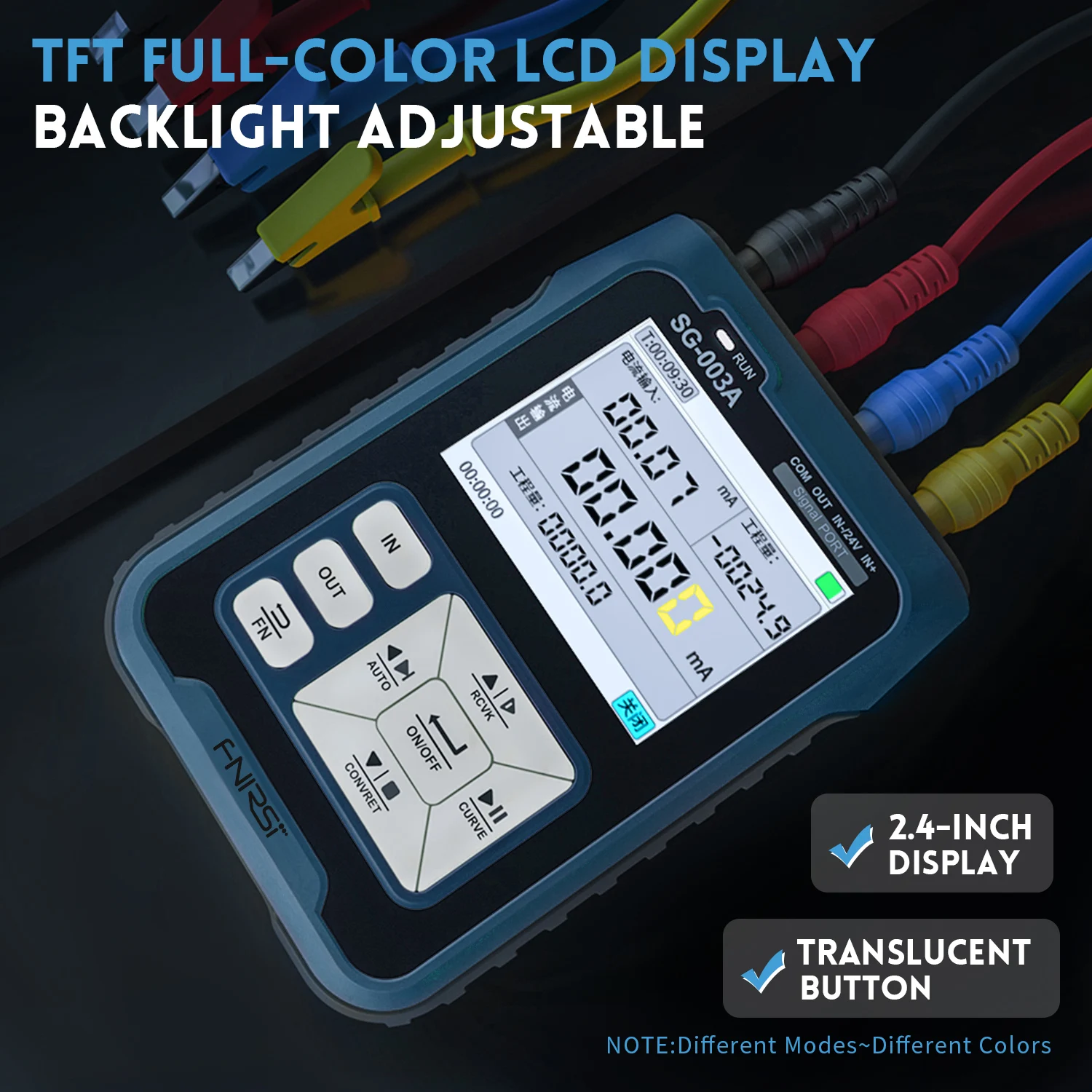

It features a TFT LCD display for easy operation and monitoring, along with adjustable current-voltage simulation from 0-10V and 4-20mA.
The PWM output frequency ranges from 0-9999 Hz, providing flexibility for different signal generation needs.
With high-precision measurement capabilities, including 0.01 mA current input resolution and ±(0.1% + 0.05) accuracy, it guarantees reliable results.

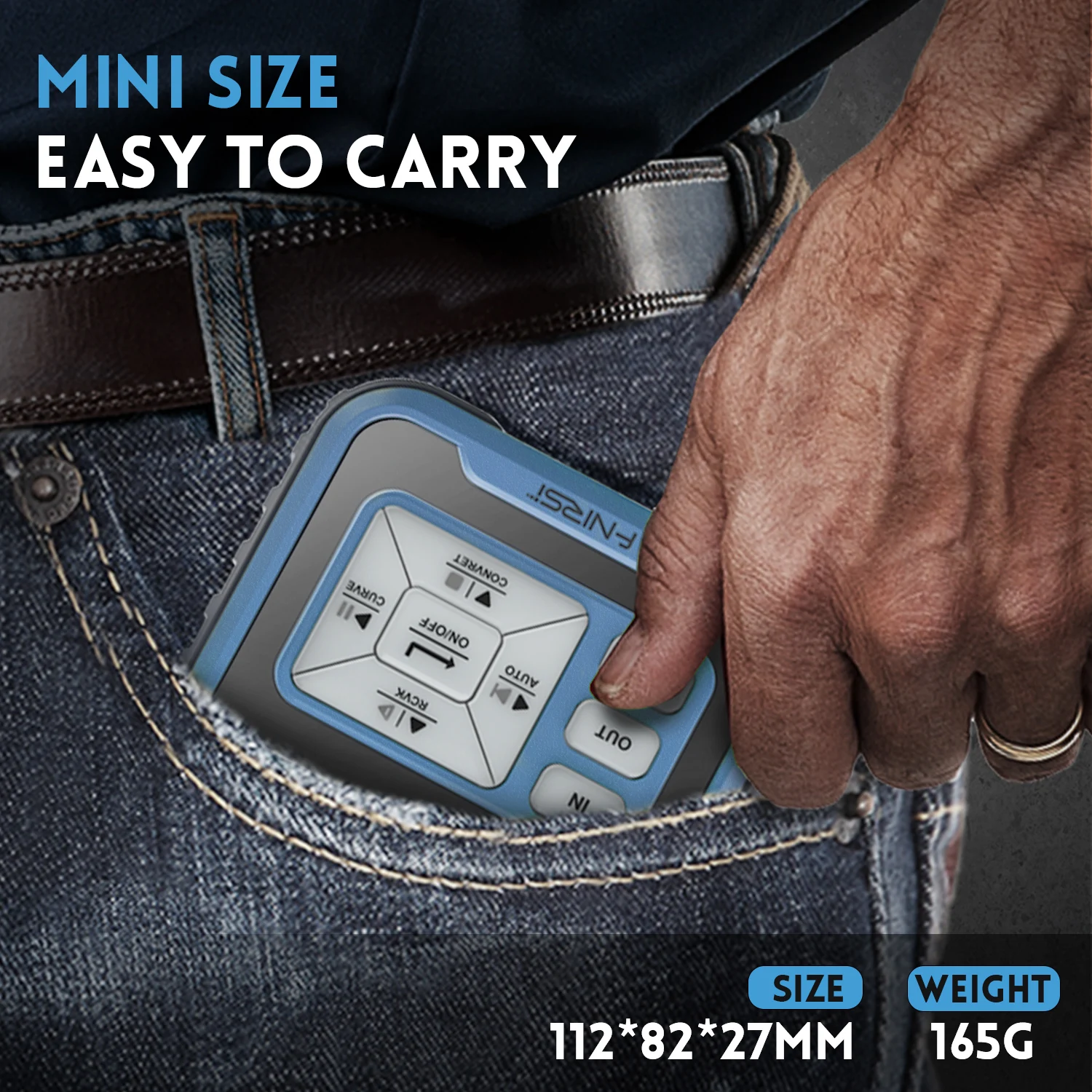

The compact size of 112mm * 82mm * 27mm and 3000 mAh battery make it portable and suitable for on-the-go use in an operating environment of 0 °C-50 °C.

Specifications

Active current output range:

0~24 mA

Active current output max. load:

750Ω

Passive current output range:

0-24 mA

Passive current output:

external power supply up to 30V

Voltage output range:

0 - 24 V

Maximum voltage output current:

30 mA

24V voltage output drive current:

24mA

24V voltage output accuracy:

± (0.1% + 0.005)

Current input measurement resolution:

0.01 mA

Current input measurement accuracy:

± (0.1% + 0.05)

Voltage input measurement resolution:

0.01 V

Voltage input measurement accuracy:

± (0.1% + 0.05)

3000 mAh:

3000 mAh

Size:

112mm * 82mm * 27mm

Operating environment:

0 °C - 50 °C.

PWM output (frequency) range:

0 - 9999 Hz

Voltage input impedance:

2 mA

Voltage input measurement range:

0-30 V

Current input measurement:

input impedance 100Ω

Current input measurement range:

0-24 mA

24V voltage output resolution:

0.01mA

Voltage output accuracy:

±(0.1%+0.005)

Brand Name

FNIRSI

Display Size

2.9 Inches & Under

Model Number

SG-003A

Hign-concerned Chemical

None

Battery Included

Yes

DIY Supplies

Electrical

semi_Choice

yes

Description

FNIRSI SG-003A SG-004A Signal Generator PWM Pulse Output TFT LCD Display 0-10V 4-20mA Adjustable Current-Voltage Simulator signal generator kit signal generator current voltage simulator
