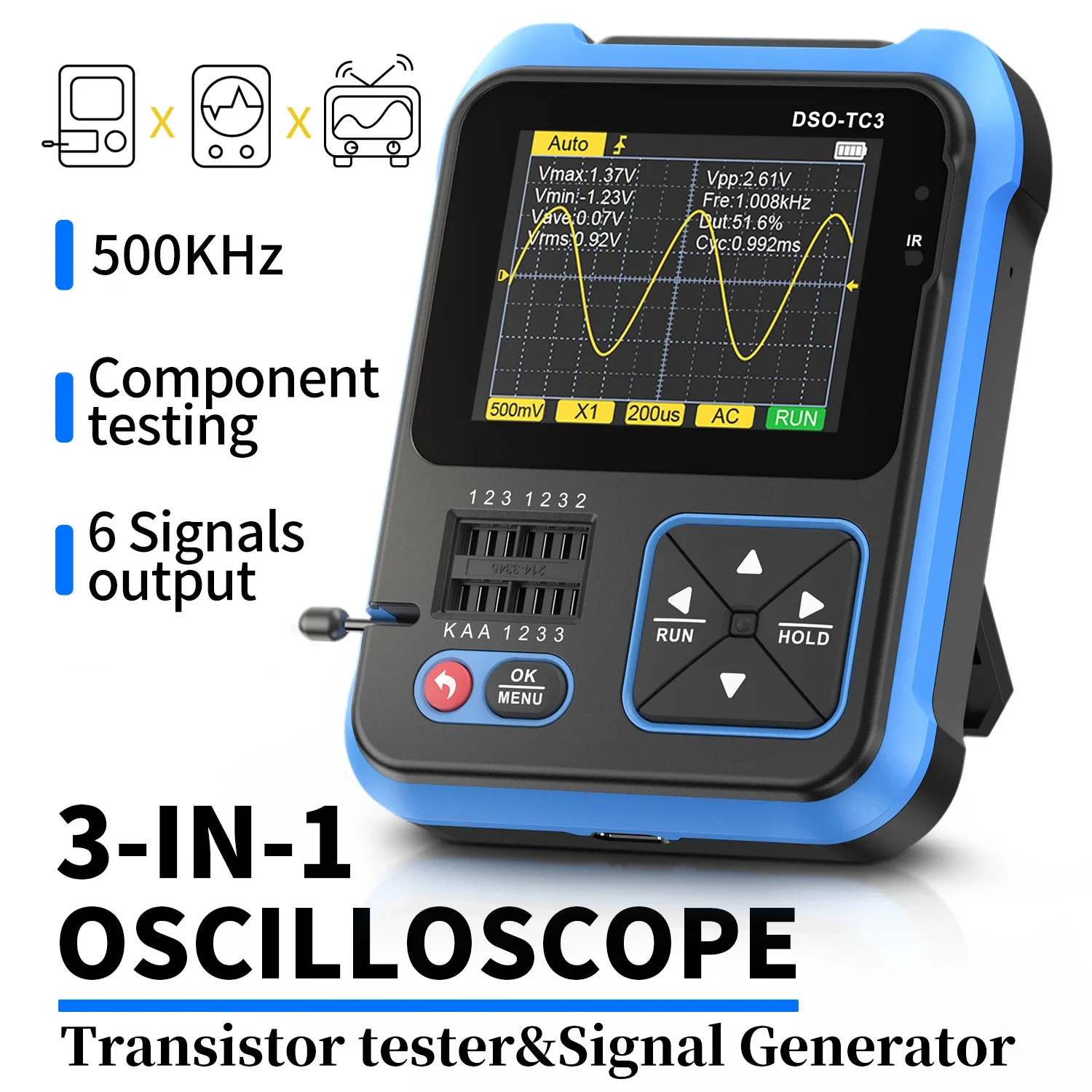

FNIRSI DSO-TC3 3 IN 1 Digital Oscilloscope Function Signal Generator Transistor Tester 500KHz 10MS/s Electronic Measuring Tester

Product Features

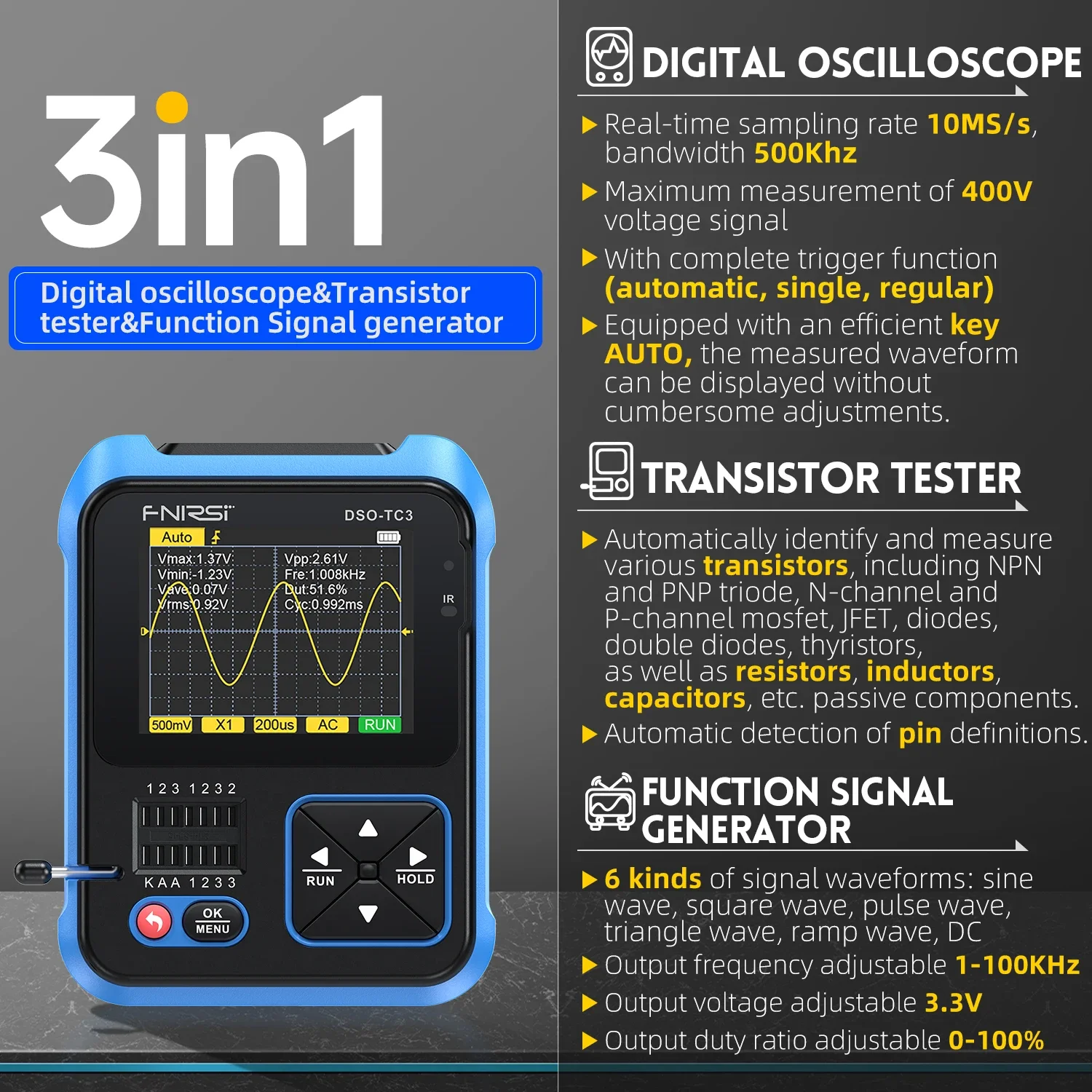

The FNIRSI DSO-TC3 is a 3-in-1 digital oscilloscope with a function signal generator and transistor tester. It has a 2.4-inch TFT color screen and a 320*240 pixels display resolution.
With a 500KHz analog bandwidth and a 10MS/s real-time sample rate, this device can accurately measure and analyze electronic signals. It has a wide test voltage range of 400V.
It comes with various functions such as automatic measurement, waveform freeze, and different trigger modes. It also supports multiple types of waveform generation.
The device is powered by a rechargeable lithium battery with Type-C 5V charging specifications. It has an all-in-one foldable stand for convenient use.
Whether you are an electronics hobbyist or a professional, this FNIRSI DSO-TC3 offers a comprehensive solution for electronic measuring and testing.

Specifications

Brand Name

FNIRSI

DIY Supplies

ELECTRICAL

Display Resolution

320*240 Pixels

Digital Channels

Model Number

FNIRSI DSO-TC3

IS Battery Demountable

Display Size

2.9 Inches & Under

Band Width

Less than 60MHz

Display Screen

2.4 inch TFT color screen

Supply voltage

Rechargeable lithium battery

Charging specifications

Type-C 5V

Bracket specifications

All-in-one foldable stand

Real-time sample rate

10MSa/s

Analog Bandwidth

500Khz

Input resistance

1MΩ

Coupling Mode

AC/DC

Test voltage range

400V

Vertical Sensitivity (x1)

10mV-10V

Horizontal time base range

1us-10s

Trigger Mode

Auto / Normal / Single

Trigger type

Rising edge / Falling edge

Waveform Freeze

Yes

Automatic measurement

Yes

Diodes Forward voltage drop

<4.5V

Reglulated Diode

0.01~4.5V

MOSFET

JFET IGBT MOSFET

SCR

Turn-on voltage <5V, gate Pole trigger current <6mA

Capacitor

5pF~100mF

Resistor

0.01Ω~50MΩ

Inductor

10uH~1000mH

Battery

0.1~4.5V

Input voltage

0~40V

DS18B20

0-85℃

DHT11

0-60℃/5-95%

Infrared remote decoding

NEC protocol infrared code

Triangle wave

1-10KHz/0-3.3V/50%,1-10KHz/0-3.3V/50%

Square wave

1-100KHz/3.3V/50%

Pulse wave

1-100KHz/3.3V/0-100%

Ramp

1-10KHz/0-3.3V/0-100%

0-3.3V

semi_Choice

yes

Description

FNIRSI DSO-TC3 3 IN 1 Digital Oscilloscope Function Signal Generator Transistor Tester 500KHz 10MS/s Electronic Measuring Tester
