ANENG AOS04 Digital Oscilloscope Smart Multimeter 50MS/s Sampling Rate 10Mhz Bandwidth Support Waveform Storage Tester Tool

Reviews | Questions & Answers
AU $175.18 ~ 196.82
Price includes 10% AU GST

Color :
Quantity
In Stock. Ships in 24 hours
Shipping: AU $0.00
Estimated Delivery on -
Secure Payment
Multiple payment options
Customer Service Guarantee
DOA Guarantee Missing/Wrong Items Guarantee Quality Guarantee No Reason Returns
Product Features

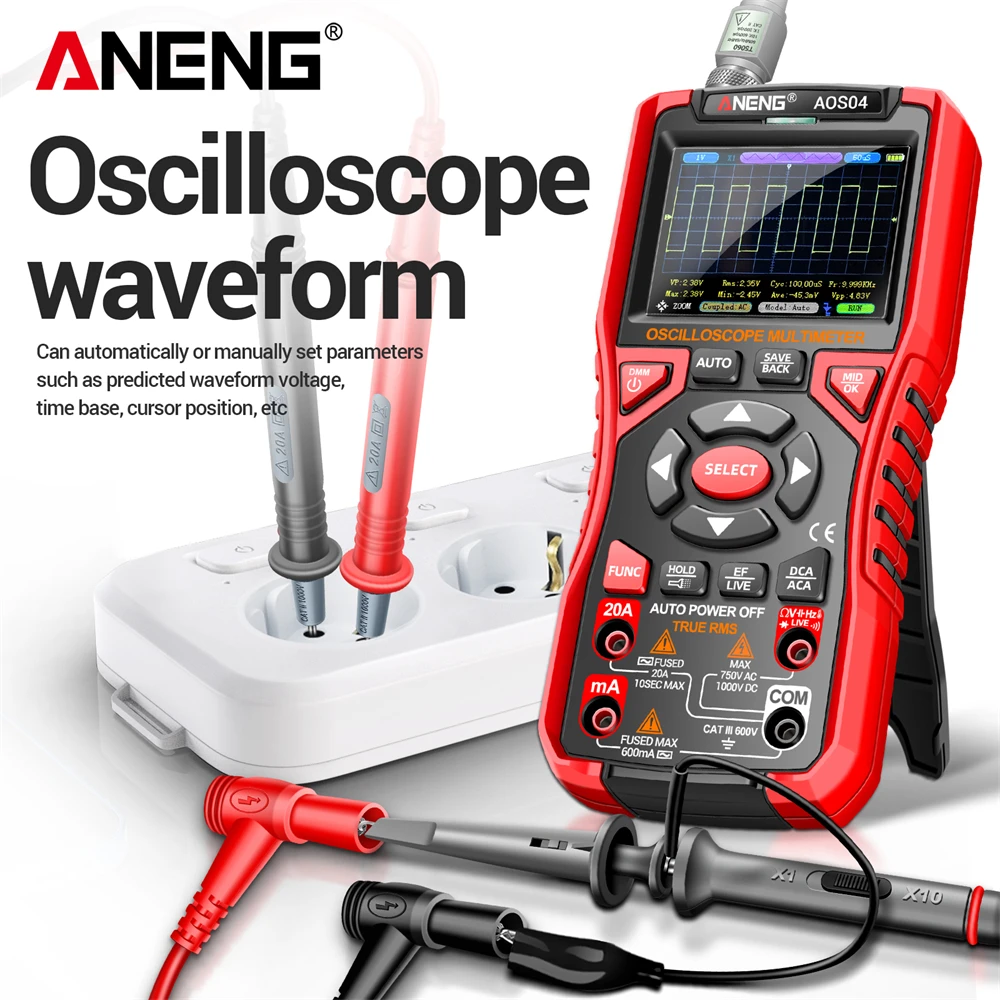

  • This ANENG AOS04 digital oscilloscope smart multimeter has a 50MS/s sampling rate and 10Mhz bandwidth, providing accurate and detailed waveform analysis.

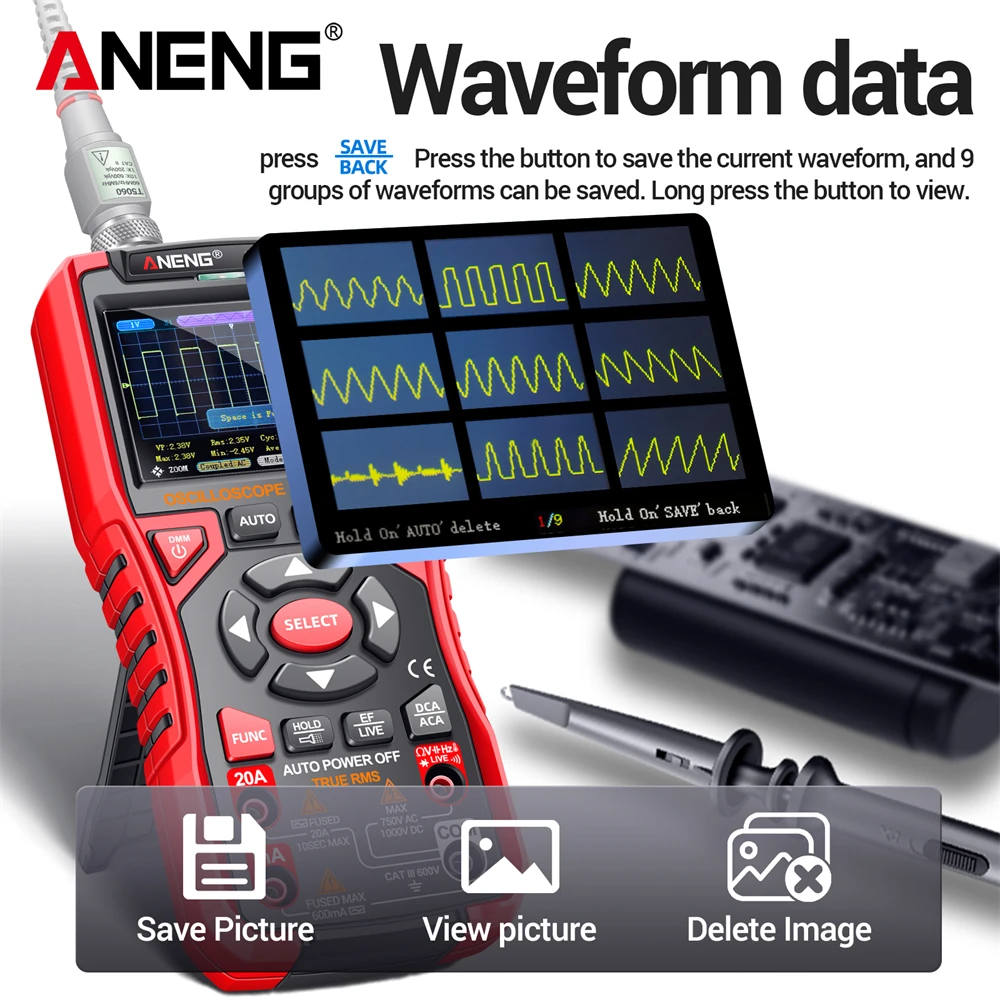

  • It supports waveform storage, allowing you to save and review important data for further analysis.
  • With a 3.0-4.9 inches display size and 320*240 pixels resolution, it offers clear and easy-to-read results.
  • It is a 2-in-1 device, combining oscilloscope and multimeter functions, providing more versatility for electrical testing.
  • Certified with CE, it ensures safety and reliability during use, meeting international standards.
Specifications
Brand Name
ANENG
Hign-concerned Chemical
None
DIY Supplies
ELECTRICAL
Display Resolution
320*240 Pixels
Digital Channels
1
Model Number
AOS04 Oscilloscopes
Record Length
Up to 20Kbyte
IS Battery Demountable
Yes
Display Size
3.0 - 4.9 Inches
Real Time Sampling Rate
50MSa/s
Max Waveform Capture Rate
30,000wfm/s
Band Width
Less than 60MHz
Oscilloscope Multimeter
2 in 1 AOS04 Oscilloscopes
AC/DC Current
0mA-20.00A
DC Voltage
0V-999.9V, ±(0.5%+3)
AC Voltage
0V-750.0V, ±(1.0%+3)
Measuring Resistance Range
0Ω-99.99MΩ
Display
9999 Counts
Ture RMS / Data Hold
YES
Capacitance
0nF-99.99mF
Frequency
0Hz-9.999MHz
Temperature
YES
USB charging
YES
Power supply
3.7V/2500mAh
