FNIRSI DPOX180H Portable Fluorescent Screen Digital Oscilloscope 180 MHz 50,000wfms/S 2-In-1 Signal Generator 20 MHz ZOOM digital oscilloscope signal generator

Product Features

The FNIRSI DPOX180H portable fluorescent screen digital oscilloscope with a 180 MHz bandwidth and 50,000wfms/S capture rate offers high-speed and accurate signal analysis.
It comes with a 2-In-1 signal generator of 20 MHz, providing a wide range of standard function signals for testing.
With features like digital phosphor technology, adjustable automatic bandwidth limit, and FFT, it provides advanced signal processing capabilities.
The IPS full-view display technology and 2.8-inch screen ensure clear and detailed waveform display.
It has high-voltage burnout protection, long standby time, and a variety of measurement functions, making it a powerful tool for electrical testing.

Specifications

Rise time:

2.5nS

Input impedance:

1MΩ-18PF

Time base range:

5nS ~ 50S

Time accuracy:

±0.01%

Digital phosphor technology:

Yes

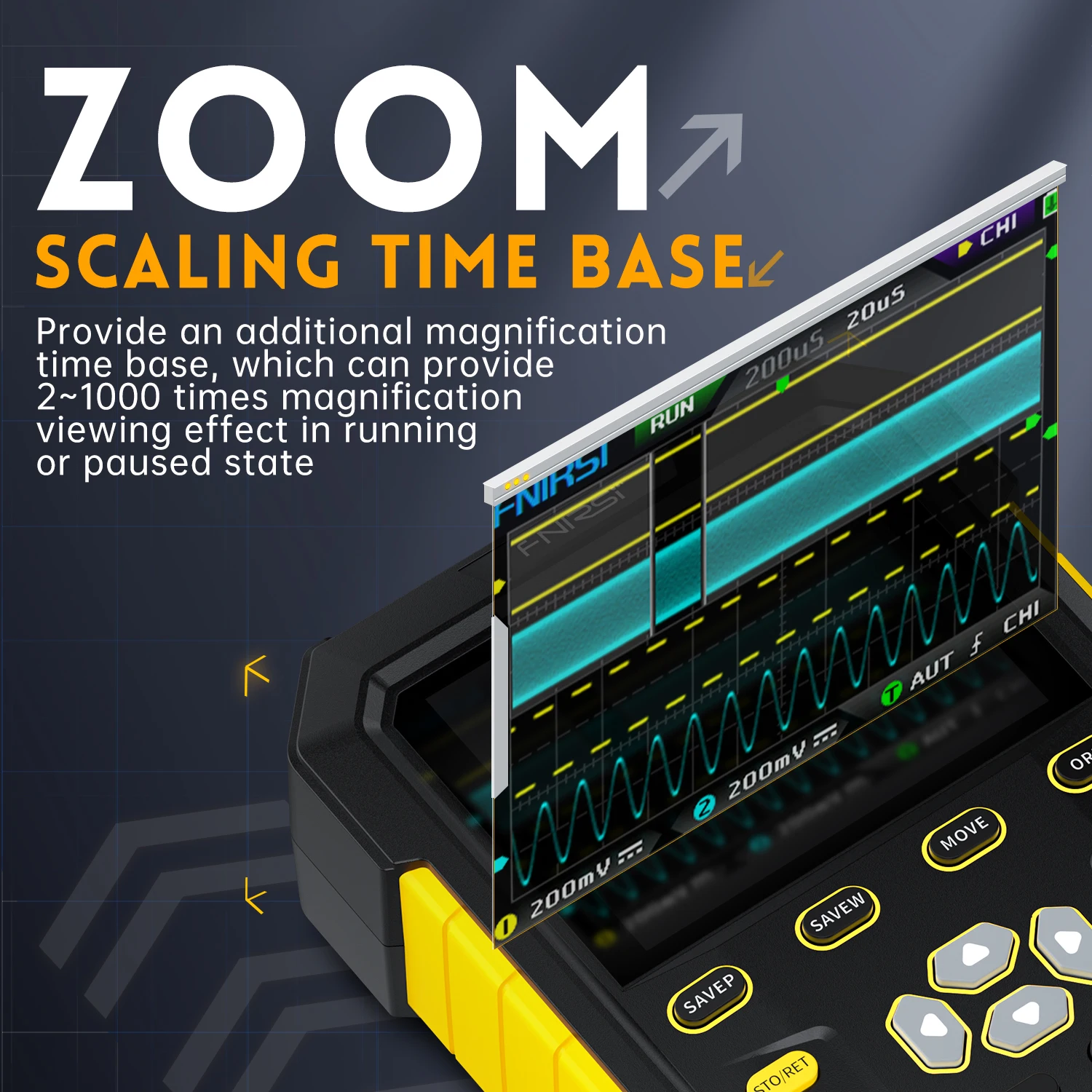

Scaling scaling time base:

Yes

Adjustable automatic bandwidth limit:

Yes

FFT:

YES

Trigger detection:

Digital trigger

Trigger edge:

Rising/Falling

Screenshot storage:

Capture signal:

500

Signal generator:

14 standard function signals

Waveform manager:

YES

High-voltage burnout protection:

YES

Display technology:

IPS full view

Auto power-off:

5minutes-2hours

Charging requirements:

5V 2A

Standby time:

3.5 hours at full charge

Storage depth:

120Kpts

Vertical sensitivity:

5mV ~ 10V(1X)

DC accuracy:

±2%

Measurement range:

40mV ~ 80V(1X)

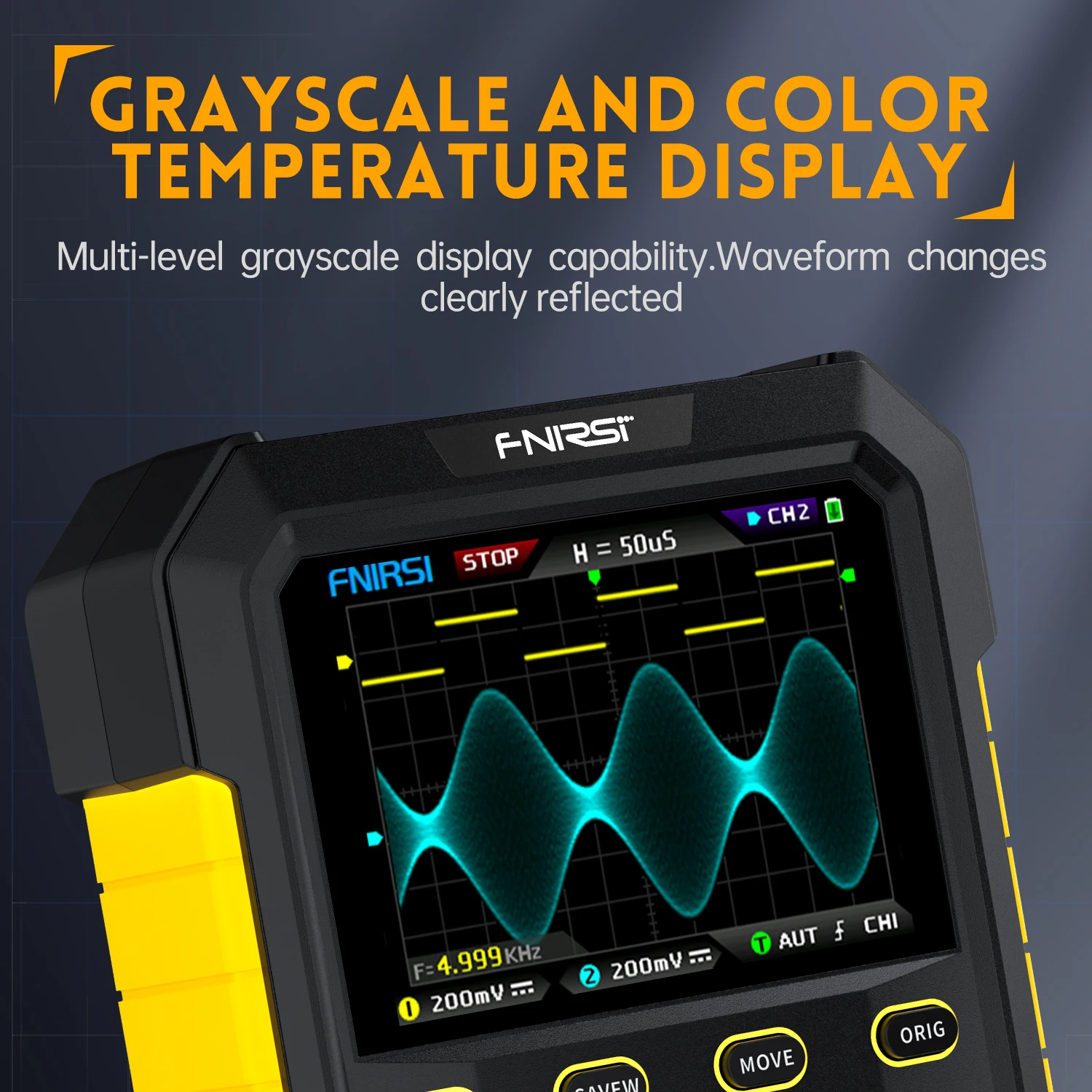

Color temperature display:

YES

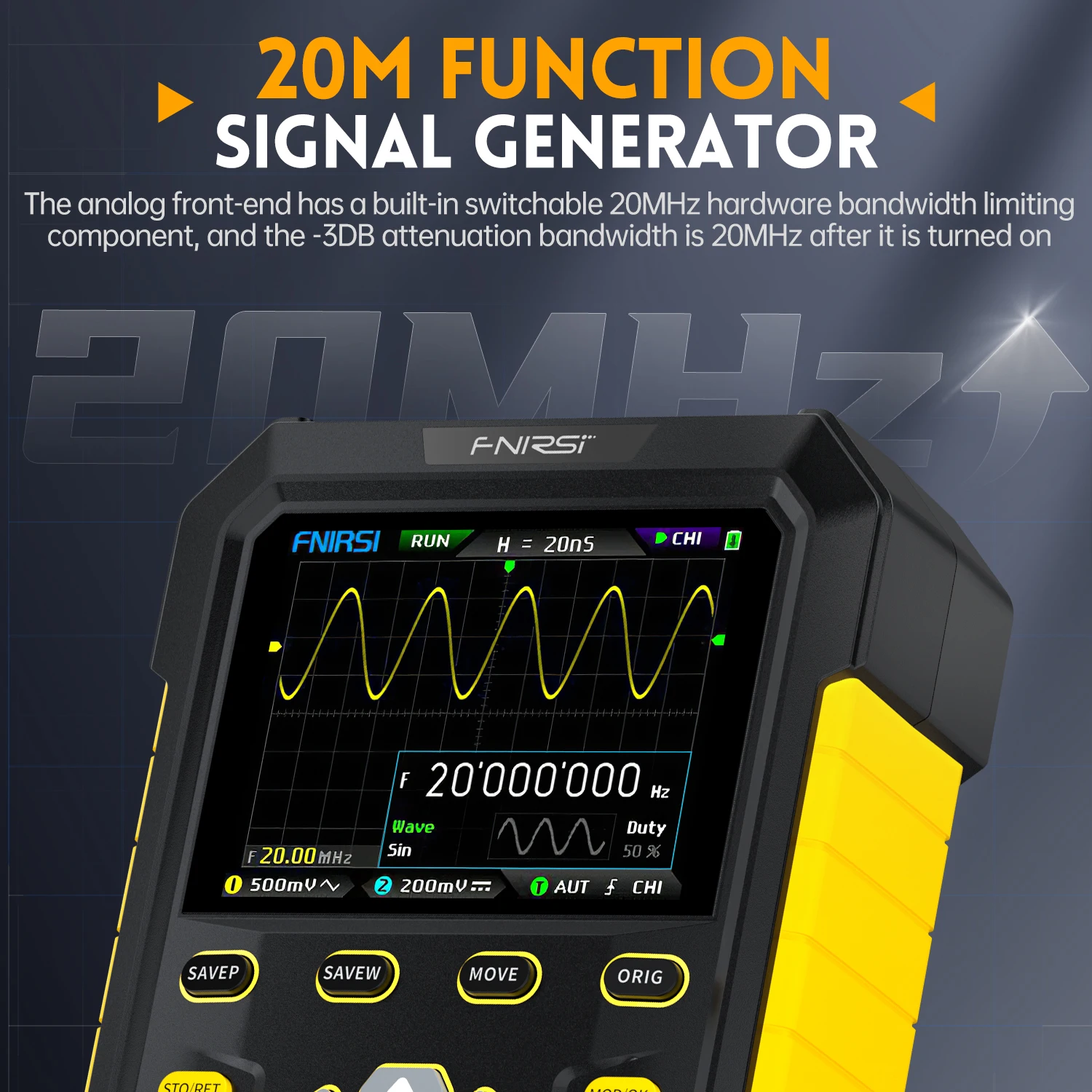

20M hardware bandwidth limitation:

YES

X-Y mode:

YES

Cursor measurement:

Frequency/Period/ Amplitude

Roll mode:

YES

Waveform storage: 2

250 groups

Parameter measurement:

12 kinds

Auto-adjustment:

YES

Waveform output:

YES

Screen size:

2.8 inches

Expansion interface:

USB transmission interface

Firmware upgrade:

YES

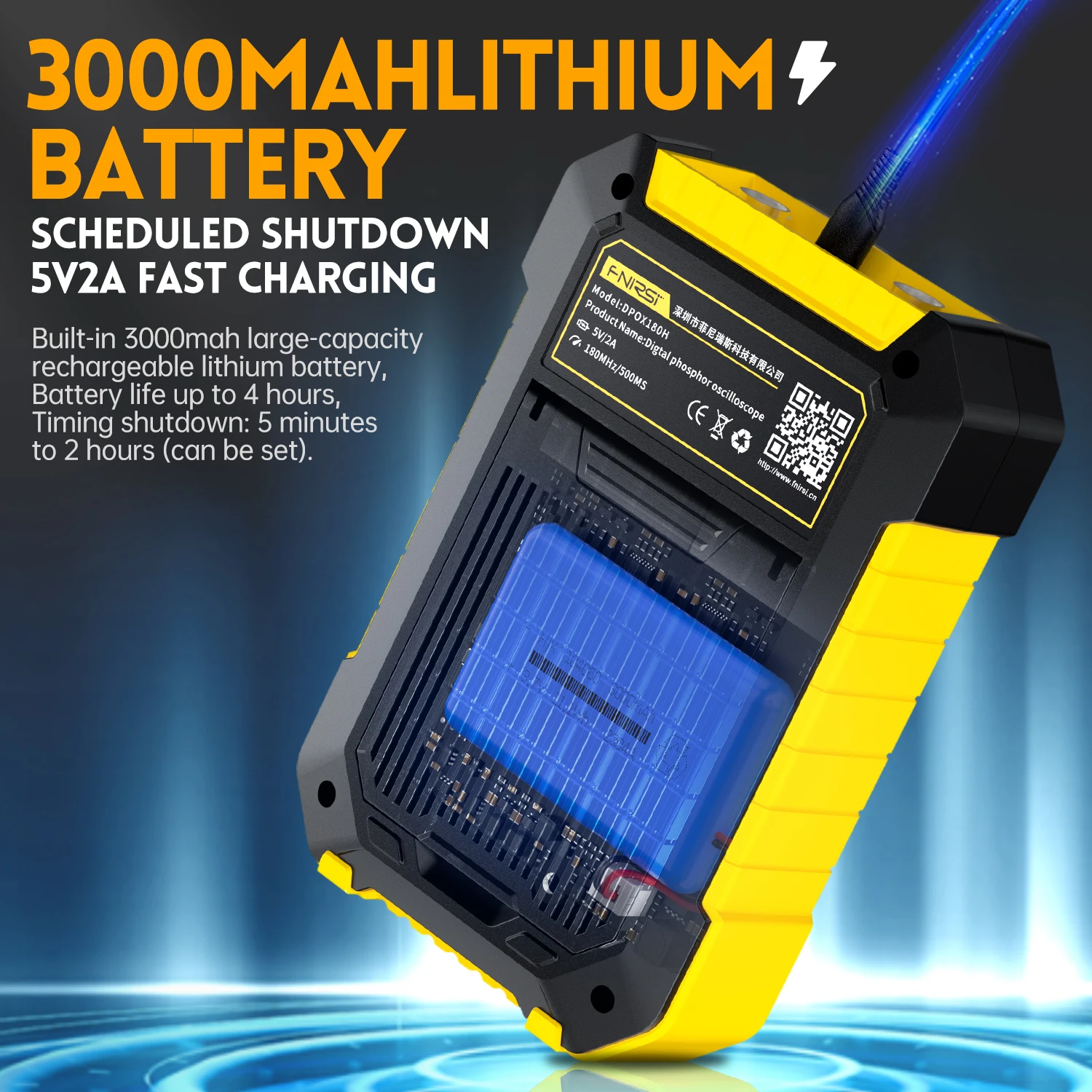

Battery capacity:

3000mAh

Dimensions:

135mmx90mmx40mm

Brand Name

FNIRSI

Model Number

DPOX180H

FNIRSI Model

DPOX180H

Real Time Sampling Rate

500MSa/s

Hign-concerned Chemical

None

Digital Channels

Band Width

100-349MHz

Max Waveform Capture Rate

50,000wfm/s

IS Battery Demountable

Display Resolution

320*240 Pixels

DIY Supplies

ELECTRICAL

semi_Choice

yes

Description

FNIRSI DPOX180H Portable Fluorescent Screen Digital Oscilloscope 180 MHz 50,000wfms/S 2-In-1 Signal Generator 20 MHz ZOOM digital oscilloscope signal generator
