Digital Multimeter Digital Oscilloscope Signal Generator TOOLTOP ET829 2 Channel 80MHz Digital Storage Oscilloscope Multimeter Signal Generator 3 in 1 Electronic Automobile Power Repair

Product Features

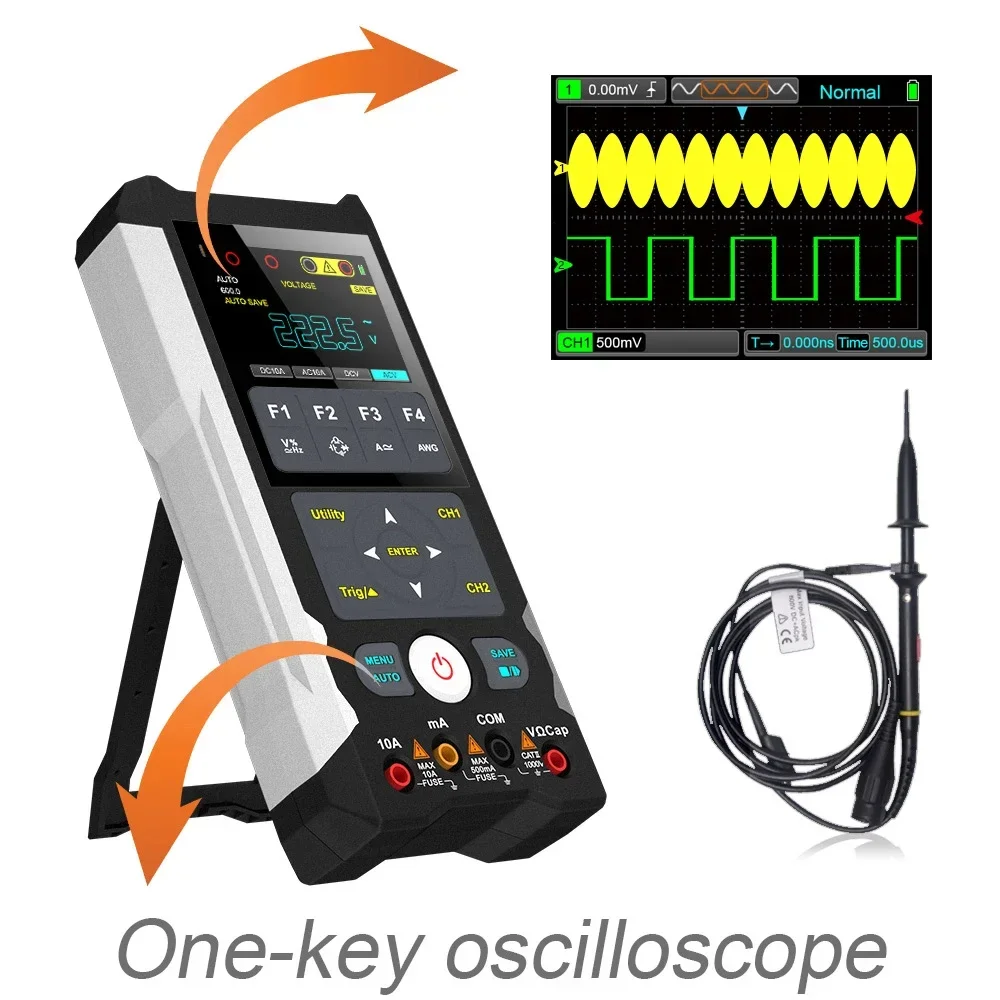

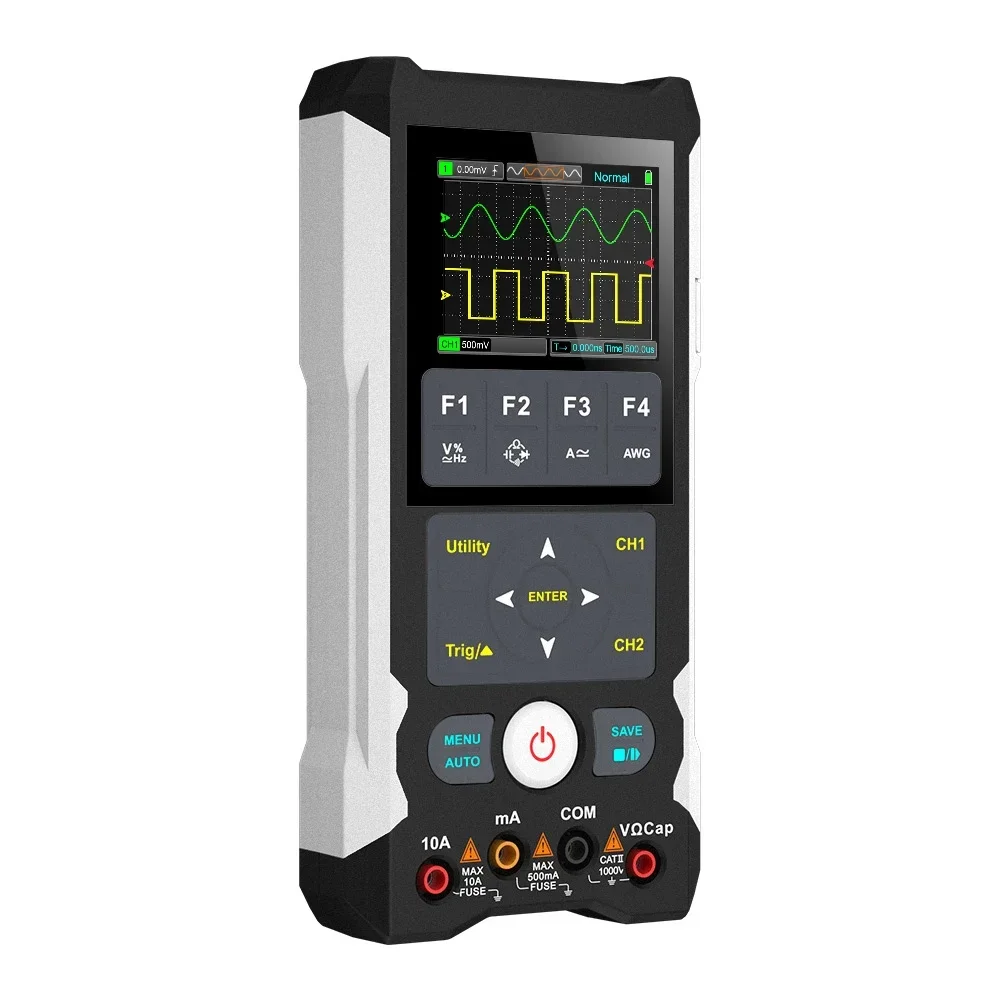

This 3-in-1 digital multimeter, oscilloscope, and signal generator (TOOLTOP ET829) has 2 channels and 80MHz bandwidth, suitable for electronic and automobile power repair.
It features a 2.8-inch TFT screen with adjustable backlight brightness, providing clear and easy-to-read displays.
With a real-time sampling rate of 250MSa/s and a 5MHz waveform generator, it offers high-performance measurement capabilities.

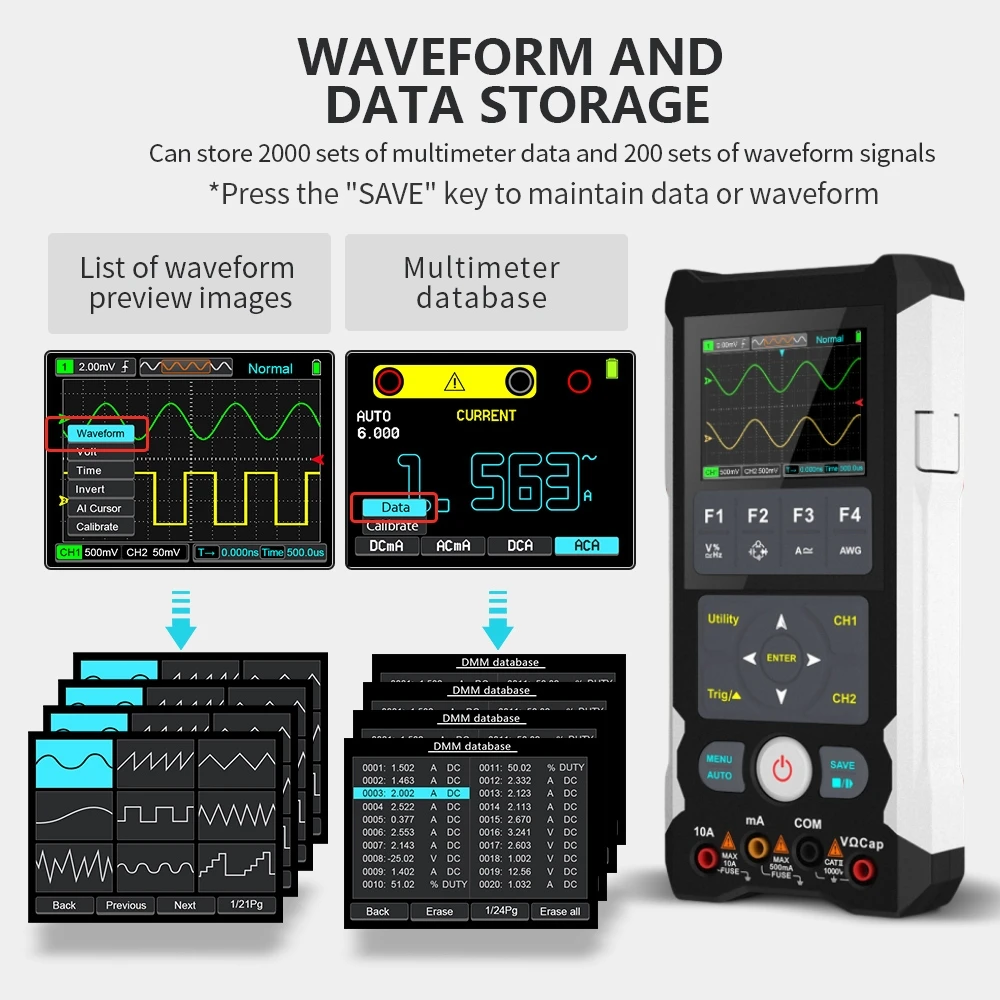

It can store 2000 groups of data and has functions like spectral analysis FFT and waveform zoom, enhancing its usability.
Powered by 2 18650 lithium batteries (2000mAh each), it is suitable for use in various operating environments from 0℃ to 40℃.

Specifications

Brand Name

TOOLTOP

Hign-concerned Chemical

None

DIY Supplies

ELECTRICAL

Display Resolution

320 (horizontal) * 240 (vertical) pixels

Digital Channels

Model Number

ET829

IS Battery Demountable

Real Time Sampling Rate

250MSa/s

Band Width

80MHz

Screen

2.8 inches TFT Screen Oscilloscope

Waveform Generator

5MHz

Display backlight brightness

adjustable

Power

18650 lithium battery 2000mAh x 2 (included)

Operating environment

0℃~40℃, <75%RH

Storage conditions

-10℃~60℃, <90%RH

Input Coupling

DC, AC,GND

Trigger Type

Edges Trigger

Trigger mode

Auto, Single, Normal

Edges-triggered slope

Rising edges, falling edges, rising edges or falling edges

Voltage parameter measurement

peak-to-peak, RMS, average, peak, maximum, minimum

Spectral Analysis FFT

Yes

Storage capacity

2000 groups of data

filtering

high pass, low pass

Math operation

FFT

Afterglow option

Yes

Waveform zoom

Yes

AI waveform preview

Yes

Description
