FNIRSI DPOS350P Frequency Response Analyzer Four In One Flat Oscilloscope 2-Channel 350MHz Signal Generator 50MHz Spectrum digital oscilloscope signal generator

Product Features

The FNIRSI DPOS350P Frequency Response Analyzer combines four functions in one, including a 2-channel 350MHz signal generator and a 50MHz spectrum digital oscilloscope, providing comprehensive testing capabilities.
With a wide range of features such as 12 types of parameter measurements, 14 types of waveforms, and support for FFT display, this analyzer offers high precision and versatility.
The high resolution mode of 8bit ~ 16bit and overvoltage protection of ±400V ensure accurate and safe operation, making it suitable for various electrical applications.

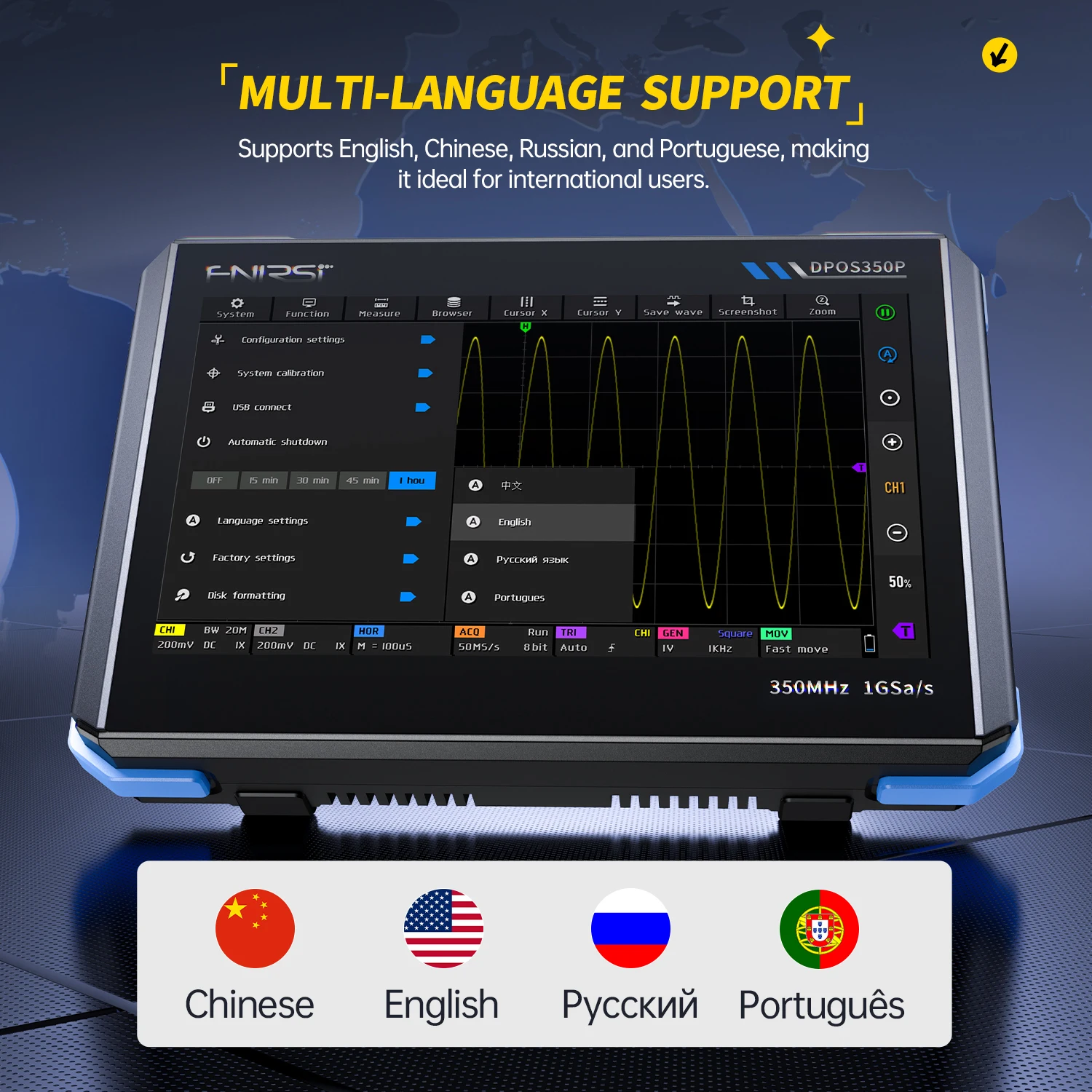

The analyzer supports multiple languages, including Chinese, English, Russian, and Portuguese, and offers a 15-minute to 1-hour automatic shutdown function for convenience.
With a 3D waterfall chart, color temperature display, and X-Y mode support, this analyzer provides a visual and intuitive way to analyze signals, enhancing the user experience.

Specifications

Brand Name

FNIRSI

Hign-concerned Chemical

None

DIY Supplies

ELECTRICAL

Digital Channels

Model Number

DPOS305P

IS Battery Demountable

Yes

Band Width

350Mhz

Hardware bandwidth limit

150M / 20M

Rise time

1ns

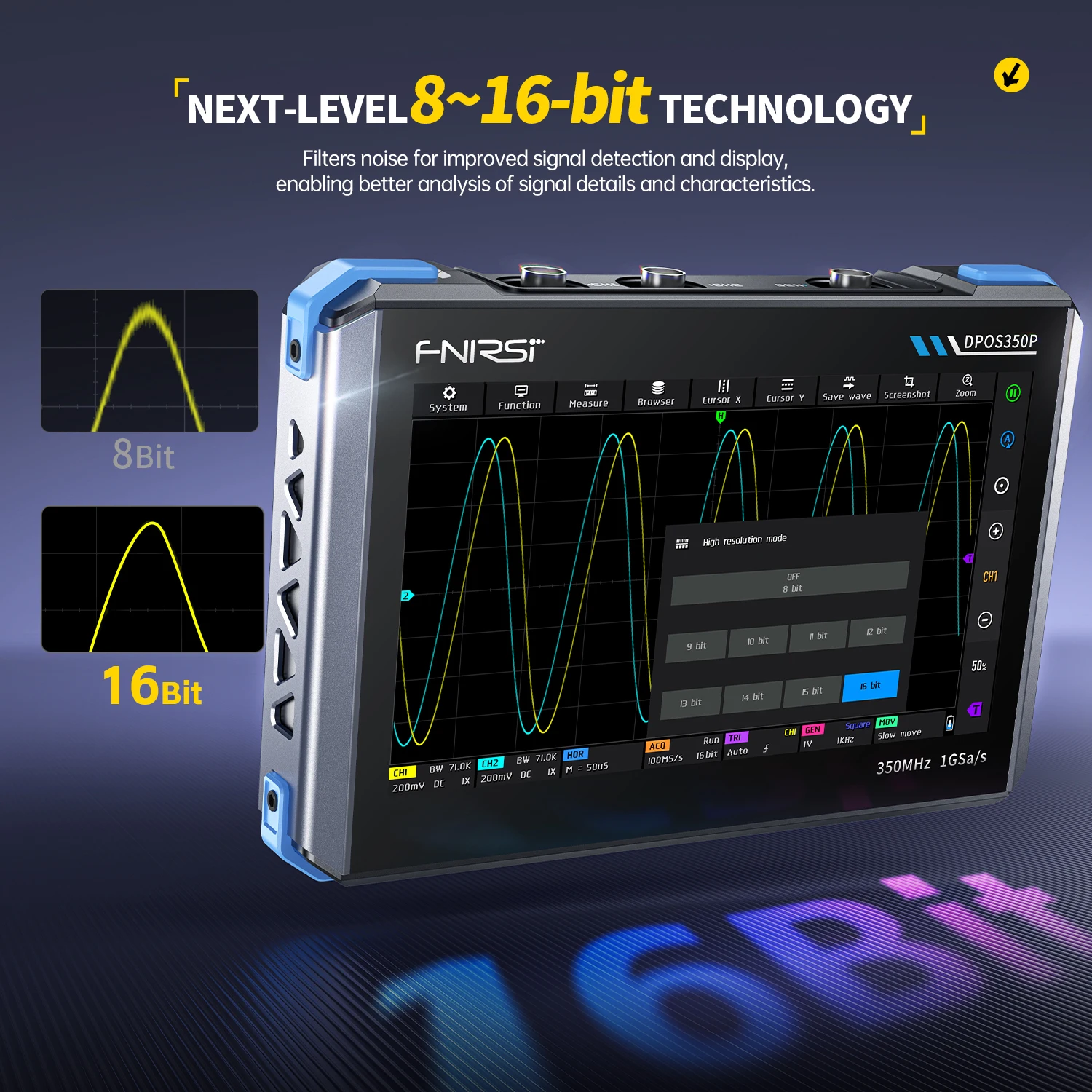

High resolution mode

8bit ~ 16bit

Overvoltage protection

±400V

Parameter measurements

12 types

Time base range

5ns ~ 50s

Roll time base

50ms ~ 50s

Vertical sensitivity

2mV ~ 20V(1X)

Vertical range

16mV ~ 160V(1X)

DC accuracy

±2%

Time accuracy

±0.01%

Input coupling

DC / AC

Probe attenuation

1X / 10X / 100X

Cursor measurement

time, period, frequency, level, voltage

Trigger detection

digital trigger

Trigger mode

Auto / Single / Normal

Trigger edge

rising edge / falling edge

Trigger suppression

L1 ~ L3

Trigger level

manual / auto 10% ~ 90%

FFT display

support

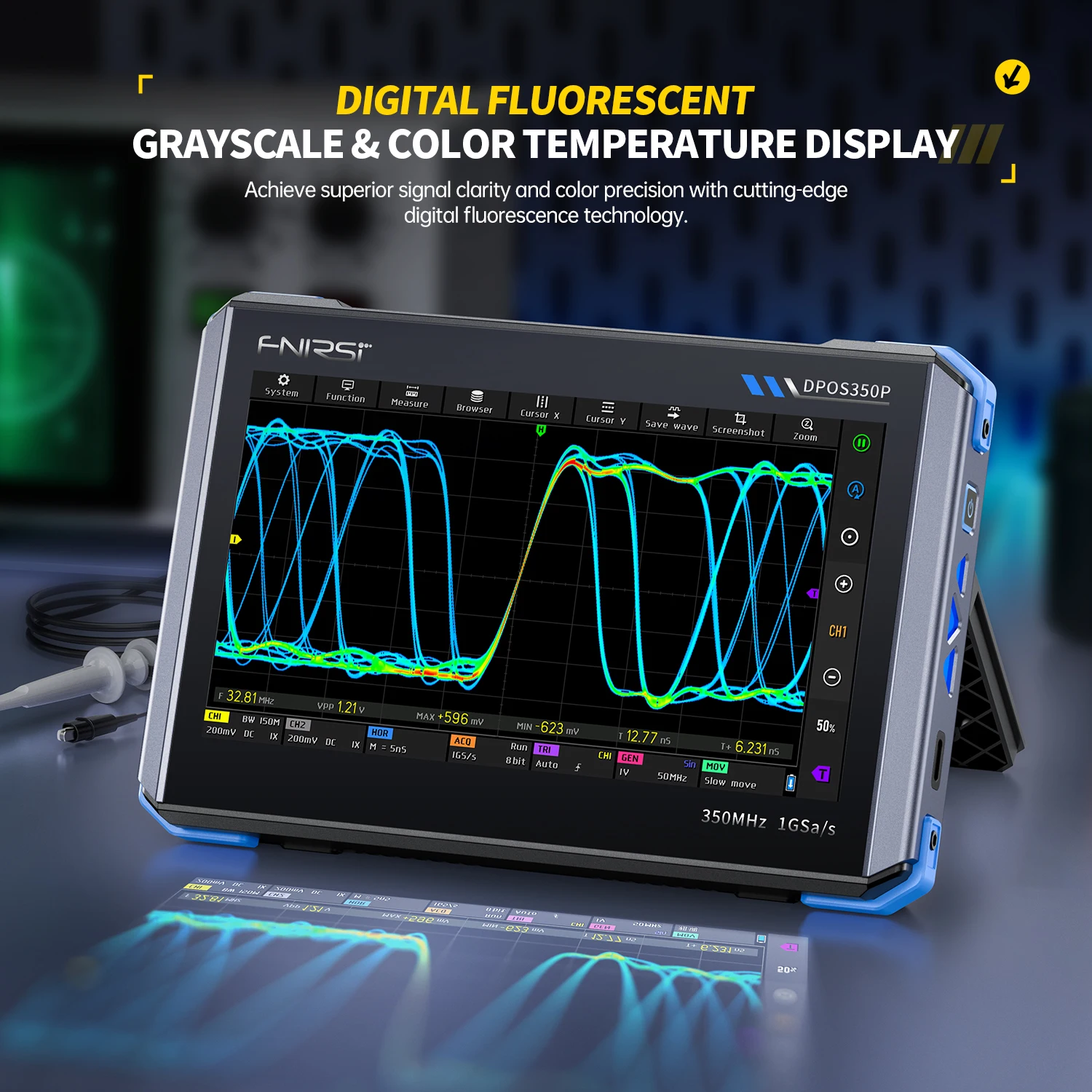

Digital fluorescence

YES

Color temperature display

support

X-Y mode

support

ZOOM time base

support

One-key automatic adjustment

support

Screenshot storage

90 pictures

Waveform storage

500 groups

Data browser

support

Waveform types

14 types+captured waveform

Frequency

0 ~ 50MHz(sine wave only, other waveforms up to 10M/5M/3M)

Amplitude

0 ~ 5VPP

Offset

-2.5V ~ +2.5V

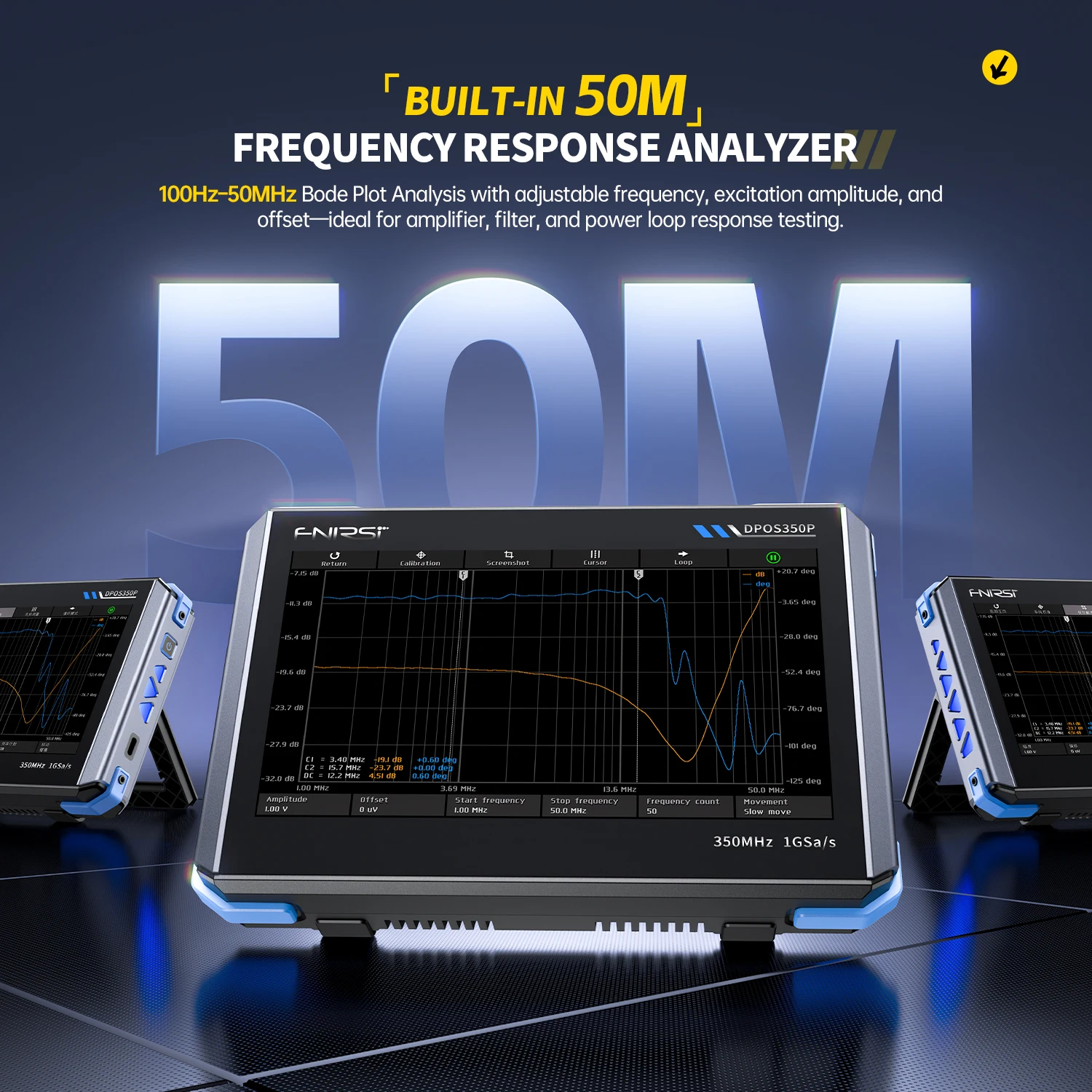

Excitation signal frequency

100Hz ~ 50MHz

Conversion method

FFT

FFT length

4K ~ 32K

Frequency range

200KHz ~ 350MHz

Level range

-60dBmV ~ +260dBmV

3D waterfall chart

support

Charging

QC18W - 12V/1.5A

Battery

3.7V, 8000mAh lithium battery

Languages

Chinese / English / Russian / Portuguese

Automatic shutdown

15 minutes ~ 1 hour / off

Description

FNIRSI DPOS350P Frequency Response Analyzer Four In One Flat Oscilloscope 2-Channel 350MHz Signal Generator 50MHz Spectrum digital oscilloscope signal generator
