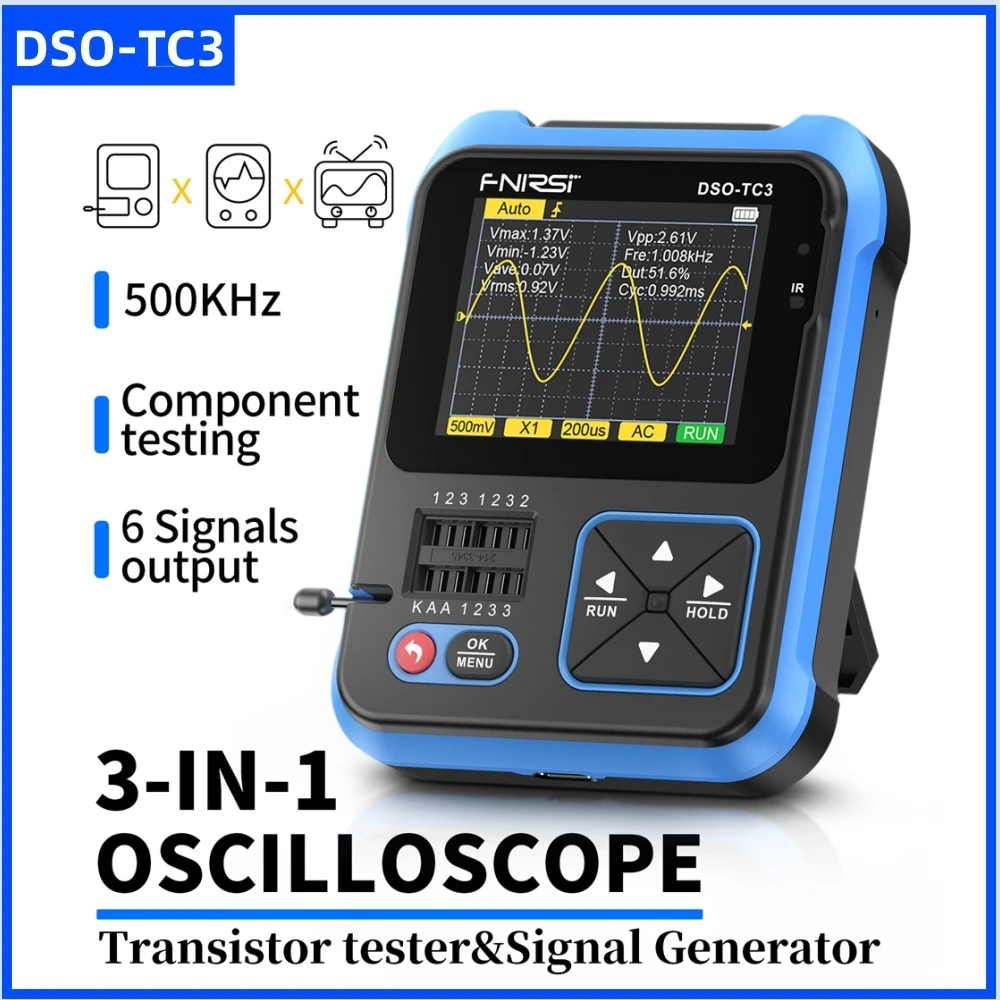

FNIRSI DSO-TC3 Digital Oscilloscope Transistor Tester Function Signal Generator Three/TwoIn One Multi-function Tester digital oscilloscope transistor tester signal generator

Product Features

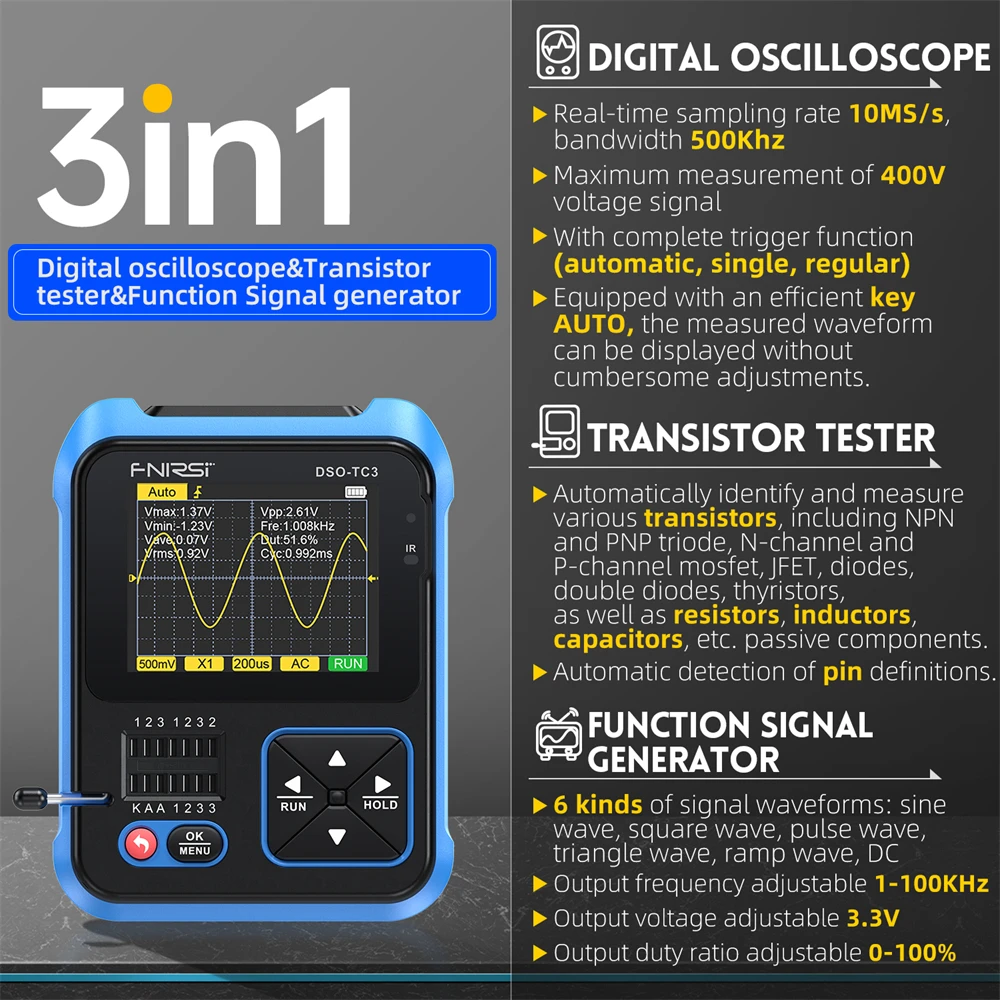

The FNIRSI DSO-TC3 digital oscilloscope is a multi-function tester that combines a transistor tester and a signal generator in one device.
It features a 2.4-inch TFT color screen and a rechargeable lithium battery, providing a convenient and high-tech testing experience.
With a real-time sample rate of 10MSa/s and an analog bandwidth of 500Khz, it offers accurate and reliable test results.

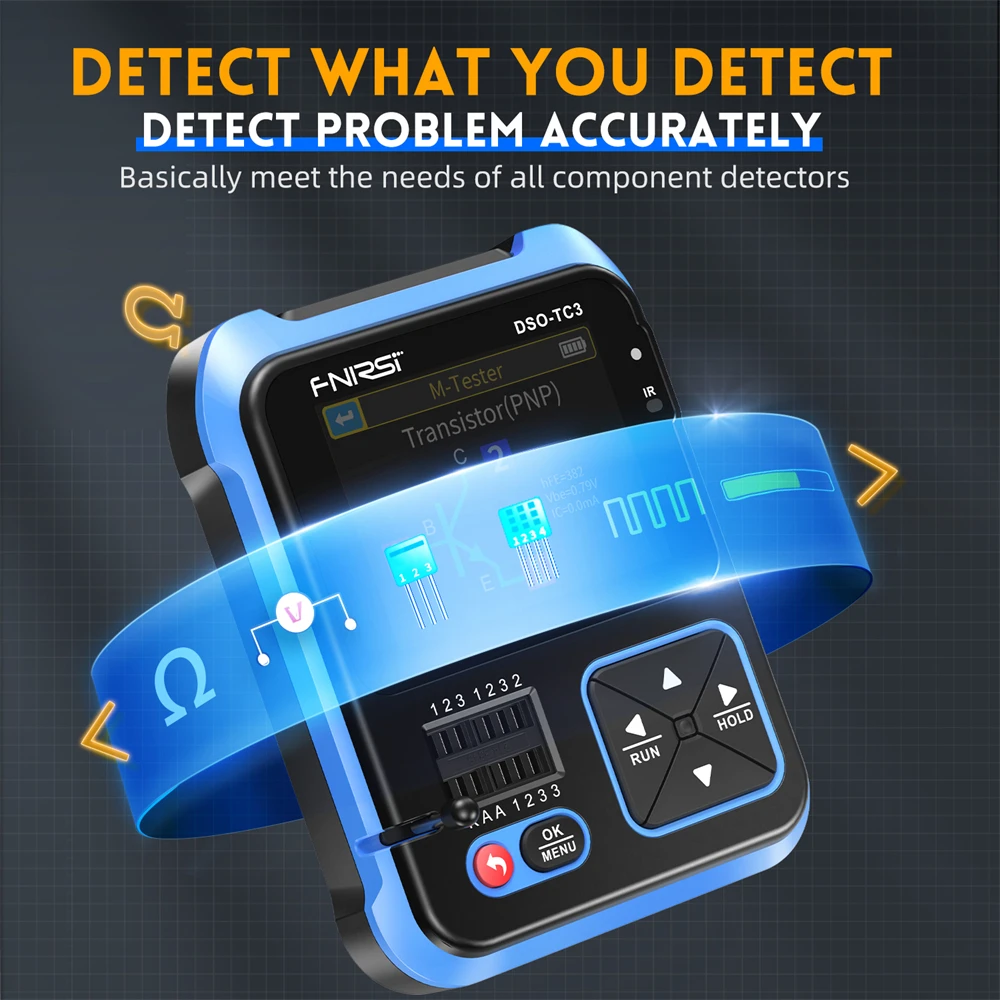

The wide range of test functions, including measuring diodes, capacitors, resistors, and more, makes it a versatile tool for electrical testing.
Its foldable stand and various trigger modes provide flexibility and ease of use during testing procedures.

Specifications

Brand Name

FNIRSI

FNIRSI Model

Tc3

Hign-concerned Chemical

None

DIY Supplies

ELECTRICAL

Model Number

FNIRSI TC3

Display screen

2.4 inch TFT color screen

Supply voltage

Rechargeable lithium battery

Charging specifications

Type-C 5V

Bracket specifications

All-in-one foldable stand

Real-time sample rate

10MSa/s

Analog Bandwidth

500Khz

Input resistance

1MΩ

Coupling method

AC/DC

Test voltage range

400V

Vertical Sensitivity (x1)

10mV-10V

Horizontal time base range

1us-10s

Trigger mode

Auto / Normal / Single

Trigger type

Rising edge / Falling edge

Waveform Freeze

YES

Automatic measurement

YES

Diodes

Forward voltage drop <4.5V

Reglulated diode

0.01~4.5V

MOSFET

JFET IGBT MOSFET

SCR

Turn-on voltage <5V, gate Pole triger current<9mA

Capacitor

5pF~100mF

Resistor

0.01Ω~50MΩ

Inductor

10uH~1000mH

Battery

0.1~4.5V

Input voltage

0~40V

DS18B20

0-85℃

DHT11

0-60℃/5-95%

Infrared remote decoding

NEC protocol infrared code

Triangle wave

1-10KHz/0-3.3V/50%,1-10KHz/0-3.3V/50%

Square wave

1-100KHz/3.3V/50%

Pulse wave

1-100KHz/3.3V/0-100%

Ramp

1-10KHz/0-3.3V/0-100%

0-3.3V

Description

FNIRSI DSO-TC3 Digital Oscilloscope Transistor Tester Function Signal Generator Three/TwoIn One Multi-function Tester digital oscilloscope transistor tester signal generator
