FNIRSI DSO510 Mini Handheld Digital 2 IN 1 Oscilloscope Portable 48MS/s 10MHz Bandwidth

Reviews | Questions & Answers
AU $105.23
Price includes 10% AU GST

Option :
Quantity
In Stock. Ships in 24 hours
Shipping: AU $0.00
Estimated Delivery on -
Secure Payment
Multiple payment options
Customer Service Guarantee
DOA Guarantee Missing/Wrong Items Guarantee Quality Guarantee No Reason Returns
Product Features

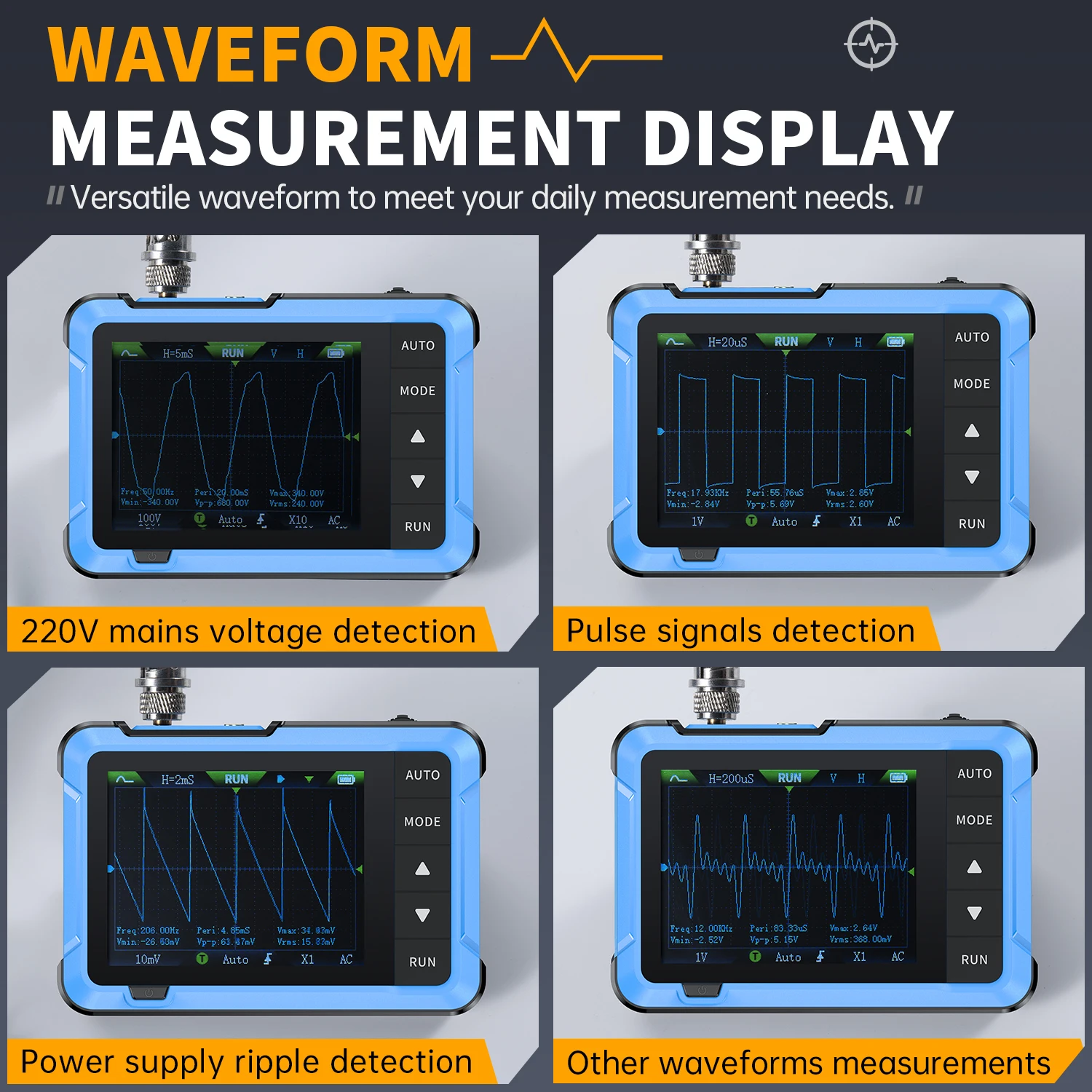

  • The FNIRSI DSO510 Mini Handheld Digital 2 IN 1 Oscilloscope features a 10MHz bandwidth and 48MS/s sampling rate for accurate measurements.
  • With a 2.8-inch display and 320*240 pixels resolution, it provides clear and detailed waveform viewing.
  • Equipped with various functions such as auto/normal/single trigger methods and AC/DC coupling, it meets different testing needs.

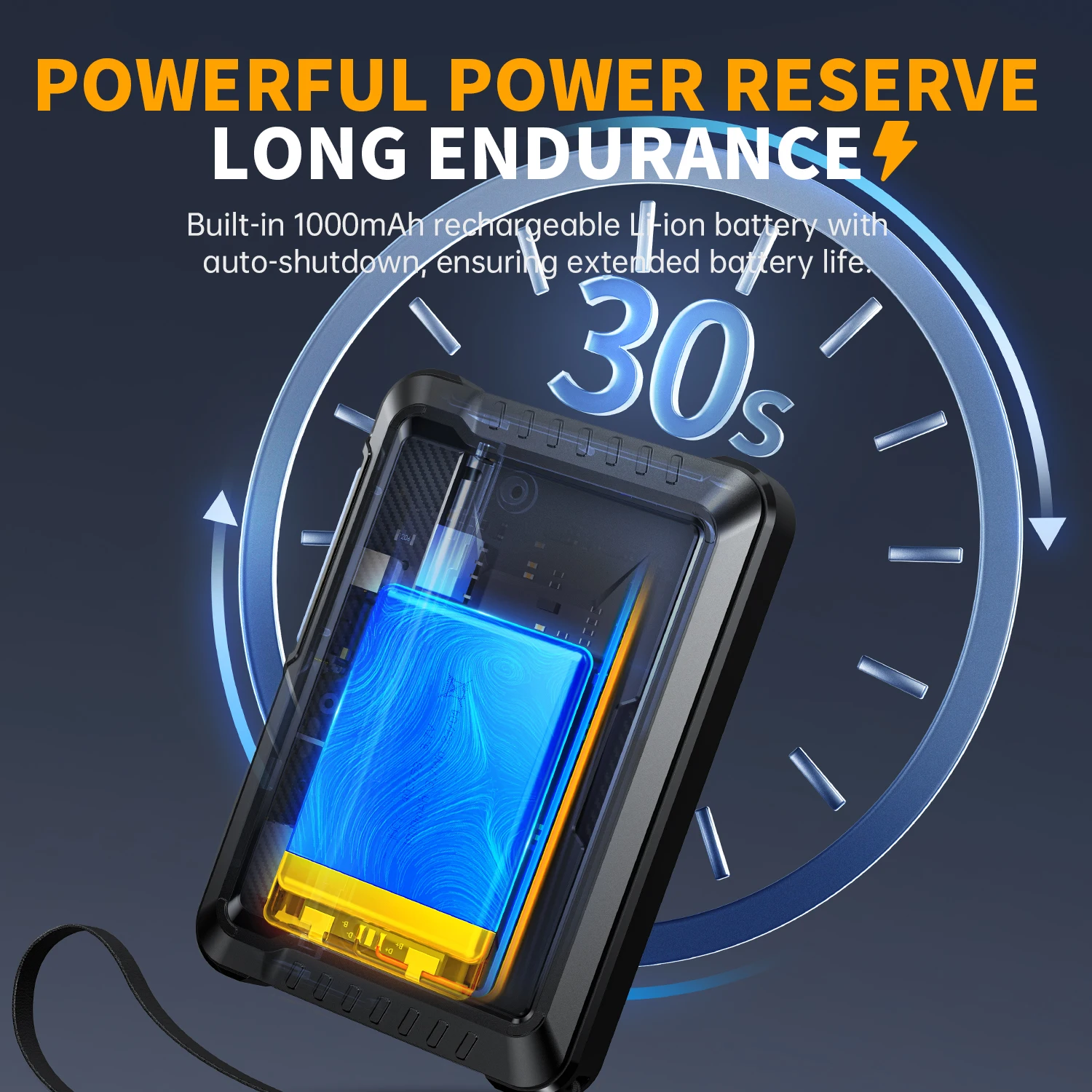

  • Powered by a 1000mAh lithium battery and USB charging (5V/1A), it offers portability and convenience for on-the-go use.
  • With a compact size of 99mmx68.3mmx19.5mm and a weight of 104g, it is easy to carry and operate in different environments.
Specifications
Brand Name
FNIRSI
FNIRSI Model
FNIRSI-DSO150
Hign-concerned Chemical
None
DIY Supplies
ELECTRICAL
Display Resolution
320*240 Pixels
Digital Channels
1
Model Number
DSO510
Band Width
10MHz
Vertical sensitivity
10mV/Div-20V/Div(Progress according to the 1-2-5 way)
Time base range
10μs/Div-50s/Div(Progress according to the 1-2-5 way)
Voltage range
1X 400VPP 10X 800VPP
Trigger method
Auto/Normal/Single
Coupling method
AC/DC
Display
2.8 inches/PPI:320*240
USB charging
5V/1A
Lithium battery capacity
1000mAh
Square wave calibration
Frequency: 1K
Size
99mmx68.3mmx19.5mm
Weight
104g
Duty cycle
50%
