Digital Oscilloscope Signal Generator FNIRSI DPOS350P 4-in-1 350M flat panel

Product Features

The FNIRSI DPOS350P digital oscilloscope signal generator offers a 4-in-1 function with a 350M flat panel, providing high-performance signal analysis.
It has a high real-time sampling rate of 1GSa/S and a maximum waveform capture rate of 50,000wfm/s, ensuring accurate and fast data acquisition.
With a 7-inch or above display resolution of 1024*600 pixels, it offers clear and detailed waveform viewing.
It supports multiple functions such as FFT display, digital fluorescence, and color temperature display, enhancing the analysis capabilities.
It has a long record length of 60Kpts and can store 500 groups of waveforms and 90 pictures, facilitating data storage and analysis.

Specifications

Brand Name

FNIRSI

FNIRSI Model

DPOS350P

Hign-concerned Chemical

None

DIY Supplies

ELECTRICAL

Digital Channels

Model Number

DPOS350P

Record Length

60Kpts

IS Battery Demountable

Yes

Display Resolution

1024*600 Pixels

Real Time Sampling Rate

1GSa/S

Display Size

7 Inches & Above

Max Waveform Capture Rate

50,000wfm/s

Band Width

350MHz

inventory

Have In stock

Hardware bandwidth limit

150M / 20M

Rise time

1ns

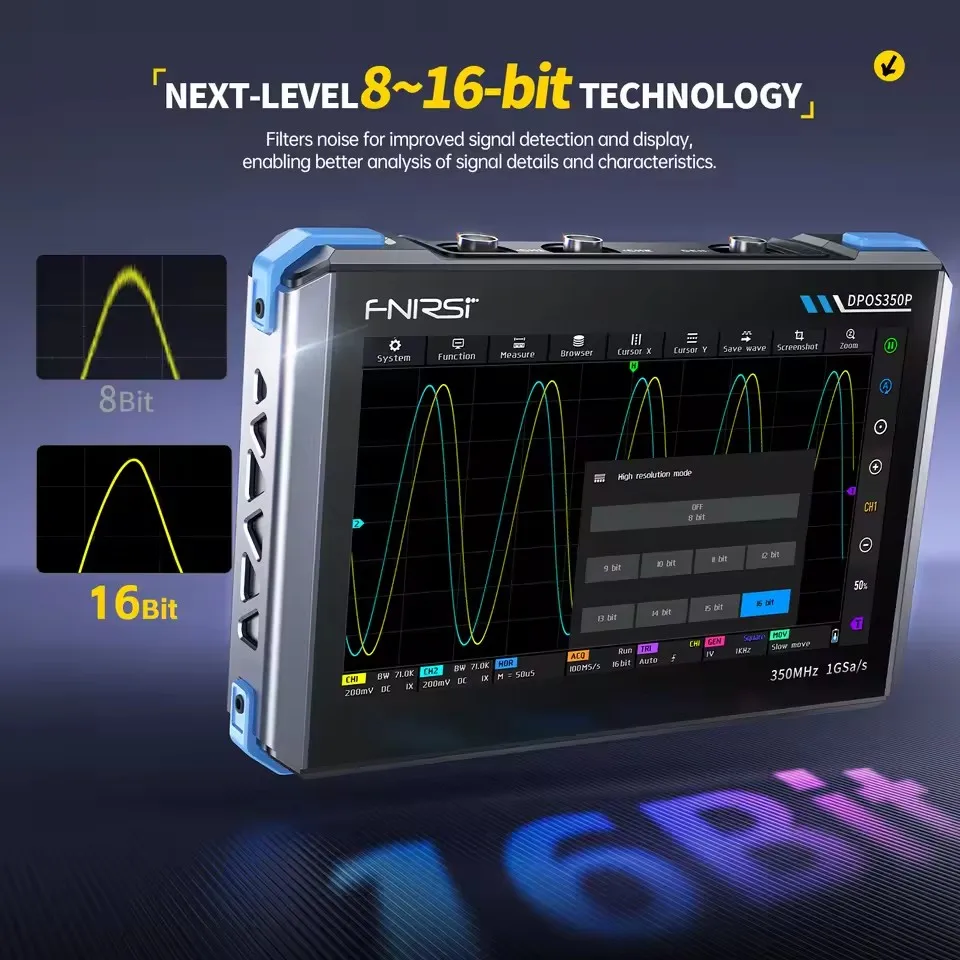

High resolution mode

8bit ~ 16bit

Overvoltage protection

±400V

Parameter measurements

12 types

Time base range

5ns ~ 50s

Roll time base

50ms ~ 50s

Vertical sensitivity

2mV ~ 20V(1X)

Vertical range

16mV ~ 160V(1X)

DC accuracy

±2%

Time accuracy

±0.01%

Input coupling

DC / AC

Probe attenuation

1X / 10X / 100X

Cursor measurement

time, period, frequency, level, voltage

Trigger detection

digital trigger

Trigger mode

Auto / Single / Normal

Trigger edge

rising edge / falling edge

Trigger suppression

L1 ~ L3

Trigger level

manual / auto 10% ~ 90%

FFT display

support

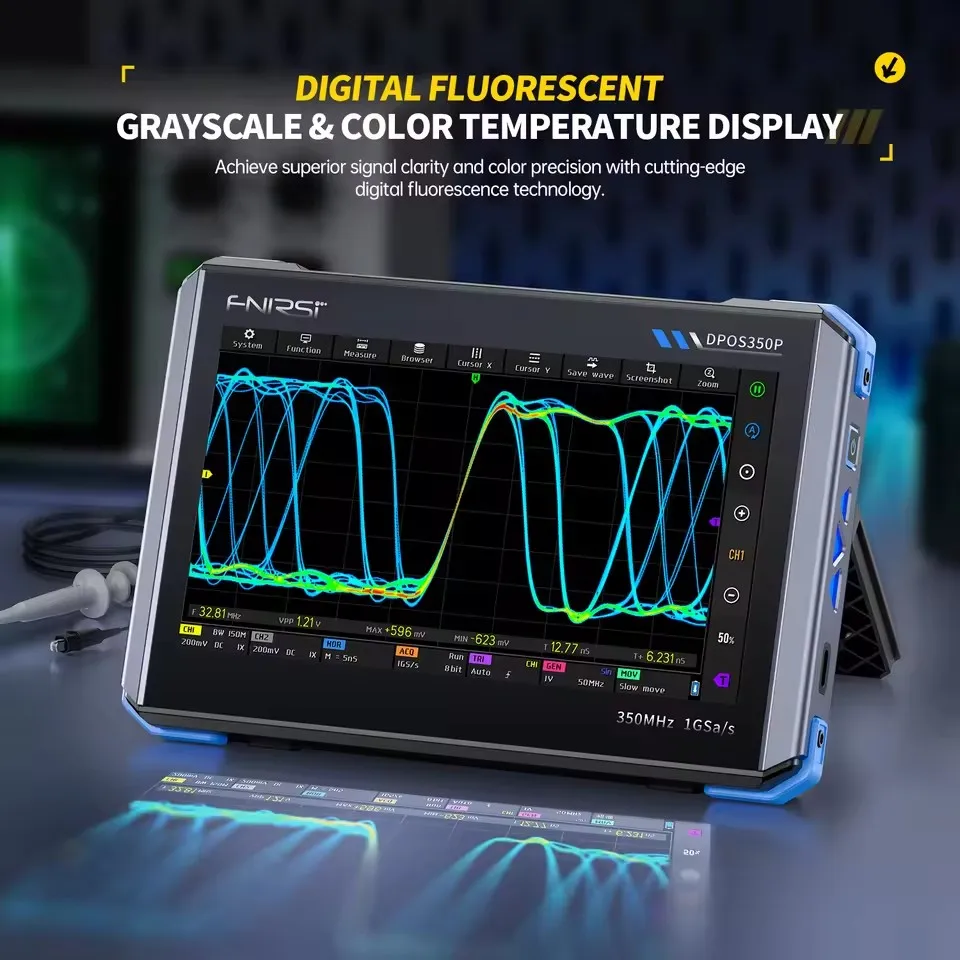

Digital fluorescence

YES

Color temperature display

support

X-Y mode

support

ZOOM time base

support

One-key automatic adjustment

support

Screenshot storage

90 pictures

Waveform storage

500 groups

Data browser

support

Waveform types

14 types+captured waveform

Frequency

0 ~ 50MHz(sine wave only, other waveforms up to 10M/5M/3M)

Amplitude

0 ~ 5VPP

Offset

-2.5V ~ +2.5V

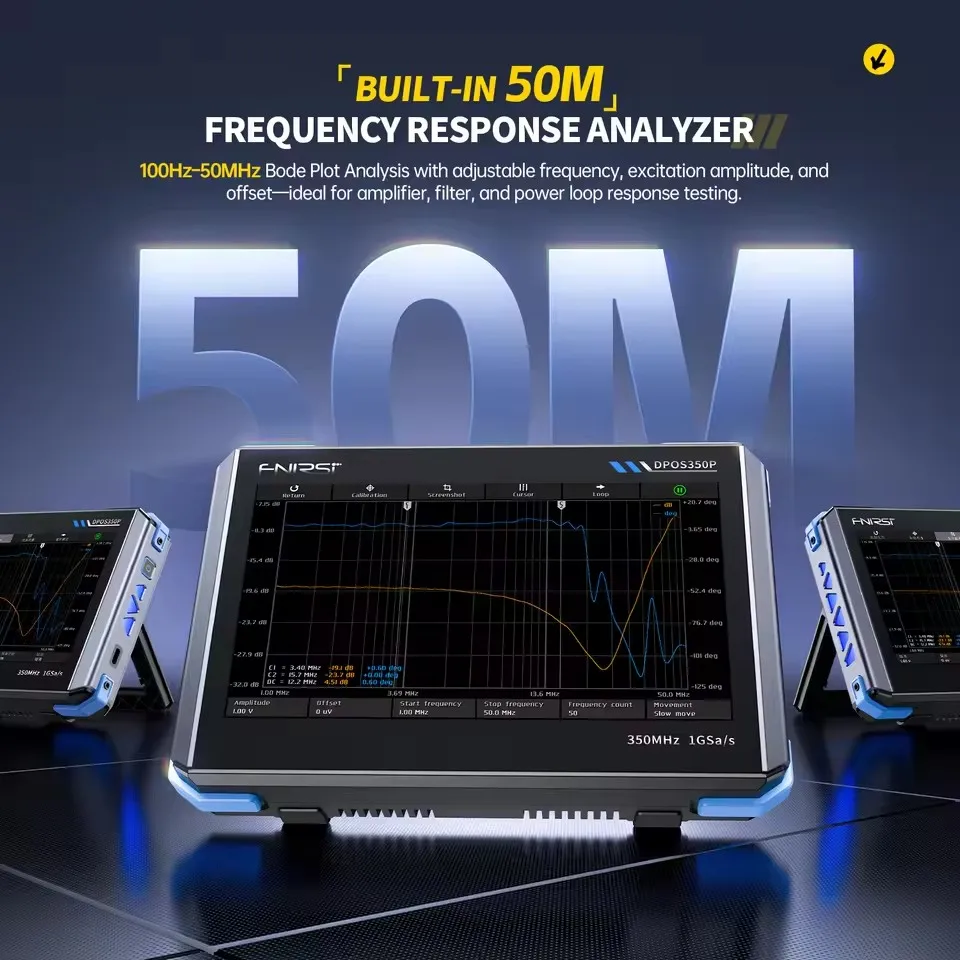

Excitation signal frequency

100Hz ~ 50MHz

Conversion method

FFT

FFT length

4K ~ 32K

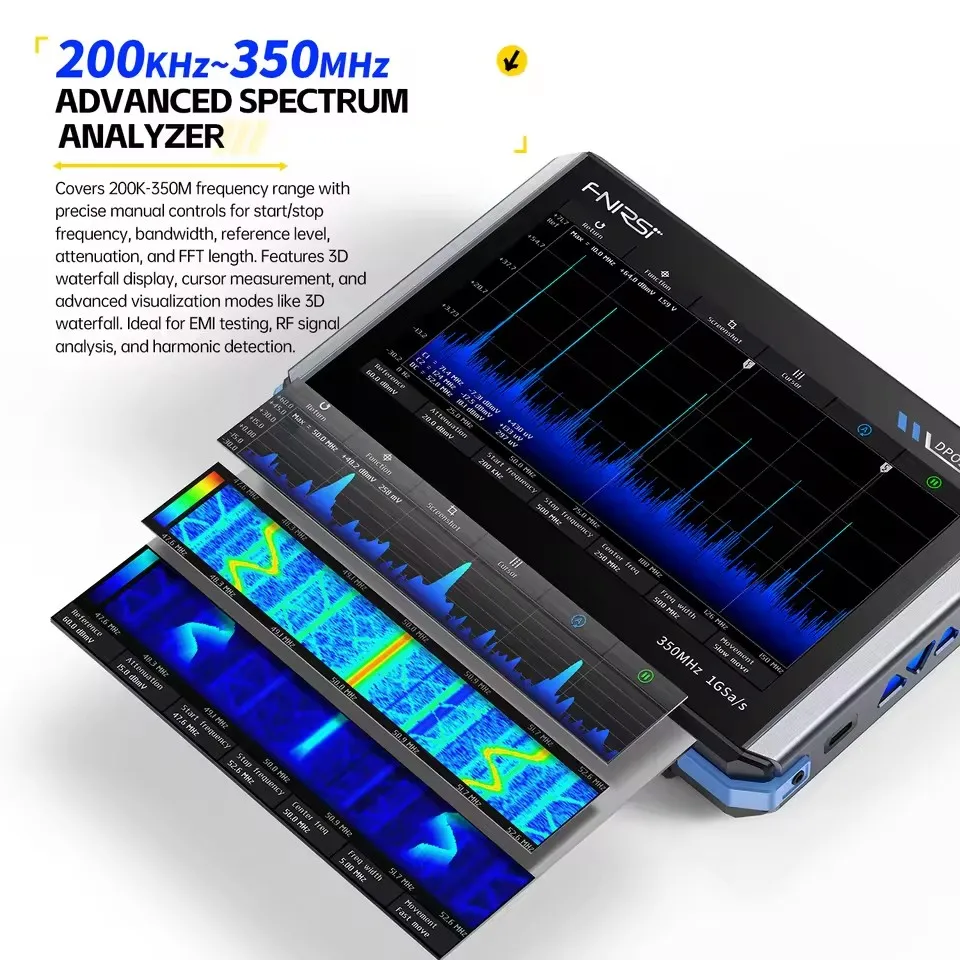

Frequency range

200KHz ~ 350MHz

Level range

-60dBmV ~ +260dBmV

3D waterfall chart

support

Charging

QC18W - 12V/1.5A

Battery

3.7V, 8000mAh lithium battery

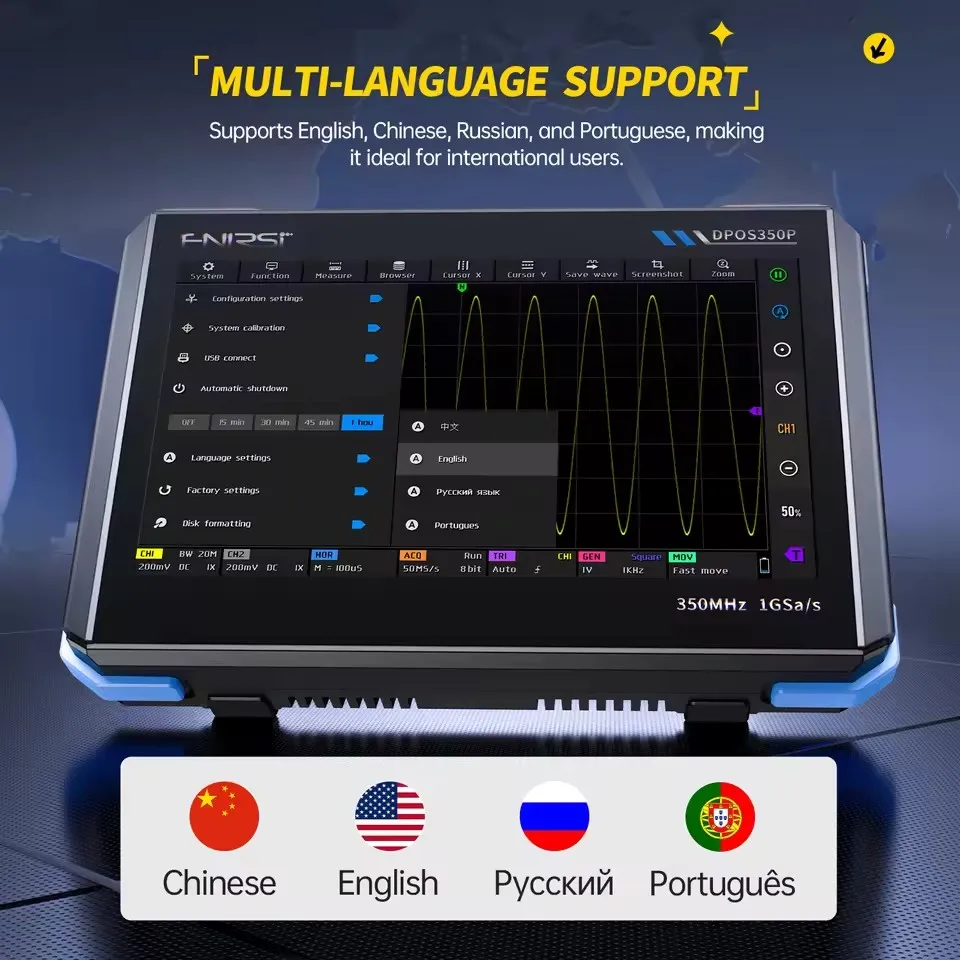

Languages

Chinese / English / Russian / Portuguese

Automatic shutdown

15 minutes ~ 1 hour / off
