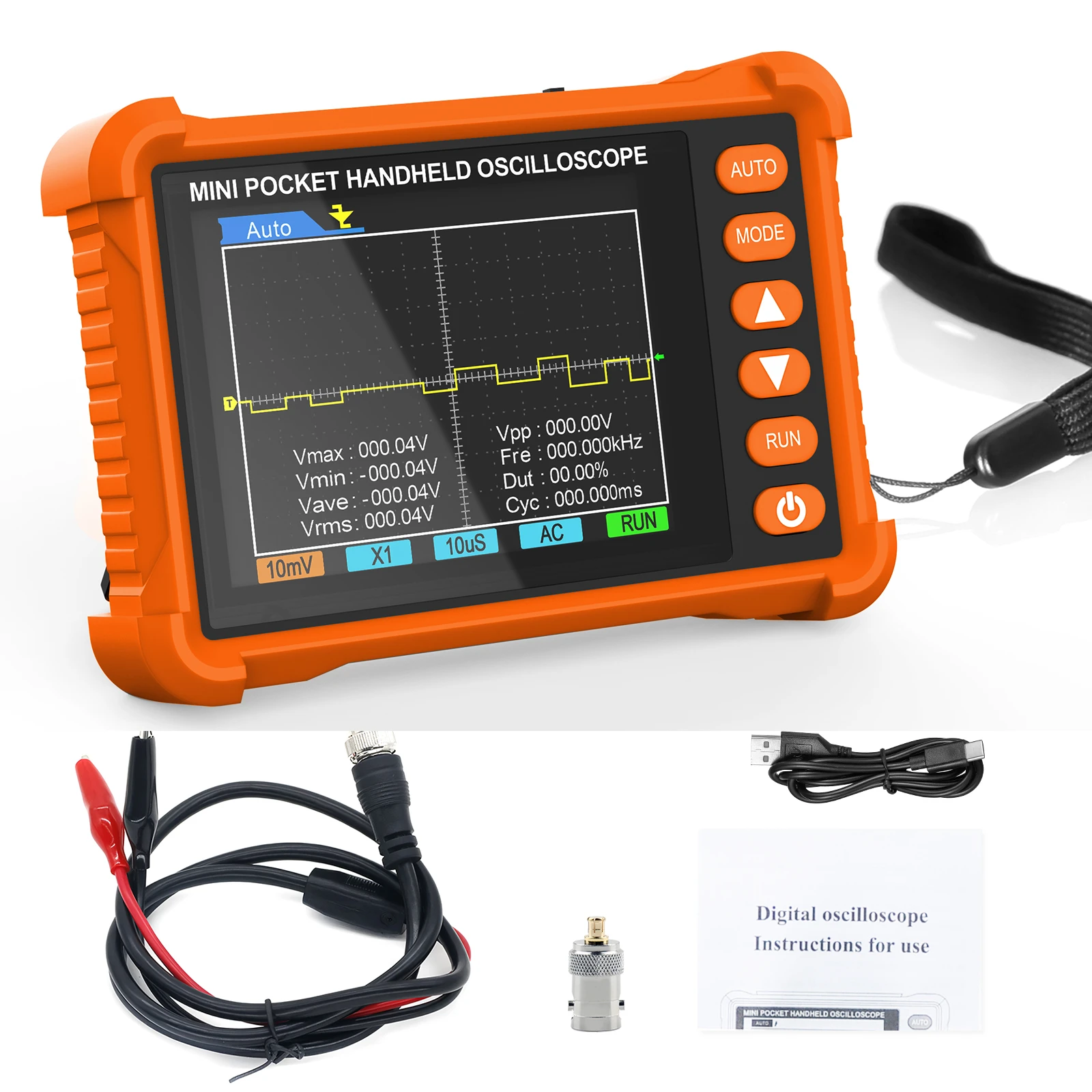

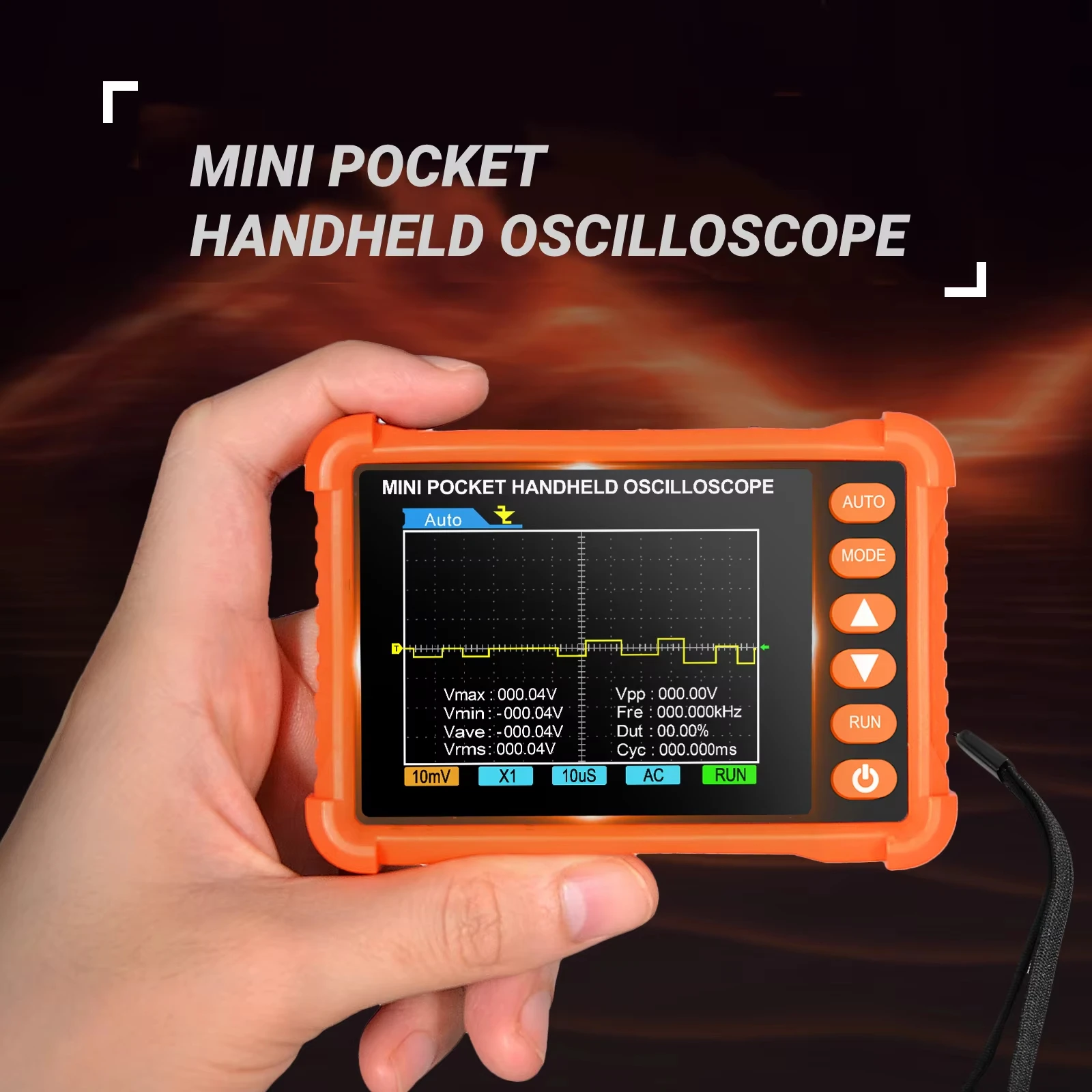

Digital handheld Oscilloscope Bandwidth:250kHz Sampling rate:2.5MS/s AUTO measurement rechargeable Complete triggering function

Reviews | Questions & Answers
AU $92.57 ~ 206.51
Price includes 10% AU GST

Color :
Quantity
In Stock. Ships in 24 hours
Shipping: AU $0.00
Estimated Delivery on -
Secure Payment
Multiple payment options
Customer Service Guarantee
DOA Guarantee Missing/Wrong Items Guarantee Quality Guarantee No Reason Returns
Specifications
Hign-concerned Chemical
None
DIY Supplies
ELECTRICAL

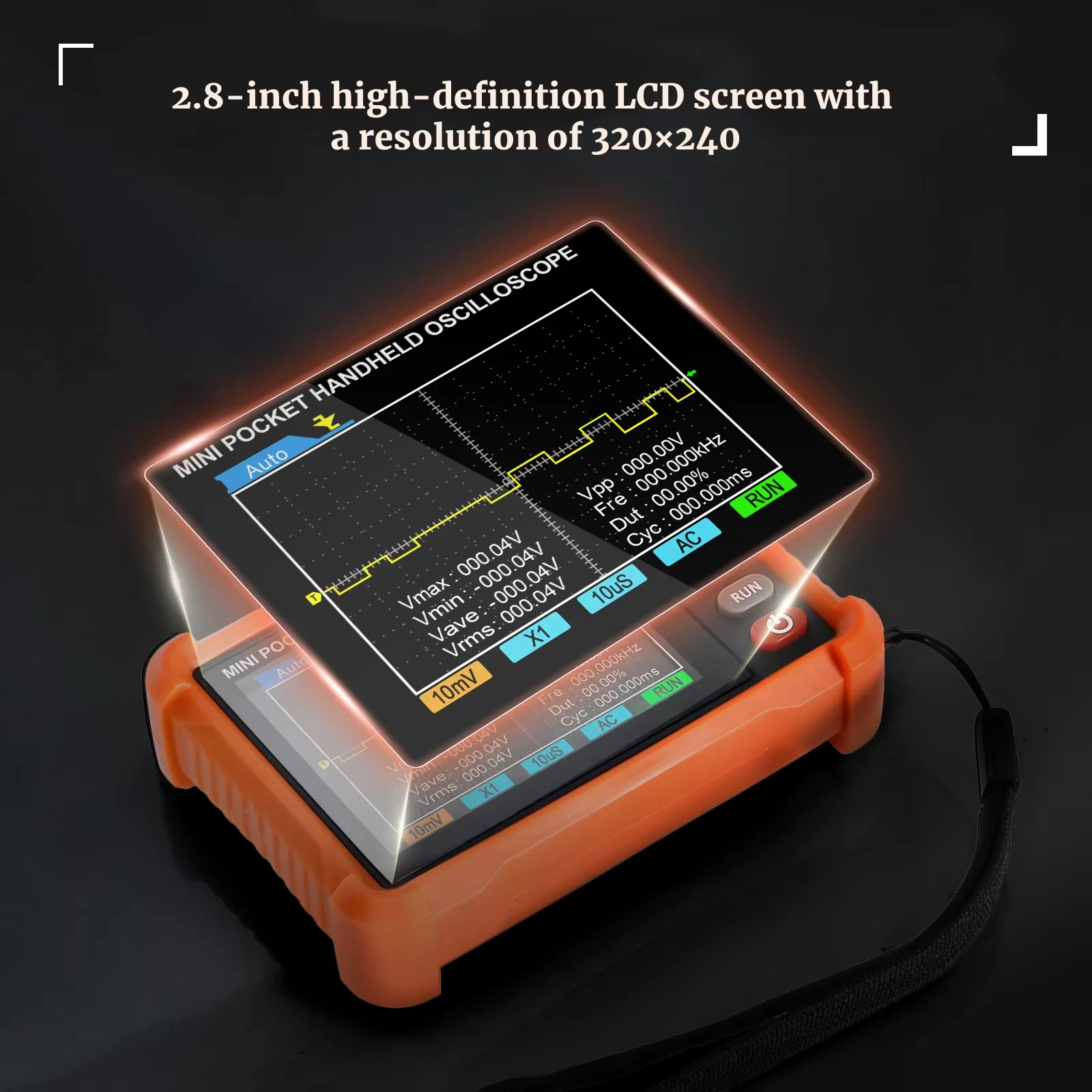

Display Resolution
320*240 Pixels
Model Number
250K
Band Width
250kHz
Sampling rate
2.5MS/s
Vertical sensitivity
10mV/Div-20V/ Div (Progressive in the 1-2-5 way)
Time base range
10us/Div-50s/ Div (Progressive in the 1-2-5 way)
Voltage range
X1:±40V (Vpp: 80V)
Trigger mode
Auto/Normal/ Single
Coupling mode
AC/DC

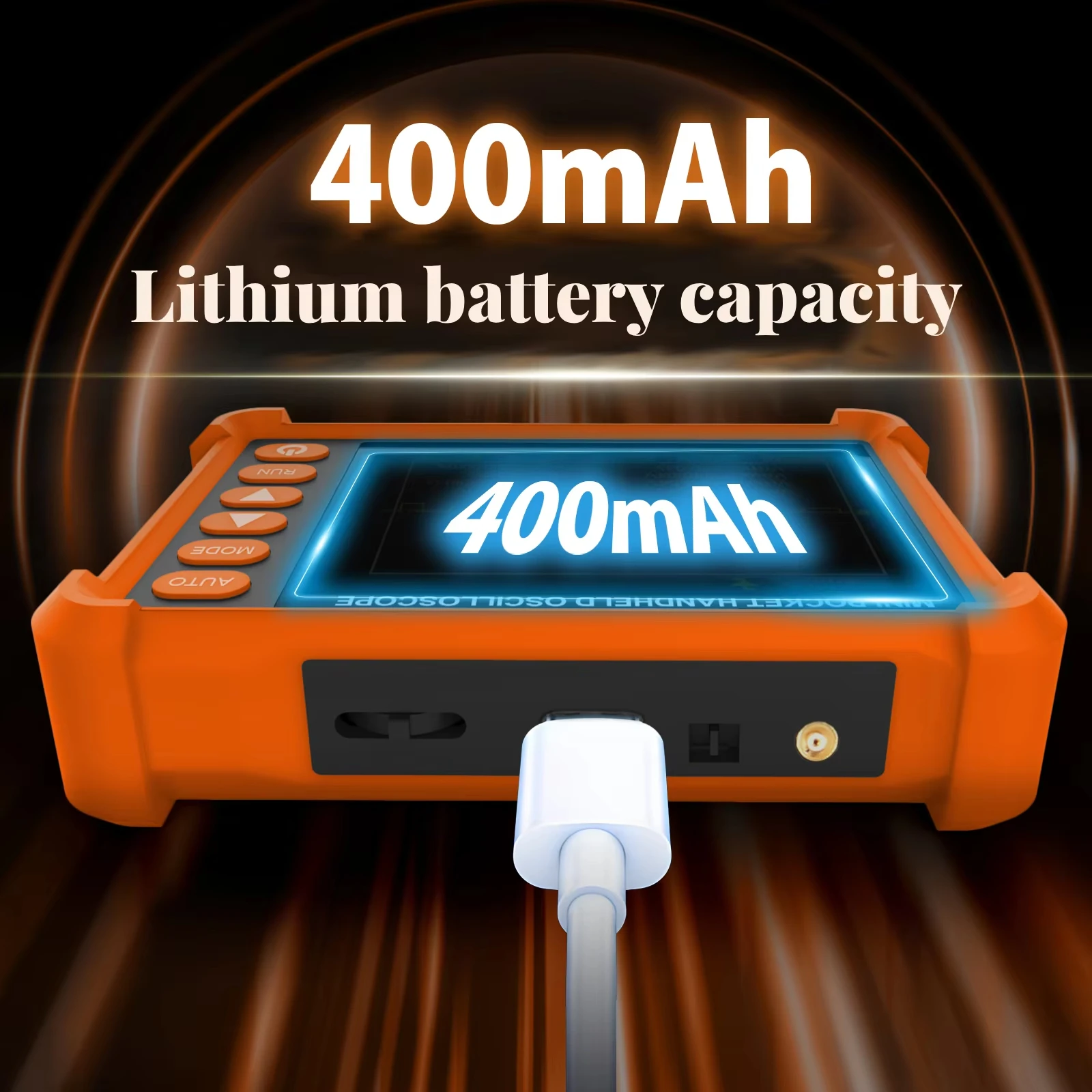

Lithium battery capacity
400mAh
Calibration square wave
Frequency:1K;Duty cycle:50%
Size
103*73*25mm
Weight
100g
