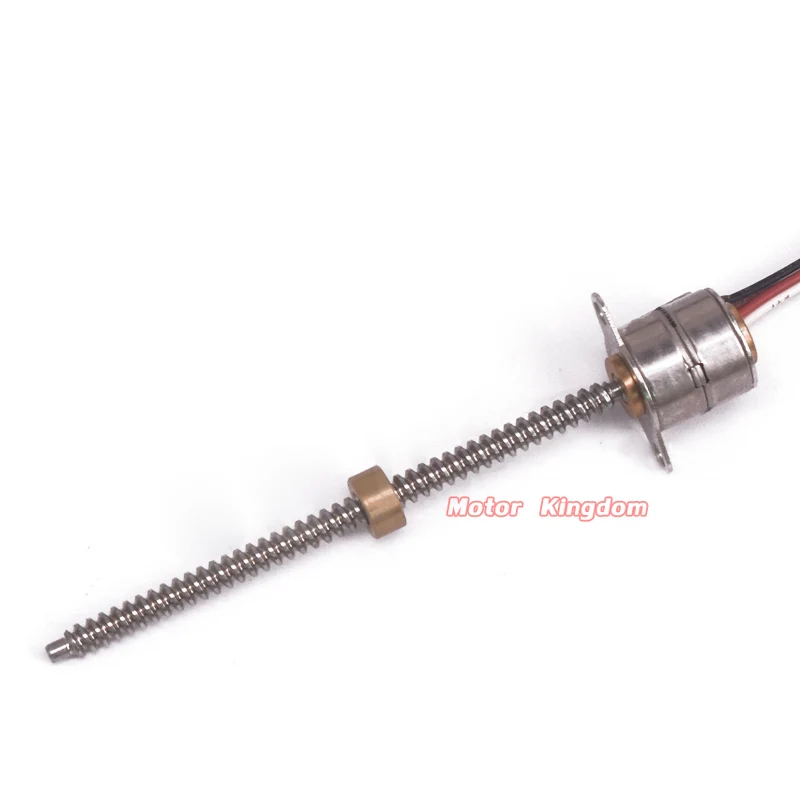

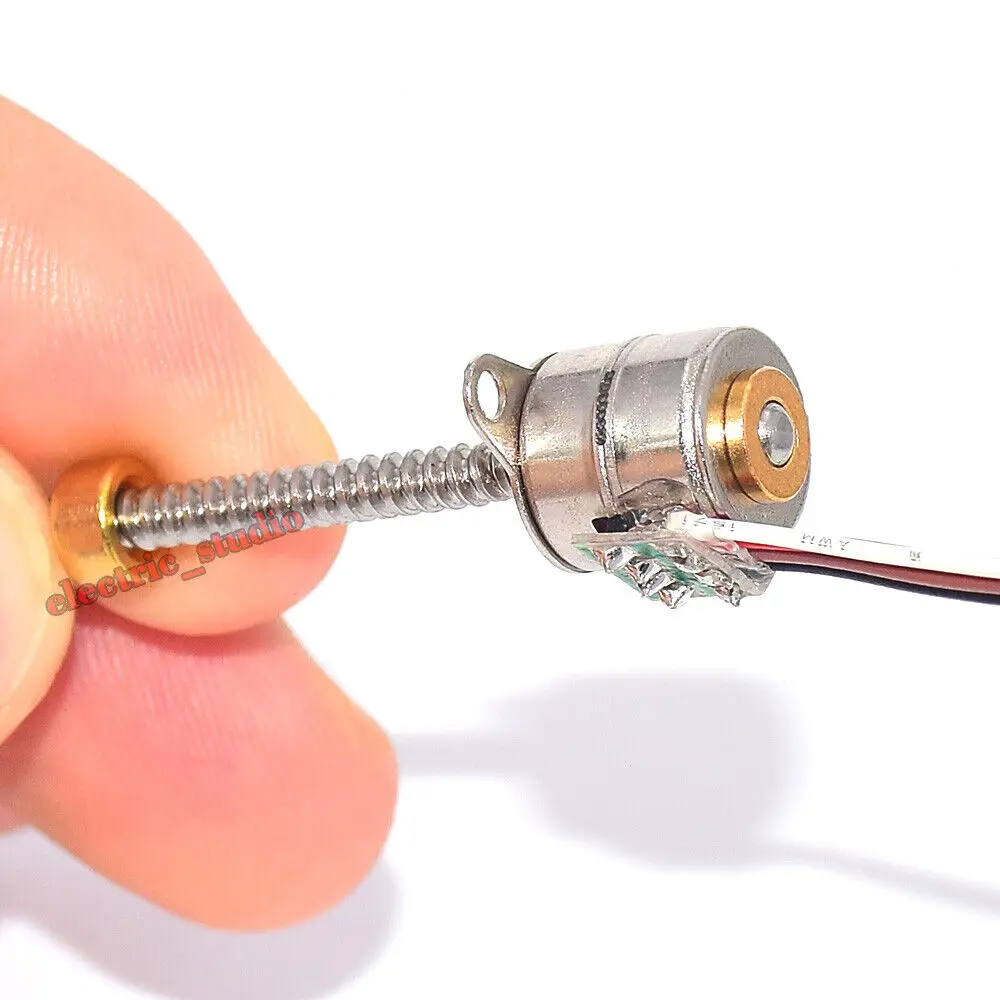

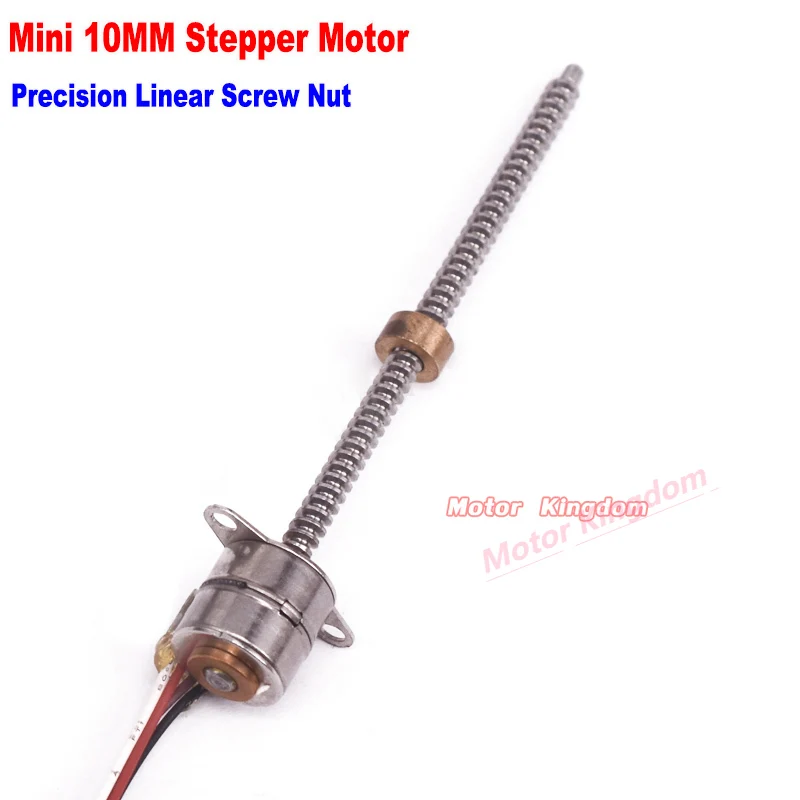

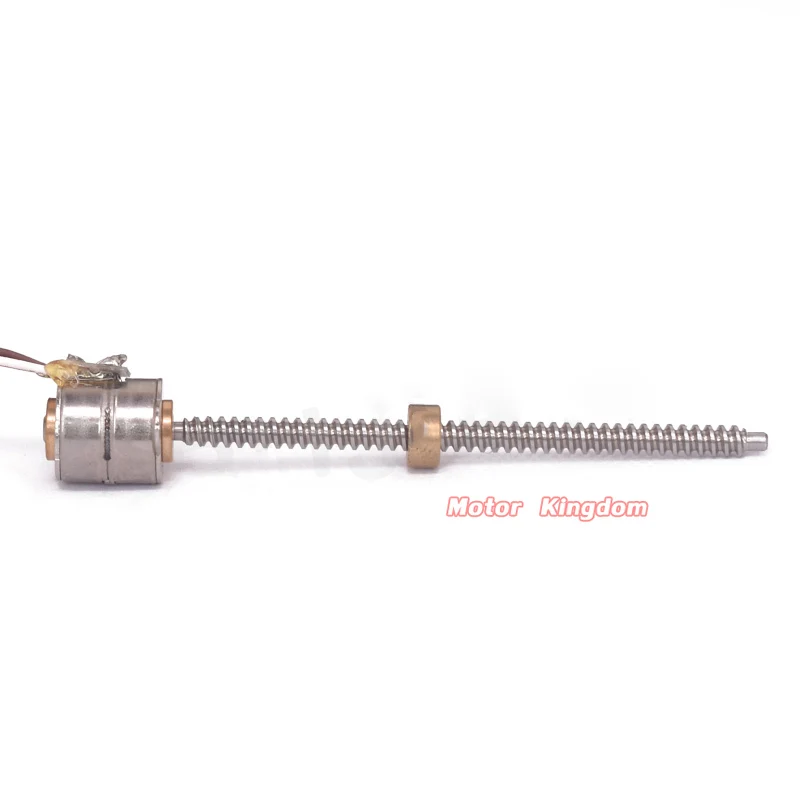

DC 5V 2-phase 4-wire Micro 10mm Stepper Motor Mini 50mm Stroke Long Linear actuator Stepper motor Screw Block Nut Rod linear actuator,stepper motor

Reviews | Questions & Answers
AU $32.11
Price includes 10% AU GST

Option :
Quantity
In Stock. Ships in 24 hours
Shipping: AU $0.00
Estimated Delivery on -
Secure Payment
Multiple payment options
Customer Service Guarantee
DOA Guarantee Missing/Wrong Items Guarantee Quality Guarantee No Reason Returns
Product Features
  • This DC 5V 2-phase 4-wire micro 10mm stepper motor has a 50mm stroke long linear actuator, suitable for various precise control applications.
  • With a step angle of 18 degrees and a current/phase of 250mA, it provides accurate and stable motion control.
  • The 18-ohm motor phase resistance ensures efficient power consumption and reliable performance.
  • Certified with CE, it meets the international safety and quality standards.
  • It is a hybrid-type motor, combining the advantages of different motor types for better performance.

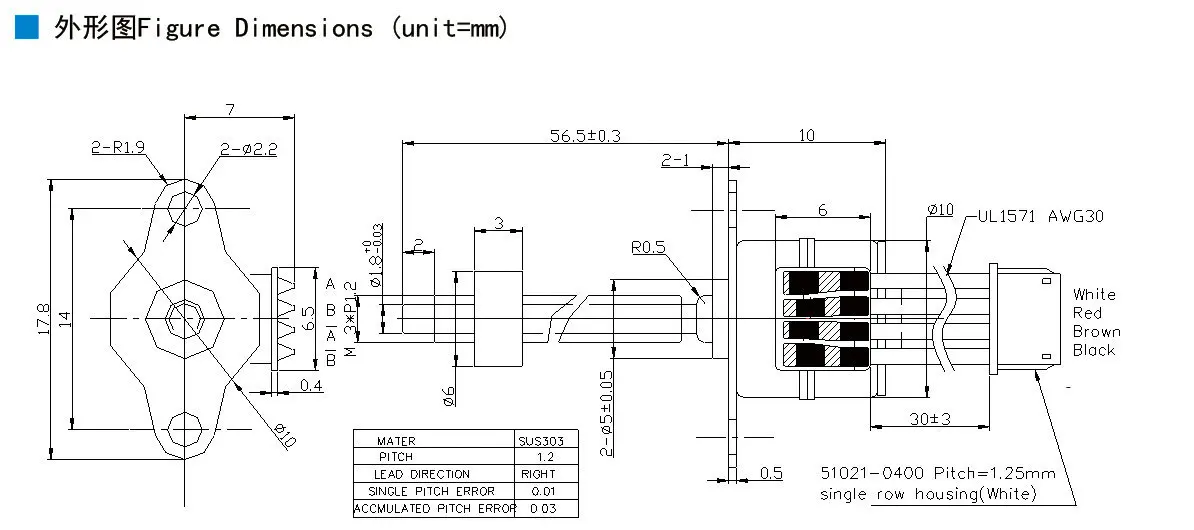

Specifications
Motor diameter
10mm
Motor phase resistance
18 ohms
Slider stroke
50mm
Model Number
10SS
Holding Torque
not clear
Step Angle(degrees)
18
Current / Phase
250mA
Phase
2
Type
HYBRID
semi_Choice
yes
1285 Sold
