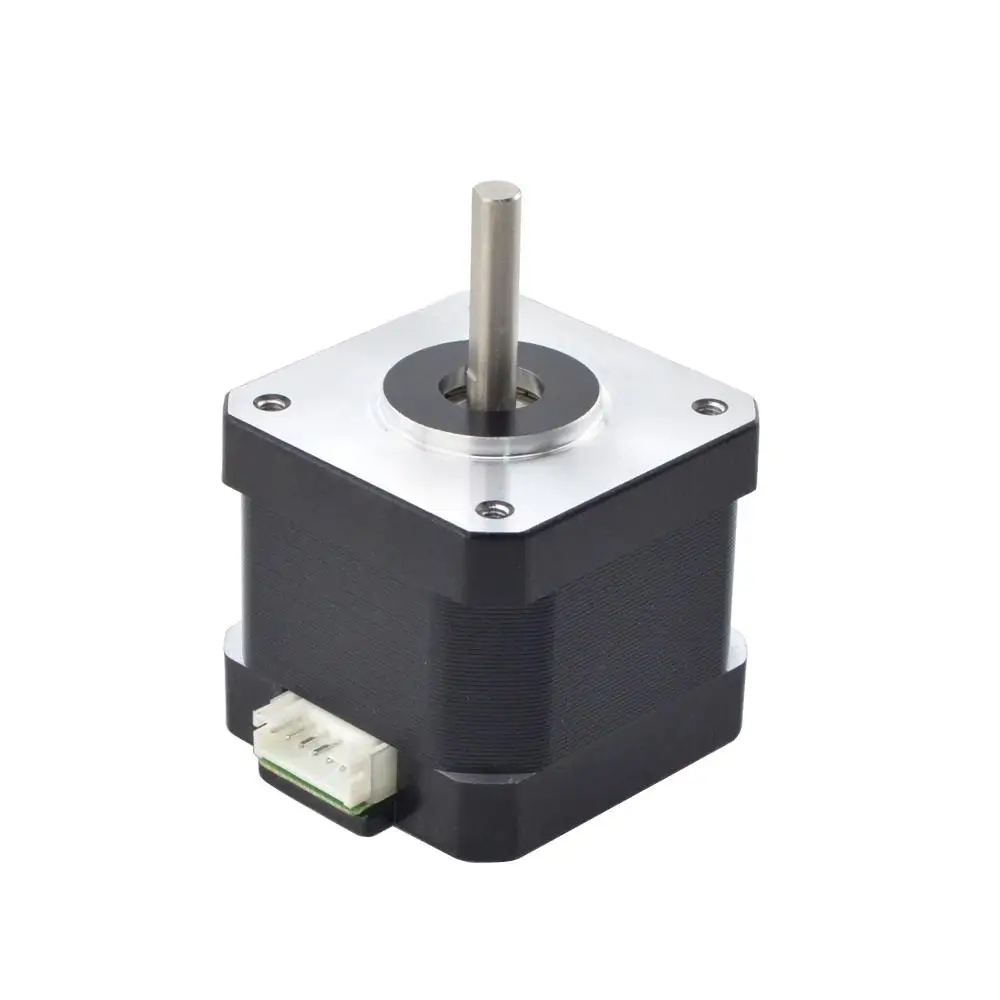

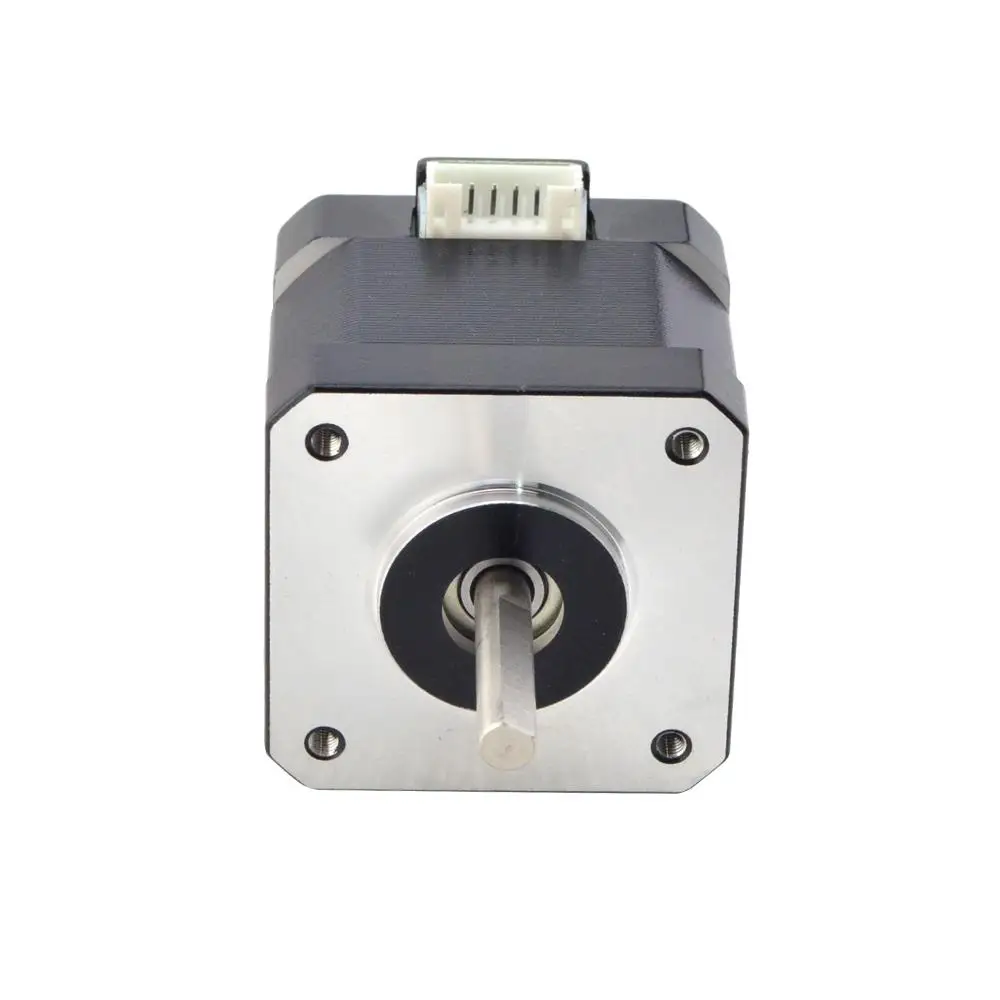

Nema 17 Stepper Motor 38mm 42 Motor 42Ncm 1.5A 4-lead for CNC 3D Printer XYZ stepper motor

Product Features

This Nema 17 stepper motor, with a 42x42x38mm size and 1.5A current, is suitable for CNC 3D printer XYZ applications, offering high-precision movement.
The hybrid type of this stepper motor, with a 1.8-degree step angle and 2 phases, provides smooth and accurate rotation for your 3D printing and CNC projects.
With a holding torque of 42Ncm and a D-cut shaft with a 5mm diameter, this motor can handle heavy loads and is easy to install.
The 4-lead design of this stepper motor simplifies the wiring process, and its ROHS certification ensures environmental compliance.
Backed by a 1-year warranty, this stepper motor is a reliable choice for 3D printers, CNC machines, and robotics applications, providing long-term performance.

Specifications

Brand Name

STEPPERONLINE

Hign-concerned Chemical

None

Step Angle(degrees)

1.8 deg

Phase

Model Number

17HE15-1504S

Holding Torque

42Ncm (59.49oz.in)

Current / Phase

1.5A

Type

Hybrid

Size

42 x 42x 38mm

Shaft shape

D-cut

Shaft Diameter

5mm

Phase Resistance

2.3ohms

Inductance

4.0mH ± 20%(1KHz)

Number of Lead

Application

3D printers,CNC and robotics applications

Rotor Inertia

57g-cm2

Description

Nema 17 Stepper Motor 38mm 42 Motor 42Ncm 1.5A 4-lead for CNC 3D Printer XYZ stepper motor
