USB 5V DC 12V 24V 32V 4 Channel WIFI Tuya Smart Life Motor Controller Electric Linear Actuator 4CH Pulse Relay RF433 Remote dc motor speed controller motor speed controller electric motor speed controller

Product Features

This motor controller supports multiple DC voltages including 5V, 12V, 24V, and 32V, providing great flexibility for various applications, and it can be controlled via the Tuya Smart Life app.
Equipped with 4 channels and a WIFI connection, it enables convenient and efficient operation, and also supports RF433 remote control for added convenience.
It features passive output and supports voice control with Google Assistant and Amazon Alexa, making it a smart and user-friendly device for motor speed control.
With a maximum current of 10A/2200W per gang and a maximum load of 16A/3500W for 4 gangs, it can handle a wide range of power requirements, and has a timer function.
Compatible with both Android and iOS systems, this motor controller is suitable for AC motors and comes with RoHS certification for quality assurance.

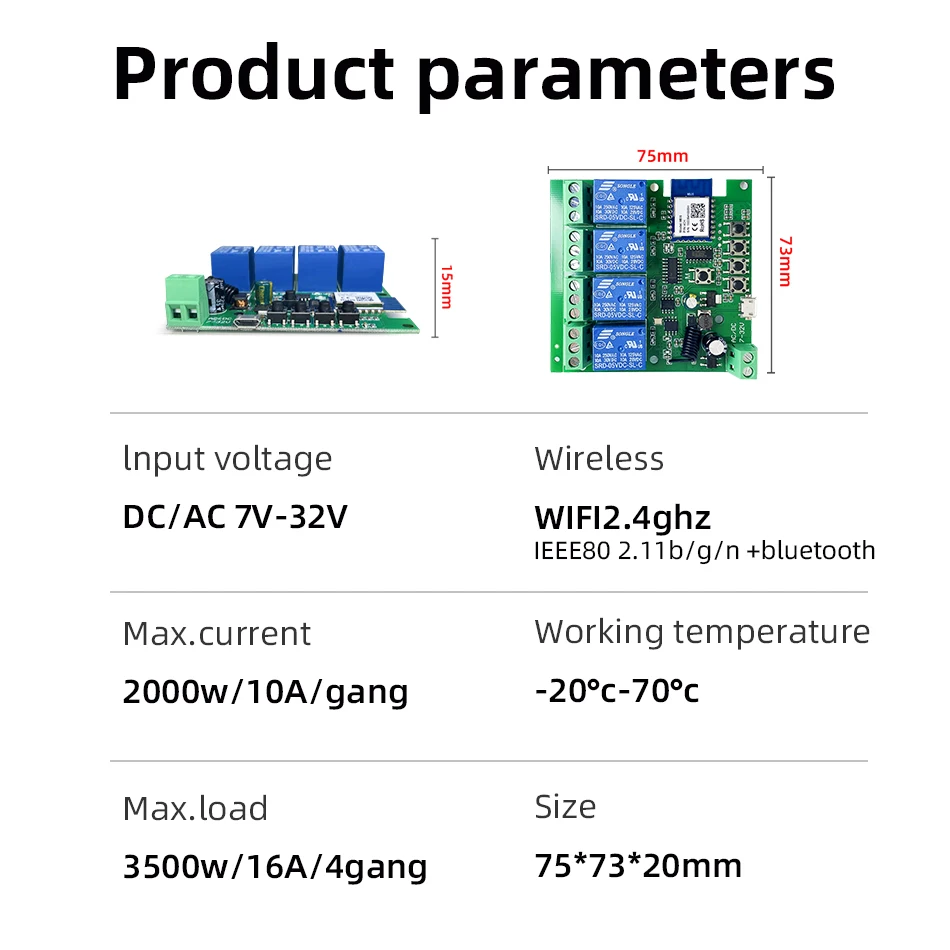

Specifications

Motor Type

DC Motor

Model Number

TY4CH-12VRF

Input 1

USB 5V

Input 2(Screw Terminal)

AC/DC 7-32V

Output

Passive Output(Dry Contact)

APP Control

yes

App Name

Tuya Smart Life

Voice Control

Google Assistant, Amazon Alexa

Wireless Protocol

WiFi 2.4GHz(don't support 5GHz)

RF433 Frequency

yes

Max Current

10A/2200W/gang

Max Load

16A/3500w/4 gang

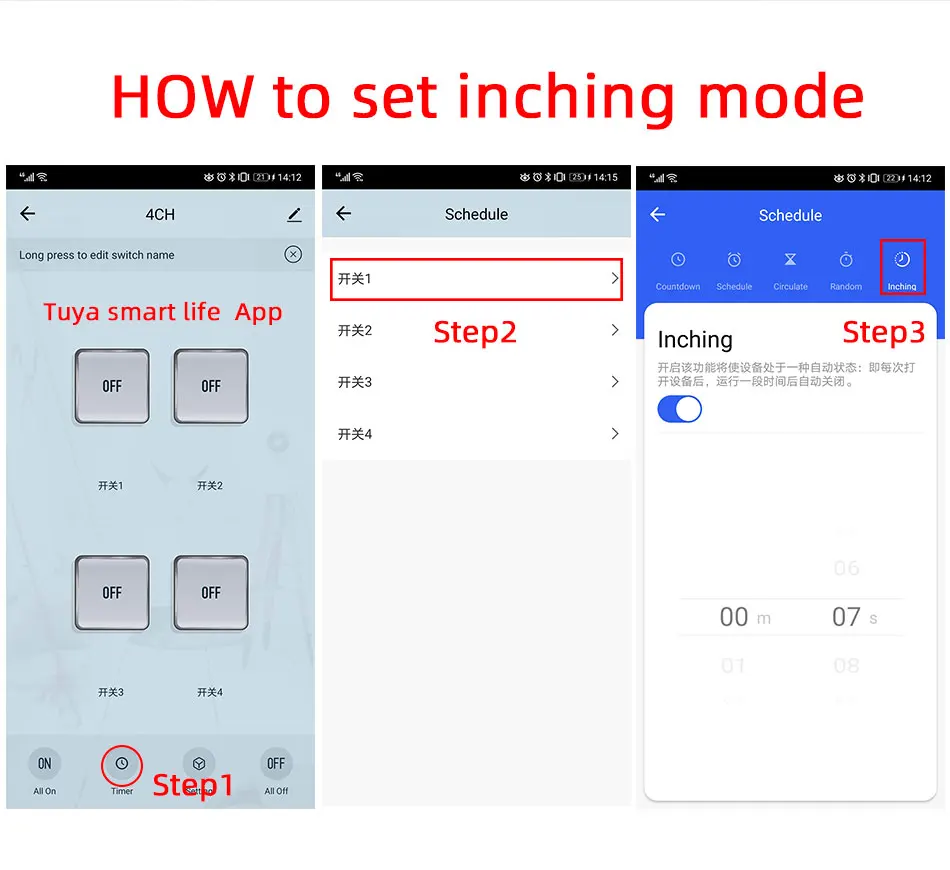

Timer Time Schedule

yes

Phone System

Andriod, iOS

Battery of RF433 Remote Controller

27A 12V(not include in it )

Motor

AC Motor

Description

USB 5V DC 12V 24V 32V 4 Channel WIFI Tuya Smart Life Motor Controller Electric Linear Actuator 4CH Pulse Relay RF433 Remote dc motor speed controller motor speed controller electric motor speed controller
