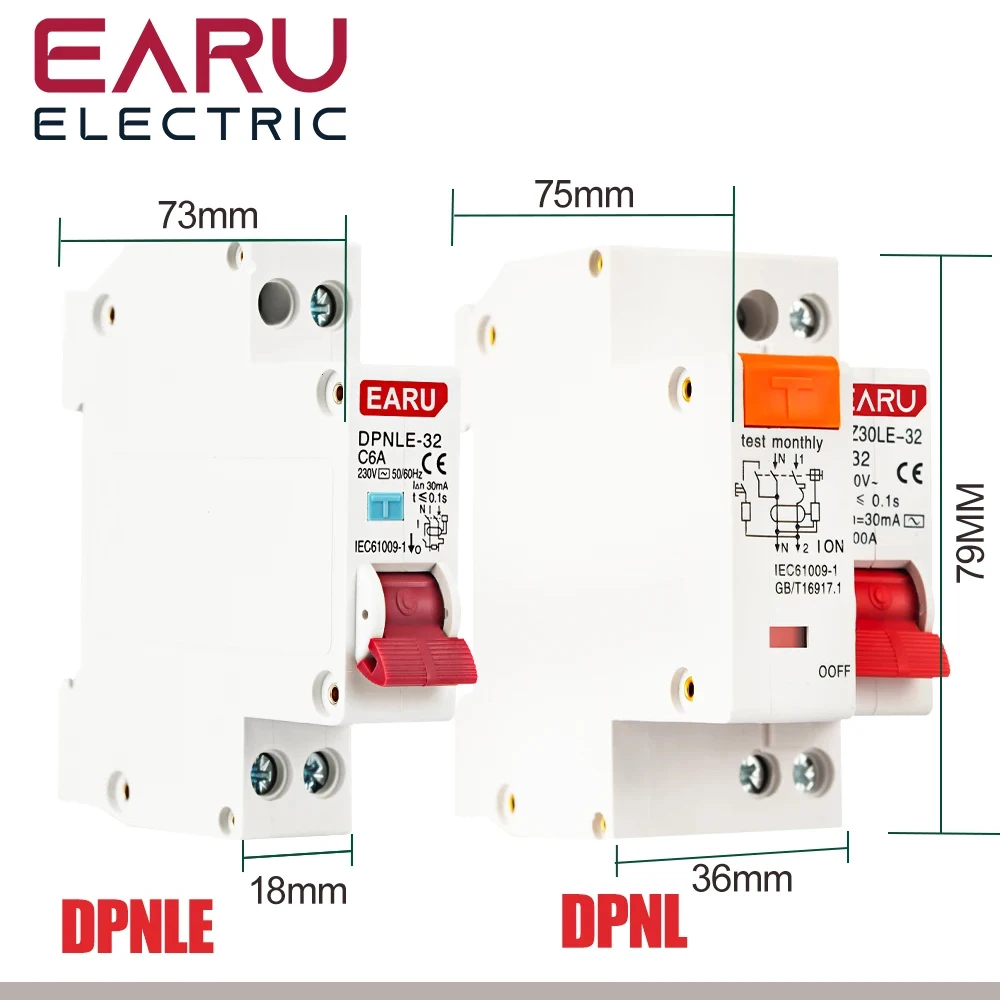

DPNL 230V 50/60Hz RCBO MCB 1P+N 6KA Residual Current Differential Automatic Circuit Breaker Over Current Leakage Protection circuit breaker

★ ★ ★ ★ ★
Reviews | Questions & Answers
AU $17.81 ~ 21.00
Price includes 10% AU GST

Rated Current :
Poles Number :
Quantity
In Stock. Ships in 24 hours
Shipping: AU $0.00
Estimated Delivery on -
Secure Payment
Multiple payment options
Customer Service Guarantee
DOA Guarantee Missing/Wrong Items Guarantee Quality Guarantee No Reason Returns
Product Features
  • This 230V 50/60Hz RCBO MCB circuit breaker provides residual current and earth current leakage protection, ensuring safety in electrical circuits.
  • With a rated voltage of 220V and rated currents of 6/10/16/20/25/32A, it offers flexibility for different electrical applications.
  • The 6kA breaking capacity and 30mA rated residual operating current make it capable of handling various electrical loads and protecting against overloads.
  • It has a fast action time of ≤0.1S and is mounted on a 35mm Din Rail, ensuring quick response and easy installation.
  • Certified to IEC61009-1 standard, this circuit breaker is a reliable choice for electrical systems, providing electronic protection and peace of mind.
Specifications
Function1
Residual Current
Function2
Electronic
Function3
Earth Current Leakage Protection
Function4
Overload Protection
Rated Voltage
220V
Rated current
6/10/16/20/25/32A
Breaking Capacity
6kA
Mounting
35mm Din Rail
Operating temperature
-5~+40℃
Poles
1P+N
Rated residual operating current
30mA
Action time
≤0.1S
Standard
IEC61009-1
Model Number 1
DPN
Model Number 2
DPNL
Model Number 3
DZ47
Model Number 4
RCCB
Model Number 5
MCB
Brand Name
EARUELETRIC
Model Number
DPNLE-32
Type
Circuit breaker
Hign-concerned Chemical
None
Is Smart Device
No
semi_Choice
yes
