Circuit Breaker AC230V 6A-63A 2P 4P 30ma Residual Current Circuit Breaker Short Circuit Over Load Leakage Protector Current Limit MCB RCCB RCBO

Product Features

This circuit breaker provides leakage protection, overload protection, and short-circuit protection, ensuring the safety of your electrical circuits with a rated voltage of 220V.
Available in rated currents of 6/10/16/20/25/32/40/50/63A and poles of 2P/4P, it can meet different electrical requirements.
With a segmentation capacity of 6kA and a rated residual operating current of 30mA, it offers reliable performance and fast action time (≤0.1S).

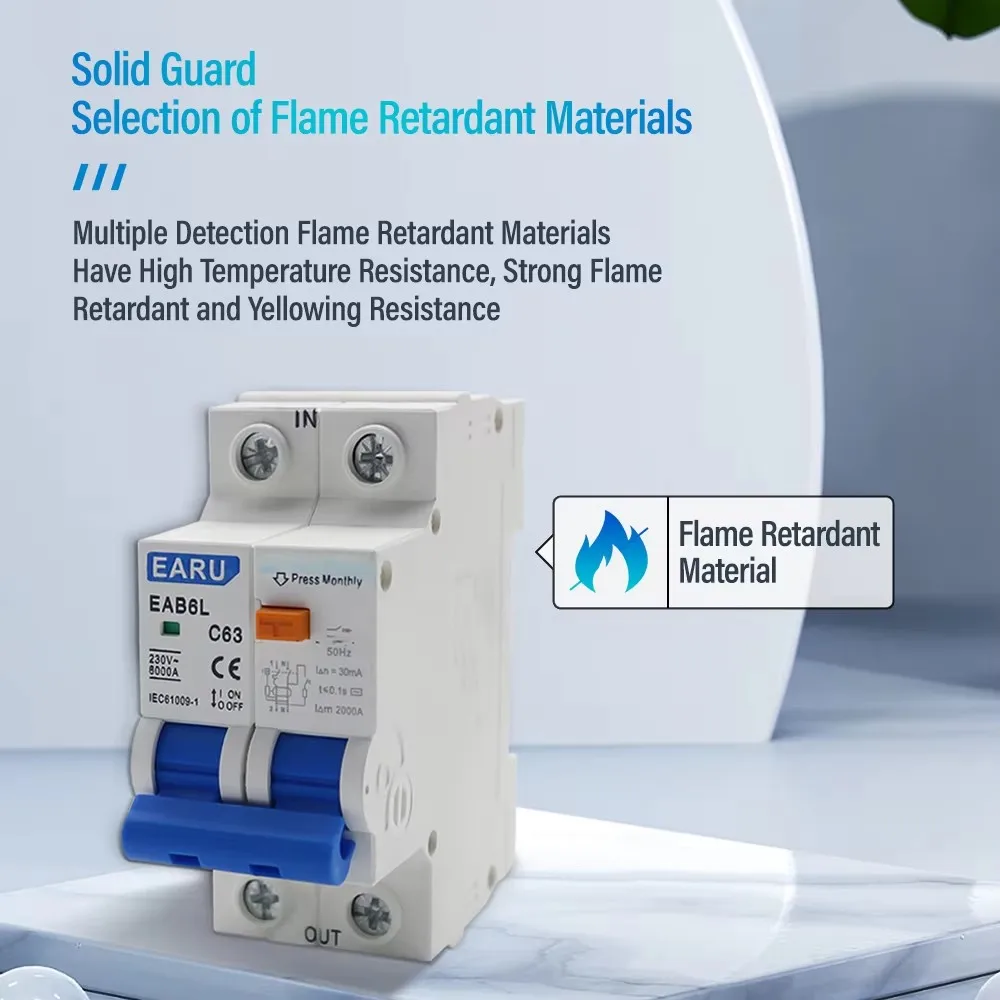

The PC flame-retardant shell material ensures good heat resistance and safety, and it has an electrical life of 10000+ times and a mechanical life of 15000+ times.
It is CE-certified, and with the option of customization, it is a high-quality and reliable choice for your electrical protection needs.

Specifications

Rated Voltage

220V

Function

Leakage protection

Function1

Overload protection

Function2

Short circuit protection

Rated Current

6/10/16/20/25/32/40/50/63A

Poles

2P/4P

Segmentation Capacity

6kA

Rated Residual Operating Current

30mA

Action Time

≤0.1S

Working Temperature

-35~+70℃

Shell Material

PC flame retardant

Electrical life

10000+ times

Mechanical life

15000+ times

Brand Name

EARUELETRIC

Model Number

EAB6L

Type

RCD

Hign-concerned Chemical

None

Is Smart Device

semi_Choice

yes
