Hall effect current sensor Split core current transmitter QNDBK1 21 AC DC 30A 50A 100A 200A 4 20mA 10V 5V Current Transducer

Product Features

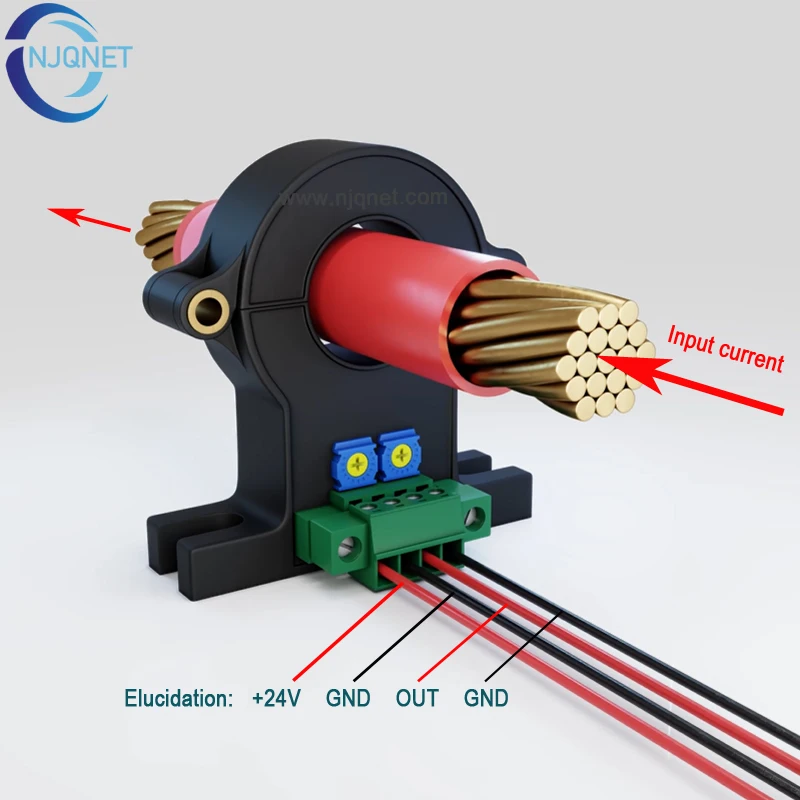

This Hall effect current sensor, with a split core design, can measure AC and DC currents from 30A to 500A. It has a 1% accuracy and a 2-year warranty.
Designed with a toroidal coil structure and an autotransformer coil number, this current transmitter offers reliable performance and high-quality output.
With a supply voltage of +24V and an output of DC 4-20mA, 4V, or 5V, this sensor is suitable for various current-measuring applications.
This current transducer can operate in a wide temperature range from-40℃ to +85℃ and has a galvanic isolation of 2.5 KV.
As a customizable and UL-certified current sensor, it provides a precise and stable solution for current measurement in different electrical systems.

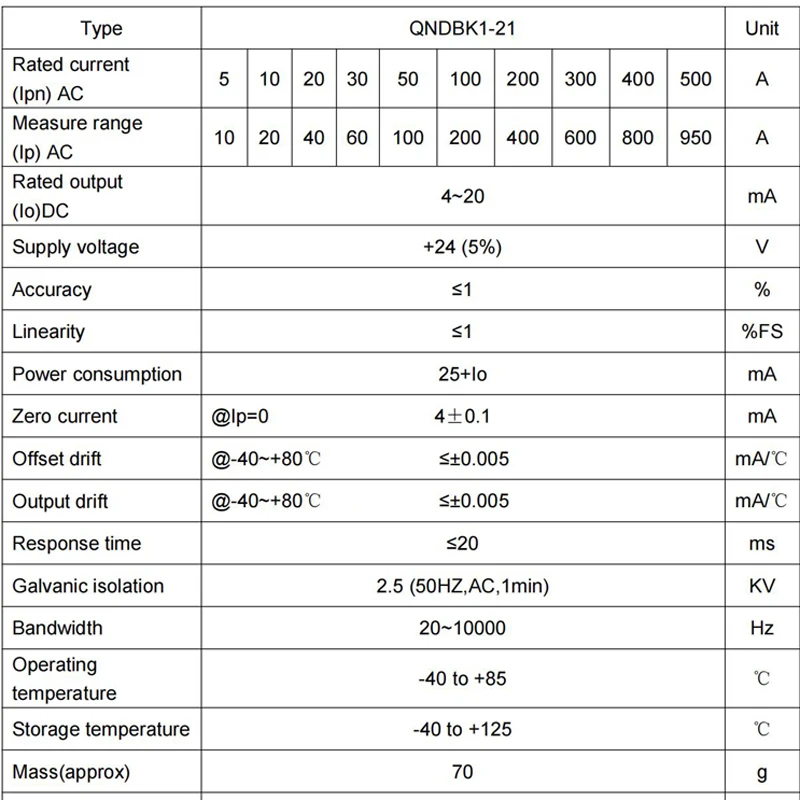

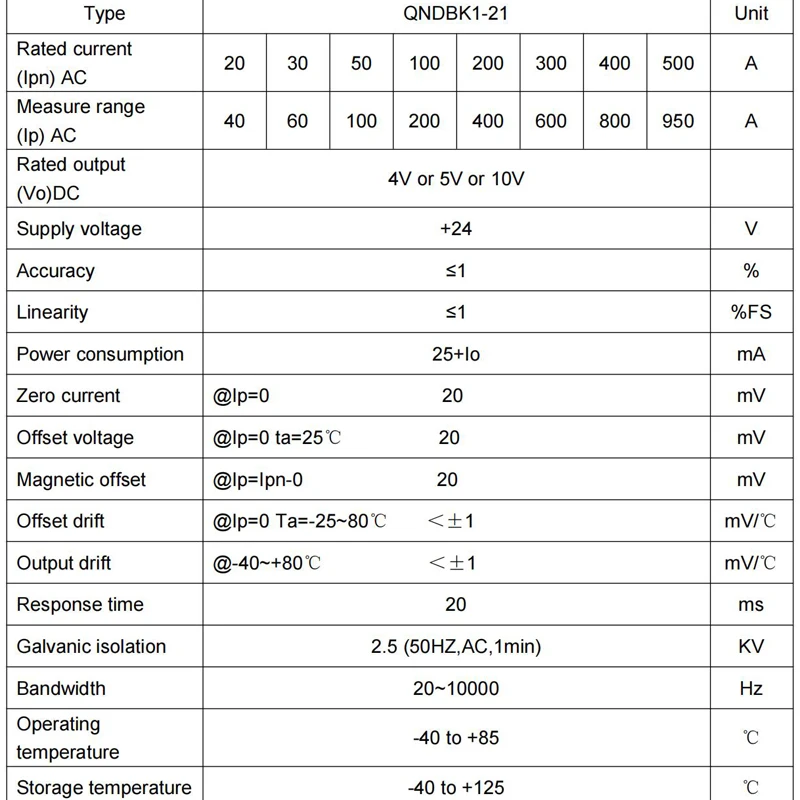

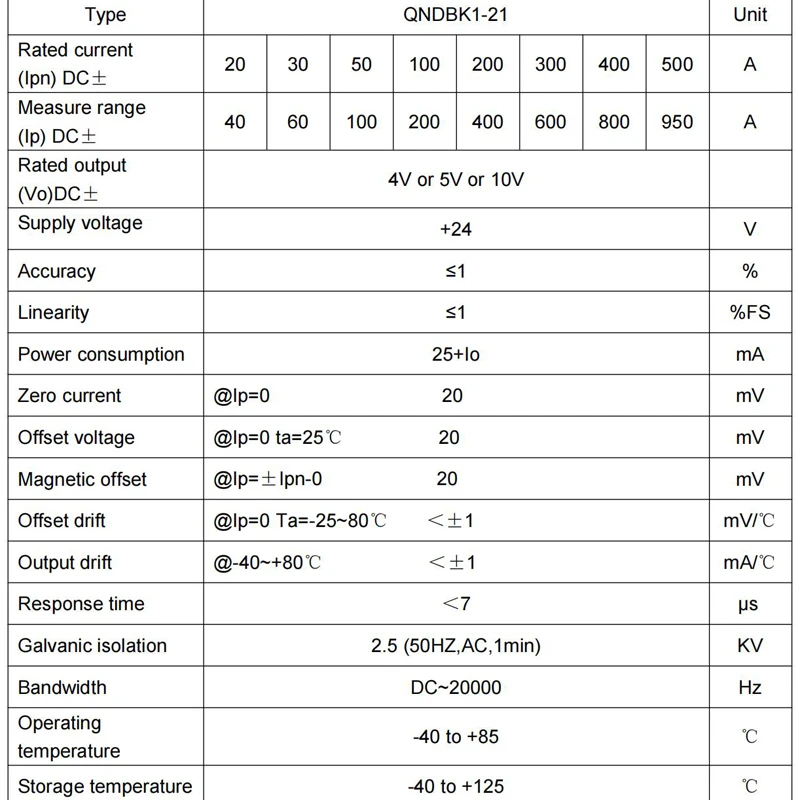

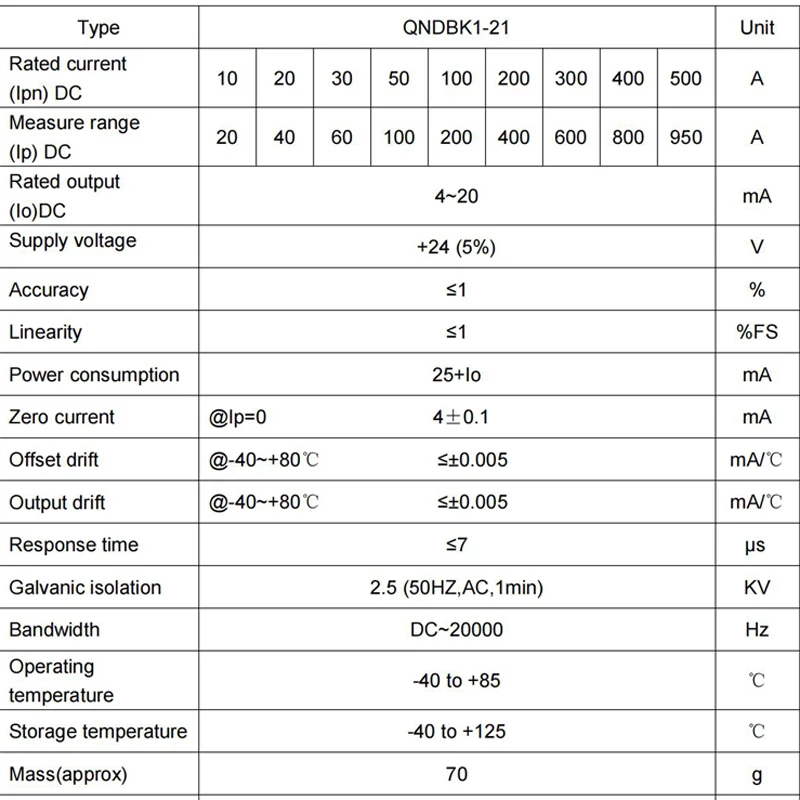

Specifications

Hign-concerned Chemical

None

Model Number

QNDBK1-21

Phase

SINGLE

Use

Current

Coil Number

Autotransformer

Coil Structure

Toroidal

Input current

AC 30~500A or DC 30~500A

Output

DC 4~20mA 4V 5V

Supply voltage

+24V

Linearity

1%FS

Accuracy

Operating temperature

-40℃~+85℃

Storage temperature

-40 to +125 ℃

Galvanic isolation

2.5 KV (50HZ,AC,1min)

Net Weight

70 g

Warranty period

2 years

Description

Hall effect current sensor Split core current transmitter QNDBK1 21 AC DC 30A 50A 100A 200A 4 20mA 10V 5V Current Transducer
