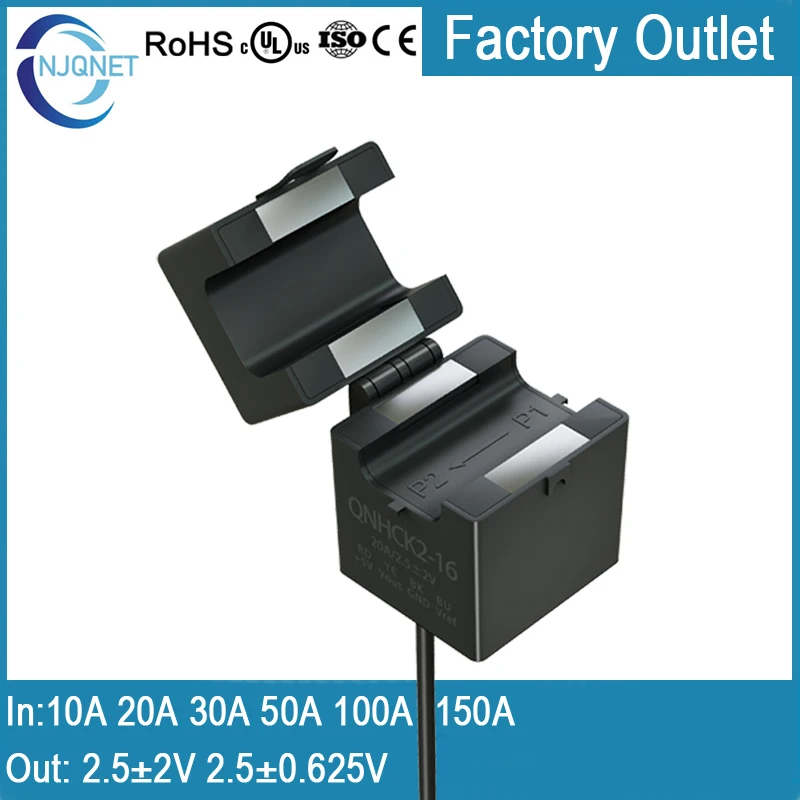

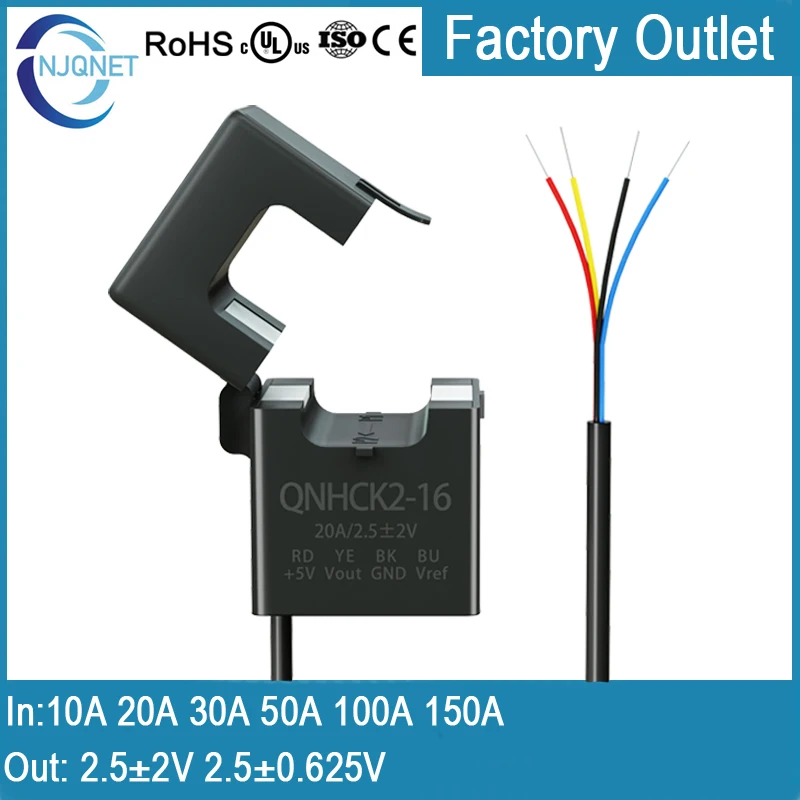

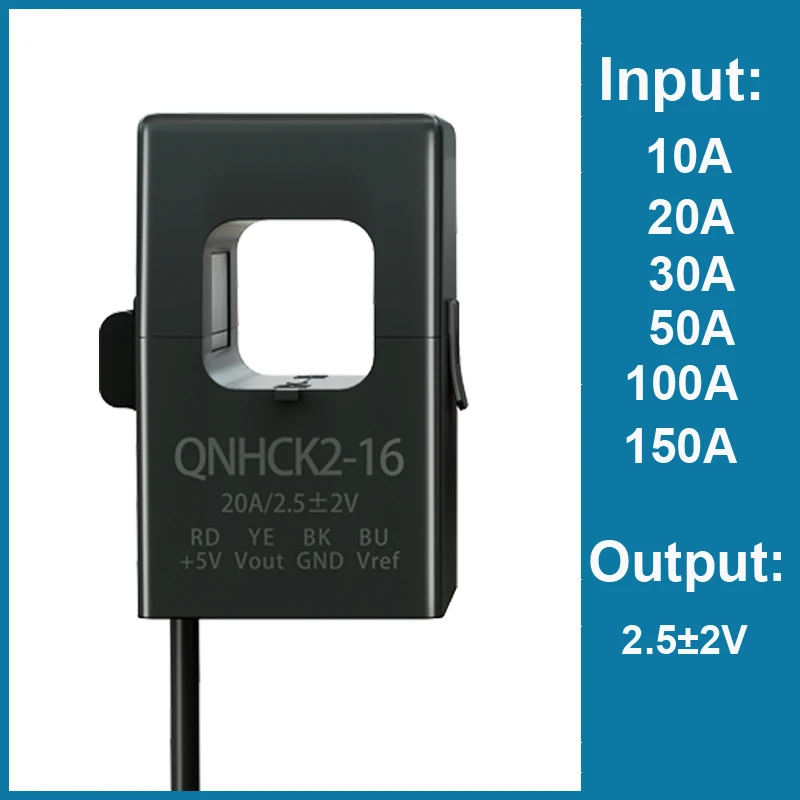

Split Core Current Sensor Hall Effect 10A 20A 30A 50A 100A 150A / 2.5±0.625V 2.5±2V Clamp DC Current Transducer Replace HSTS016L current transformer current sensor

Product Features

This split core current sensor Hall effect 10A 20A 30A 50A 100A 150A/2.5±0.625V 2.5±2V clamp DC current transducer can replace HSTS016L.
It is certified with UL, meeting the safety and quality standards, ensuring reliable operation in different electrical systems.
With a rated current range of ±20A ±30A ±50A ±100A ±200A and a rated output of 2.5V±0.625V 2.5V±2V, it can accurately measure current.
It has a wide operating temperature range from-10 to +70 ℃ and a storage temperature range from-25 to +70 ℃, suitable for various environments.
Since it is customizable, you can select the best parameters for your specific current measurement needs.

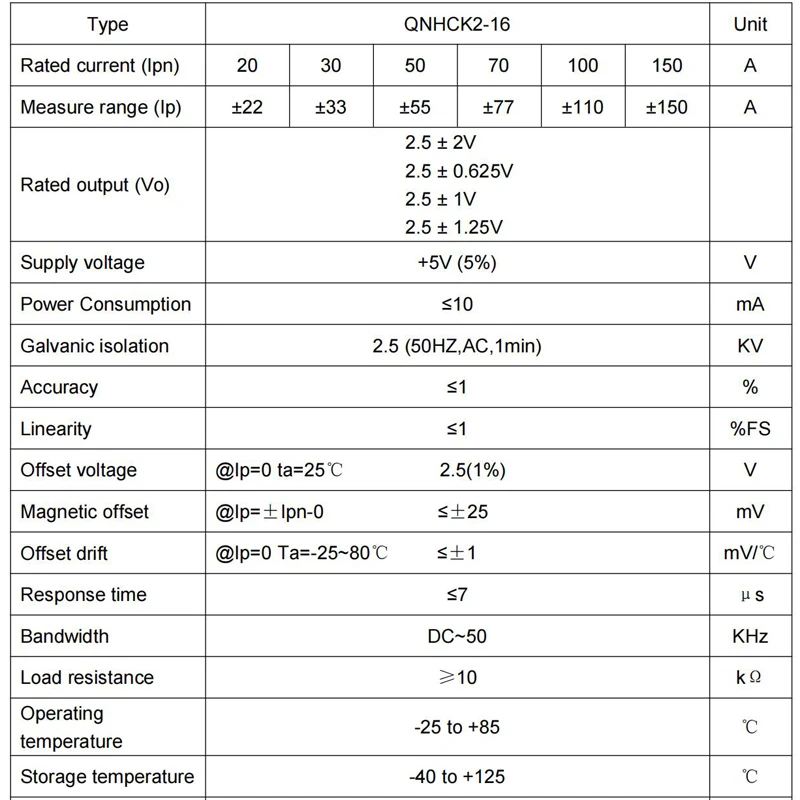

Specifications

Hign-concerned Chemical

None

Model Number

QNHCK2-16

Phase

SINGLE

Use

Current

Rated current

±20A ±30A ±50A ±100A ±200A

Rated output

2.5V±0.625V 2.5V±2V

Supply voltage

+5V

Bandwidth

DC~25KHz

Operating temperature

-10 to +70 ℃

Storage temperature

-25 to +70 ℃

Galvanic isolation

2.5 KV(50HZ,AC,1min)

Description
