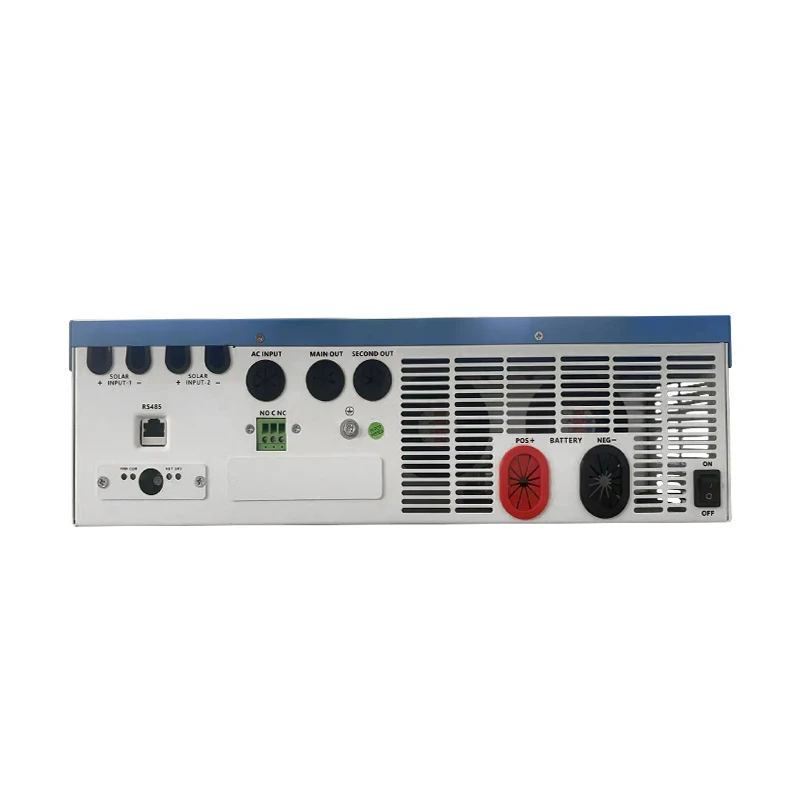

11KW 48V 220VAC Hybrid Solar Inverter Off Grid Tie Inverter Dual AC Output/PV Input Pure Sine Inversor 160A MPPT Solar Charger solar inverter sine wave inverter power inverter

Product Features

This 11KW 48V 220VAC hybrid solar inverter features dual AC output and PV input, providing a reliable power source for your home.
With a pure sine wave output, it can protect your electrical appliances from damage and ensure stable operation.
It has a high-efficiency MPPT solar charger with a maximum charge current of 160A, maximizing the utilization of solar energy.
It supports a wide input voltage range of 90-280VAC, suitable for various home appliances.
Equipped with multiple protection functions such as overcharge protection and short-circuit protection, it ensures the safety of your power system.

Specifications

Brand Name

ANENJI

Hign-concerned Chemical

None

Size

42x31x11CM

Output Frequency

50/60HZ Auto sensing

Output Type

DUAL

Output Current

160A

Output Power

10.2KW

Weight

16.2KG

Is Smart Device

Yes

Model Number

ANJI-11KW 48V

Rated Power

11000W

Input Voltage

230VAC

Acceptable Voltage Range

90-280VAC(for home Appliances)

Frequency Range

50/60HZ Auto sensing

Output AC Voltage Regulation(Batt.Model)

195.5-253VAC

Surge Power

22000VA

Transfer Time

10ms (For Personal Computers),20ms(For Home Appliances)

Wave Form

Pure sine wave

Battery Voltage

48V

Floating Charge Voltage

54V

Overcharge Protection

63V

Maximum charge current

160A

Maximum PV Array Power

10200W

MPPT Range operation Voltage

60V-500VDC

Maximum PV Array Open Circuit Voltage

500VDC

Maximum Solar Charge Current

160A

Maximum Efficiency

94%

communication interface

RS232(Standard)RS485/WIFI Optional

Humidity

5% to 95% Relative Humidity (Non-condensing)

Operation Temperature

-10℃-55℃

Storage Temprature

-15℃-60℃

Dimension,D*W*H

54x41.5x12.2CM

Solar Charge type

2 MPPT

Net Weight

14.5KG

Features

Dual PV input

Description

11KW 48V 220VAC Hybrid Solar Inverter Off Grid Tie Inverter Dual AC Output/PV Input Pure Sine Inversor 160A MPPT Solar Charger solar inverter sine wave inverter power inverter
