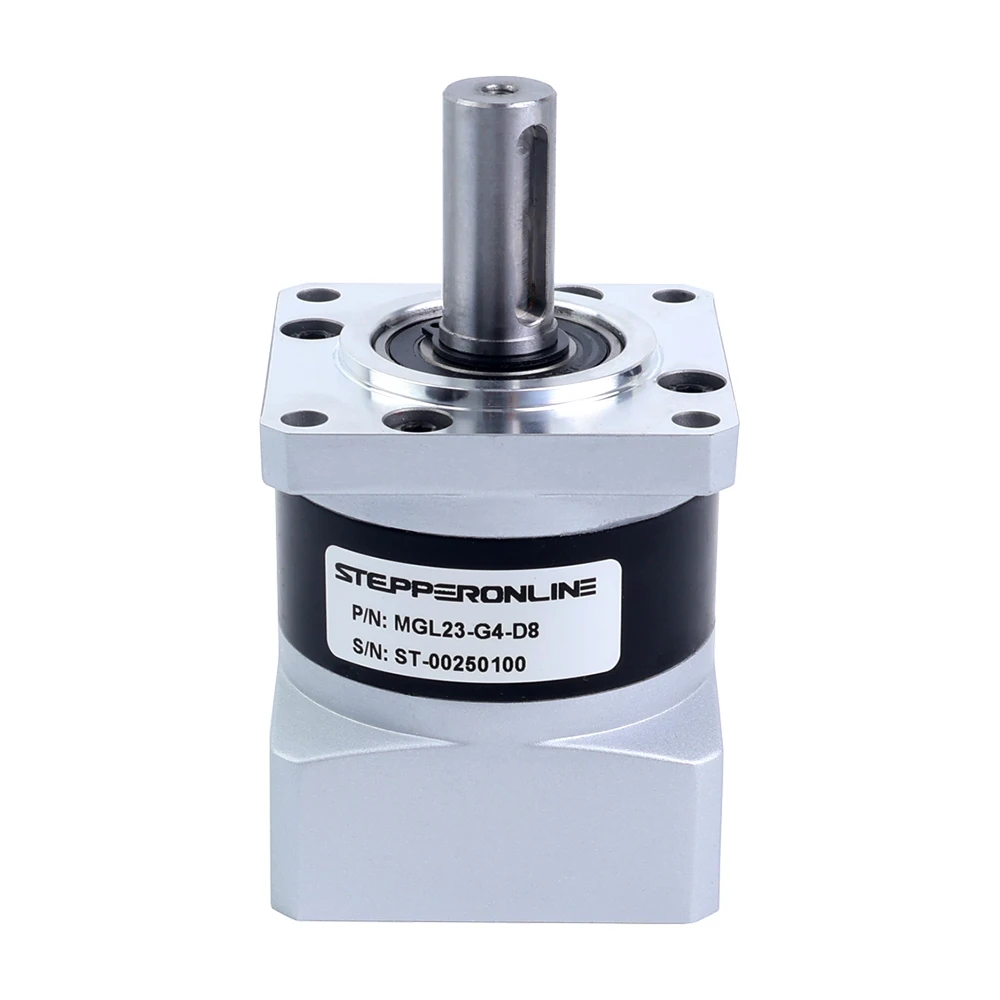

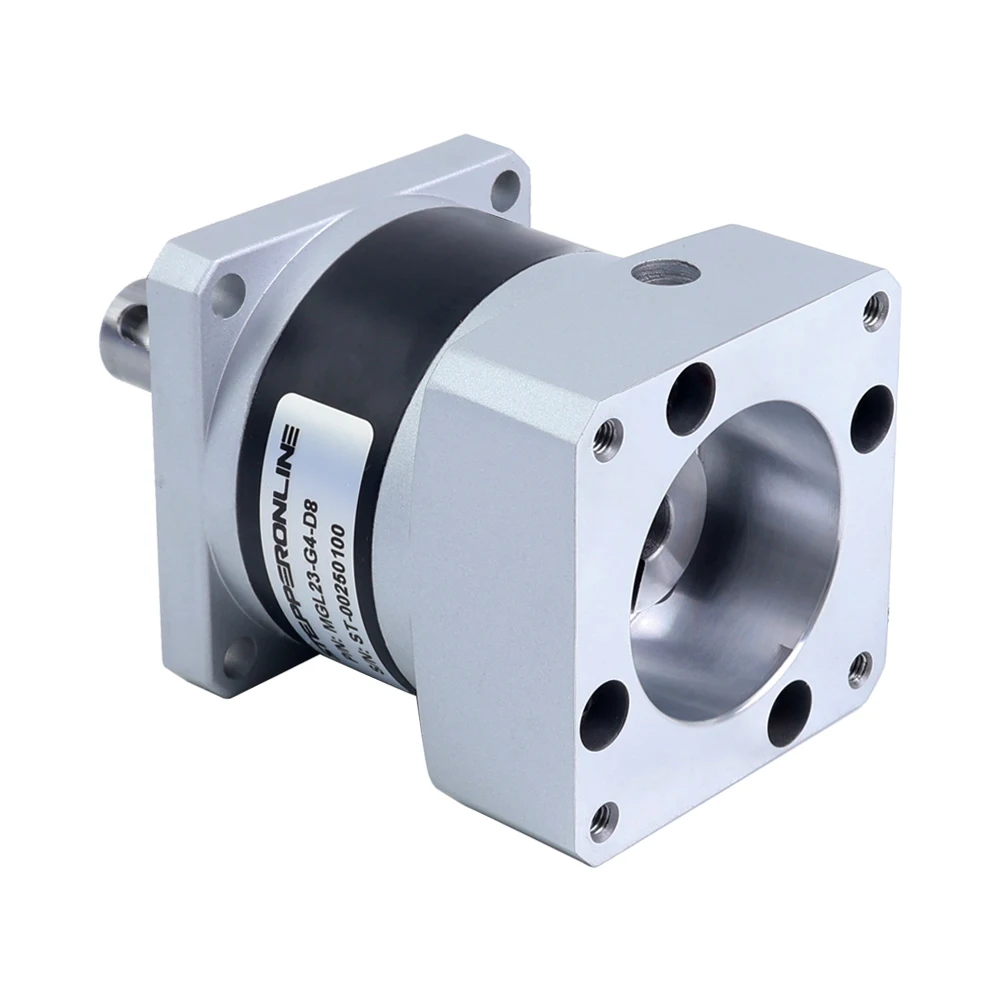

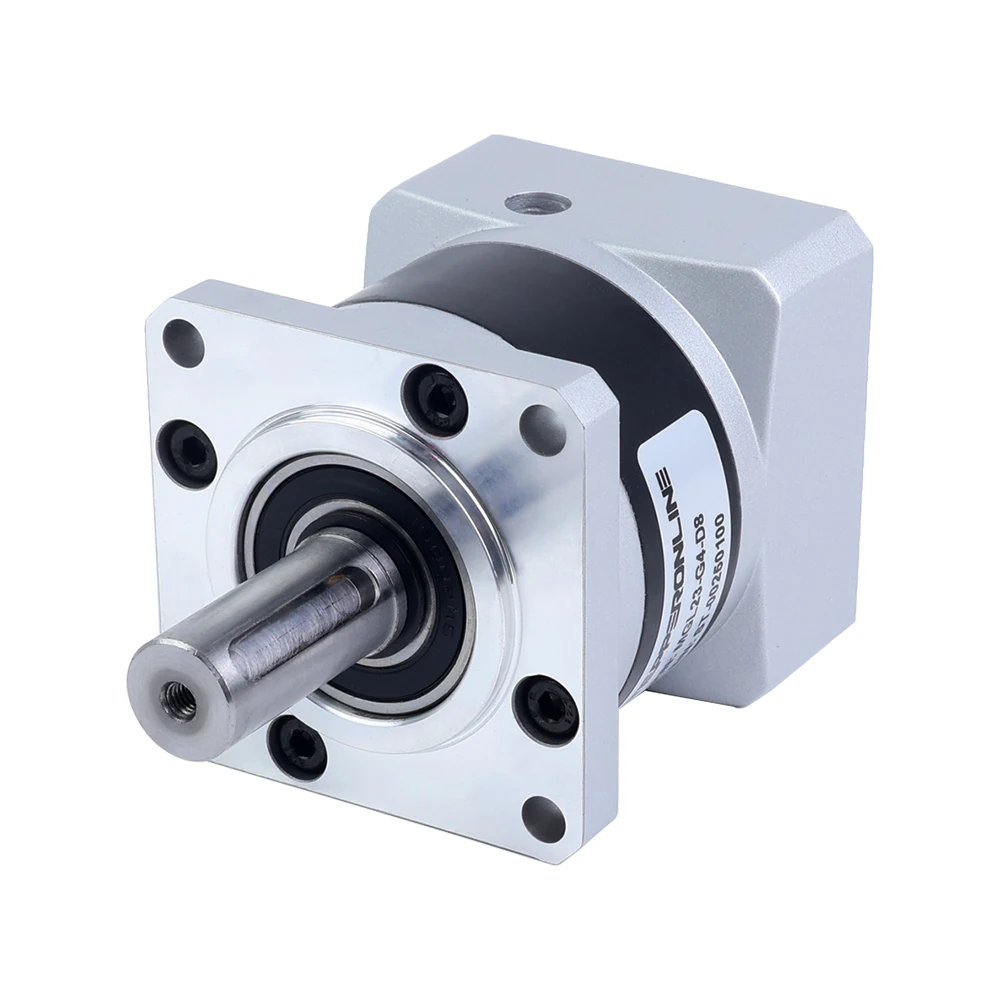

STEPPERONLINE Nema 23 Planetary Gearbox Motor Speed Reducer MGL Series Ratio 4 5 10 20 50 for 8mm Shaft Nema23 Stepper Motor planetary reducer

Product Features

The STEPPERONLINE Nema 23 Planetary Gearbox Motor Speed Reducer in the MGL Series is designed for an 8mm shaft Nema 23 Stepper Motor, offering precise speed reduction.
With a variety of ratios including 4, 5, 10, 20, and 50, this planetary gearbox provides flexible options to meet different speed requirements.
Its planetary gearing arrangement ensures smooth and efficient power transmission, making it suitable for various industrial applications.
The input shaft diameter of 8mm and output shaft diameter of 14mm are well-matched, ensuring stable performance and reliable operation.
Designed to match the Nema 23 Stepper Motor, this gearbox is a great choice for those seeking a high-quality speed-reducing solution for their motor system.

Specifications

Hign-concerned Chemical

None

Gearing Arrangement

Planetary

Model Number

MGL Series Planetary Gearbox

Input Shaft Diameter

8mm

Input Shaft Length

20-25mm

Output Shaft Diameter

14mm

Output Shaft Length

34mm

Output Shaft Type

KeyWay

Matching Motor Size

Nema 23 Stepper Motor
