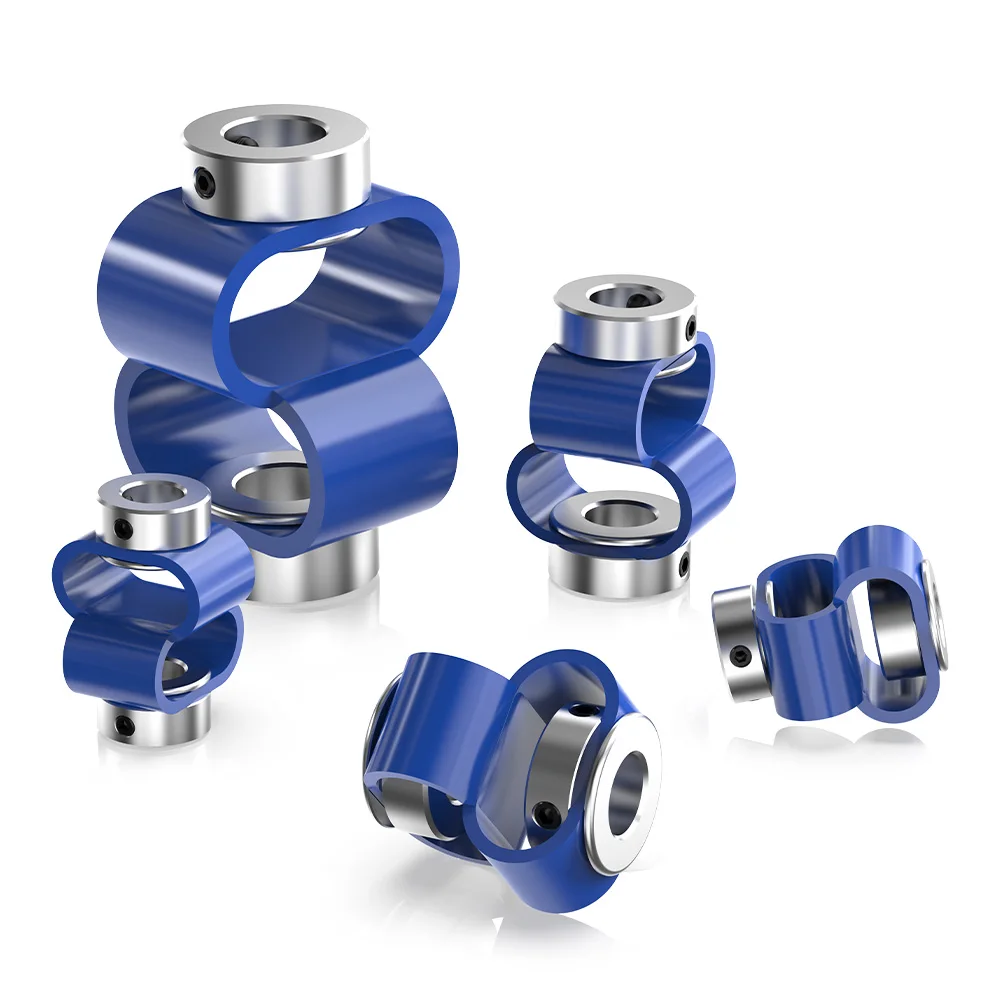

GTRIC 8-shaped Coupler D23L32 Type Plastic Flexible Eccentric Declination Elastic Coupling for Encoder

Product Features

This GTRIC 8-shaped coupler, made of aluminium, is a flexible and standard elastic coupling for encoders, with a 16mm coupling diameter.
Originating from Mainland China, it has a RoHS certification, ensuring environmental friendliness and safety.
The D23L32 series model has a coupling length of 32mm and is suitable for machinery and automation applications.
With a min-bore to max-bore of 3-8mm and M3 mounting screws, it provides a precise and reliable connection.
It can withstand a rated torque of 0.15 N. m and a max torque of 0.3 N. m, with a max speed of 3000r/min and allowable eccentricity of 2mm and deflection of 6°.

Specifications

Brand Name

GTRIC

Material

Aluminium

Model Number

D23L32 series

Standard or Nonstandard

Standard

Structure

Universal

Flexible or Rigid

Flexible

Brand

GTRIC

Model

Eight-shaped Elastic Coupling

Type

Eight-shaped

Coupling diameter

16mm

Coupling length

32mm

Commodity application

Machinery and Automation

Min Bore-Max Bore

3-8mm

Mounting screws

Screw tightening force

1.2 N.m

Rated torque

0.15 N.m

Max torque

0.3 N.m

Max speed

3000r/min

Allowable eccentricity

2mm

allowable deflection

6°

Description

GTRIC 8-shaped Coupler D23L32 Type Plastic Flexible Eccentric Declination Elastic Coupling for Encoder
