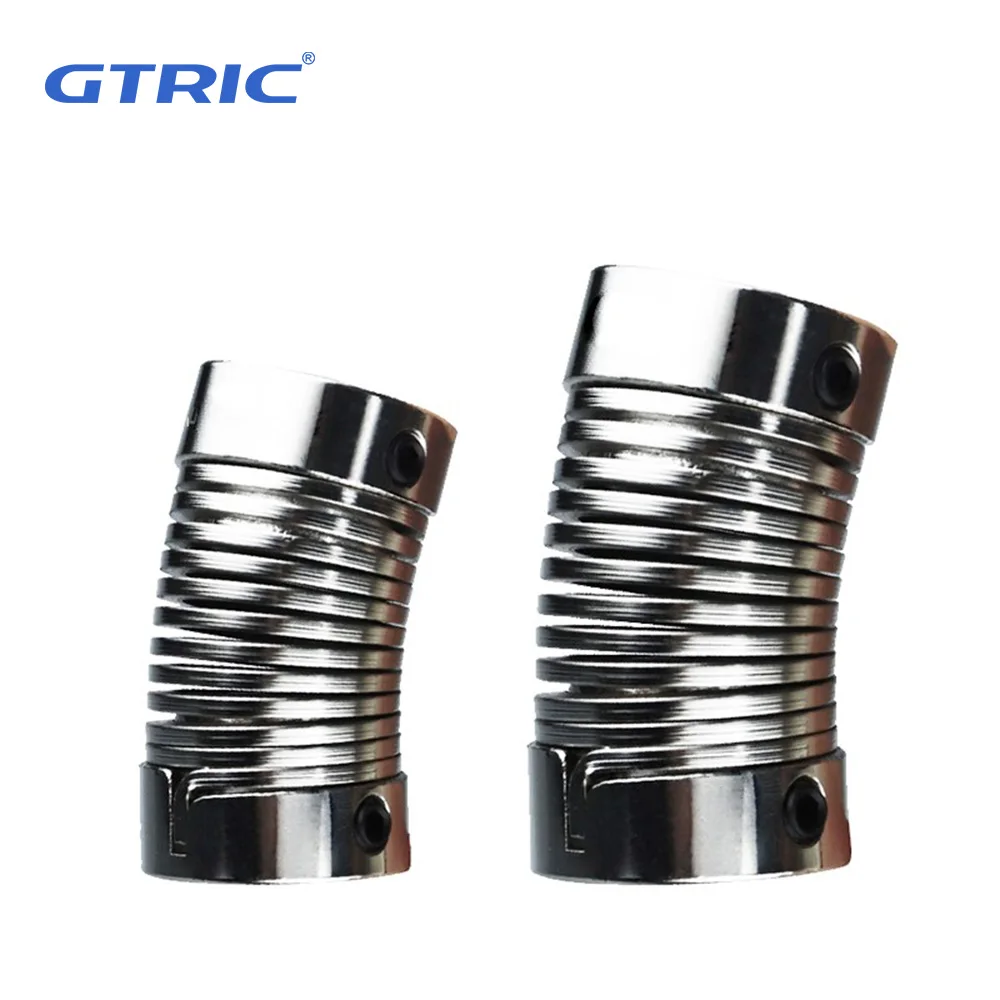

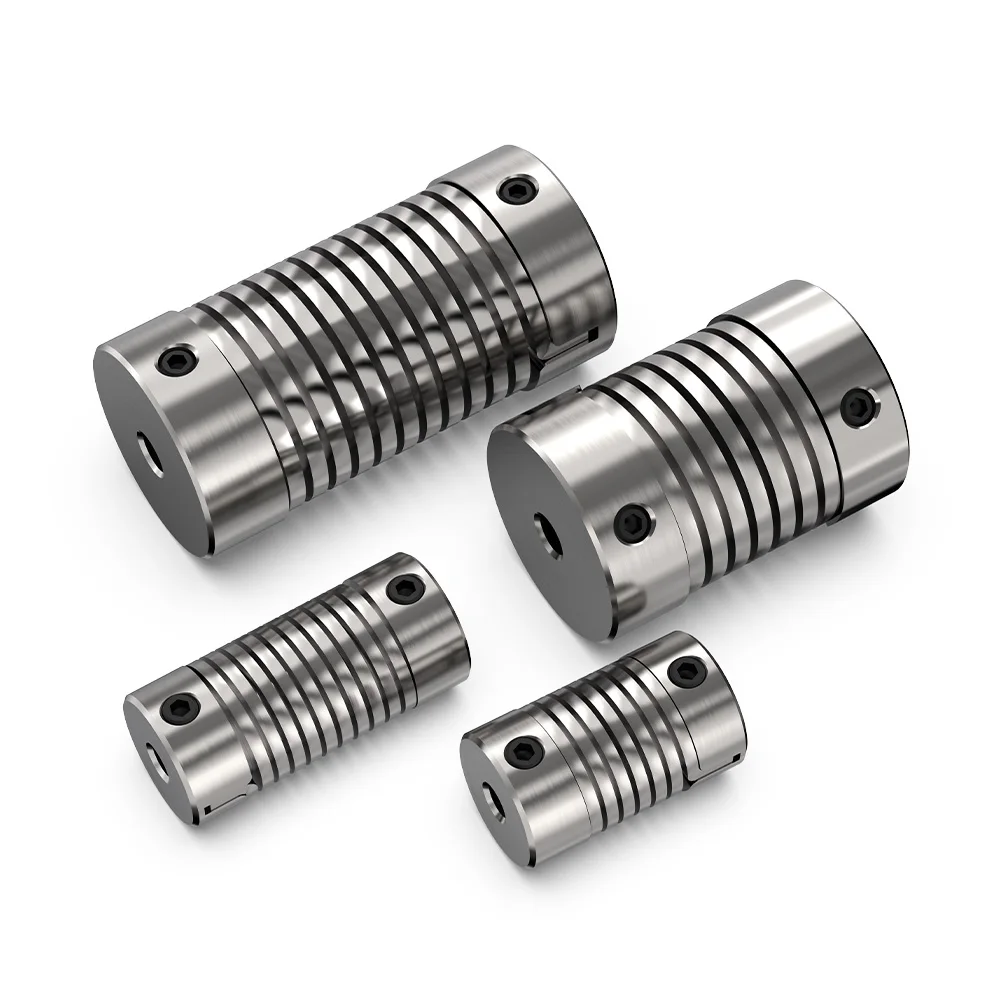

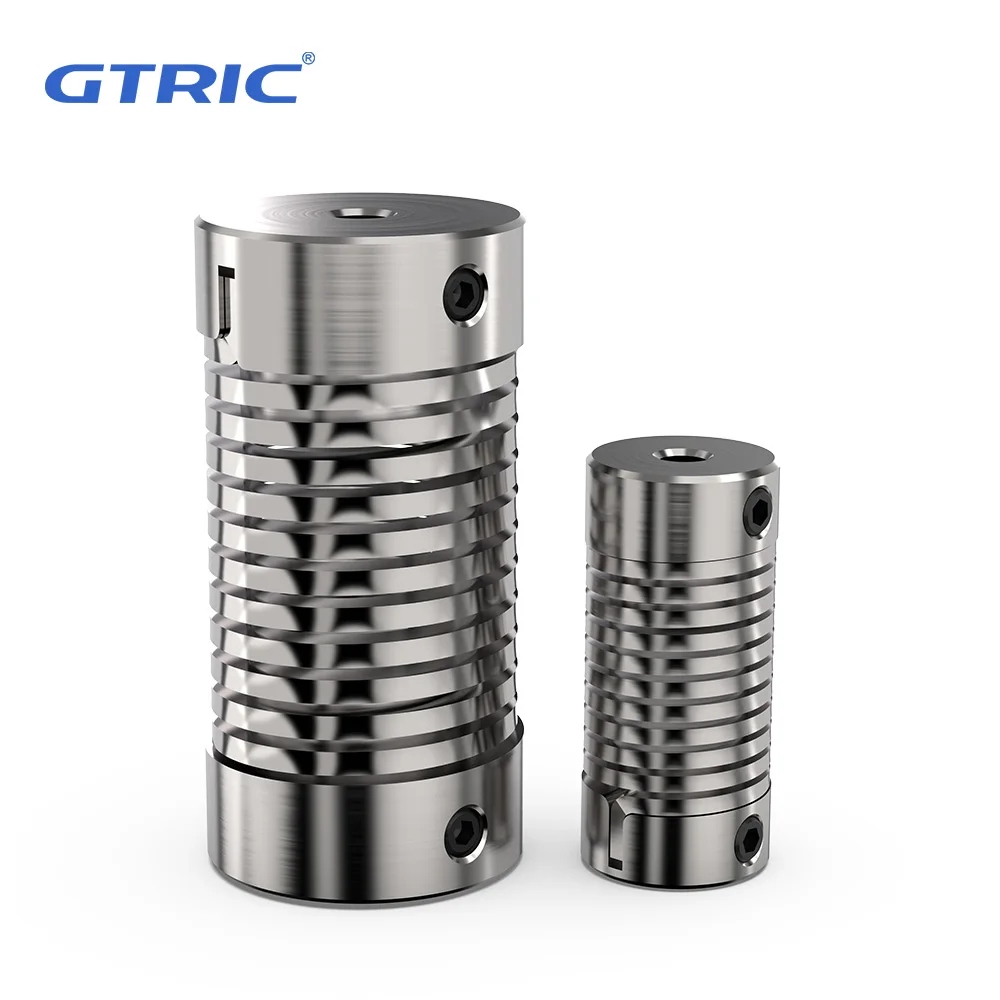

Spring Coupling D26L38 Encoder Screw Stepper Servo Motor High Torque Flexible Thread Aluminum Alloy Elastic Coupling GTRIC shaft coupler flexible coupling shaft connector

Product Features

This spring coupling, with a diameter of 26mm and a length of 38mm, is made of aluminum alloy, offering high torque and flexibility. It's suitable for encoder, screw, stepper, and servo motors.
It has a standard structure and is certified with RoHS, ensuring quality and compliance. The universal structure allows it to be used in various machinery and automation applications.
With a flexible design, it can tolerate an eccentricity of 1.5mm and a deflection of 6°, which helps to reduce stress on the connected components and extend their service life.
The coupling has a rated torque of 0.6 N. m and a max torque of 1.2 N. m, and can reach a max speed of 3000r/min, providing reliable power transmission.
The mounting screws are M5 with a screw tightening force of 10 N. m, ensuring a secure connection between the coupling and the shafts, making it a reliable choice for mechanical systems.

Specifications

Brand Name

GTRIC

Material

Stainless steel

Model Number

D26L38 series

Standard or Nonstandard

Standard

Structure

Universal

Flexible or Rigid

Flexible

Brand

GTRIC

Model

spring coupling

Coupling diameter

26mm

Coupling length

38mm

Commodity application

Machinery and Automation

d1 Bore-d2 Bore

5-16mm

Mounting screws

Screw tightening force

10 N.m

Rated torque

0.6 N.m

Max torque

1.2 N.m

Max speed

3000r/min

Allowable eccentricity

1.5mm

allowable deflection

6°

Description

Spring Coupling D26L38 Encoder Screw Stepper Servo Motor High Torque Flexible Thread Aluminum Alloy Elastic Coupling GTRIC shaft coupler flexible coupling shaft connector
