20 Teeth 5M Synchronous Pulley keyway Bore 8/10/12/12.7/14/15/16/17/18mm for Width 10/15/20mm HTD5M Timing Belt Pulleys 20T BF

Product Features

This 20-teeth 5M synchronous pulley is made of alloy material, providing high strength and durability for use with HTD5M timing belts of different widths.

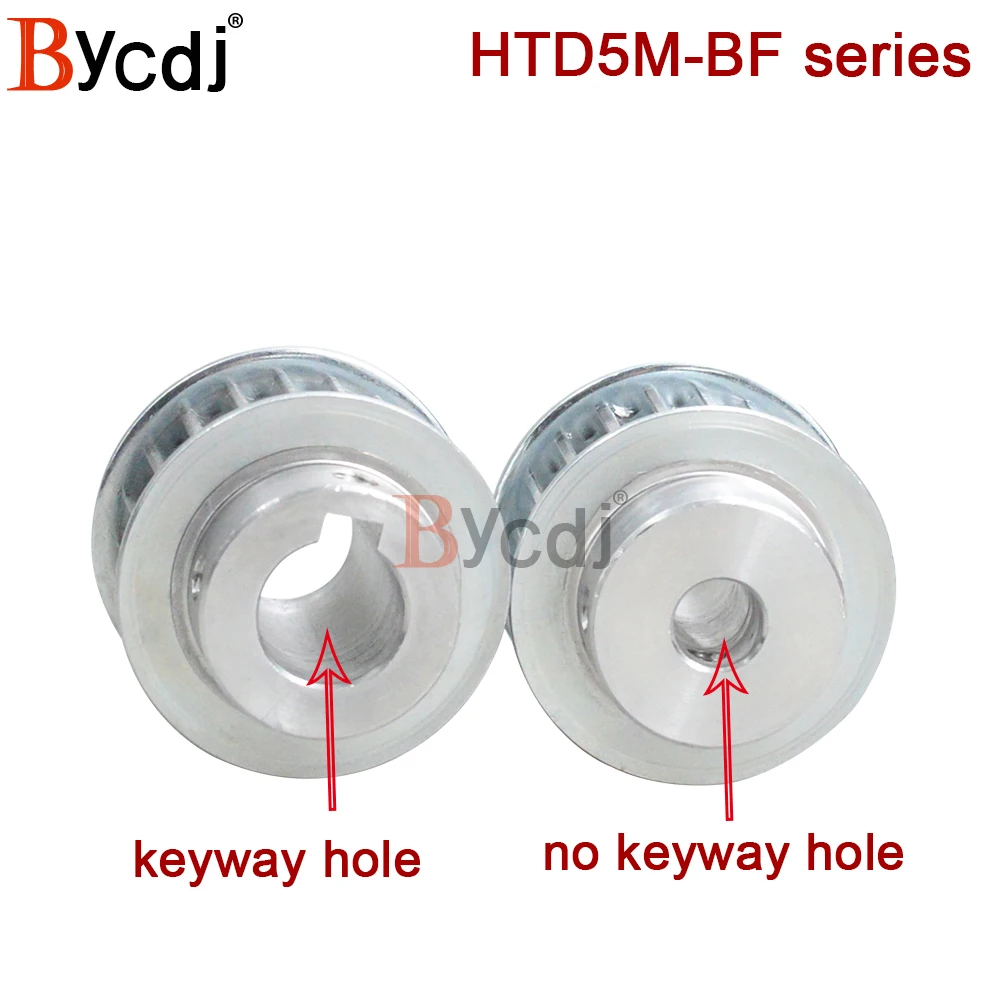

It offers a wide range of inner bore sizes from 5mm to 20mm and keyway widths from 3mm to 6mm, ensuring compatibility with various applications.

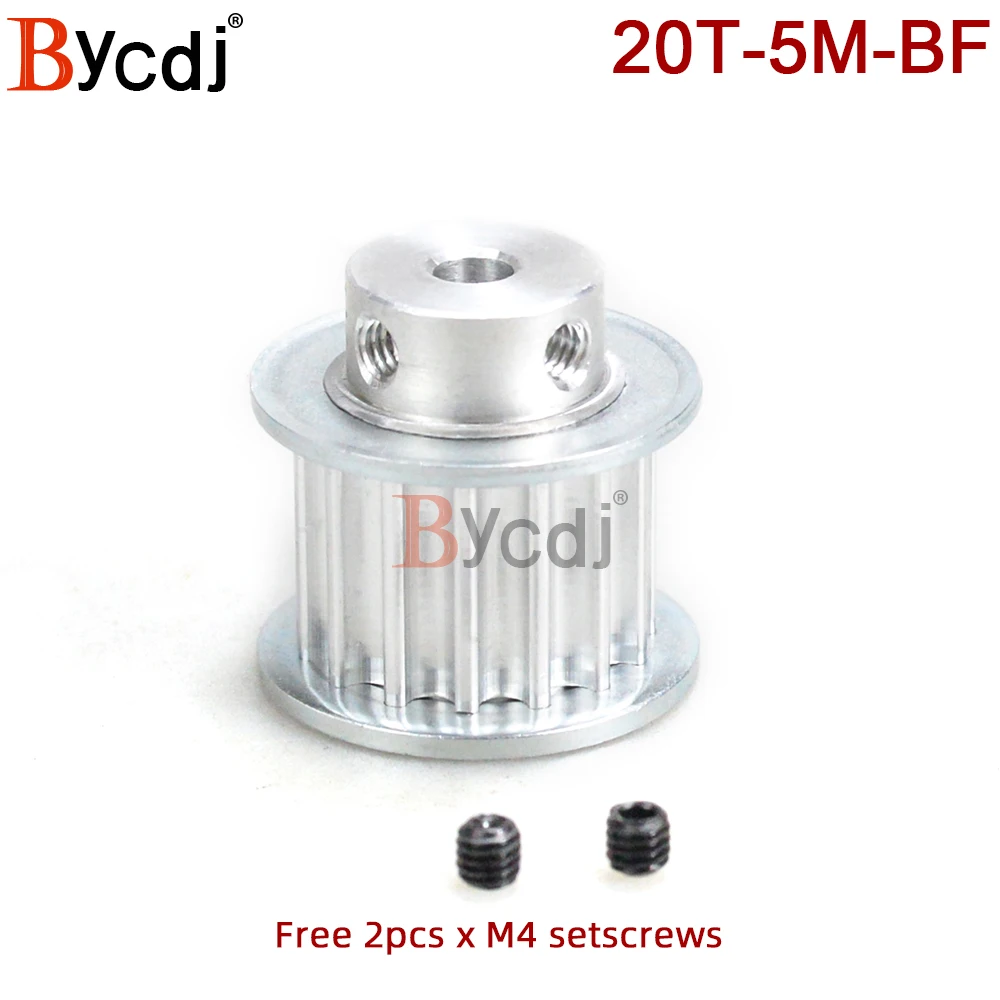

With a screw hole of 2*M4, the pulley can be securely installed, and its total height varies from 23mm to 33mm depending on the belt width.
The pulley is customizable, allowing you to choose the most suitable inner bore, keyway width, and other specifications according to your specific needs.
Designed for high-performance timing systems, it provides reliable power transmission and smooth operation in industrial and mechanical applications.

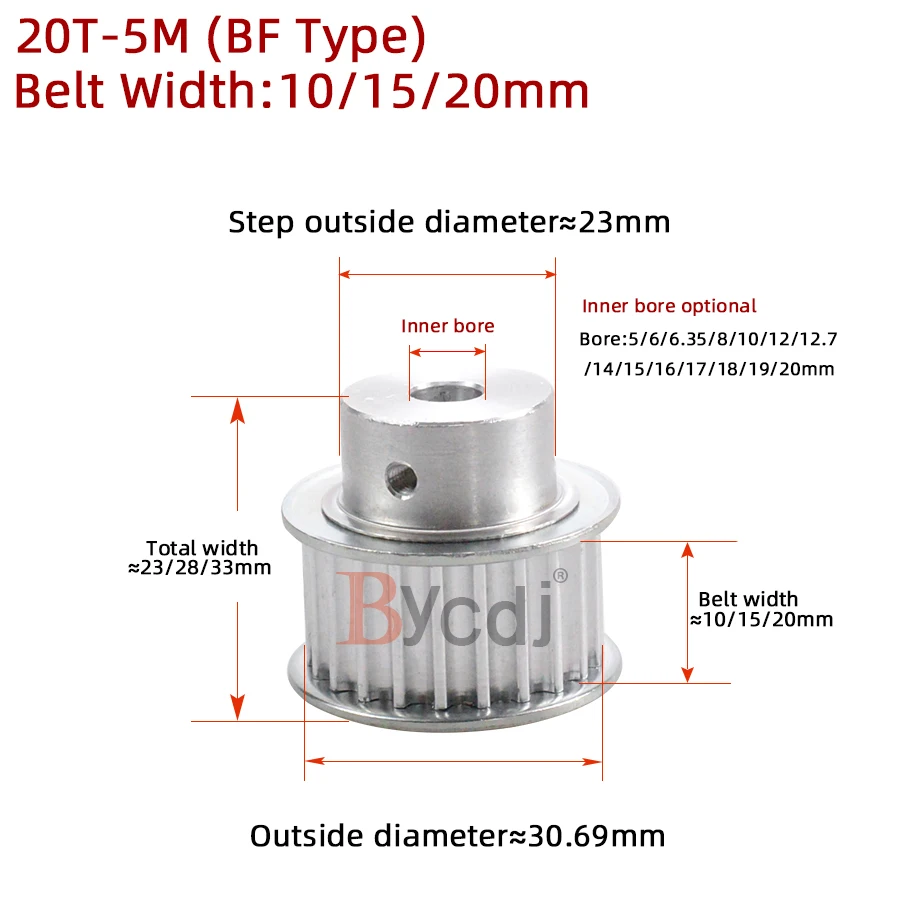

Specifications

Teeth Pitch

5mm

Belt Width

10/15/20mm

Total Height

23/28/33mm

Material

Alloy

Inner Bore

5/6/6.35/7/8/10/12/12.7/14/15/16/17/18/19/20mm

Screw Hole

2*M4

Keyway width

3/4/5/6mm

Brand Name

Bycdj

Model Number

HTD5M-BF

Type

Timing

Number of Teeth

semi_Choice

yes
