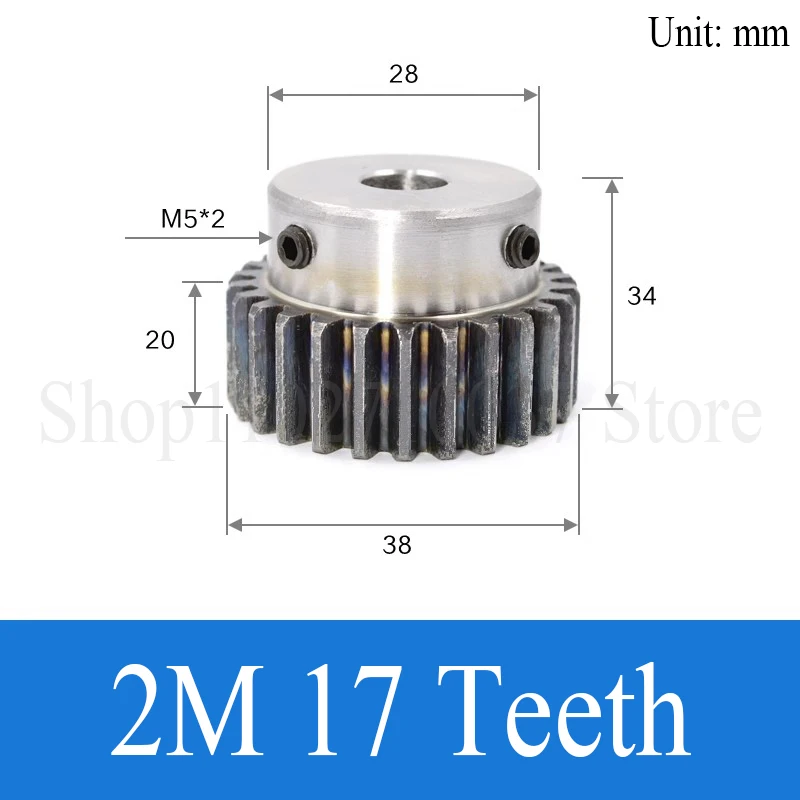

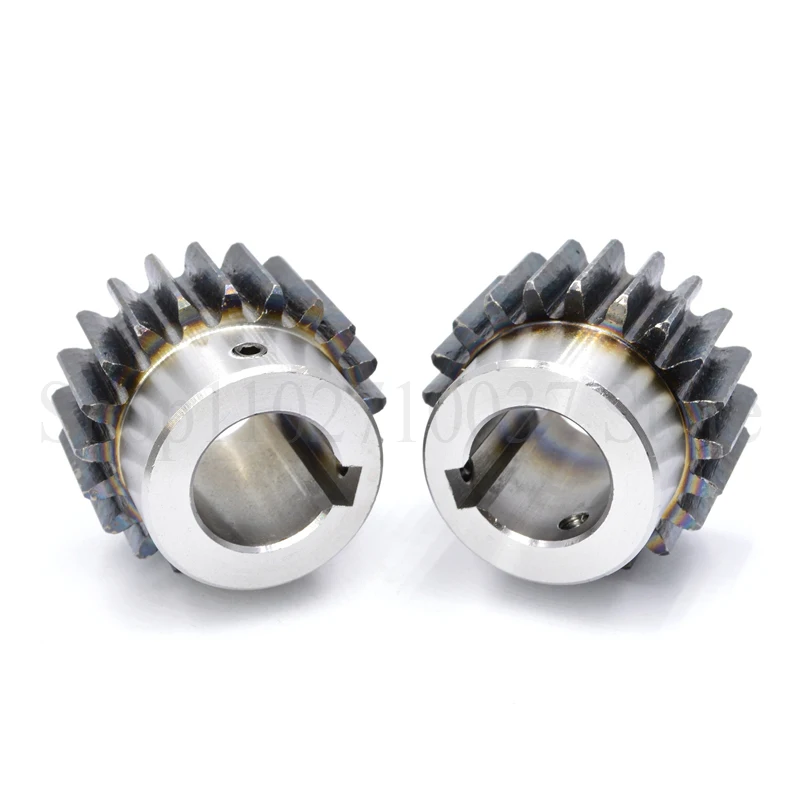

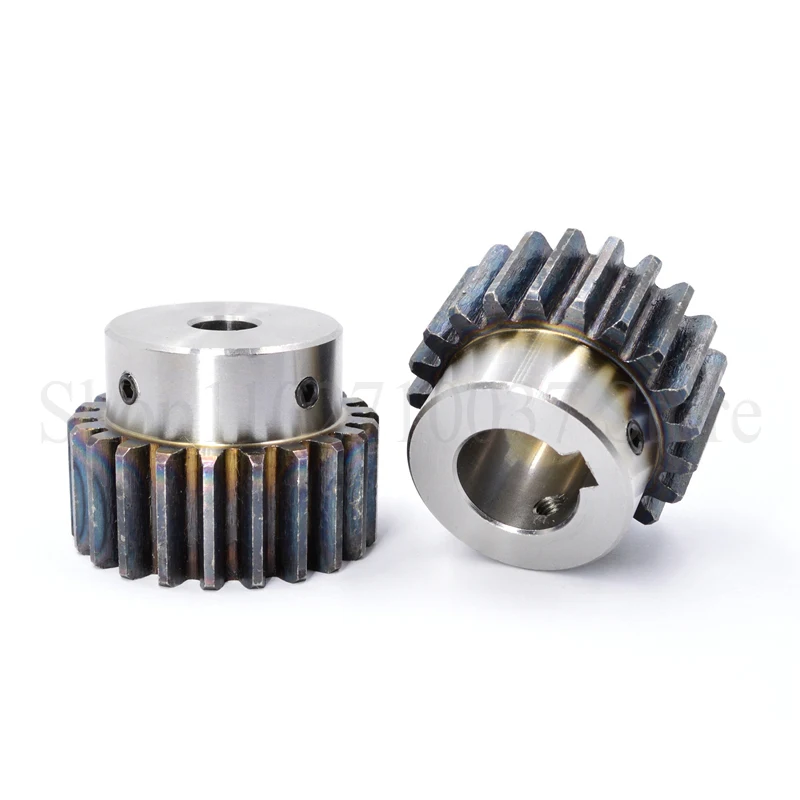

Motor Gear 1PC 2M 12T-24T Spur Gear Carbon Steel Pinion

Product Features

This motor gear, made of carbon steel, has a spur shape with teeth ranging from 12T-24T and a module of 2M, providing high-precision power transmission.
The high-frequency quenching of teeth processing enhances its hardness and wear resistance, ensuring a long service life even under heavy loads.
It is a standard gear with a variety of bore sizes (8-24mm) and keyway options (4-8mm), offering flexibility for different applications.
The tooth pitch of 6.28mm and the M5*2 screw ensure accurate meshing and stable operation, making it a reliable choice for motor applications.
With its customizable features, it can be machined to meet specific requirements, providing a tailored solution for your motor needs.

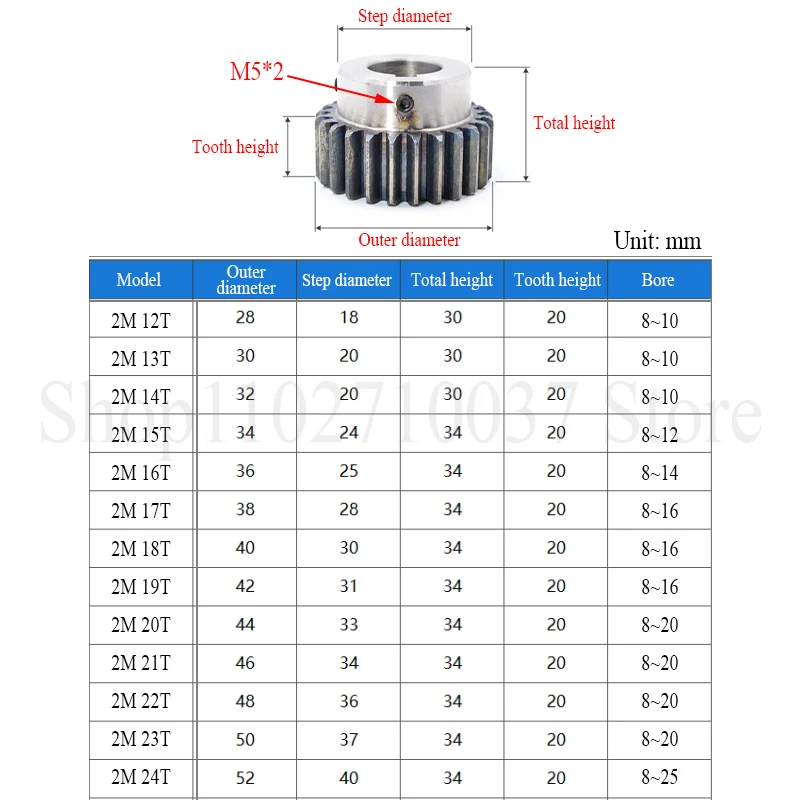

Specifications

Brand Name

GooBetter

Material

Carbon Steel

Shape

Spur

Processing

High frequency quenching of teeth

Tooth Profile

Spur Gear

Standard or Nonstandard

Standard

Module

Teeth

12T-24T

Bore

8/10/12/14/15/16/17/18/19/20/22/24mm

Keyway

4/5/6/8mm

Tooth pitch

6.28mm

Screw

M5 * 2

Axis hole

Machining completed
