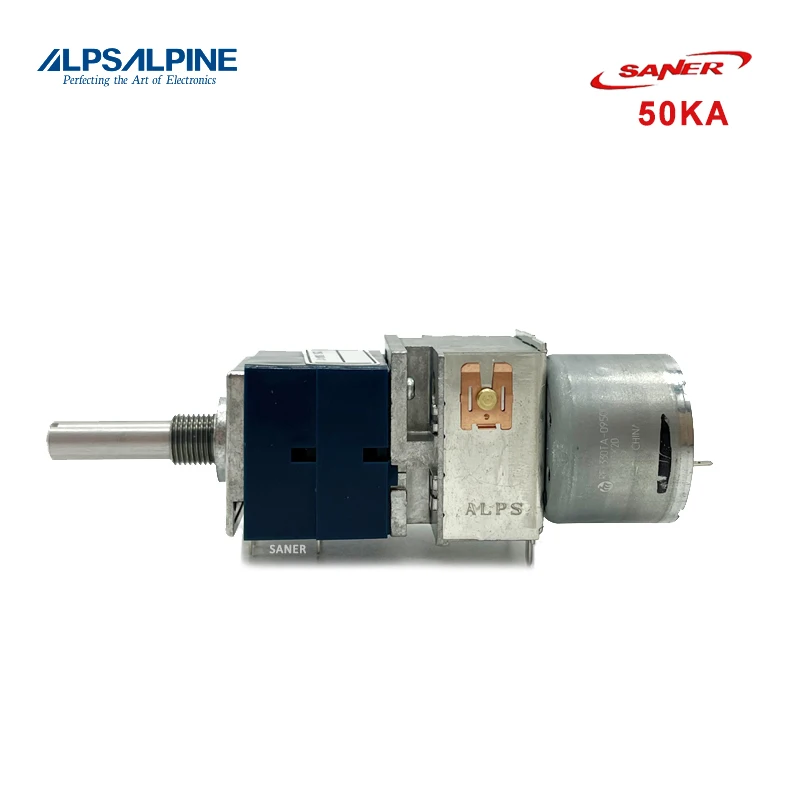

ALPS RK27 Series Rotary Potentiometer Motor 50KAx2 Dual-unit 6Pin Without Detent

★ ★ ★ ★ ★
Reviews | Questions & Answers
AU $60.01
Price includes 10% AU GST

Option :
Quantity
In Stock. Ships in 24 hours
Shipping: AU $0.00
Estimated Delivery on -
Secure Payment
Multiple payment options
Customer Service Guarantee
DOA Guarantee Missing/Wrong Items Guarantee Quality Guarantee No Reason Returns
Product Features
  • This ALPS RK27 series rotary potentiometer motor is a dual-unit 6-pin device without detent, with a total resistance of 50KA.
  • With a resistance tolerance of ±20% and an operating temperature range of -10℃~+70℃, this potentiometer offers stable performance.
  • The 300±3° total rotational angle and 8 to 35mN. m rotational torque ensure smooth and precise operation.
  • With an operating life of 15,000 cycles and a horizontal mounting direction, this potentiometer is durable and easy to install.
  • This rotary potentiometer is a reliable choice for applications that require precise control and long-term use.
Specifications
Condition
New
Resistance Tolerance
±20%
Type
Rotary Potentiometer
Operating Temperature
-10℃~+70℃
Model Number
RK27112Mxxxx
Size
6pin
Max. Operating Voltage
30V AC
Brand
ALPS
Series
RK27
Total rotational angle
300±3°
Rotational torque
8to35mN.m
Operating life
15,000cycles
Number of resistor elements
Dual-unit
Mounting direction
Horizontal
Shaft type
Round/Flat
Length of the shaft
25mm
Total resistance
50KA
Center detent
Without
