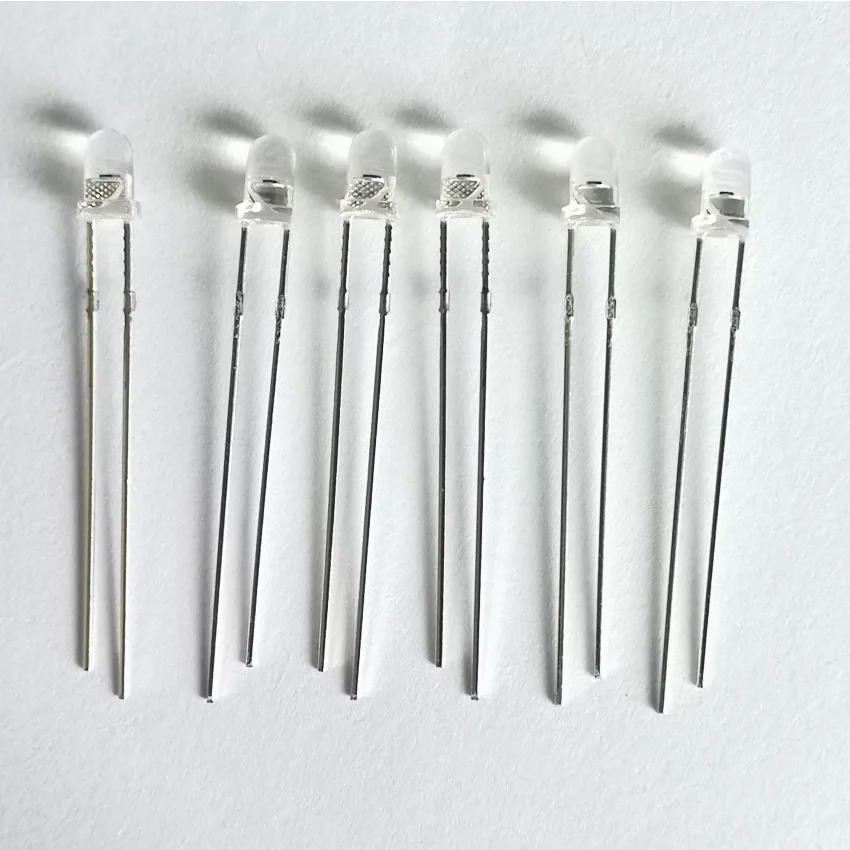

20 PCS 3mm NPN Phototransistor PT2046C Photosensor Photosensitive receiving transistor

Product Features

These 20 PCS 3mm NPN phototransistors PT2046C have a spectral bandwidth range of 400-1100 nm, enabling them to detect a wide range of light.
With a peak sensitivity wavelength of 940 nm, they offer high-precision light detection performance.
The collector emitter breakdown voltage is >30 V and the emitter collector breakdown voltage is >6 V, ensuring stable operation under different voltage conditions.
The collector dark current is <100 nA, which means low power consumption and high efficiency.
They have a fast rise/fall time of 15/15 μS and a DC current amplification factor of 1000-1800, providing quick response and strong signal amplification.

Specifications

Hign-concerned Chemical

None

Condition

New

Package Type

Throught Hole

Model Number

PT2046C

Range of Spectral Bandwidth

400---1100 nm

Wavelength of Peak Sensitivity

940 nm

Collector Emitter Breakdown Voltage

>30 V

Emitter Collector Breakdown Voltage

>6 V

Collector Dark Current

<100 nA

Collector Emitter Saturation Voltage

<=0.3 V

On State Collector Current

2.0 mA

Rise/Fall Time

15/15 μS

DC Current Amplification Factor

1000---1800
