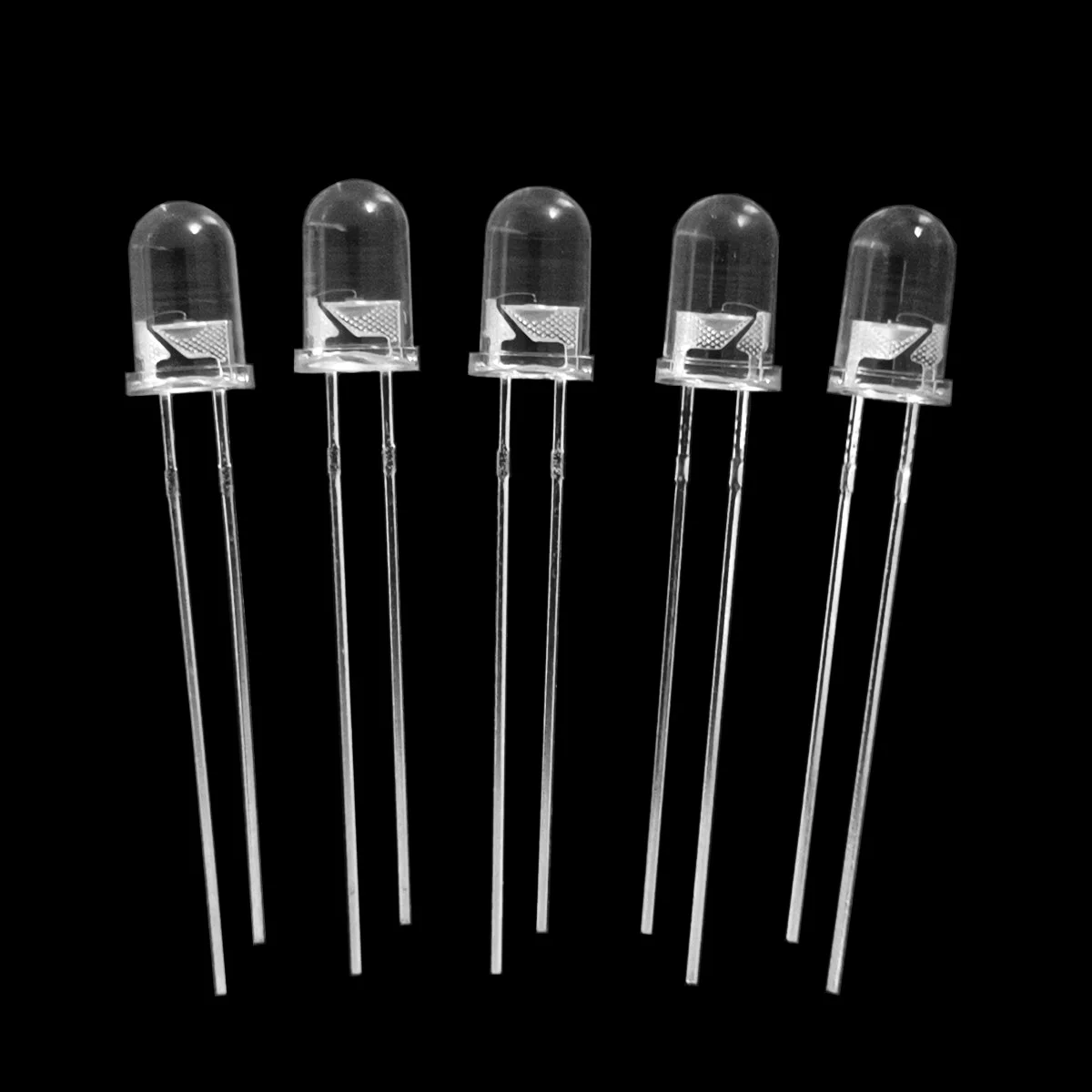

20 PCS 5mm NPN Phototransistor SGPT524C Photosensor Photosensitive receiving transistor

Product Features

These 20 PCS 5mm NPN phototransistors SGPT524C have a wide spectral bandwidth range of 400-1100 nm, suitable for various photosensing applications.
With a peak sensitivity wavelength of 940 nm, they can accurately detect light signals, ensuring high-precision performance.
The collector-emitter breakdown voltage is >30 V, and the emitter-collector breakdown voltage is >6 V, providing stable electrical performance.
They have a low collector dark current of <100 nA and a fast rise/fall time of 15/15 μS, ensuring quick response.
The DC current amplification factor ranges from 1000-1800, making them reliable for different electronic circuits.

Specifications

Hign-concerned Chemical

None

Condition

New

Package Type

Throught Hole

Model Number

SGPT524C

Range of Spectral Bandwidth

400---1100 nm

Wavelength of Peak Sensitivity

940 nm

Collector Emitter Breakdown Voltage

>30 V

Emitter Collector Breakdown Voltage

>6 V

Collector Dark Current

<100 nA

Collector Emitter Saturation Voltage

<=0.3 V

On State Collector Current

2.0 mA

Rise/Fall Time

15/15 μS

DC Current Amplification Factor

1000---1800
