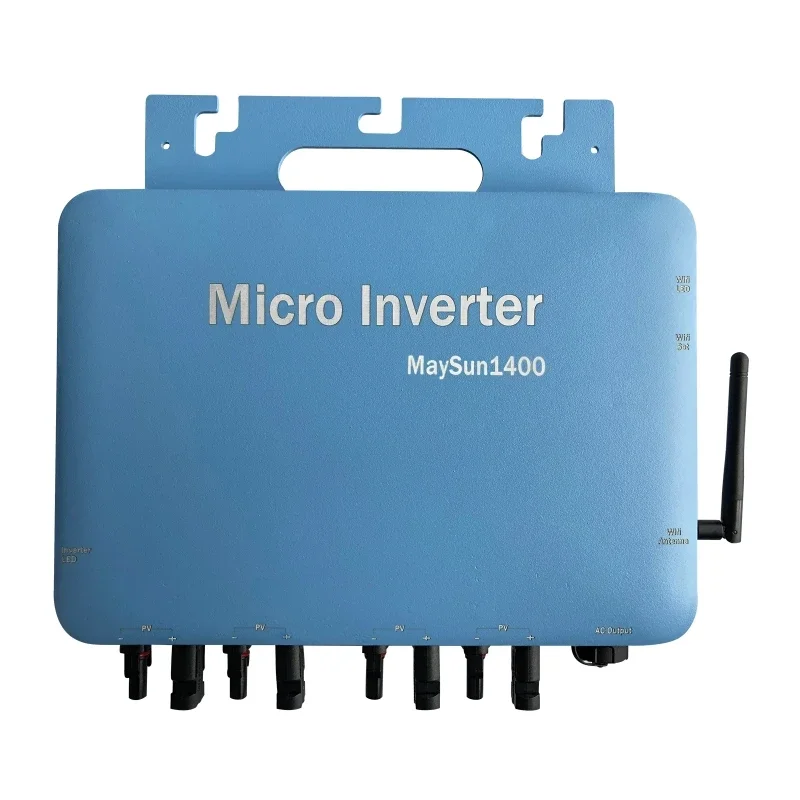

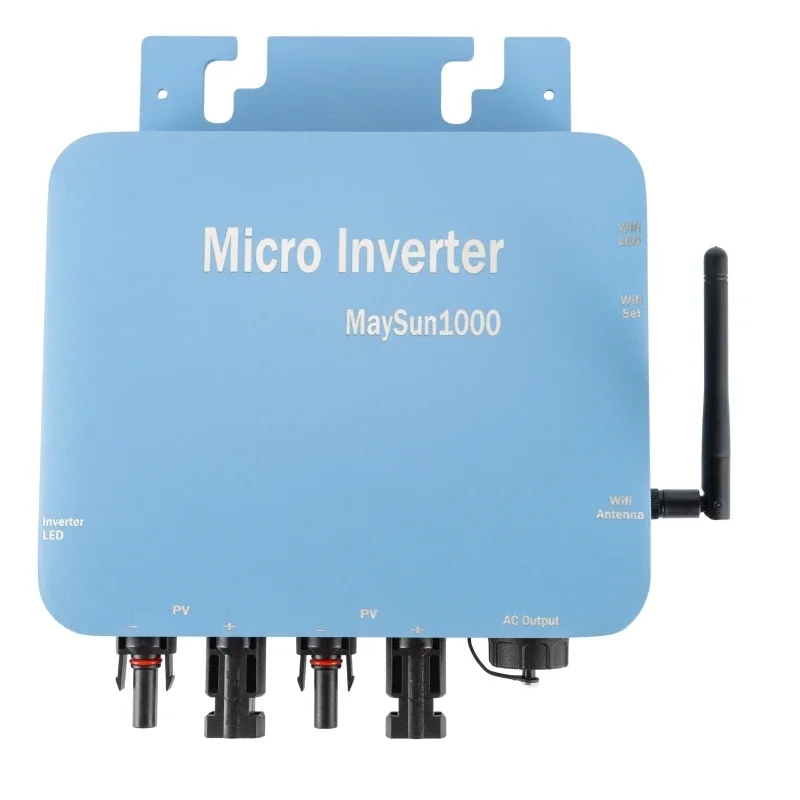

Solar Grid Micro Inverter 600W/700W/800W/1000W/1200W/1300W/1400W/1500W Converter Pure Sine Wave built-in WIFI MPPT grid solar inverter

Product Features

This solar grid micro inverter, available in 600W-1500W, features a pure sine wave output and built-in WIFI MPPT, ensuring efficient energy conversion.
With a wide working voltage range of 20V-60V and MPPT maximum tracking voltage range of 28V-55V, it can adapt to various solar panel setups.
It has a high conversion efficiency of up to 95% and CEC weighted efficiency of 93.5%, maximizing solar energy utilization.
With a protection level of IP65 and natural cooling method, it can operate stably in different environmental conditions.
It offers different power options with corresponding connector and output specifications, allowing you to choose according to your energy needs.

Specifications

Brand Name

luxuglow

Hign-concerned Chemical

None

name

Micro Solar Panel Intelligent Inverter

MPPT maximum tracking voltage range

28V-55V

work voltage range

20V-60V

waximum tributary input voltage

60V

wtarting voltage

20V

single -phase grid type

220V/110V

rated AC voltage

AC 220V / AC 1100V

output voltage range

180V-280V

rating communication frequency

50Hz / 60Hz

export frequency range

47.5Hz-52.5Hz / 57.5Hz-62.5Hz

output power factor

>0.99

harmonic distortion of output current

THD <5%

most conversion efficiency

95%

CEC weighted efficiency

93.5%

MPPT tracking efficiency

99.9%

Night loss

<700mW

working environment temperature

-40 ℃ ~+65 ℃

storage environment temperature

-40 ℃ ~+85 ℃

maximum current of AC cable

20A / 40A

protection level

IP65

cooling method

natural cooling

600W

2 groups connector,580W output power,2*10A DC input,2.56A AC current

700W

2 groups connector,650W output power,2*11.66A DC input,2.82A AC curren

800W

2 groups connector,760W output power,2*13.33A DC input,3.3A AC current

1000W

2 groups connector,950W output power,2*16.66A DC input,4.13A AC curren

1200W

4 groups connector,1150W output power,4*10A DC input,5A AC current

1300W

4 groups connector,1250W output power,4*10.8A DC input,5.43A AC curren

1400W

4 groups connector,1350W output power,4*11.66A DC input,5.86A AC curre

1500W

4 groups connector,1450W output power,4*12.5A DC input,6.3A AC current

Description

Solar Grid Micro Inverter 600W/700W/800W/1000W/1200W/1300W/1400W/1500W Converter Pure Sine Wave built-in WIFI MPPT grid solar inverter
