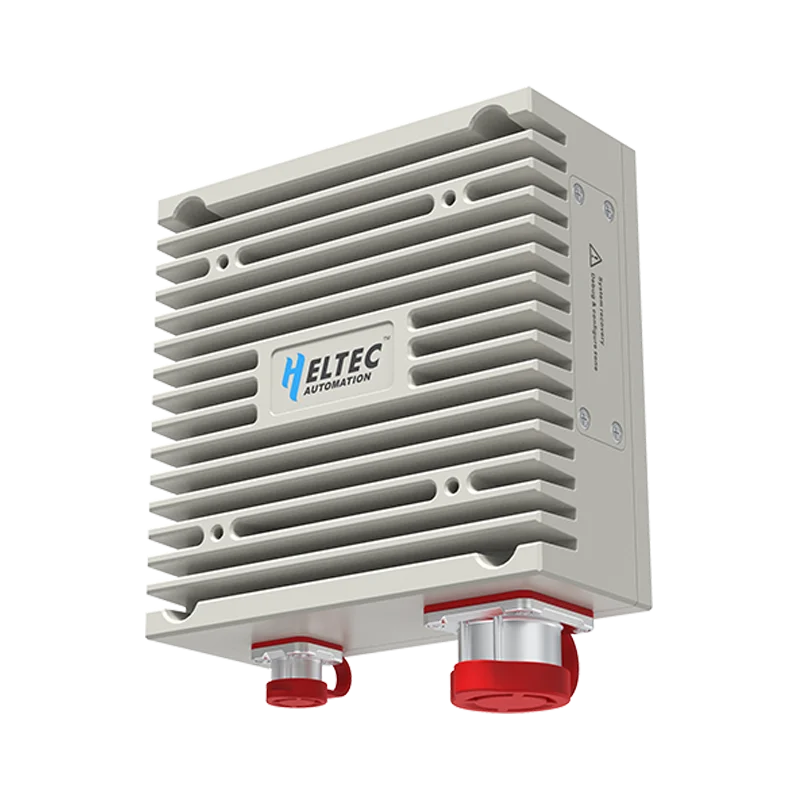

Heltec M02 Edge LoRa Gateway SX1303+SX1250 LoRa LTE 4G WiFi PoE Compatible with Linux and Debian Denelopment Envirnoment

★ ★ ★ ★ ★
Reviews | Questions & Answers
AU $858.29
Price includes 10% AU GST

Bundle :
Color :
Quantity
In Stock. Ships in 24 hours
Shipping: AU $0.00
Estimated Delivery on -
Secure Payment
Multiple payment options
Customer Service Guarantee
DOA Guarantee Missing/Wrong Items Guarantee Quality Guarantee No Reason Returns
Specifications
Brand Name
Heltec Automation
Demo Board Type
Raspberry pi 2 b
Hign-concerned Chemical
None
Master Chip
ROCKCHIP Quad-core Cortex-A55 64-bit 1.8GHz processors
RAM
2G DDR4
ROM
32G eMMC 5.1
LoRa Chipset
SX1303 + SX1250
PoE IEEE802.3af
48V
Wi-Fi (2.4GHz)
IEEE 802.11 b/g/n
LTE
Cat. 1 / Cat. 4
Max. Receiving sensitivity
-139 dBm@SF12, 125KHz
Wi-Fi / Bluetooth (Optional)
802.11 b/g/n, 2.4GHz
4G (Optional)
CAT. 1, CAT. 4
Protection Level
IP66
Operating temperature
- 40 ~ 85 ° C
Dimensions
125(+40) x 125 x 52 mm
LoRa Gateway
M02 Edge Gateway
